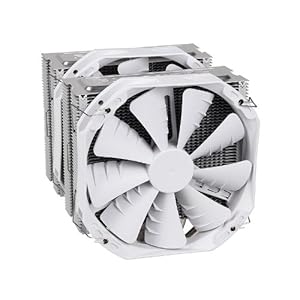

![PHANTEKS PH-TC14PE 5x?8mm Dual Heat-Pipes Dual 140mm Premium Fans and Quiet CPU Cooler with patented P.A.T.S coating]({"http://ecx.images-amazon.com/images/I/510u3x6JD9L._SX466_.jpg":[466,466],"http://ecx.images-amazon.com/images/I/510u3x6JD9L._SX425_.jpg":[425,425],"http://ecx.images-amazon.com/images/I/510u3x6JD9L.jpg":[500,500],"http://ecx.images-amazon.com/images/I/510u3x6JD9L._SY355_.jpg":[355,355],"http://ecx.images-amazon.com/images/I/510u3x6JD9L._SY450_.jpg":[450,450]})
| Brand Name | Phanteks |
|---|---|
| Item model number | PH-TC14PE |
| Item Weight | 2.8 pounds |
| Product Dimensions | 6.6 x 7.5 x 8.4 inches |
| Item Dimensions L x W x H | 6.58 x 7.48 x 8.43 inches |
| Color | White |
Other Sellers on Amazon
$78.23
+ Free Shipping
+ Free Shipping
Sold by:
RackGo
$104.62
+ $9.49 shipping
+ $9.49 shipping
Sold by:
J-Electronics
$105.00
+ $9.12 shipping
+ $9.12 shipping
Sold by:
Royal Electronics LLC
6 new from $78.23
Have one to sell?
PHANTEKS PH-TC14PE 5x?8mm Dual Heat-Pipes Dual 140mm Premium Fans and Quiet CPU Cooler with patented P.A.T.S coating
by
Phanteks
| List Price: | $99.77 |
| Price: | $83.65 & FREE Shipping. Details |
| You Save: | $16.12 (16%) |
In Stock.
Want it Tuesday, March 29?
Order within and choose Two-Day Shipping at checkout.
Details
Ships from and sold by Amazon.com.
Gift-wrap available.
- Enter your model number above to make sure this fits.
- Material: Copper (Base and 5x8mm Heat-pipes),Nickel Plated. Alum. with Patented P.A.T.S. and Patented C.P.S.C Technology. Fan Model: PH-F140 Premium Fan. Fan Size: 140x140x2,Dual Fans include. Fan Compatibility: 140x140x25mm x3pcs, (120x120x25mm x 3pcs).
- Bearing Type : UFB bearing ( Updraft Floating Balance bearing ). Blade Geometry : 9 White colored Blades with MVB ( Maelström Vortex Booster) Design. RPM : 1200 RPM ± 10%. RPM with Q.S.A: 900 RPM ± 10%.
- Max Air Flow: 78.1 CFM. Max Air Flow with QSA: 60.1 CFM. Max Air Pressure: 1.21 mm H2O. Max Air Pressure with QSA: 0.69 mm H2O. Acoustical Noise : 19 dBA. Acoustical Noise with Q.S.A : 15.2 dBA.
- Input Power : 1.8W. Current (Ampere): 0.15A. Rate Voltage : 12V. MTBF > 150,000 hr.
- Heat sink Dimension (LxWxH) without fan: 134*140*160mm. Heat sink Dimension (LxWxH) with Dual Fans: 159*140*17mm. Heat sink Weight without fan: 970g. Heat sink Weight with fan: 1100/1250g (single/Dual) Fan. Package Dimension : 167x214x190mm (LxWxH).
- Features : -Patented. P.A.T.S (Physical Antioxidant Thermal Shield) will greatly increase the cooling performance and reliability while deflecting other thermal radiation from other heat sources, such as the GPU, South Bridge, North Bridge, etc. P.A.T.S, ran at a long period, will display significantly better results in an enclosure, closed environment, than a tech station, open environment. In extreme conditions, PATS is able to withstand temperatures of up to 200 degrees Celcius. P.A.T.S is environmental friendly and non-toxic.-Patented. C.P.S.C (Cold Plasma Spraying Coating Technology) is a brand new technologic forming deposit that displaces heat onto corresponding metals at a quicker rate. With this technology, the Phanteks PH-TC14PE enhances thermal conductivity on the soldered surfaces of the heat-pipes through the copper deposits.-Designed with dual tower radiators; the PH-TC14PE has five 8mm heat-pipes linearly aligned to ensure optimal cooling. This cooler is made to have the least amount of air and thermal resistance.
- Phanteks PH-F140 premium 140mm fans uses Updraft Floating Balance (U.F.B) bearing, nine Maelstrom Vortex Booster (M.V.B) blades, and Maelstrom Air-Fort Optimization (M.A.F.O) drive system to achieve massive airflow and perfect dynamic balance. to reduce noise level, the fan emits a low dBA with the support of the anti-acoustic rubber-pad and rubber-bar to help eliminate vibration.-The SoliSku universal mounting kit provides an easy-to-install rotational back plate for Intel LGA 2011/1155/1156/11366/775. AMD AM2/AM2+/AM3/3+/FM 1 ( stock back plate required ). -The PH-NDC is a superb quality thermal compound for heat sinks. It is made of high-purity nano diamond like particles to improve the thermal conductance between components. The generated heat caused by the CPU will transfer to the heatsink, without reduction in efficiency and resistance.
6 new from $78.23
| A Full Selection of Industrial Electrical Supplies |
 Outlets |  Terminals |  Electric Motors |  Pushbutton Switches |
Frequently Bought Together
Customers Who Bought This Item Also Bought
Page 1 of 1 Start overPage 1 of 1
Sponsored Products Related To This Item (What's this?)
Page 1 of 1 Start over
Customers Viewing This Page May Be Interested In These Sponsored Links
(What's this?)
1.
Cooling With Heat Pipes
|
-
|
Free Custom Design/Thermal Analysis Including Embedded Solutions
|
|
|
2.
Caloduc Heatpipe
|
-
|
Pour Aeronautique et Ferroviere Realisation sur plans
|
Sponsored Products Related To This Item (What's this?)
Page 1 of 1 Start over
Customer Reviews
Top Customer Reviews
By
Norseman
on August 23, 2013
Color: Blue
Verified Purchase
UPS had just left and I unboxed my Phanteks PH TC14PE. I must have sat there 10 minutes just looking it over. This thing is a work of art. Beautiful.
It is very well made. Tight manufacturing tolerances and an unblemished Blue finish. Packed like it was glass, in it's factory box. You hardly know where to grab it to get it out.
I had watched the youtube videos on installation and was pretty sure of my actions, but you always come across a part or piece that stumps you. So I grab the instructions from the box, Looked over both sides , It slowly dawned on me ..I don't speak either of these languages.(?) My wife seeing my puzzled look reached into the box and handed me another one and said " Here try this one it's in "English and British" Again I get the puzzled look (?) I thought they were the same? She just laughed and walked away. Duh! She got me.
But, the Phanteks comes with 2 boxes full of hardware. Everything you could ever possibly need, except a long screw driver.. One is marked AMD the other Intel. And some generic parts for both.
As for the Intel stuff, (?) I know nothing. My last Intel was a 100mhz Pentium..a looong time ago. But, the AMD stuff was simple. It uses the standard AMD back plate. Watch the youtube video, it's great...and one is on the AM3+ motherboard.
I have yet to punish my new FX-8350 to see what she will do. But I can tell you the temps look really good and it is silent. Unlike the Corsair A-70 it replaced. I only had a chance to run "Heaven" Bench mark at max everything before I went to work,I did run Prime 95 for the 32M setting but it was so quick there wasn't any temp rise.
Watching "hardware Monitor" I saw that it did spin up for startup, but it is so quiet I never heard it. I opened the case door..Nope, still can't hear it.Read more ›
It is very well made. Tight manufacturing tolerances and an unblemished Blue finish. Packed like it was glass, in it's factory box. You hardly know where to grab it to get it out.
I had watched the youtube videos on installation and was pretty sure of my actions, but you always come across a part or piece that stumps you. So I grab the instructions from the box, Looked over both sides , It slowly dawned on me ..I don't speak either of these languages.(?) My wife seeing my puzzled look reached into the box and handed me another one and said " Here try this one it's in "English and British" Again I get the puzzled look (?) I thought they were the same? She just laughed and walked away. Duh! She got me.
But, the Phanteks comes with 2 boxes full of hardware. Everything you could ever possibly need, except a long screw driver.. One is marked AMD the other Intel. And some generic parts for both.
As for the Intel stuff, (?) I know nothing. My last Intel was a 100mhz Pentium..a looong time ago. But, the AMD stuff was simple. It uses the standard AMD back plate. Watch the youtube video, it's great...and one is on the AM3+ motherboard.
I have yet to punish my new FX-8350 to see what she will do. But I can tell you the temps look really good and it is silent. Unlike the Corsair A-70 it replaced. I only had a chance to run "Heaven" Bench mark at max everything before I went to work,I did run Prime 95 for the 32M setting but it was so quick there wasn't any temp rise.
Watching "hardware Monitor" I saw that it did spin up for startup, but it is so quiet I never heard it. I opened the case door..Nope, still can't hear it.Read more ›
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
By
Christopher Kuhn
on January 31, 2013
Color: White
Verified Purchase
I decided on this cooler mostly because it rocks and keeps my cpu really cold. I am runnin a intel i7 920 and i have it overclocked to 4.1 Ghz (195x21). With my old cooler master hyper 212+ i had idle temps of 63~c and load temps of 90+c. With this cooler i now have idle temps of 29~c and load temps in the low 63~c. I was able to max it out with no case airflow and a space heater (lasko 1500 watt) pointed right at it 69c. Basicly this cooler kicks butt. I ran my own test with diffrent thermal pastes and will share my results.
NT-H1 (noctua included paste)
LOAD:66c
Cooler Master unbranded paste that came with hyper 212+
LOAD:71c
Arctic Cooling MX4
LOAD:65c
Cooling inovations IC Diamond 24 Caret
LOAD:61c
(scared too use it other than for testing, people report damage to there heatsinks and cpus. In my opinon not worth the risk for 2c diffrence.)
Phanteks included paste with this cooler
LOAD:63c
The biggest take away for me and this cooler is that you should not waste money on special thermal paste the included paste is really good and lasts up to 3-4 years.
I also added the third fan from phanteks. I debated many hours wether to switch out all three fans for the B gears B-Blaster 140mm fans becuase they have a CFM rating of 103cfm wich is roughly 30 more then the phanteks fan but after reading reviews from professionals i stuck with the stuck because it will only be 1-2c degree diffrence.
My Specs (relivant to cpu cooling)
CASE: Antec DF-85 with stock fans, optional 120 side fan installed as intake.
CPU:1366socket i7 920 OC to 4.1 Ghz.
PSU:1350 watt Coolmax CUQ series.
The case was in an ambient room with temps always @62F (my cold house)
NT-H1 (noctua included paste)
LOAD:66c
Cooler Master unbranded paste that came with hyper 212+
LOAD:71c
Arctic Cooling MX4
LOAD:65c
Cooling inovations IC Diamond 24 Caret
LOAD:61c
(scared too use it other than for testing, people report damage to there heatsinks and cpus. In my opinon not worth the risk for 2c diffrence.)
Phanteks included paste with this cooler
LOAD:63c
The biggest take away for me and this cooler is that you should not waste money on special thermal paste the included paste is really good and lasts up to 3-4 years.
I also added the third fan from phanteks. I debated many hours wether to switch out all three fans for the B gears B-Blaster 140mm fans becuase they have a CFM rating of 103cfm wich is roughly 30 more then the phanteks fan but after reading reviews from professionals i stuck with the stuck because it will only be 1-2c degree diffrence.
My Specs (relivant to cpu cooling)
CASE: Antec DF-85 with stock fans, optional 120 side fan installed as intake.
CPU:1366socket i7 920 OC to 4.1 Ghz.
PSU:1350 watt Coolmax CUQ series.
The case was in an ambient room with temps always @62F (my cold house)
