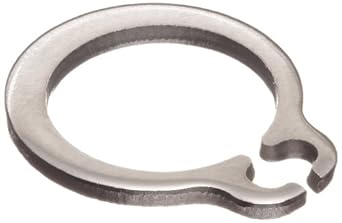

Standard External Retaining Ring, Tapered Section, Axial Assembly, DIN 1.4122 Stainless Steel, Passivated Finish, Meets DIN 471 Specifications, 20mm Shaft Diameter, 1.20mm Thick, Made in US (Pack of 5)

5 out of 5 stars 2 customer reviews
List Price: $19.70
Price: $3.01 ($0.60 / Retaining Rings) & FREE Shipping on orders over $49. Details
You Save: $16.69 (85%)
Only 2 left in stock (more on the way).
Want it tomorrow, April 26? Order within and choose One-Day Shipping at checkout. Details
Ships from and sold by Amazon.com.
21.20 mm
5
  • Enter your model number above to make sure this fits.
  • Standard round shape has lug holes on each end for installing with a tool
  • Tapered section construction provides flexibility to facilitate installation
  • Axial assembly mounting style has the ring install by sliding onto a shaft from the end
  • Stainless steel provides corrosion resistance, and the passivated finish enhances its natural corrosion resistance
  • Meets DIN 471 specifications, and is made in USA
Product Specifications
UPC 848790010744
Compatible Groove Depth 0.5  mm
Compatible Groove Diameter 19  mm
Compatible Groove Width 1.3  mm
EAN 0848790010744
For Outside Diameter 20  mm
For Shaft Diameter 20
Indentation Hardness 44  Rockwell C
Inside Diameter 18.5  mm
Inside Diameter Tolerance +0.13 mm/-0.42  mm
Number of Items 5
Outside Diameter 21.20  mm
Shape Standard
Thickness 1.20  mm
Thickness Tolerance -0.06  mm
Specification for this product family
Brand Name Small Parts
Part Number B00D2B6U6C
Material Type Stainless Steel
System of Measurement Metric
Specification Met DIN 471
Body Style Standard
Exterior Finish Passivated
Grade DIN 1.4122
Import Designation Made in US
Manufacturer Series Number DSH
Mount Type Axial
Style Name Tapered Section
UNSPSC Code 31163202
2 new from $3.01
A Full Selection of Hydraulic, Pneumatic & Plumbing Products
pipe fittings
Pipe Fittings 		seals
Seals 		hydraulic valves
Hydraulic Valves 		flow control and filtration products
Shop all
$3.01 ($0.60 / Retaining Rings) & FREE Shipping on orders over $49. Details Only 2 left in stock (more on the way). Ships from and sold by Amazon.com.

Product Details

Outside Diameter: 21.20 mm | Number of Items: 5
  • Shipping Weight: 0.8 ounces (View shipping rates and policies)
  • Domestic Shipping: Item can be shipped within U.S.
  • International Shipping: This item can be shipped to select countries outside of the U.S. Learn More
  • ASIN: B0062O2IIK
  • Item model number: DSH-20SG
  • Average Customer Review: 5.0 out of 5 stars 2 customer reviews
  • Amazon Best Sellers Rank: #551,016 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
