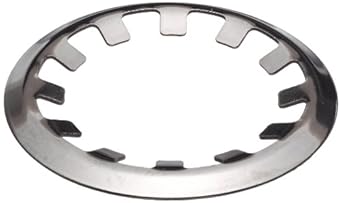

Self-Locking External Retaining Ring, Tapered Section, Axial Assembly, 15-7 PH Stainless Steel, Passivated Finish,5/8" Shaft Diameter, 0.015" Thick, Made in US (Pack of 5)

4.5 out of 5 stars 46 customer reviews
#1 Best Sellerin External Retaining Rings
List Price: $10.21
Price: $9.79 ($1.96 / Retaining Rings) & FREE Shipping on orders over $49. Details
You Save: $0.42 (4%)
In Stock.
Want it tomorrow, April 26? Order within and choose One-Day Shipping at checkout. Details
Ships from and sold by Amazon.com.
0.64 inches
5
  • Enter your model number above to make sure this fits.
  • Self-locking construction grips the shaft to maintain placement without the use of a groove
  • Tapered section construction provides flexibility to facilitate installation
  • Axial assembly mounting style has the ring install by sliding onto a shaft from the end
  • 15-7 PH stainless steel offers high strength and hardness, and maintains its corrosion resistance in high temperatures, and the passivated finish enhances its natural corrosion resistance
  • Made in USA
Product Specifications
For Outside Diameter 5/8  inches
For Shaft Diameter 5/8
Indentation Hardness 82.5 rockwell_15N
Number of Items 5
Outside Diameter 0.951  inches
Outside Diameter 0.64  inches
Outside Diameter Tolerance +0.010"/-0.010  inches
Shape Self Locking
Thickness 0.015  inches
Thickness Tolerance +0.002"/-0.002  inches
Specification for this product family
Brand Name Small Parts
Part Number B00D2B4IC0
Material Type Stainless Steel
System of Measurement Inch
Body Style Self Locking
Exterior Finish Passivated
Grade PH15-7
Import Designation Made in US
Manufacturer Series Number TX
Mount Type Axial
Style Name Tapered Section
UNSPSC Code 31163202
A Full Selection of Hydraulic, Pneumatic & Plumbing Products
pipe fittings
Pipe Fittings 		seals
Seals 		hydraulic valves
Hydraulic Valves 		flow control and filtration products
Shop all

Frequently Bought Together

  • Self-Locking External Retaining Ring, Tapered Section, Axial Assembly, 15-7 PH Stainless Steel, Passivated Finish, Inch, Made in US
  • +
  • Metal Push On Cap - 5/8"
  • +
  • Marathon 4.10/3.50-4" Flat Free Tire on Wheel, 2.25" Offset Hub, 5/8" Bearings
Total price: $37.30
These items are shipped from and sold by different sellers. Show details
Buy the selected items together

Product Details

Outside Diameter: 0.64 inches | Number of Items: 5
  • Shipping Weight: 0.8 ounces (View shipping rates and policies)
  • Domestic Shipping: Item can be shipped within U.S.
  • International Shipping: This item can be shipped to select countries outside of the U.S. Learn More
  • ASIN: B0062O6O26
  • Item model number: TX-62SS
  • Average Customer Review: 4.5 out of 5 stars 46 customer reviews
  • Amazon Best Sellers Rank: #7,111 in Industrial & Scientific (See Top 100 in Industrial & Scientific)

    •  Would you like to give feedback on images or tell us about a lower price?

Customers Viewing This Page May Be Interested In These Sponsored Links

  (What's this?)
Customer Questions & Answers
See questions and answers

Customer Reviews

Top Customer Reviews

5.0 out of 5 starsPERFECT!
By D. Riley on January 23, 2015
Outside Diameter: 0.64Number of Items: 5 Verified Purchase
When the tire on my Milwaukee hand truck (purchased at Home Depot) was shredded to pieces a few months back, I very quickly found a replacement tire on Amazon, rim and all for about $10. Perfect, I thought - 'that was easy.' When the new tire arrived and I went to install it however, expecting probably just a few turns of a bolt or something to that effect, I found myself scratching my head. The internet then helped introduce me to lock washers, and after watching a few videos of people aggressively beating their dollys with hammers, I said 'that doesn't look fun.' Complicating the process, finding the right size washer was a pain in the butt. You would think HD would sell them since half of the items in that aisle require them for keeping wheels on things - nope. Long story short, I got these yesterday, smashed off the old one with a hammer and screwdriver, gently tapped on one of these little guys, and I'm back up and running in about 7 minutes. Add that one to the handy man resume!
Comment 4 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsPerfect fit for my hand truck.
By Winafew on January 11, 2013
Outside Diameter: 0.64Number of Items: 5 Verified Purchase
My handtruck has the wheels retained on the axles with these. I had to remove a tire to repair it, and the original retainer broke as it was being removed. I searched the internet, including Amazon, for a replacement, but could not find one of the appropriate size.

Two days later, on Amazon again, there it was, on the ribbon part way down the page I happened to be on. Thank you Amazon, for finding this for me.

They are high quality, stainless steel, and fit perfectly.

When I first received them, I thought the count was wrong, as they were packaged in a plastic bag, and I could only see 3. But upon opening the bag, I found that several were nested, and impossible to discern as being nested, without first opening the bag.
Comment 4 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsThinner than expected, but still getting the job done!
By Amazon Customer on August 4, 2015
Outside Diameter: 0.64Number of Items: 5 Verified Purchase
I had to replace the wheels on my chipper/shredder and replacing these locking rings is par for the course.

The measurements were spot on: they fit very snugly so there was no wiggling, but the did fit.

I was concerned because these did not look as beefy as those I replaced; However, they are doing a fine job so far!
Comment One person found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsJust what my cart wheel needed.
By Morgas on September 11, 2014
Outside Diameter: 0.64Number of Items: 5 Verified Purchase
I've never replaced a tire on a cart before, so the wheels i bought came with a tapered ring, but i broke it trying to push it on the first time. So i had to get a replacement, and got these and they fit snugly and did not break.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsGood replacement item for original equipment.
By Glenn E. Senter on May 10, 2014
Outside Diameter: 0.64Number of Items: 5 Verified Purchase
I had to replace a wheel on my hand trucks. The original lock ring broke and was not useable. While this is not a heavy duty ring, it is an excellent replacement item to hold the new wheel on and in the correct place. and I have 4 spares if ever needed! Recommended.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
4.0 out of 5 starsI was expecting something bigger
By Robert F. Moran Jr. on October 5, 2013
Outside Diameter: 0.64Number of Items: 5 Verified Purchase
These are very thin compared to what was on the hand cart before, it came five pieces in a package. So I used two rings per side. Maybe be overkill, but seems to work. So far I'm satisfied.
Comment 3 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsSelf-Locking External... Rotor Clip
By Steven E. Moreland on December 9, 2014
Outside Diameter: 0.64Number of Items: 5 Verified Purchase
This product has worked well securing my wheel barrow wheel to its axle. You will be satisfied with this product. Don't worry that they are thinner than what you're used to. They are still holding after months of use.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsGreat for a Boat Trailer Rollers
By RJ on June 7, 2014
Outside Diameter: 0.64Number of Items: 5 Verified Purchase
Will not rust when using with a Boat Trailer to hold the Rollers. They are available in different sizes to fit roller axles. You can also change your steel axles to Stainless Steel to help stop the rust that accumulates inside the roller shaft.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse

Most Recent Customer Reviews

5.0 out of 5 starsHelpful if you want your tires to stay on.

You need these ridiculous little clips. I always buy a few extras.

Published 19 days ago by seatlanta
2.0 out of 5 starsTwo Stars

only 2 per pack not 5

Published 1 month ago by Justin Deason
5.0 out of 5 starsFive Stars

Works good

Published 2 months ago by R. Hainley
5.0 out of 5 starsFive Stars

Did the job

Published 6 months ago by Jerry Sunderland
5.0 out of 5 starsExactly what I was looking for. Finding these little ...

Exactly what I was looking for. Finding these little fasteners has been a hassle.

Got them in the quantity I wanted too.

Published 6 months ago by Amazon Customer
5.0 out of 5 starsFive Stars

Exactly what I needed

Published 7 months ago by chpetersen
5.0 out of 5 starsIt's a specialty part, and when you need it, nothing else will do.

Appears to be very high quality. Installs readily with the right tools. Highly recommend.

Published 8 months ago by Marine_Engineer
4.0 out of 5 starsHolds as expected

I used this to hold pedal on a 3 wheeler and it holds as expected.

Published 9 months ago by G Customer
1.0 out of 5 starsWrong description.

The description is very confusing. It has 2 different outside diameter listed, and one of the outside diameter is same as shaft diameter. I end up buying the wrong size.

Published 11 months ago by Vidit
4.0 out of 5 starsHold on There!

They work..can't say much more! I was replacing small tires and these fit the bill for retention.

Published 11 months ago by Toyboy
