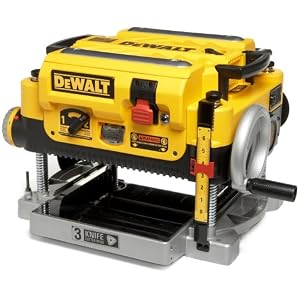

DEWALT DW735 15 Amp 13-Inch Benchtop Planer

by DeWALT

Product Description

Amazon.com

Sometimes, half an inch makes all the difference. But that's not the only reason to step up to the 735. Its powerful 10,000 rpm motor will handle anything you feed it--oak, walnut, exotics--with absolute ease. The three-knife cutterhead will make 96 or 179 cuts per inch, depending on which speed setting you choose. Mess is minimized with the fan-assisted chip ejection, which literally vacuums chips off the cutter-head and blows them out the exhaust. The 735's automatic carriage lock will save you from snipe by reducing the movement that causes it--what a great idea. We also love the redesigned thickness scale--it's big and super-visible, even in poor lighting. Those who do repetitive cuts will appreciate the turret depth-stop; set your most-used cuts to it once and you're always assured of accuracy. The home woodworker will be thrilled, and the professional's expectations will be more than met. This is a winner.--Kris Jensen-Van Heste

Amazon.com Product Description

DEWALT's 13-Inch Bench-Top Planer is a powerful machine that employs a three-knife cutter-head and 15.0 Amp motor that runs at up to 20,000 RPM for efficiently handling wide pieces of material and deep cuts. The 19 3/4-inch base is made of durable cast aluminum and the fan-assisted chip ejection system vacuums debris away from the cutting. Other features include an automatic carriage lock that reduces movement, an extra-large turret depth stop for finding frequently used thicknesses, and a two-speed gear box for easily changing feed-speeds. This heavy-duty planar has a maximum width capacity of 13 inches and a depth capacity of six inches with a 1/8-inch maximum depth of cut.

See all Product Description

Product Details

• Product Dimensions: 24 x 22 x 18.8 inches ; 113.2 pounds
• Shipping Weight: 92.4 pounds (View shipping rates and policies)
• Shipping: This item can only be shipped to the 48 contiguous states. We regret it cannot be shipped to APO/FPO, Hawaii, Alaska, or Puerto Rico.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B0000CCXU8
• California residents: Click here for Proposition 65 warning.
• Item model number: DW735
• Average Customer Review: 3.4 out of 5 stars  See all reviews (158 customer reviews)
• Amazon Bestsellers Rank: #3,132 in Home Improvement (See Top 100 in Home Improvement)

  #3 in

  Home Improvement > Power Tools > Planers

Customer Reviews

Most Helpful Customer Reviews

204 of 214 people found the following review helpful:

5.0 out of 5 stars Great planer, September 15, 2003

By	"mjtripper" (Vicksburg, MI United States) - See all my reviews

This review is from: DEWALT DW735 15 Amp 13-Inch Benchtop Planer (Tools & Hardware)

This is the first planer I have ever owned or used so I don't have anything for comparison but I like it so far. Out of the box you attach the hand crank and the dust attachment and you are ready to go. There are two dust attachments one to attach a 4" hose and another (diffuser maybe?) for no hose attachment. The directions are pretty well written and easy to follow. All the adjustments and work on the unit can be done with the one included tool that drops into a holder on the top. All the controls work great and are easy to operate.

First let me say again this is the first time I have ever used a planer so a lot (okay, probably all :) of the snipe I got was user error. The more boards I put through the less snipe I got. It took a little playing around with and reading to learn the correct technique for moving stock through so I did get snipe on the first bunch of passes on stock, more frequently on the end of the boards then on the front. Most of what I put through was between 3 and 6 inches wide and 2-5 feet long. I did put a couple wider ones in just to see how it handled it. On a 14in long 11in wide hard maple glue up I took off 1/16th per pass and got no snipe or tearout. Then I put through a 10in wide 4ft long oak board and did get snipe on the end but not the start. I still think it's technique because it didn't do it on every pass and when taking off 1/32 I didn't get it at all. The folding tables aren't out yet, but they will probably help even more. I'm pretty convinced once I get the proper technique down I won't get snipe anymore. I'm getting more and more snipe free boards.

I can't say anything bad about the surfaces. I have had zero tearout and ultra smooth surfaces on everything I have put in no matter what I do. The most I have taken off is an 1/8in while only taking 1/32in on the longer boards. Most of the time I had it set to 1/16in. Probably 50% at 1/16, 30% at 1/8, and 20% at 1/32. I put through a pretty good mix of pine, red oak, hard maple, and ash with most of it being red oak.

The crank turns easily and each turn is 1/16in. The depth stop is easy to set and is for 1/8, 1/4, 1/2, 3/4, 1, and 1 1/4. The removal scale is pretty nice as well, you put the end of the board just under the edge and turn the crank. A little pointer moves on a scale to tell you how much will be taken off. It has a little chart built in showing the max that can taken off based on board width, which is nice for me because I didn't know. The thickness scale is pretty big, easy to read, and easy to set. I only ran it with my dust collector hooked up to the 4" port, but it grabbed everything. After running all the wood through, probably about 4 hours total use, there where 3 little wood chips beside the bed and that's all - the dust collector had the rest. The thing I don't like about it is the dust attachment is right in the center above the outfeed so unless you angle the hose away to the side with an elbow or suspend it somehow it gets in the way of the stock coming out. But so far that is my only gripe. This thing is really loud but I expected that, it's the loudest tool I have. All the scales and settings where dead on right out of the box. I do wish the folding tables came bundled. Overall I'm one happy camper.

Okay, I finally got the folding tables. They are very easy to assemble and align. Each corner of each table can be adjusted for height. The attachment points are spring loaded so they are also easy to take off and put back on. They do help in supporting the work and seem very solid. The front table folds up out of the way and stays there. The rear table however is another story. Because the main table and the back of the moter/blade assembly are pretty much even and the pin to hold the table is set back the rear table will never fold up and stay. When the depth of cut is set around an inch and the cord is wrapped around the cord holder the rear table won't flip up more then around 20 degrees. In my opinion this is a major design flaw, the main table needs to stick out at the rear by at least an inch or two to allow the table to fold up.

124 of 128 people found the following review helpful:

2.0 out of 5 stars DeWalt, what were you thinking??, February 15, 2005

By	Kevin "turnerkev" (Albuquerque, NM United States) - See all my reviews

This review is from: DEWALT DW735 15 Amp 13-Inch Benchtop Planer (Tools & Hardware)

Being a part-time tool designer for woodturning, and a former machinist, I appreciate good tools & designs. I've used the 735 with a friend making various woodworking projects. The DeWalt 735 looked like a great design, with innovative vacuum-assist using the planer knives for an impeller-like suction. But shortly into the project, the knives quickly showed wear and the planer made much more noise than it did when the blades were untouched by the softwood we were planing. I've done a lot of planing, and have owned other brands of machines & knew there were serious problems with these blades. When I inspected the blades, I immediately noticed they were very thin with too much backrake in the edge, which probably caused premature breakage due to unsupported steel at the cutting edge. There is the probability of setting up vibrations in the thin metal further causing additional stresses on the steel, and may be a reason the machine is much louder than other brands of planers (try taking a razor blade and hack away at hardwood and see what happens.). Shortly after that, the sproket in the drive system broke. Another closer inspection revealed a very weak, low density casting with poor mechanical design & strength, especially where the keyway was broached into the already weak metal. A second replacement sproket broke in the same place, relative to the first one, further indicating a design flaw, and another set of knives went dull prematurely ( I was hoping that the first set of knives had a metallurgical flaw, were embrittled, or some other fluke). I measured the depth of cut on the 6" wide softwood board, and it was only .050" ---less than 1/16"!! There is no easy way to re-machine the knife holder to accept better knives, say from a Makita or other brand of machine. Maybe DeWalt subbed part of this machine out to a company named "Rejects "R" Us" but this machine is past it's warranty and will be sold "as is" which is an "as is" piece of junk. But if you want a noisy dust collector booster, this machine will work well, just don't plane anything harder than fresh marshmallows on it. It's truly sad that with all the other great features on this machine, and DeWalt's great reputation with the predecessor to the 735, a lack of attention to the two most important functions of the machine (cutting wood, and feeding the wood through the planer) were neglected. The local customer service was poor, at best. Get this planer a better knife design, forged steel sproket, acoustic damping (it's really loud) and this DeWalt will be as good as the Hitachi or Makita.

157 of 165 people found the following review helpful:

4.0 out of 5 stars The reviews were right, this is a good planer, October 31, 2003

By	A. Morgan (Kennesaw, GA United States) - See all my reviews (REAL NAME)

Amazon Verified Purchase

This review is from: DEWALT DW735 15 Amp 13-Inch Benchtop Planer (Tools & Hardware)

My only two complaints are 1) the knives don't seem to last very long and replacements are farily expensive for how long they last. I ran about25 feed of soft maple through the planer and it looked great, but then I started seeing little ridges on the boards. I took the blades out and looked at them to see if they are chipped, but they looked fine. Reinstalled them and tried again, same results. I turned the blades over (they are two sided which is nice) and every thing looked great again. This time I was very careful to make sure there wasn't anything on the wood that could cause a problem, but again after 20-30 feet fo board, the little ridges started showing up again. I'm not sure I'm going to be able to afford new blades every 30 feet of boards. 2) The output chute is slightly undersized for the 2 1/2 inch hose on my shop vac. The manual doesn't recommend using a shop vac because it fills up so fast, but that's all I have and I'd rather empty it more often than have chips all over the floor. I ended up breaking one of my hoses and jaming it into the output chute and it worked fine, but it would have been better if it had just fit right from the beginning. Not too big of a deal because I don't use the planer that much and I'm planning to upgrade to a dust collection system soon.

By the way, changing the blades is as simple as it could be. Everything is accessable and the supplied tool even has a magnet in the handle to pick up the blade so you don't get cut. Nice touch.
