Product Features
|
Product Details
Would you like to give feedback on images?
|
| Brand Name |
Small Parts
|
| Part Number |
MPX-0080-08P-25
|
| Item Package Quantity |
25
|
| Material Type |
Stainless Steel
|
| Exterior Finish |
Plain
|
| System of Measurement |
Inch
|
| Color Name |
Silver
|
| Thread Style |
Fine
|
| Overall Length |
1/2
inches |
| Size Name |
#0-80
|
| Drive Style |
Phillips
|
| Head Style |
Pan
|
| Self Locking Mechanism |
None
|
Product Description
Product Description

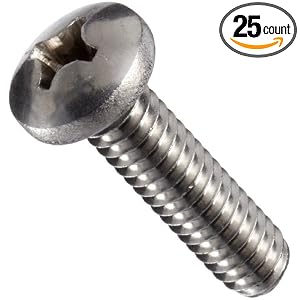

Machine Screws, also referred to as Machine Bolts, are often used with nuts or driven into tapped holes. They come in a variety of head types and drive styles, but are generally available in smaller sizes.
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are alloys of iron and carbon that contain between 16% and 30% Chromium, a maximum of 0.15% carbon, along with Nickel (or Manganese), and other alloying elements. The chromium, which helps develop a passive surface oxide film, provides corrosion resistance in stainless steels. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to the % of Nickel contained in the material.
Pan head fasteners have a low, large cylindrical head with a high rounded top edge for higher tightening torques - these fasteners are often recommended to replace older head styles such as round, binding, or truss-head where possible. The Phillips drive style was originally designed so that the driver would slip out under extreme torque, preventing over-tightening and damage to the fastener or the material.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine. Fine threads are preferable when working with harder materials or when threading into a thin material. They are also stronger in tension than coarse threads, and generally provide higher shear strengths.
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are alloys of iron and carbon that contain between 16% and 30% Chromium, a maximum of 0.15% carbon, along with Nickel (or Manganese), and other alloying elements. The chromium, which helps develop a passive surface oxide film, provides corrosion resistance in stainless steels. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to the % of Nickel contained in the material.
Pan head fasteners have a low, large cylindrical head with a high rounded top edge for higher tightening torques - these fasteners are often recommended to replace older head styles such as round, binding, or truss-head where possible. The Phillips drive style was originally designed so that the driver would slip out under extreme torque, preventing over-tightening and damage to the fastener or the material.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine. Fine threads are preferable when working with harder materials or when threading into a thin material. They are also stronger in tension than coarse threads, and generally provide higher shear strengths.
