Technical Details
- 200 Mbps high wired-speed
- Simple Plug & Play
- Wall-plugged ethernet bridge lets you easily extend a network using electric lines
- Low Power consumption
- Included 1-port Bridge twin packs
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
Manufacturer's Notice
Manufacturer's Notice BV-200D Plug & Play
Just Plug and Play to turn your home AC wire into high-speed networking. Users can also configure different private logical PLC network by using the "GROUP" button as on the product.
Idle mode operation power consumption less than 2.0 Watt that users can save significant electric cost after years of use. With its slimmest design in the world - 2.85 cm, this product can be set without hindering your home furniture's placement near the wall.
Application 1 - Extend Broadband to Whole House
This device can be used for extending Broadband access to other areas in the house via house electric wirings. Just plug a second device into the electric socket of the area where you want to access the internet.
Application 2 - Extend Wireless Network
Most wireless signals can not penetrate different floors in concrete buildings. By using this PowerLine technology, users can extend the WiFi range by connecting the Access point with this device on other floors.
Users at any other area in the house can access the Broadband by just plugging in this device into nearby electric socket. Multiple users (devices) can be linked to the only Powerline device connecting with the broadband modem at the same time. So that theseusers can access the internet simultaneously.
Just Plug and Play to turn your home AC wire into high-speed networking. Users can also configure different private logical PLC network by using the "GROUP" button as on the product.
High Speed Data Transmission
BV-200 enables users to distribute broadband networking dat or IP HD Audio/Video at 200 Mb/s PHY rate.
High Security
BV-200 and BV-204 offer 128 – bit AES data encryption for secure data transmission.
Idle mode operation power consumption less than 2.0 Watt that users can save significant electric cost after years of use. With its slimmest design in the world - 2.85 cm, this product can be set without hindering your home furniture's placement near the wall.

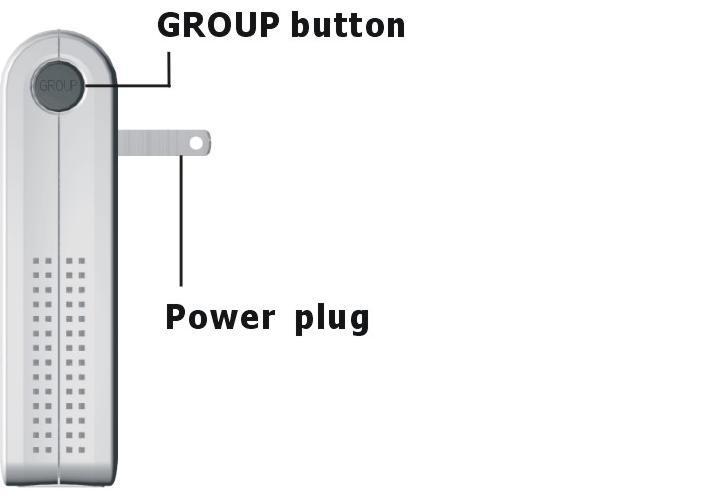

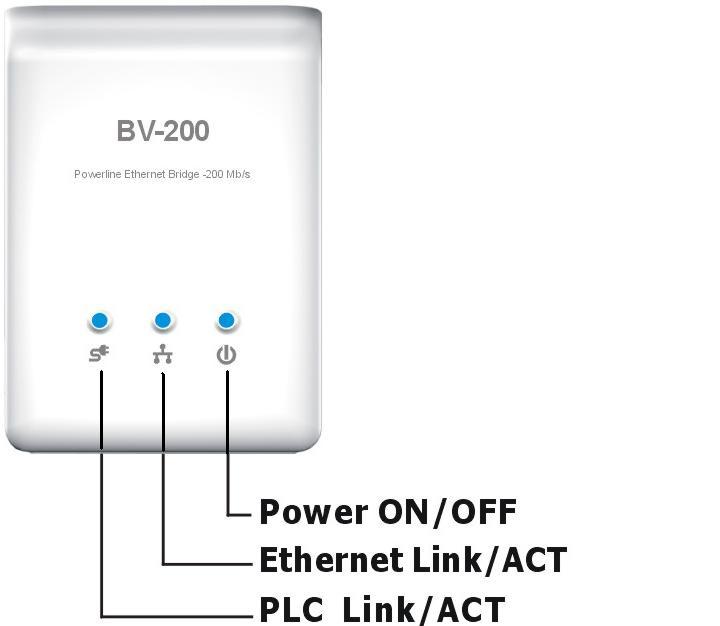

BV-200D Product Outlook

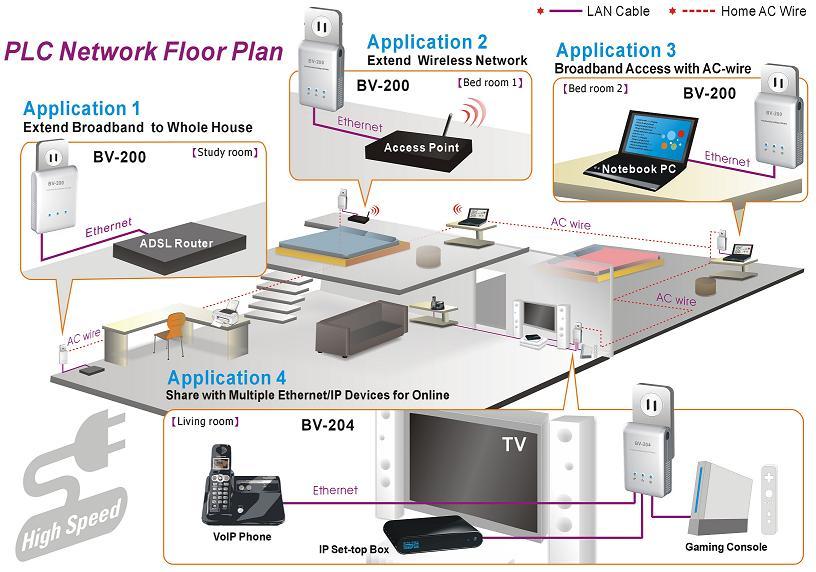

Application Diagram: BV-200D
Application 1 - Extend Broadband to Whole House
This device can be used for extending Broadband access to other areas in the house via house electric wirings. Just plug a second device into the electric socket of the area where you want to access the internet.
Application 2 - Extend Wireless Network
Most wireless signals can not penetrate different floors in concrete buildings. By using this PowerLine technology, users can extend the WiFi range by connecting the Access point with this device on other floors.
Application 3 - Broadband Access by AC Wire
Users at any other area in the house can access the Broadband by just plugging in this device into nearby electric socket. Multiple users (devices) can be linked to the only Powerline device connecting with the broadband modem at the same time. So that theseusers can access the internet simultaneously.
Application 4 - Share with Multiple Ethernet/IP Devices for Online
For more details of this application, please see Brite-View 200Mbps Digital Home Powerline Ethernet Adapters – BV-200C (Combo Package)
Plug & Play for Home Network Extention
This Powerline device is virtually an Ethernet cable replacement or an Ethernet hub replacement. Two of these Powerline Ethernet Bridge (Switch) devices can be used to replace an Ethernet cable, for connecting any PC to another PC, PC to a DSL modem, or a wireless AP to a DSL device. Two Ethernet devices (PC, DSL modem, or media player, etc.) can connect together at home by using two of these Powerline devices, each of which is plugged on a wall outlet and connected to one of the two Ethernet devices at different place at home. Many of this devices can be connected together to form a mesh communication. For example, three PCs can connect to a DSL router for accessing internet via four of these Powerline devices, each PC to one of this Powerline device and the DSL router to the fourth Powerline device.
This product has lowest thickness that ensures this wall-mount device won't hinder your home furniture placement near the wall. With the newest Powerline technologies, this product provides the lowest power consumption and support standby mode, which enable users to save significant electric cost after years' of use. It has a significant TCP/UDP applications data throughput, enable HD video to be sent across home without bad image feelings.

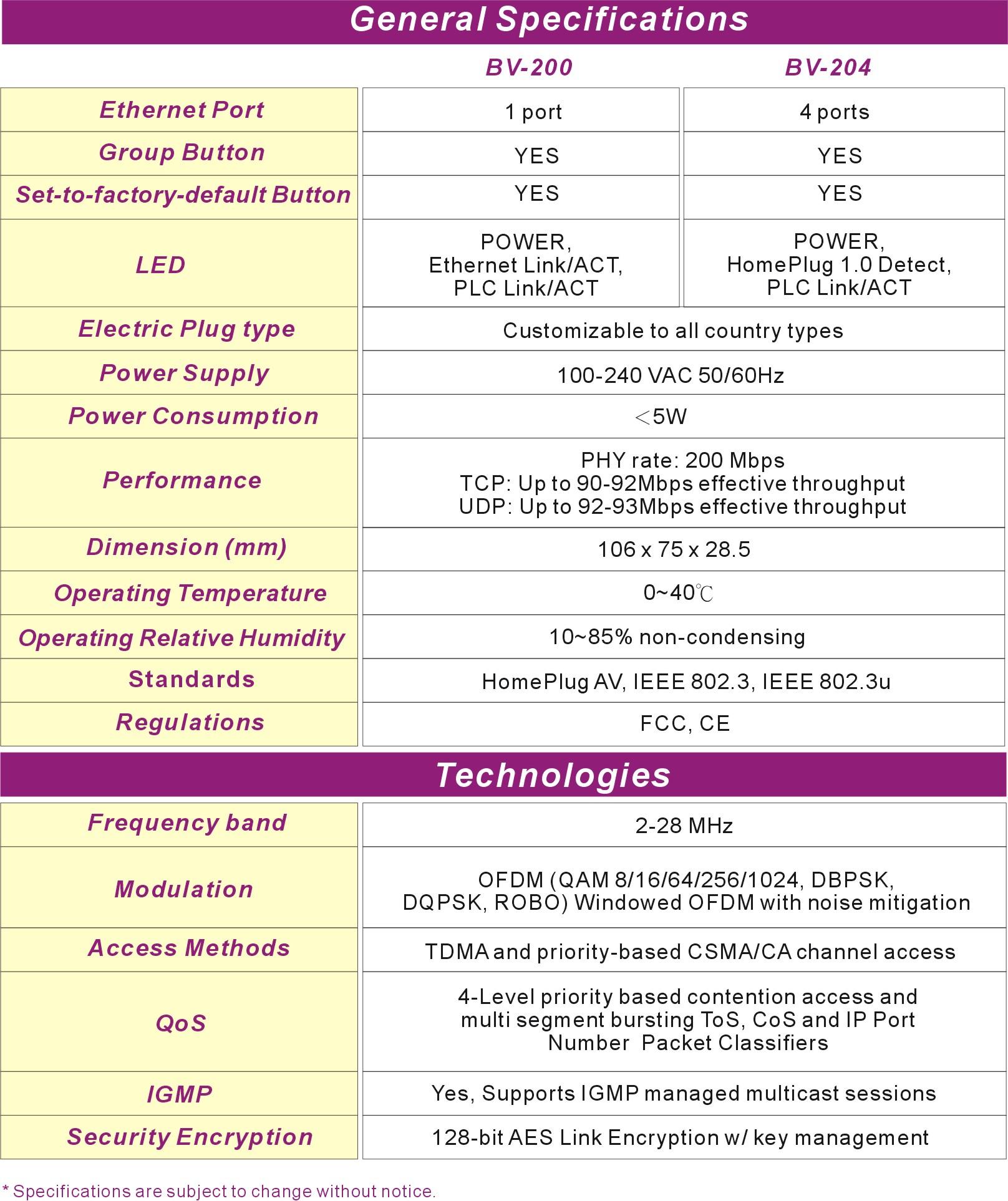

Specifications
BV-200D dual package device Two devices Ethernet cables cd
What's in the Box?
Product Description
Plug & Play for home network extension This Powerline device is virtually an Ethernet cable replacement or an Ethernet hub replacement. Two of these Powerline Ethernet Bridge (Switch) devices can be used to replace an Ethernet cable, for connecting any PC to another PC, PC to a DSL modem, or a wireless AP to a DSL device. Two Ethernet devices (PC, DSL modem, or media player, etc.) can connect together at home by using two of these Powerline devices, each of which is plugged on a wall outlet and connected to one of the two Ethernet device at different place at home. Many of this devices can be connected together to form a mesh communication. For example, three PCs can connect to a DSL router for accessing internet via four of these Powerline devices, each PC to one of this Powerline device and the DSL router to the fourth Powerline device. This product has lowest thickness that ensure this wall-mount device won't hinder your home furniture placement near the wall. With the newest Powerline technologies, this product provides the lowest power consumption and support standby mode, which enable users to save significant electric cost after years' of use. It has a significant TCP/UDP applications data throughput, enable HD video to be sent across home without bad image feelings.
