Qty:1
SATA to 5x SATA port mult... has been added to your Cart

Have one to sell? Sell on Amazon

Image Unavailable

Image not available for
Color:
  • SATA to 5x SATA port multiplier hardware RAID0/1/3/5/10/SPAN/CLONE and JBOD Controller
  • Sorry, this item is not available in
  • Image not available
  • To view this video download Flash Player

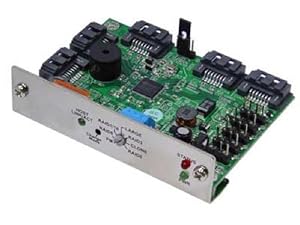

SATA to 5x SATA port multiplier hardware RAID0/1/3/5/10/SPAN/CLONE and JBOD Controller

| 5 answered questions

Price: $96.95 & FREE Shipping. Details
Only 11 left in stock.
Sold by DATOptic-AMZ and Fulfilled by Amazon. Gift-wrap available.
  • SATA to five SATA drive hardware Raid controller
  • hardware Raid for SATA drives - support HDD greater than 2TB
  • easy and fast Raid controller
  • Supports Hot Spare on RAID - Email nofification

Frequently Bought Together

SATA to 5x SATA port multiplier hardware RAID0/1/3/5/10/SPAN/CLONE and JBOD Controller + PCI Bracket for SCSI 1 Bridge Board
Price for both: $102.94

Buy the selected items together


Product Details

  • Shipping Weight: 1 pounds (View shipping rates and policies)
  • ASIN: B004JPUZWU
  • Item model number: SPM393-I
  • Average Customer Review: 4.8 out of 5 stars  See all reviews (8 customer reviews)
  • Amazon Best Sellers Rank:
  •  Would you like to update product info, give feedback on images, or tell us about a lower price? .


Product Description

SPM393-SI uses market-proven Multi-port Serial ATA PHY technology and a proprietary storage processor to provide very highly efficient SATA RAID operations.

With an easy configuration scheme, the device can function as a pure port multiplier which provides SATA port expansion just like a SATA Hub, a hard drive performance booster which provides a high-performance device seen by the host controller, or a hard drive data protector which automatically backs up data to prevent data loss from hard drive damage.

SPM393-SI also has an advanced mode to provide both the benefits of performance boost and data protection.

SPM393-SI has a self-contained storage processor chip which completely frees up the main CPU loading and whose SATA ports comply with SATA II specification, making it suitable for use in both internal system and external storage applications


Customer Questions & Answers

Customer Reviews

4.8 out of 5 stars
5 star
6
4 star
2
3 star
0
2 star
0
1 star
0
See all 8 customer reviews
The initialization time for the RAID 5 config was almost instant.
DaMaestro
It does not include a large to small Molex adapter, but my PS had a free small Molex I could use.
Peter
Their software raid manager also works perfectly and recognizes my other array.
Tam

Most Helpful Customer Reviews

3 of 3 people found the following review helpful By Richard on June 5, 2011
Verified Purchase
Very satisfied with this product. Using on FreeNAS 7 with 5 2TB drives RAID5. Shows up as 1 drive 7,630,720MB to OS. Easy setup, excellent tech support. Instructions could be modified to instruct user to hold the button during power on for 15 seconds to initialize an array. For $100 more, the next card up (spm394) is worth it to step up in features over the long run.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
2 of 2 people found the following review helpful By AlexeySidorenkov on May 2, 2014
Verified Purchase
Although this device has an option to set the RAID by rotating a switch. I used the software option buy switching the jumper. Then download JMicron software and it was the easiest setup I've ever had to do for a RAID.

If you are going to use software here are the steps.
1. Set the Jumper to manual (On the picture its the tall black jumper on the back) (Instruction are included for this)
2. Plugin the drives that you are going to use and attach power cable.
3. Bootup the computer
--- At this point you will only see 1 Drive (Don't panic)
4. Download the software directly from the manufacturer, visit DATOptic Inc website and search by product if the link below is removed.
[...]
--- Software is in the Support Tab
6. Install and run, the drives will be detected with the GUI
7. Select the type of RAID you want and add the drives.
8. Wait 15-30sec and it will create a volume.
9. Go to Disk Management and you will see an unallocated volume
10. Create a new volume, if it a large volume it will be GPT
11. Done.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
2 of 2 people found the following review helpful By DaMaestro on April 28, 2013
Verified Purchase
The primary use of the Home Server is to have a local backup for my Windows 7 systems. With each of those having 3TB drives I needed a good setup for RAID but was somewhat limited with the expansion options of the Atom board. I had initially did a software raid with bad consequences after having to perform an OS reinstall.

The initialization time for the RAID 5 config was almost instant. With this device you need not worry about the PCI bus speed (which was awful with software RAID). You only need power (for which a molex cable is provided) and one open sata port. I got this device in February; and have had no issues with this hardware since. You can get a PCI mounting bracket direct from the vendor to mount the device if you have an available slot.

My setup consists of:

- ARK ITX/CS-CI03 Black Mini ITX Server case
- Intel Atom D2700 ITX Motherboard with CPU
- 4 GB RAM
- 2.5" 500GB OS Boot Drive
- 4 Western Digital 3TB RED Drives
- Windows Home Server 2011
- CrashPlan+ Family Edition
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By Duf on December 19, 2013
Verified Purchase
Works exactly as described and I ordered another. The only issue is the lack of mounting options, it doesn't come with anything to mount it in a 3.5" bay or anywhere else. I'm going to wind up using a project box mounted inside the case since the controls shouldn't have to be accessed often.
