I bought this adapter to feed a B6 LiPo charger. I've had good luck with Chanzon in the past, and I'm pleased to say this charger lives up to my expectations. The UL listing gives me extra peace of mind, knowing that these have been tested for electrical safety.
The power supply feels nice and heavy, and the insides don't sound hollow when you knock on it (unlike countless other cheap, sketchy power supplies out there). That let me know they're putting way more than the bare-minimum components into this thing.
I've exclusively used this adapter on battery chargers, and frequently push it close to its maximum current rating. I don't use it long enough to know how it performs long-term, but it doesn't get too hot after about 1 hour of use.
Like most other ungrounded power supplies, this one has a tiny bit of leakage current due to the interference-suppressing capacitors, so you'll feel a slight buzz when you touch the negative terminal (or any metal surfaces on devices it powers). I checked with my multimeter and it seems to be around the same, maybe a little higher, than other power supplies I had, but still far from being dangerous.
One thing I noticed was that this power supply takes a veeeerrrrry long time to discharge--so don't be surprised if your device stays powered for a few seconds after you unplug it! Totally normal, it just means they're using big smoothing capacitors, which is nice.
In conclusion, this feels like a great quality power supply, and it's been performing great for me!
Enjoy fast, free delivery, exclusive deals, and award-winning movies & TV shows with Prime
Try Prime
and start saving today with fast, free delivery
Frequently bought together
$17.99
Get it as soon as Monday, Jul 8
In Stock
+
Total price:
To see our price, add these items to your cart.
Choose items to buy together.
More items to explore
Page 1 of 1 Start overPage 1 of 1
Product Description
Chanzon AC-DC Power Supply Adapter (DC 12V 5A 60W Max)
Why choose this
(1) Famous Original Components & Stable Circuit Board
(2) 40 x 0.15mm 100% Copper Power Cord
(3) Low fever & No Noise at Full Wattage Working
(4) Overload Cut-off Automatically (Avoid Fire)
(5) Short Circuit Protection
(6) 60 Watt Full Wattage
(7) Long Lifespan
Application
For Most 12Vdc Products ( 0-5 Amp )
(1) 12V LED Strips.
(2) 12V LED Modules.
(3) 12V CCTV Security Cameras
(4) 12V LCD Monitors
(5) Other 12V Devices (Not more than 60W)
Name : AC-DC Power Adapter
Brand : Chanzon
Model : CAE060122-VI
Power : 60W Max
Input : AC 100-240V~50/60Hz 1.7A
Output : DC 12V 5.0A Max
Size : 4.2*1.8*1.2 (inch)
Net Weight : 8oz
Input Power Cord ① : 6ft
Output Power Cord ② : 4ft
Packing Box : 5.3*3.6*2.4 (inch)
Packing Weight : 12oz
1 x AC-DC Power Adapter
1 x AC Input Cable
1 x Power Jack Adapter
1 x Packing Box
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 12V 5A 60W | 12V 3A 36W | 12V 2.5A 30W | 12V 2A 24W | 12V 2A 24W | 12V 1A 12W | |
| Customer Reviews |
1,330
|
1,869
|
286
|
2,234
|
111
|
117
|
| Price | $17.99 | $15.99 | $14.99 | $13.99 | $21.99 | $30.99 |
| Input | 100-240Vac | 100-240Vac | 100-240Vac | 100-240Vac | 100-240Vac | 100-240Vac |
| Output Voltage | DC12V | DC12V | DC12V | DC12V | DC12V | DC12V |
| Output Current | 5A (Max) | 3A (Max) | 2.5A (Max) | 2A (Max) | 2A (Max) | 1A (Max) |
| QTY | Pack of 1 | Pack of 1 | Pack of 1 | Pack of 1 | Pack of 2 | Pack of 5 |
Videos
Page 1 of 1Start OverPage 1 of 1
Videos for this product
0:27
Click to play video
Chanzon 12v 5a power supply
Chanzon
Reviews with images
Best 12V 5A adapter I've tested

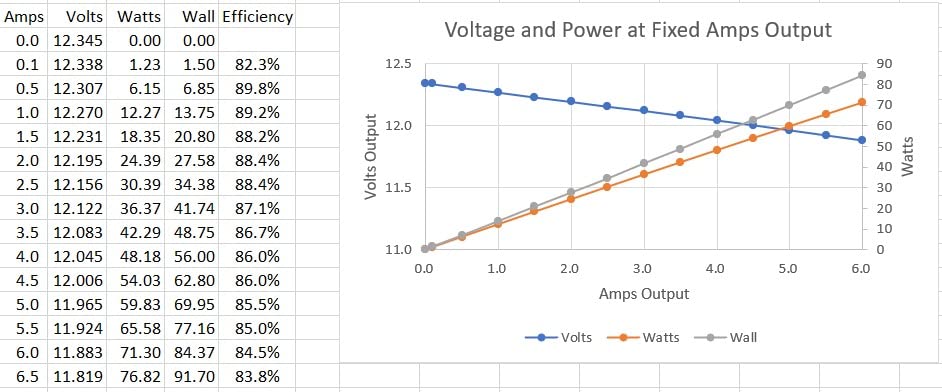

This is my third 12V 5A power supply, hopefully third time is a charm.While this unit was more expensive than other 12V 5A adapters, it claimed efficiency level "Class VI", so I decided to try it after another brand 12V 5A unit abruptly failed.I measured output voltage at various current loads using digital electronic load tester, powering the adapter with 123VAC and letting the unit warm up for 30 minutes at midrange load. The output voltages were measured at the output of the DC connector.The voltage output starts at 12.34V with zero load and slowly tapers (almost linear) to 11.965V at 5.0A of output (max rated), and still provides 11.827V at 6.5A of output, 30% beyond rated capacity. I would not recommend running it beyond 5A continuous, but nice to have some headroom for intermittent higher loads. The overload protection kicked in above 6.75A output, dropping output voltage to zero until load reduced.Measuring wattage draw at the wall socket to compute efficiency shows peak efficiency at 89% between 0.5A and 1.0A of output, 87% at 3.0A, and 85.5% efficiency at 5.0A output. That is significantly better than any other 5A adapters I've tested. Also noteworthy that at zero load, there is nearly zero wattage draw from the wall, unlike other adapters I've tested that have half a watt or more of phantom power draw at zero output, so the "Class VI" efficiency label seems legit.
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States on July 13, 2021
Reviewed in the United States on April 27, 2024
Reviewed in the United States on December 3, 2017
So, as the theory went, as the power supply aged, it's actual output varied from it original specs and this 'fact' (I wasn't there and I'm not an EE) apparently could cause the type of connection issues I was seeing. I didn't know if the 'theory was correct, but I was out of ideas and on the verge of replacing the wireless and the modem, so I thought I'd take the chance. The folks in the forum were recommending a 12V 5A replacement supply.
When others pointed out that this was overkill (original supply was rated at 800 mA), the folks doing the recommending pointed out that the price difference between the two supplies was not a huge factor, and it was better to get a quality supply so you would have no doubt. In my case I intend to put a splitter on the supply output and run 1 side to my wireless, the other side to my broadband modem - so 'overkill' was even less of an issue for me.
When the Chanzon 12V 5A 60W AC DC Power Supply arrived, it spoke quality from the start. It was very well packaged and had a weight that was size-appropriate. It even came with an extra DC terminal end in case your needs were a bit different. There is a blue LED on the front to indicate the unit is receiving AC. I should qualify this assessment though as I made no measurements to gauge voltage stability or output amperage. As I've only recent purchased this unit, I can make no statements with respect to long-term durability or MTBF. The DC side cord is ~4 ft long and the AC side cord is ~5 ft long and is detachable.
Best of all, all of my intermittent connection issues have now gone away -- uh, at least for the time being. (If this ever changes, I'll update this review. ) All things considered, I am very happy with the Chanzon 12V 5A 60W AC DC Power Supply and would definitely buy another or recommend it to anyone looking for a quality supply with these specs.
Well constructed. Excellent value for its price point!
Reviewed in the United States on December 3, 2017
I'd been having trouble with my Internet service. I had pretty much tracked it down to some kind of intermittent issue with my wireless wifi or broadband modem. I came across a couple of interesting discussions that suggest that the wireless was originally equipped with a power supply which the bare minimum amperage required.Reviewed in the United States on December 3, 2017
So, as the theory went, as the power supply aged, it's actual output varied from it original specs and this 'fact' (I wasn't there and I'm not an EE) apparently could cause the type of connection issues I was seeing. I didn't know if the 'theory was correct, but I was out of ideas and on the verge of replacing the wireless and the modem, so I thought I'd take the chance. The folks in the forum were recommending a 12V 5A replacement supply.
When others pointed out that this was overkill (original supply was rated at 800 mA), the folks doing the recommending pointed out that the price difference between the two supplies was not a huge factor, and it was better to get a quality supply so you would have no doubt. In my case I intend to put a splitter on the supply output and run 1 side to my wireless, the other side to my broadband modem - so 'overkill' was even less of an issue for me.
When the Chanzon 12V 5A 60W AC DC Power Supply arrived, it spoke quality from the start. It was very well packaged and had a weight that was size-appropriate. It even came with an extra DC terminal end in case your needs were a bit different. There is a blue LED on the front to indicate the unit is receiving AC. I should qualify this assessment though as I made no measurements to gauge voltage stability or output amperage. As I've only recent purchased this unit, I can make no statements with respect to long-term durability or MTBF. The DC side cord is ~4 ft long and the AC side cord is ~5 ft long and is detachable.
Best of all, all of my intermittent connection issues have now gone away -- uh, at least for the time being. (If this ever changes, I'll update this review. ) All things considered, I am very happy with the Chanzon 12V 5A 60W AC DC Power Supply and would definitely buy another or recommend it to anyone looking for a quality supply with these specs.
Images in this review
Reviewed in the United States on May 26, 2024
Reviewed in the United States on January 27, 2024
