|Hard Drive||12 TB Desktop|
|Number of USB 3.0 Ports||3|

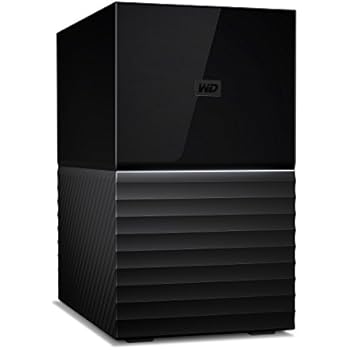

WD 12TB My Book Duo Desktop RAID External Hard Drive - USB 3.0 - WDBLWE0120JCH-NESN
We don't know when or if this item will be back in stock.
- Enter your model number to make sure this fits.
- 2-Bay, 12TB Personal Cloud Storage includes 2 x 6TB HDD
- User-selectable RAID 0/1 or JBOD lets you configure your drive for more speed (default setting: RAID 0), data protection (drive mirroring: RAID 1) or operate as two independent drives (JBOD)
- High-capacity external storage and backup. Ultra-fast, optimized data transfer speeds. Protecting your data with multiple backup options
- Complete backup solutions to secure your data from loss - Integrated backup software, Cloud backup with Dropbox, System-level backup
- Speed and security with hardware encrypted RAID
There is a newer model of this item:
Customers who viewed this item also viewed
Customers who bought this item also bought
What other items do customers buy after viewing this item?
Have a question?
Find answers in product info, Q&As, reviews
Please make sure that you are posting in the form of a question.
From the manufacturer
Store it all in one place with twice the data protection
All your photos, videos and files are centralized on one drive and automatically duplicated onto the second drive for twice the data protection.
Note: Half of total usable capacity available in factory RAID 1 mode.
Quickly transfer, save and protect your entire media collection
- Up to 16 TB to hold all your large media files
- Speed and security with hardware encrypted RAID
- Ready to use right out of the box for Windows OS
- Easily reformatted for Mac OSX
Equipped with two WD Red HDDs, My Book Duo gives you massive capacity with twice the speed. By combining drive performance, you get up transfer speeds up to 324MB/s,* so you can transfer a full HD video, or your entire media collection, with ease.
*Read speeds (MB/s) testing by WD resulted in actual transfer rates of 324.9 MB/s on 16 TB configuration. Performance may vary based on configuration, operating system and computer hardware configuration.
My Book Duo is your personalized digital vault. With up to 16TB of capacity, you have the room to keep your entire media collection and important documents safe and organized in a single place.
Automatic backup software
Set your own schedule to copy updated files or backup new folders automatically with WD SmartWare. The backup software works quietly in the background so your data is protected with minimal impact on your PC. WD SmartWare also works with Dropbox,** so you can even save your files to the cloud.
**Dropbox account required for cloud back up. Cloud services may be changed, interrupted, or terminated at any time. Policies may vary by country and individual cloud service.
Acronis True Image WD Edition backs up your files on a system level, so you can keep your entire operating system and everything on it close at hand. With Acronis True Image and My Book Duo, all of your files, applications, and system settings are backed up on a secure device.
Multiple data management options
My Book Duo ships preconfigured in RAID 0 for maximum performance and capacity. Customize to fit your needs with RAID 1 for ultimate data protection or JBOD to use the drives individually.
Reliable hardware encryption with password protection
My Book Duo provides 256-bit AES hardware encryption. With password protection, My Book Duo ensures your entire media collection and important files are protected from unauthorized access.
Compare with similar items
WD 8TB My Book Desktop External Hard Drive - USB 3.0 - WDBBGB0080HBK-NESN
Seagate Expansion 8TB Desktop External Hard Drive USB 3.0 (STEB8000100)
WD 4TB My Book Desktop External Hard Drive - USB 3.0 - WDBFJK0040HBK-NESN

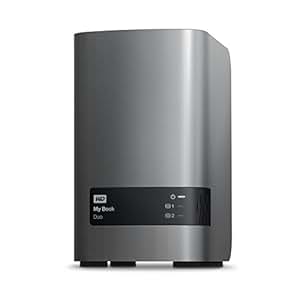

WD 16TB My Book Pro Professional RAID Storage - Thunderbolt USB 3.0 - WDBDTB0160JSL-NESN
Seagate Backup Plus Hub 10TB External Desktop Hard Drive Storage + 2mo Adobe CC Photography (STEL10000400)
|Shipping||—||FREE Shipping||FREE Shipping||FREE Shipping||FREE Shipping||FREE Shipping|
|Sold By||—||Amazon.com||Amazon.com||WeB Tech||Adorama Camera||Amazon.com|
|Connectivity Technology||—||usb||usb||usb||usb||usb 3.0|
|Digital Storage Capacity||12 TB||8 TB||8 TB||4 TB||—||10 TB|
|Hard Disk Description||Desktop||Desktop||Desktop||Desktop||Desktop||Desktop|
|Hard-Drive Size||12 TB||8 TB||8 TB||4 TB||16 TB||10 TB|
|Hardware Connectivity||USB 3.0||USB 3.0||USB 3.0||USB||USB 3.0||USB, USB 3.0|
|Item Dimensions||6.2 x 3.9 x 6.5 in||1.9 x 5.5 x 6.7 in||4.75 x 6.93 x 1.44 in||1.9 x 5.5 x 6.7 in||4.28 x 8.51 x 5.82 in||1.61 x 4.64 x 7.8 in|
|Item Weight||3 lbs||3 lbs||2.09 lbs||2.27 lbs||7.87 lbs||2.34 lbs|
|Memory Storage Capacity||12 TB||8 GB||8 TB||4 TB||16 GB||—|
Transfer, save and protect your photos, videos, music and other massive files to free up valuable space on your computers. Featuring blazing-fast transfer speeds, local, cloud and system-level backup options, hardware RAID and password protection, My Book Duo is the ultimate storage solution offering the capacity and security you need.
Top customer reviews
There was a problem filtering reviews right now. Please try again later.
1) Software encryption: this is enabled by the user by adding password protection via the included WD software. It can be enabled or disabled by the user (assuming you have the correct password).
2) Hardware encryption: there is none. However, the RAID is implemented via hardware in the MyBook Duo enclosure. The implications of this design are as follows:
a. The proprietary nature of the hardware RAID implementation means that the individual disk drives CANNOT be read outside of the MyBook Duo enclosure. I believe this is not unique to the MyBook Duo as many other RAID enclosures have the same characteristics.
b. The RAID implementation is the same from enclosure to enclosure. Therefore, a drive created in one MyBook Duo enclosure CAN be installed into another MyBook Duo enclosure and READ SUCCESSFULLY. (As I have two MyBook Duo’s, I have physically tested this.)
c. If the MyBook Duo enclosure fails for any reason, a replacement enclosure will read the disks successfully. The data IS NOT LOST.
3) With respect to temperature, when running continuously for an hour or more (such as when performing a backup), the drives reach temperatures in excess of 55C. While I believe the drives can endure such temperatures, I believe that is hotter than desired. Therefore, I recommend that Western Digital updates its design of the MyBook Duo enclosure to include a small exhaust fan.
4) I have added small, 80 mm (3”) USB-powered variable-speed fans that sit directly on top of the MyBook Duo enclosures to help expel the excess heat from the drives. Even though the fans are small and virtually silent, they are probably overkill as it only takes a minimal amount of extra air movement (the fans are at the lowest setting) to keep the drives comfortably below 40C, even when running continuously.
5) Overall, I am happy with the MyBook Duo (8TB drives). While I do believe the lack of a fan is a non-optimal design decision, it is easy to add an exterior fan that works very effectively at maintaining more desirable drive temperatures.
**** Below is my initial review 1 star.
There is a security chip on circuit board inside the enclosure. If you take out two hard drives, you will see the circuit board in the middle of the enclosure. The circuit board is the controller of two hard disks. When your data goes through USB 3.0 cable, passes the circuit board and stores into hard drives, your data is HARDWARE ENCRYPTED BY THE SECURITY CHIP ON THE CIRCUIT BOARD, which means only the enclosure can decrypt your data. The key used by the security chip to encrypt/decrypt data is stored on the hard drive. If you set up access password, then the key will be encrypted by the access password. Next time when need to read data, have to use access password to decrypt the key and then use the decrypted key to decrypt data in hard drive. The whole process relies on this circuit board, if it dies then you could loss your data. There is NO WAY TO DISABLE HARDWARE ENCRYPTION. It does not matter you set up the access password or not. Hardware Encryption is ALWAYS ON by default and could not be disabled. The only thing you have control is to set up a ACCESS PASSWORD to protect the encryption key.
To prove this, I pulled out two hard drives and connected them to my computer directly. The system could not read my files on the drives, because data is encrypted. My computer does not have this security chip (and it should not), so it could not use the key.
There is a way to read data from hard disk is to insert them into the enclosure of same model, which means you need to spend money to buy another My book duo, but who knows if 5 years later you could still find them on market. WD has several versions of hardware encryption, you could also use control board from My Book (a different product but cheaper than My book duo), but it is basically try and error to figure out the right version.
Let's do some math:
1. Assume WD Red 2TB hard disk Failure Rate is 4%. Then under RAID1, risk of losing data is 4% * 4% = 0.16% (Lose data need both hard disk to fail). Probability of not losing data is 100%-0.16%=99.84%
2. Assume circuit board Failure Rate is 4%. I made this assumption by thinking the quality of circuit board is no better than hard disk. Then 96% of the time, circuit board will work just fine.
3. The probability that system as a whole will work is 99.84%*96% = 95.8464%, since failure of RAID1 and circuit board is independent event. So the system failure rate is 100% - 95.8464% = 4.1536%
4. The "ENFORCED HARDWARE ENCRYPTION" makes data losing probability 26 TIMES HIGHER (4.1536% / 0.16% =25.96) than a RAID1 system without "ENFORCED HARDWARE ENCRYPTION".
5. 26 TIMES HIGHER!!!!!
The conclusion is WHEN THE ENCLOSURE DIES, YOU COULD LOSE ALL YOUR DATA ON BOTH HARD DISKS, Even if the two hard disks are perfect fine!!!!! If you do not plan to spend the same amount of money to buy a second one. The risk of losing data is much higher than the risk of failure of two hard drives, because of the (hidden) risk of enclosure failure.
I will contact WD to figure out if there is a easy way to recover data, hold on.
WD technical support got back to me quickly. They point out to use data recovery software to recover data in case the enclosure fails. Still need to purchase $79 data recovery software. This is technically harder than simply connect to computer and read data directly. But at least, there is some way to work around.
Conclusion: Data recovery is not that easy on these drives, but it is possible. Get ready to spend some money on data recovery software/service.
Revise to 3 stars.
*****Below is the response from WD:
Thank you for contacting Western Digital Customer Service and Support. My name is xxxx.
In regards to your case, the data can be recovered with a data recovery software. Since you were running RAID 1, the data should be available on both drives. Your next step is to connect one of them to your computer through sata and use a data recovery software to recover your files.
After removing the drive from the enclosure, do not put it back inside, ever again. That will reconfigure the drive and therefore you'll loose your data.
Although we do not have any specific software that we can recommend, many of our customers have had great success with Ontrack's data recovery software.
Please see the link below for more information.
Title: Ontrack Data Recovery Freeware
If you do not want to buy Ontrack's recovery software then I recommend you try searching the web for other data recovery programs. Please see the link below for more information.
Title: Google Search - data recovery software
If you're having issues recovering your data, please contact a data recovery company for assistance. Western Digital doesn't have in house data service. Please contact one of our preferred data recovery partners or visit any third party data recovery service in your area.
If you have any further questions, please reply to this email and we will be happy to assist you further.
Western Digital Service and Support
