- Made of silicone for use with a variety of chemicals and fluids
- Can be used across a wide temperature range from -65 degrees F (-54 degrees C) to 450 degrees F (232 degrees C)
- Round in cross-section to provide a seal between cylindrical overlapping surfaces
- Durometer (hardness) of 70A for resistance to penetration
- Meets standards defined by Aerospace Standard AS568A

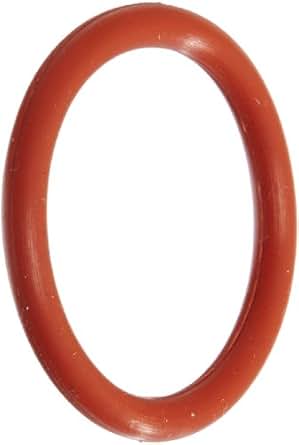

137 Silicone O-Ring, 70A Durometer, Red, 2-1/16" ID, 2-1/4" OD, 3/32" Width (Pack of 25)
| Price: |
$4.82
($0.19 / O-Rings)
FREE Shipping Get free shipping
Free 5-8 business-day shipping within the U.S. when you order $25 of eligible items sold or fulfilled by Amazon.
Or get 4-5 business-day shipping on this item for $5.99. (Prices may vary for AK and HI.)
Learn more about free shipping
|
Only 5 left in stock (more on the way).
Ships from and sold by Amazon.com.
Gift-wrap available.
Specifications for this item
| Part Number | ORS-137-25 |
|---|---|
| Item Hardness | 70A |
| Measurement System | Inch |
| Cross Section Shape | Round |
| Lower Temperature Rating | -65 |
| Upper Temperature Rating | 450 |
| Specification Met | AS568A |
| Brand Name | Small Parts |
| Color | Red |
| Durometer Hardness | 70A |
| Inside Diameter | 2.05 |
| Inside Diameter Tolerance | 0.017 |
| Item Diameter | 2.256 |
|---|---|
| Item Weight | 0.353 |
| Material | Silicone |
| Model Number | 137 |
| Nominal Inside Diameter | 2.05 |
| Nominal Outside Diameter | 2-1/4 |
| Nominal Width | 0.103 |
| Number of Items | 25 |
| Outside Diameter | 2-1/4 |
| Size | 137 |
| Width | 0.103 |
| Width Tolerance | 0.003 |
Product features |
Product description
This silicone O-ring is red in color, round in shape, has a durometer of 7OA, and is designed for use in a wide variety of sealing applications.
Silicone is acceptable for temperature applications between -65 degrees F (-54 degrees C) to 450 degrees F (232 degrees C). It has good resistance to ozone, weather, detergent, salt water, engine and transmission oil, non-petroleum brake fluid, hydraulic fluids that resist fire, vegetable and animal oils, and high molecular weight chlorinated aromatic hydrocarbons. Silicone is vulnerable to mechanical wear and tear, water and steam over 250 degrees F (121 degrees C), aromatic hydrocarbons (benzene), chlorinated hydrocarbons (trichloroethylene), acids and bases, and hydrocarbon fuels.
O-rings commonly provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in engines, faucets, flanges, valves, and various cylinders. They are circular in shape, with a round cross section and a hole in the center, similar to a doughnut. O-rings are available in a number of sizes, and can be ordered based on required nominal inside diameter (ID), outer diameter (OD), and cross-sectional (CS) diameter.
This silicone O-ring has a shore durometer of 70A. Shore durometer is the hardness of a material, and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation on a scale of 0 to 100, with 100 indicating no indentation.
This silicone O-ring meets standards defined by Aerospace Standard AS568A, which is the Aerospace Size Standard for O-rings.
