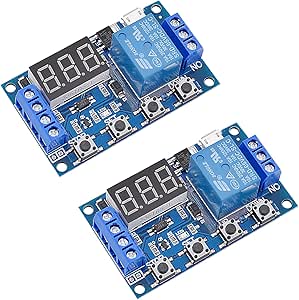

[2 Pack] DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LED Display / 5V Micro USB, Smart Home Controller
| Contact Type | Normally Open |
| Current Rating | 10 Amps |
| Brand | Valefod |
| Operation Mode | Automatic |
| Wattage | 3E+2 |
About this item
- 【Multifunction Timer Relay】Programmable delay modes to control the relay timings, widely used at smart home, industrial control, automatic irrigation, indoor ventilation, protection equipment etc.
- 【Load Range】Operating voltage: DC 6V - 30V, support micro USB 5V power supply. High level trigger: 3V - 24V. NO(Normally open) maximum load < AC 250V/10A, < DC 30V/10A. Timing range: 0.1s ~ 999mins (continuously adjustable).
- 【Reverse Protection】Built-in a diode to provide protection against accidental reverse polarity for the circuits.
- 【Sleep Mode】If no operation within 5 minutes, the digital tube of the relay board will turn off automatically. Pressing any button can wake it up.
- 【Parameter Setting】OP(conduction time) / CL(off time) / LOP(circuit times) can be set individually, and the parameters are mutually independent. All parameters are permanently saved once set. The functions and parameters can be reviewed or changed at a later time.
Products related to this item
More from frequently bought brands
Looking for specific info?
Customer reviews
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
Learn more how customers reviews work on AmazonCustomers say
Customers like the timer, durability, and value of the product. They mention it's a great universal timer with many features. Some also say it keeps wear and tear down on locos and is a good value for money. However, some customers have reported that the relay doesn't engage. Opinions are mixed on functionality and instruction quality.
AI-generated from the text of customer reviews
Customers have mixed opinions about the functionality of the relay. Some mention it works great once they watch the programming instructions on YouTube, while others say two out of three didn't work. The relay contacts didn't transfer, and they were unable to do basic functions like on delay, off delay, or other simple timer features.
"...Worked perfectly. Now my gateman comes out when the first car comes by and stays out until the last one passed by...." Read more
"...Overall very good to use once you learn it, opportunity for a V2 for sure. This will be my new standard for timers now...." Read more
"...VERY USEFUL AND VERY FLEXIBLE!!..." Read more
"...The 5v USB connector can be used for programming/exploring but most programs won't run as the trigger port can't be self-powered by the board's..." Read more
Customers like the timer. They mention it's a great universal timer with many features. It's great for countdown activations and multiple applications. The product is cheap for the features provided.
"...Overall though, there are a lot of options, this is an extremely flexible design. My only gripe is that the instructions are not printed...." Read more
"This is an excellent and ridiculously cheap timer for the features provided...." Read more
"...There are several modes of operation and flexible parameters so be prepared to spend some time figuring out how to get the results you want...." Read more
"...Once I got some grasp of the method, it is great for multiple applicationsYouTube is your friend for this. - search the model number" Read more
Customers are satisfied with the durability of the relay. They mention it's well-made, reliable, and keeps wear and tear down on locos. Customers also appreciate the quality design and features.
"...Oh, very well made circuit board too." Read more
"Good price. Fast shipment. Quick delivery.Quality design and features. Good documentation." Read more
"...Keeps the wear and tear down on the locos. It switches the DCC signal fine and I am running 4 trains...." Read more
"...All in all very happy with them. Easy to set up and reliable." Read more
Customers appreciate the value for money of the relay. They mention it's good value for the price.
"Good price. Fast shipment. Quick delivery.Quality design and features. Good documentation." Read more
"...Cheap and easy solution." Read more
"Small and inexpensive. Used it to switch on a 120V power-strip for a set period of time...." Read more
"...It does a lot for the price." Read more
Customers have mixed opinions about the instruction quality of the relay. Some mention that programming is easy and the instructions are simple enough. However, others say the instructions are less than desirable and difficult to figure out. They also mention the documentation fails to show the wiring diagram with required connections.
"...My only gripe is that the instructions are not printed...." Read more
"...Fast shipment. Quick delivery.Quality design and features. Good documentation." Read more
"...It is not worded well how this works, in the instructions they say to press the stop button to rotate between xxx, x.xx or x.x.x...." Read more
"...All in all very happy with them. Easy to set up and reliable." Read more
Customers are dissatisfied with the relay actuation. They mention it doesn't engage, the trigger signal isn't sent to Q1, and the LED doesn't light.
"...I can program it, trigger it, watch it count, etc - but the relay does nothing. The other one actually works, and works well...." Read more
"...If the stop button is pressed it will go to off and the relay will not activate. Press the stop again and the relay will turn back on...." Read more
"...With 24V supply, the relay will not stay energized for more than ~45 secs before it spontaneously shuts down and resets!..." Read more
"...Working voltage is < 6V, but relay will not trigger, so definitely needs to be at least 6v" Read more
Reviews with images
Super versatile timer/relay board. Can be powered by 5-30V DC or microUSB
-
Top reviews
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Programming:
A bit awkward, but it works. I had to read the manual a couple times to get the programming of the time correct. Overall though, there are a lot of options, this is an extremely flexible design. My only gripe is that the instructions are not printed. In case this listing is ever removed, I saved the instructions in a text document.
Power:
For power, I hooked the 18VAC from the train accessory into a KBP310 bridge rectifier, which yielded 15VDC. I then added a 470uF capacitor. Note, if the capacitance it too low, the unit will not power up.
Trigger:
I ran the 18VAC train accessory power into the "Trigger" input. I ran the ground trigger from the track to the "GND_t" input. No optocoupler needed. Nice. On the output, I ran track ground into the COM and the NO (normally open) output to the gateman. So when the unit is triggered, the relay will close, the gateman will be grounded, and the gateman will come out (assuming you hook up power to the side of the gateman).
Unfortunately I needed this device in a hurry for a Halloween prop and I was not able to learn the programming in time so I had to do without. After Halloween I was able to sit down at my work bench and do like everyone else said and tinker with the options. Having the flexibility of full minutes or decimals of a second is very useful but it adds a layer of complexity. It is not worded well how this works, in the instructions they say to press the stop button to rotate between xxx, x.xx or x.x.x. It took me awhile to realize that when I press the stop button it doesn't show xxx, x.xx etc. it shows my number (60 seconds) as 060,0.60,0.6.6.0, etc. It was a "duh" moment for me.
Also, figuring out the wiring if you wish to have a start stop button could be better explained. Thankfully one of the previous users posted a photo and I was able to see how they did it. I'm a visual learner so something a drawing or schematic would better server than their broken English explanation. You ultimately need to run a jumper from your power inputs to the start stop terminals, then your button will complete the circuit. My suggestion would be for the circuit board to have a separate tap specifically for start/stop.
Overall very good to use once you learn it, opportunity for a V2 for sure. This will be my new standard for timers now. Away with the old potentiometer adjustment style where you don't know if you are making the delay longer or shorter.
Oh, very well made circuit board too.
* Press the set button for a few seconds to then use the up/down buttons to select the program you need. Press the set button shortly to cycle to the various OP(en) and CL(ose) timers and LO(O)P counter. OP(en) timers can be programmed in increments of a second, CL(osed) timers can be programmed in increments of 1/10th of a second.
* The trigger circuit (Trigger and GND_T connectors) is galvanically separated from all circuitry by means of an opto-coupler wih a 2.2K resistor in series. While the board needs at least 6V, the trigger is activated with voltages as low as 1.5V over the Trigger and GND-T pins.
* WARNING: Although the relay states it can handle up to 250V the circuit board is not designed well enough to safely handle anything above maybe 48V. (It is missing it's air gaps to make it safe.)
Abbreviations used in display:
P -> Program
OP -> Open - no power to relay
CL -> Close - relay is powered
LOP -> Loop - number of cycles turning off and on before staying off.
Abbreviations used on board
COM -> Common wire - put power to this wire to then put your load/device on NC or NO.
NC -> Normally Closed - when the relay is not powered this contact is closed.
NO -> Normally Closed - when the relay is not powered this contact is open.
Available programs
P1.1: Run once for CL seconds after power has been applied to trigger.
P1.2: Run for CL seconds each time power has been applied to trigger.
P1.3: As 1.2 but turn off when power is re-applied to trigger within the countdown time.
P1.4: Run once for CL seconds but there is no power to trigger needed.
P2.1: After applying power to the trigger delay for OP seconds, then run for CL seconds.
P2.2: After applying or removing power to the trigger delay for OP seconds, then run for CL seconds.
P3.1: Cycle on and off for OP and CL seconds and LOP cycles when power to trigger is applied momentarily or permanently, restart cycle in "on" phase when power to trigger is re-applied during "off" phase, stop cycle when power to trigger is re-applied in "on" phase.
P3.2: Cycle on and off for OP and CL seconds for LOP cycles without the need to put power to the trigger.
P4 : Run when power is put to trigger and continue for CL seconds after power has been removed from trigger.
Note

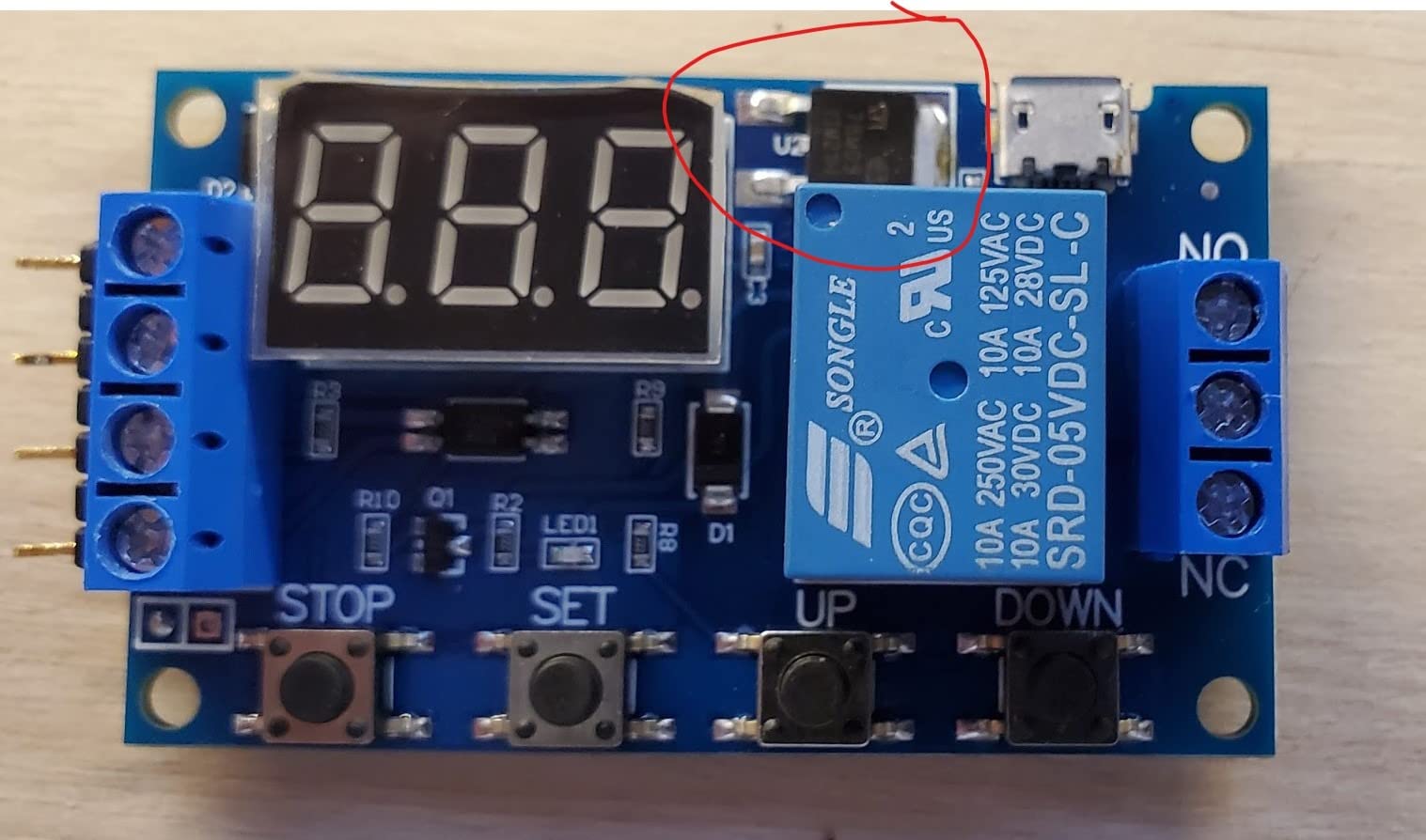

* The 5v USB connector can be used for programming/exploring but most programs won't run as the trigger port can't be self-powered by the board's 6.0~30V input. However, and I have not tried this, but I believe that if you bridge diode D2 and voltage regulator U3 you can have a complete 5V 500mA project going from a standard 5V USB cable.
