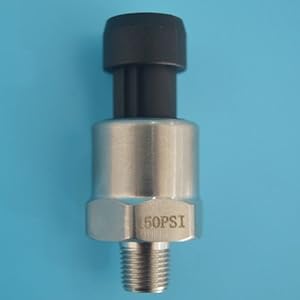

9milelake Stainless Steel 150 Psi Pressure Transducer or Sender for Oil,air

1.5 out of 5 stars 3 customer reviews

Currently unavailable.
We don't know when or if this item will be back in stock.
    This fits your .
  • Enter your model number to make sure this fits.
  • 0-150 PSI range
  • 0.5V - 4.5V linear voltage output
  • Works for oil, or air pressure. Can be used in oil tank, gas tank, etc.
  • using top of line 316 stainless steel (not 304) and high temperature auto-graded plastic
  • Mating connector and wire harness (pigtail) is included
Currently unavailable. We don't know when or if this item will be back in stock.


Product Information

Technical Details

Additional Information

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Feedback

If you are a seller for this product, would you like to suggest updates through seller support?
Would you like to tell us about a lower price?

Product Description

Specifications:
* Input: 0-150 psi.
* Output: 0.5V - 4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V. * Works for oil, or air pressure. Can be used in oil tank, gas tank, etc.
* Accuracy: within 2% of reading (full scale).
* Thread: 1/8"-27 NPT
* Wiring connector: water sealed quick disconnect.
* Mating connector is included.
* Wiring: Red: +5V. Black : ground. Blue (yellow): signal output.
* Working Temp: -20C - 125C (-4F - 260F)
* Over pressure: more than 150% of full scale
* Response time: 50ms
* Current draw: < 4ma
* Slope = 25 and y-intercept = -12.5
This sensor MUST BE POWERED BY 5 VOLTS (NOT 12!)
You can usually find a 5 Volt sensor reference for other OEM sensors on the vehicle.
