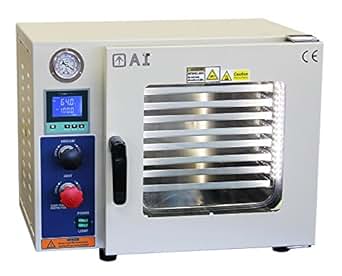

Across International AT09.110 Stainless steel AccuTemp 5 Sided Pad Heating, 0.9 cu. ft. Vacuum Oven with Back-Fill Capability

4.1 out of 5 stars 21 customer reviews

Price: $1,290.00 & FREE Shipping. Details
Usually ships within 5 to 7 days.
Ships from and sold by Amazon.com.
110volt
    This fits your .
  • Enter your model number to make sure this fits.
  • Electrical requirements: 110VAC 50/60Hz single phase, 1200 watts
  • Unit dimensions: 23.4x17.25x19" (WxDxH), shipping dimensions: 28x24x24" (WxDxH)
  • Temperature: Ambient to 480°F
  • Unit weight: 90 Lbs, shipping weight: 150 Lbs
  • Vacuum connector: KF25 flange. Shelf included: 4 aluminum pan shelves

Product Specifications
Part Number AT09.110
Number of Items 1
Capacity 25
EAN 0855071004026
Height 18.0
Item Volume 25
Item Weight 90.0
Length 24.0
Material Stainless Steel
Measurement System US
Model Number AT09.110
Style 110volt
UNSPSC Code 41112500
UPC 855071004026
Wattage 1200.00
Width 19.0
Specification for this product family
Brand Name Across International

4 new from $1,290.00

Freshen up your space for spring
Get ready for the spring season and find our top recommended backyard equipment, grills, and cleaning/organizing essentials for your home Explore more

Frequently bought together

  • Across International AT09.110 Stainless steel AccuTemp 5 Sided Pad Heating, 0.9 cu. ft. Vacuum Oven with Back-Fill Capability
  • +
  • Robinair 13203 Premium High Vacuum Pump Oil - 1 Quart
Total price: $1,303.81
Buy the selected items together

From the manufacturer

0.9 vacuum oven 1.9 vacuum oven 3.2 vacuum oven across international vacuum oven across international vacuum oven
Ai 0.9 cu ft Vacuum Oven Ai 1.9 cu ft Vacuum Oven Ai 3.2 cu ft Vacuum Oven Ai 7.5 cu ft Vacuum Oven Ai 16.0 cu ft Vacuum Oven
Electrical Requirements 110V 50/60Hz 1-PH, 1200 watts, 11A 110V 50/60Hz 1-PH, 1500 watts, 13.6A 110V 50/60Hz 1-PH, 1500 watts, 13.6A 110V 50/60Hz 1-PH, 1500 watts, 13.6A 220V 50/60Hz 1-PH, 3000 watts, 13.6A
Chamber Dimensions 12 x 12 x 11" / 0.9 cubic feet 16.5 x 14.5 x 14" / 1.9 cubic feet 18 x 18 x 18" / 3.2 cubic feet 22 x 23.5 x 25" / 7.5 cubic feet 25.6 x 30 x 35.5" / 16 cubic feet
Shelves Included 4 5 3 5 6
Maximum Shelf Capacity 8 10 6 10 12
Ultimate Vacuum Level Better than 500 microns/millitorrs Better than 500 microns/millitorrs Better than 500 microns/millitorrs Better than 500 microns/millitorrs Better than 500 microns/millitorrs
Vacuum Port Connection KF 25 flange KF 25 flange KF 25 flange KF 25 flange KF 25 flange
Gas Inlet Connection 3/8" hose barb 3/8" hose barb 3/8" hose barb 3/8" hose barb 3/8" hose barb
Built-In White LED Lights
Unit / Shipping Weight 90 lbs / 150 lbs 140 lbs / 200 lbs 260 lbs / 400 lbs 410 lbs / 630 lbs 710 lbs / 940 lbs
Unit / Shipping Dimensions (WxDxH") 23.4 x 20 x 19" / 28 x 24 x 24" 28 x 23 x 21.75" / 32 x 27 x 28" 30.5 x 24 x 29" / 34 x 30 x 35" 35 x 31 x 38" / 38 x 35 x 43" 33 x 37 x 52" / 43 x 40 x 60"

Product description

Style:110volt

The latest Ai AccuTemp 0.9 cubic foot vacuum ovens come standard with our industrial first 5 sided pad heating technology that covers left, right, top, bottom and back of the chamber and heats 25% faster. Together with aluminum shelves, they provide you great temperature uniformity inside the oven chamber. Also come standard is the adjustable gas back fill capability with needle valve and vent port, while the low proportional gain temperature controller keeps your oven temperature within +/- 1°F accuracy. Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test before leaving our factory. Comes standard with four aluminum shelves. Features * New 5 sided pad heating technology and aluminum shelves provide excellent temperature uniformity and faster heating rates (25% faster in our lab test). * 3rd gen low temp controller with new LCD display. * Adjustable gas back fill capability with needle valve and vent port. * Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time. * Dual layer observation window with 1/2" tempered safety glass. * Easy-to-clean 304 stainless steel interior for exceptional durability and ease of maintenance. * Built-in inch mercury vacuum gauge and circuit breaker. * Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature. * Shelves included: 4 aluminum shelves. Attention: Before initial use, run oven at 400°F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.


Product details

Style: 110volt
  • Product Dimensions: 24 x 18.1 x 20.1 inches ; 90 pounds
  • Shipping Weight: 150 pounds (View shipping rates and policies)
  • Domestic Shipping: Amazon only ships this item within the contiguous 48 United States. Other Sellers on Amazon may ship this item to Alaska, Hawaii and US Territories.
  • International Shipping: This item is not eligible for international shipping. Learn More
  • ASIN: B009WSJNNQ
  • Item model number: AT09.110
  • Average Customer Review: 4.1 out of 5 stars 21 customer reviews
