Adaptec

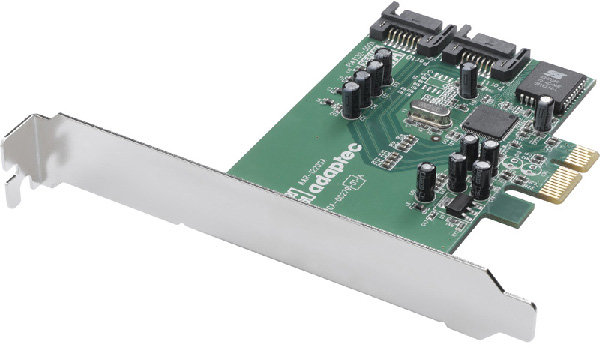

Adaptec 2232100-R 1220SA PCI Express X1 2-Port SATA 3GBS Low-profile Host RAID Controller

4 customer reviews

Available from these sellers.

This fits your .

Enter your model number to make sure this fits.

Main Specifications - NOTE: THIS PRODUCT CANNOT BE SHIPPED TO MASSACHUSETTS OR DISTRICT OF COLUMBIA (WASHINGTON, D.C.)
Product Description Adaptec RAID 1220SA - storage controller (RAID) - SATA-300 - PCI Express x1
Device Type Storage controller (RAID) - plug-in card - low profile Interface Type PCI Express x1
Dimensions (WxDxH) 3.3 in x 2.5 in Controller Interface Type Serial ATA-300
Data Transfer Rate 300 MBps - WARNING: The solder used in this product contains lead, a chemical known to the State of California to cause birth defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if heating the solder.

Used (3) from $20.00 + $5.93 shipping

Adaptec 2232100-R 1220SA PCI Express X1 2-Port SATA 3GBS Low-profile Host RAID Controller

Available from these sellers.

Special offers and product promotions

Buy Used and Save: Buy a Used "Adaptec 2232100-R 1220SA PCI Express X1 2-Port SAT..." and save 70% off the $67.99 list price. Buy with confidence as the condition of this item and its timely delivery are guaranteed under the "Amazon A-to-z Guarantee". See all Used offers.

Have a question?

Find answers in product info, Q&As, reviews

Please make sure that you are posting in the form of a question.

Don't see what you're looking for?

There was a problem completing your request. Please try your search again later.

All Product Information Customer Q&A's Customer Reviews

Product description

p The Adaptec RAID 1220SA card is a two-port, PCI Express x1 controller featuring Adaptec HostRAID - an integrated RAID technology that maximizes system performance and uptime. The Adaptec 1220SA supports up to two 3Gb/s Serial ATA drives, Native Command Queuing, and offers RAID levels 0, 1, and JBOD (individual drive). The Adaptec 48-bit logical block addressing (LBA) support enables use of disk drives exceeding 137 GB in capacity. The Adaptec 1220SA supports Windows 2000, Windows Server 2003, Windows XP, RedHat Linux, SuSE Linux, and NetWare. /p

From the Manufacturer

Serial ATA, the successor technology to parallel ATA for data storage, is a point-to-point connection that delivers full throughput to each storage device by allowing multiple ports to be managed by a single controller. Adaptec Serial ATA technology delivers data transfer rates starting at 3.0 GB/s and a performance roadmap that calls for extensions to 6.0 GB/s. Adaptec Serial ATA cables are thinner, simpler to route and install, and provide better airflow for system cooling than parallel ATA cables.

The Adaptec RAID 1220SA card is a PCI Express x1, two-port SATA controller featuring Adaptec HostRAID -- an integrated RAID technology that maximizes system performance and uptime. The Adaptec 1220SA supports up to two Serial ATA drives and offers RAID levels 0 (striping), 1 (mirroring), JBOD (individual drive). The Adaptec 48-bit LA support enables use of disk drives exceeding 137 GB in capacity. The Adaptec 1220SA supports Windows XP, Windows 2000, Windows 2003, Netware, RedHat Linux, and SuSE Linux.

Adaptec Serial ATA RAID Applications

The Adaptec 1220SA allows end-users to tune their system performance and data protection. On personal computers, the striping feature of the Adaptec 1220SA bolsters the performance of applications such as audio/video streaming and gaming. The mirroring capability of the Adaptec 1220SA protects data for applications such as personal finance. In the small office and home office environment, the Adaptec 1220SA can be used as a boot device to protect the operating system in print, file, and storage servers.

Delivers full throughput to each storage device. View larger

Why Adaptec Serial ATA RAID?

Adaptec makes it easy to cost-effectively deploy, manage, scale, and protect storage. Our products and technology are based on a proven RAID core; tested compatibility with operating systems, motherboards, applications, and drives; RAID education; and global support.

Adaptec RAID 1220SA Performance Native Command Queuing (NCQ)

The Adaptec 1220SA improves performance over a comparable SATA RAID controller by offering two 3GB/s Serial ATA ports, NCQ support and a PCI Express x1 host interface with bandwidth up to 500 MB/s.

Easy-To-Use Storage Management

The intuitive Adaptec Storage Manager (ASM) tool centralizes management of all Adaptec RAID products. ASM enables remote RAID management, monitoring, and configuration through secure, encrypted communication. Pop-up tips and online help simplify RAID array creation and management.

Compatibility, Reliability, and Support

Adaptec has been delivering storage and I/O solutions for over 25 years, and is the undisputed RAID leader -- no technology is more proven. These cards are tested thoroughly for third-party compatibility, and backed by a 3-year warranty and legendary Adaptec technical support.

What's in the Box

Adaptec 1220SA controller with full-size bracket, two 1-meter serial ATA cables, low-profile replacement bracket, quick install guide, bootable installation CD that contains operating system drivers and complete user documentation (PDF), Adaptec storage manager CD with Adaptec storage manager GUI software and complete user documentation (PDF).

Technical Specifications

Device support: Up to two Serial ATA disk drives; 48-bit LBA supports drives larger than 137 GB; SATA tape drives
Data transfer rates: Up to 3.0 GB/s
RAID levels: 0, 1, and JBOD
Bus type: PCI Express x1
Operating temperature: 0 to 55 degrees C
Power requirements: 0.9 amps @ 3.3V
Dimensions: 2.5" x 3.5" (6.4cm x 8.5cm)

Product information

Product Dimensions

7.5 x 11.5 x 3.5 inches

Item Weight

14.9 ounces

Shipping Weight

14.9 ounces

Domestic Shipping

Currently, item can be shipped only within the U.S. and to APO/FPO addresses. For APO/FPO shipments, please check with the manufacturer regarding warranty and support issues.

International Shipping

This item is not eligible for international shipping. Learn More

ASIN

B000K8AU20

Item model number

2232100-R

Customer Reviews

4 customer reviews

4.0 out of 5 stars

Best Sellers Rank

#1,031 in Electronics > Computers & Accessories > Computer Components > Network Cards
#6,141 in Electronics > Computers & Accessories > Networking Products > Network Adapters

Date first available at Amazon.com

July 7, 2004

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Feedback

If you are a seller for this product, would you like to suggest updates through seller support?

Would you like to tell us about a lower price?

Customer Questions & Answers

See questions and answers

Customer reviews

4.0 out of 5 stars

5 star

4 star (0%)

3 star

2 star (0%)

1 star (0%)

Write a customer review

See all 4 customer reviews

Top customer reviews

There was a problem filtering reviews right now. Please try again later.

Gene Fowler

Card works great only if you update the software and firmware

November 15, 2011

Verified Purchase

I installed the card on a Dell Poweredge 1800 (dual 3.8 GHz Xenon, 12GB Ram) running Microsoft Windows Small Business Server Standard 2011 64Bit 1 Pack DSP OEI DVD 1-4CPU 5 Clt. The driver on the install CD was dated 12/11/2007 but a later one (10/19/2010) is available to download from Adaptec. The firmware on the card was version 6.0-0 Build 2328 and I downloaded version 6.0-0 Build 2507 and updated the card's firmware. I had to do a bit of fiddling to get my 2TB SATA II disks working. Had to format using the AFU.exe DOS command after booting on a floppy. I would get intermittent SMART BIOS boot messages on my HITACHI 0F10311 2.0TB SATA 3.0Gb/s 3.0 7200 RPM 32MB Buffer Hard Drive Bulk drives. These drives showed no SMART errors by Hard Disk Sentinel when tested on another computer. I had to disable SMART checking in the card to get reliable booting. I do not have other brand 2TB disks to try. It might be an incompatibility with the card and Hitachi drives. I am not sure of all the steps, but it is working now with SMART detection disabled.

In the above configuration the drives are hot swappable. Without the driver and firmware update the the card would not work reliably. This is why I give it 3 stars. It would have been 4 otherwise. It took me several hours to research, download, update and test these changes. My largest disk is a 2TB but Adaptec says 2507 or later is necessary for 3TB disks. I see no valid reason that these cards are shipping with 4 year-old software/firmware. I have bought other boards that at least had a sticker on the outside of the box with a warning to upgrade the software/firmware.

If the disks were initialized/formatted on another controller they may show as "FAILED" in the boot sequence messages. I had to setup the disks using Ctrl-A in the boot sequence, delete and add them. It warned that it contained a partition table and I might loose the data but I did not loose any. YMMV

The install disk is bootable and you can also make a driver floppy from the bootable or under Windows. Most machines these days do not have floppy drives but I have a TEAC 1.44MB USB External Floppy Disk Drive (Black) for such cases. If booted on the CD it also requires PS/2 keyboard and mouse as it does not contain USB drivers.

The included Adaptec Storage Manager (ASM) is version 5.10.00. Adaptec Storage Manager 6.50.00 is available on the Adaptec site (Windows 64 bit version is asm_windows_x64_v6_50_18584.exe MD5 EF1FF6A6758A467240F052CB75A8BD6A).

I am not real interested in high speed as the board is used with a StarTech.com 5.25-Inch Bay Mounted 2.5-Inch and 3.5-Inch SATA Hard Drive Docking Station SATADOCK525 (Black) to do backups and clones.

Approximate ATTO bench32 results for blocks greater than 256 KB:
Western Digital Raptor 74GB SATA/150 10K RPM 8MB Hard Drive 85 MB/sec read and write
Seagate Barracuda ST3320620AS, 7200.10 - Hard drive - 320 GB - internal - 3.5" - SATA-300 - 7200 rpm - buffer: 16 MB 83 MB/sec read and write
Hitachi Deskstar 3.5" 500GB 7200RPM SATA II 16MB Cache Internal Hard Drive 0F10381 97 MB/sec write, 120 MB/sec read
HITACHI 0F10311 2.0TB SATA 3.0Gb/s 3.0 7200 RPM 32MB Buffer Hard Drive Bulk 98 MB/sec write, 127 MB/sec read
Western Digital 500 GB RE4 SATA 3 Gb/s 7200 RPM 64 MB Cache Bulk/OEM Enterprise Hard Drive - WD5003ABYX 99K MB/sec write, 101K 101K MB/sec read

It is being used simply as 2 ports, I did not try the HostRAID functions.

When I tried to install ASM on a Windows 7 Pro system it failed with "error 1327 invalid drive S". S is a NAS where I keep most of my downloaded files. I applied Microsoft Fix It 50356 and was then able to install ASM.

One review complained that the manual was poor. I have installed so many similar cards that I did not bother to read it. Another said overpriced, I want a product that is reliable and will be supported by the vendor for a long time. Price is important, but a secondary consideration.

Based the above results I ordered 7 more 1220SA cards. If you do not need the SATA cables you should get the Adaptec 2255900-R SATA RAID Controller at about $13 cheaper.

0CommentWas this review helpful to you?

Yes

firebirdman

Whoever wrote the manual needs help.

October 21, 2010

Verified Purchase

My objective was simple. Install a RAID1 Drive (2 x 2 TB drives) on an existing computer to back-up music and videos. So this drive was to act as an extention, and holds no windows information.

The hardware installed fine.

Installing an internal disc drive controller software can be a challenge as you have to address the boot configuration of the computer as well, the installation of the drive, (ARC Utility) and software (Adaptec Storage Manager). It was made more challenging by the faulty and error filled instructions that came with the board. I knew I was in trouble when it was required me to create a disc driver disc using a floppy disc in year 2010.

Obviously that cannot be done.

I wound up struggling mightly to get the driver installed. I attemped format using the quick format strategy, and then using both Adaptec Storage manager Software. At one point the installation corrupted my wireless keyboard and the system defaulted to Arabic language, right to left typing. Thanks for restore.

In the end I wound up sucessfully installing the driver through the windows control panel hardware interface.

There were no instructions on how to assign the drive a letter, help from someone else resolved that problem.

Once installed it seems to work well. I had one problem which has required a driver rebuild, which again, the Adaptec Stroage Manager identified as being a degraded drive, but there were no instructions on how to fix it.

The main manual about 200 pages was useless, obviously no one at Adaptec has ever tried to install the drives using their own instructions.

0CommentWas this review helpful to you?

Yes

U.S.A. Person

over priced

December 18, 2010

Verified Purchase

No manuals, over priced compared to others.Picture had a heatsink on the chip but the adapter I received did not.

0CommentWas this review helpful to you?

Yes

M. H. Keehn

Adaptec 1220SA

September 5, 2009

Verified Purchase

The board installed easily and worked well. No surprises or fights to get it operational.

0CommentWas this review helpful to you?

Yes
