Aoyue 2703A+ SMD Professional Repair & Rework Station With Hot Air, Soldering Iron and a Desoldering Tool

3.9 out of 5 stars 52 ratings

Currently unavailable.
We don't know when or if this item will be back in stock.

About this item

  • HIGH PERFORMANCE - All in 1 Station that has a 70 watt High Powered Desoldering Station with a long life Ceramic heating element, 70 Soldering iron with Smoke Absorber to keep fumes away and a 500 Watt Hot Air system. Atmega6A Microprocessor from Microchip and a proprietary software proportional control of the temperature. Very easy intuitive user interface with large LED Display. Daul Port system can run 2 devices at the same time. 12 Volt high Flow Vacuum Pump that produces up to 15 L/min.
  • BUILT FOR SAFETY - The tools has zero crossing circuitry to prevent electrical surges. CE Certified and ESD Safe. Uses low voltage for the soldering and desoldering irons and vacuum pump. Smoke absorber filters harmful fumes when soldering.
  • INTELLIGENT FUNCTIONS - It has several advanced features such as digital calibration and configurable auto sleep function that is adjustable from 1-60 minutes. 5 Segment programmable auto reflow function.
  • VERSATILE SOLDERING IRON STAND - The configurable stand can be setup with the spool holder on either side of the station and there is an optional sponge holder. Includes a TY-98 Brass Coil Tip Cleaner, The stand will fit any of the available irons.
  • WHAT YOU GET - 1 x Aoyue 2703A+ Station with Hot Air ,Desoldering iron, Soldering iron with Smoke Absorber and tip, 3 x Hot Air Nozzles, 1 x IC Popper, 3 desoldering tips(1 installed in the iron), Cleaning Tools, 1 x Spare Spring, 6 x Spare Filters, 1 x tube of Grease, 1 x TY-98 Tip Cleaner, 1 x User Manual, 1 x Manual vacuum Suction Pen, 1 x Power Cord

Product voltage: 110

This product is compatible with outlets that support 110 volts and might require a converter when used outside of the United States.


From the manufacturer

Product information

Technical Details

Included Components ‎2703A+ Workstation
Upper Temperature Rating ‎4.8E+2 Degrees Celsius
UPC ‎022099136385 712096154917
Global Trade Identification Number ‎00022099136385
Manufacturer ‎Aoyue
Part Number ‎2703A+
Item Weight ‎16 pounds
Product Dimensions ‎14 x 8 x 14 inches
Item model number ‎AO2703APLUS
Is Discontinued By Manufacturer ‎No
Material ‎Ceramic
Power Source ‎ac
Item Package Quantity ‎1
Batteries Included? ‎No
Batteries Required? ‎No

Additional Information

ASIN B007IJVVY0
Customer Reviews
3.9 out of 5 stars 52 ratings

3.9 out of 5 stars
Best Sellers Rank
Date First Available March 8, 2012

Warranty & Support

Amazon.com Return Policy:Amazon.com Voluntary 30-Day Return Guarantee: You can return many items you have purchased within 30 days following delivery of the item to you. Our Voluntary 30-Day Return Guarantee does not affect your legal right of withdrawal in any way. You can find out more about the exceptions and conditions here.

Feedback

Aoyue 2703A+ SMD Professional Repair & Rework Station With Hot Air, Soldering Iron and a Desoldering Tool


Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?

Price Availability
/
/
/
/
Please sign in to provide feedback.

Product Description

This an All in One repairing station the combines a Hot Air Rework Gun with a soldering iron and a desoldering Gun. This a very high quality unit from Aoyue who is a leading producer in Europe and Asia and is now introducting products to the US Market. Just screw a nozzle onto the hot air tool, place the nozzle over the QFP, SOP, PLCC or SOJ to be desoldered, apply hot air to melt the solder without ever touching the component or PC board, and gently lift the component from the board using the vacuum pickup. Soldering of the replacement SMD is just as easy. Maintains a constant set temperature when the set and the value is reached. All Digital display of temperature and pressure with touch control on the front panel. The de-soldering tool comes with zero crossing circuitry preventing electrical surges and is equipped with a strong suction vacuum pump. Built in Air Flow gauge The 24 volt soldering iron is Lead Free compatible with the compound tip design by connecting the ceramic heater, sensor control unit and tip as one. This style tip heats up extremely quickly Compatible with many nozzle types from all manufacturers. There is an Auto cool-off process that leaves the blower on until the nozzle is cool, this prolongs life of the heating element and to ensure safety. ESD safe design. Package content: Main station with hot air gun, Air nozzles (1130,1197, 1919),G001 IC popper, Z003 Hot air gun holder, Soldering Iron with Tip, Soldering Iron Holder with Solder Wire Stand, De-soldering Gun, Spare soldering iron element, manual vacuum suction pen, Power cord. SRA Soldering Products is the Exclusive Distributor and will handle warranty repairs after the first 30 days (for issues within 30 days contact Amazon directly). The warranty period is 1 year after shipment. Heating elements and soldering tips are not covered under warranty.

Customer reviews

3.9 out of 5 stars
52 global ratings

Customers say

Customers find the soldering station to be a great value and appreciate its functionality, particularly the hot air system. The station receives positive feedback for its soldering capacity, with one customer noting it's excellent for repair work. The design and ease of use receive mixed reviews, with some customers praising the controls while others find them awkward to use. The functionality and ease of cleaning also receive mixed feedback from customers.

14 customers mention "Quality"13 positive1 negative

Customers find the soldering station to be of great quality, describing it as a nice little setup.

"Great product! Great quality! Fantastic technical and sales support...." Read more

"Its a very nice little setup. Iron gets hot FAST. Desoldering is also very acceptable. Mine came with a faulty desolder gun...." Read more

"Great soldering rework station. Had another soldering station same brand and have been very happy with it. Hard to beat the value for the features." Read more

"Good products" Read more

8 customers mention "Value for money"8 positive0 negative

Customers find the soldering station offers good value for money.

"This is really a great and diverse piece of equipment for the price...." Read more

"...Hard to beat the value for the features." Read more

"This soldering station does very well for the price. The air control was recently upgraded to allow dual operation...." Read more

"...+++ functionality for price point ---..." Read more

7 customers mention "Soldering capacity"6 positive1 negative

Customers appreciate the soldering station's capacity, with one mentioning it's great for repair work and another noting it helps place SMD chips.

"...Not only can you solder electronic projects, but you can de-solder (great for repair work) or use the hot air system to perform rework or removal of..." Read more

"...The hot air gun is fantastic for heat shrink, the solder sucker is great for repairs, and the soldering pen works very well..." Read more

"...I have already found my soldering skills have gone way up (at least I think they did :) )...." Read more

"Excellent rework station with one minor flaw...." Read more

5 customers mention "Air control"5 positive0 negative

Customers appreciate the soldering station's air control features, with one mentioning that both the hot air system and flinger work wonders.

"...Along with that they include an extra heating element (but again why only one soldering tip!) which I hope does not burn out quickly but we will see...." Read more

"+++ only unit available with fume extraction, vacuum desoldering, hot air for smd & soldering iron. +++ functionality for price point ---..." Read more

"...Anyways the soldering iron and hot air flinger both work wonders and worked much better than I anticipated they would from this all in one unit...." Read more

"...projects, but you can de-solder (great for repair work) or use the hot air system to perform rework or removal of SMD parts in a single unit...." Read more

11 customers mention "Functionality"7 positive4 negative

Customers have mixed experiences with the soldering station's functionality, with some finding the iron and hot air gun work well, while others report issues with tips not working and the air gun stopping pumping.

"..."plug" when inserted, but reinserting the stock tip, the iron works fine...." Read more

"...down at work, I prepared to use the soldering iron, and it would not heat up. The display just said "plug"...." Read more

"...The AMD air tool works well. takes awhile to heat up but most do. The iron is clumsy and a bit awkward but the more I use it, the better it feels...." Read more

"...shrink, the solder sucker is great for repairs, and the soldering pen works very well (with the smoke extraction)...." Read more

6 customers mention "Ease of cleaning"4 positive2 negative

Customers have mixed experiences with cleaning the soldering station, with some finding it easy to maintain, while others report difficulties.

"...Not only can you solder electronic projects, but you can de-solder (great for repair work) or use the hot air system to perform rework or removal of..." Read more

"...The desoldering gun is lacking...." Read more

"+++ only unit available with fume extraction, vacuum desoldering, hot air for smd & soldering iron. +++ functionality for price point ---..." Read more

"Its a very nice little setup. Iron gets hot FAST. Desoldering is also very acceptable. Mine came with a faulty desolder gun...." Read more

6 customers mention "Ease of use"2 positive4 negative

Customers have mixed opinions about the soldering station's controls, with some finding them easy to use while others report issues with the buttons being tough to press.

"...tube than it hardens while the unit is in use, kind of makes it a pain to use...." Read more

"...The main unit is constructed with a solid aluminum case and easy to use controls...." Read more

"...takes awhile to heat up but most do. The iron is clumsy and a bit awkward but the more I use it, the better it feels...." Read more

"...Warning: This is not suitable for an amateur, you should already have beyond basic soldering skills...." Read more

5 customers mention "Design"3 positive2 negative

Customers have mixed opinions about the soldering station's design.

"...Pros: Great bundle of tools with nicely thought layout. Easy to read and understand display and controls...." Read more

"...display & controls - dated look - 7 segment led + membrane keys for temp up/down..." Read more

"...Hopefully won't have any more issues with it. It is really nice looking, and full featured. A space saver...." Read more

"...It does have a cheep look to it but once you feel it you know its a good design. The layout of it is pretty universal...." Read more

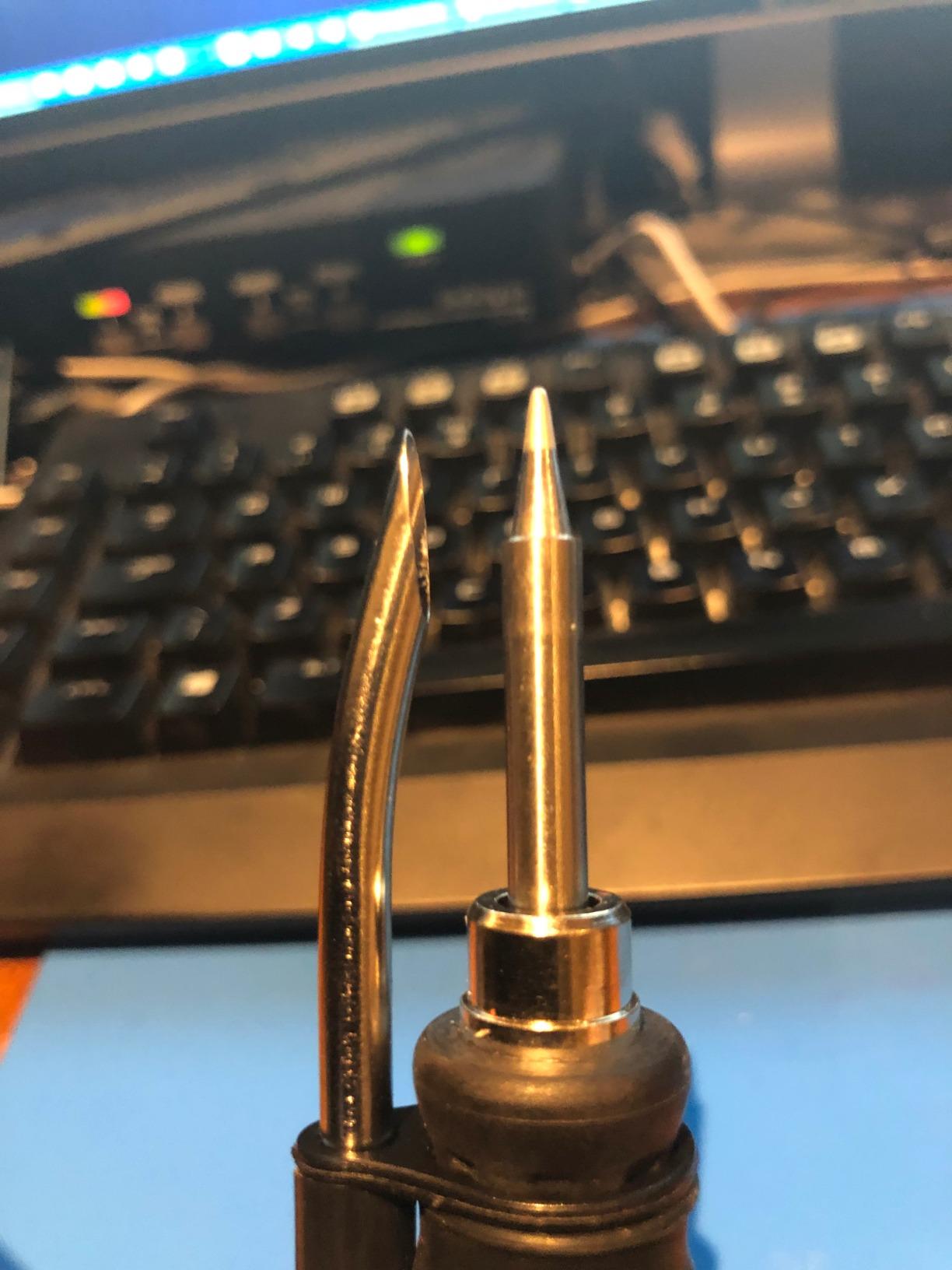

beware of stabbing yourself on the fume extractor
2 out of 5 stars
beware of stabbing yourself on the fume extractor
+++ only unit available with fume extraction, vacuum desoldering, hot air for smd & soldering iron. +++ functionality for price point --- bad design of soldering handle .. I stabbed myself of the fume extractor whilst inserting the tip. --- tip is proprietary (integrated heating element & sensor) so $$$ for each different tip you need. --- display & controls - dated look - 7 segment led + membrane keys for temp up/down Soldering tip must be inserted fully (see pic) else you will get the "plug" error on the display. To earn 5 stars, I would like to see Aoyue improve the following : 1. Make the soldering iron connector compatible with their 968+ iron (currently not compatible for silly reasons i.e. sell more expensive tips). the design of the soldering handle for this model is a safety problem and doesn't work. 2. Update the display to oled/lcd (I love the Yihua 995D+ display and controls). Updating to touch-screen (now quite common) would be a plus.
Thank you for your feedback
Sorry, there was an error
Sorry we couldn't load the review

Top reviews from the United States

  • Reviewed in the United States on January 23, 2015
    I only give 5 or 1 star reviews as those are usually the only ones anybody reads. (Why would I care if somebody "sorta likes" or "sorta hates" something?) Anyway, This is a good system. It's definitely worth what you pay for it considering a comparable Pace station is $1000+. I have had mine for a year and have put it through its paces. So here's the bullets:
    I wish it could read in degrees F sometimes but it can't.
    The sponge that it comes with is only 1/8" thick and dries out way too fast. Needs to be about 1/2" thick sooo badly.
    The replacement tips are ~$20 and not all are available on Amazon. (Note to self: don't leave it turned on unless you program the AutoSleep first. It's not preset. Burned up the WQ-B tip the first month.) (Additional note: The default temp is 350C which is too high for lead solder whch should be ~320C.)
    The desoldering gun is lacking. The design is such that the extractor tip tubes extend into the collection chamber. As a result they don't conduct heat all the way through the tube and the tubes get clogged constantly during heavy use. One solution would be to use a much higher temp but then you risk damage to the PCB. The desoldering tip cleaning tool is made of steel which is fine but it doesn't conduct heat enough to melt through a clog. I made myself one out of 20AWG solid copper wire and of course the copper is more flimsy but it clears clogs better.
    Calibration requires you to have your own temperature measurement device. They could have easily added a thermocouple somewhere on the unit and a simple subroutine in the microcontroller for an autocalibration would have been sooooo easy. And trust me you want to calibrate it. I have a 2BC chisel tip and a LB conical tip and set at the same temp they are drastically different in temp (even considering the obvious heat conductivity of the two tips; but let's face it, isn't 350C supposed to be 350C? The LB runs about 280C at 350C setting which is beyond the +/-50C calibration correction setting capability.).
    The temp of the air nozzle is subjective based on the distance from the workpiece and the airflow. This is understandable but some "tips" or "suggestions" for these settings would be nice in the manual especially since there is no built in temperature measurement device. (Come one! Thermocouples are cheap - especially in China.)
    The SMD profile programming is easy but if you're going to do very much SMD work get the unit they make that has the air gun mounting arm contraption. Holding the airgun steady for a 3 minute profile is fine for one or two SMDs but when your project has 30+ SMDs to solder it gets old REAL FAST.

    I guess the main drawback to this unit is that it has no thermocouple to read actual tip temperatures or heat gun temps. Whether they incorporate an autocalibration feature or not is just a wish but being able to read your actual tip or air temp is crucial and is NOT part of this unit.
    9 people found this helpful
    Report
  • Reviewed in the United States on December 8, 2014
    This is one of the best package deals you will find. If you are into soldering/de-soldering electronics then this is the tool for you. Not only can you solder electronic projects, but you can de-solder (great for repair work) or use the hot air system to perform rework or removal of SMD parts in a single unit.

    Pros: Great bundle of tools with nicely thought layout.
    Easy to read and understand display and controls.

    Cons: would have been nice for the smoke remover for the soldering iron to have it's own vacuum connection.
    Instruction manual needs to be a bit more clearer on assembly, seems to be broken up too much rather than in a logical step 1, step 2, etc

    Warning: This is not suitable for an amateur, you should already have beyond basic soldering skills. Make sure you watch the videos if you never used a system like this before and heed all cautions. You can seriously damage electronics and yourself.
    6 people found this helpful
    Report
  • Reviewed in the United States on August 15, 2016
    Great
    2 people found this helpful
    Report
  • Reviewed in the United States on July 15, 2019
    I've had the tool for a full week now and used it every day . The AMD air tool works well. takes awhile to heat up but most do. The iron is clumsy and a bit awkward but the more I use it, the better it feels. Swapping the suction tubes is a pain in the neck ! The De-solder tool,,, To wet the interior sponge to keep the best suction you open the back, pull the can up and fight hard to get it back in, . The sponge is small so it drys out quick. Don't get it to wet or the pump will suck water into the machine. Also it clogs OFTEN ! With a clean tip, lightly tinned it takes a LONG time to melt the solder even with the temp all the way up to 450c. I'm at the point of returning it...
    2 people found this helpful
    Report
  • Reviewed in the United States on March 15, 2014
    I would like to give the 4.5 stars but I am unable to...

    Anyway I just received this product today and have tested most of the features. It may be a bit too early to give a excellent review but I wanted to say what I like and don't out of the box.

    Over all this system is exactly what I needed. I have already found my soldering skills have gone way up (at least I think they did :) ). The main unit is constructed with a solid aluminum case and easy to use controls. It allows you to easily turn on one or all of the devices with a simple press of the corresponding button and the master power switch is a great addition to quickly turn off the system. One thing to note is the heat gun does have a cool down ability so if you use the main power instead of the heat gun power button, you will loose the cool down function. In my opinion this is fine. The handle on the top is great for moving the unit which being in a apartment is very useful.

    Some people have cautioned you must remove the red coated screw on the bottom. While, yes, you do have to remove it. When the product arrived there are 2 stickers on the device, one on top and one covering the power cable that warn you to do exactly that. Maybe this is a new addition but if you miss those warnings you kinda deserve a broken unit, just saying.

    Anyway a more in depth of the individual components

    Soldering iron:
    The soldering iron feels good in the hand. They have a padded area towards the top of the handle which helps get a good grip on the device. The included iron has a nice fine tip which being someone who solders breadboard components a lot will be very useful. One thing I immediately was disappointed about was that only one tip is included. These tips are the heating element/thermometer and soldering tip combo. I was expecting to get at least 3-5 variety tips with a 250+ station but no big deal. Another thing to add about the tips are they appear to be hard to find. Aoyue's site has a selection of tips but all are for units where the heating element is separate from the tip. From searching I could only find a few sites that appear to be out of country. If Aoyue has any suggestions as to where to find some in the US I would really like to hear.
    If it helps anyone, the tip included is a lf-2b tip. Im not sure if that's a universal design or if it is an Aoyue design.
    The fume extractor is also excellent. It is removable but I recommend you leave it on. After just 4 solder joints on a PCB I checked the filter and there was a good about of white substance on there. This is the first fume extractor I have used so I was shocked at what is being released. Made me wonder how much of that stuff I inhaled before getting this!
    The stand is made from solid steal and holds up very nicely, the iron feels like it should be able to fit more snuggly into the holster but I assure you it is not going anywhere when you place it in. The stand also includes a good sized solder spool which is nice to have but there is no way of securing the spool down so it can easily fall off. It also includes two tip cleaning devices; A sponge with holder and brass mesh with cup. Both can be attached to the stand with either being mounted below the iron and another on the side of the stand. Lastly it includes a tip holder which brings me back to why only one tip?

    Heat gun:
    The heat gun is exactly what I expected. The handle is made with a strong plastic and from what I have heard and seen it is fire retardant which some cheaper competitors do not think about adding. It includes 3 tips, one fine point, a larger circular and a square one for SMD. Along with that they include an extra heating element (but again why only one soldering tip!) which I hope does not burn out quickly but we will see. They claim to have air spreader which I would agree does what it says, the heat does appear to be very equally distributed. The mount for the heat gun is mounted on the main unit. When I received the unit this was upside down but two screws let you fix that in no time. Included in the mount is a button which tells the device the gun is in the holster and allows the main unit to start a sleep timer to turn it off after a user set time. I wish this feature was included in the solder stand and the desoldering gun but I don't intend to leave any of them on after using them (However all the devices have a sleep timer that can be set, however it will count down once you turn it on and now after it has been placed in its holster.)
    One issue I have with the gun is there does not appear to have any way to disconnect it from the unit. No big issue jut If I know im not going to use it why should I need it attached.
    Another thing to note. The air inlet is the same used by the fume extractor and the desoldering gun. When you want to use the heat gun they include a cap to place on the inlet that allows more flow than the other caps.

    Desoldering gun:
    I am really impressed with this one, the gun is made out of really good plastic composite. It does have a cheep look to it but once you feel it you know its a good design. The layout of it is pretty universal. From the tip you have a standard tip that fits most through hole components, this is followed by the enclosed (but removable) heating element followed by the solder containment spring, after that is a sponge to capture everything the spring did no.

    Cleaning is very easy, simply pull down on the release switch and pull the containment unit out. They include a tube of petroleum jelly which you apply to the spring to keep the solder from sticking or corroding the spring. The spring is easily cleaned by simply pulling the spring apart and rolling it in your fingers. Finally is the sponge which does require to dampen at each use (should stay damp for a good half hour or so of use).

    The device does have a indicator which shows you if the unit is clogged or needs to be cleaned. This is activated with the vacuum so you can not tell while it is just idle.

    The product does include 6 extra sponges, an extra spring collector, 2 additional tips, one larger tip and one smaller tip, an extra gasket which goes between the tip and the spring, a poking tool and a drill bit and handheld tool to clean the tips.

    One thing I want to note. The desoldering gun and the fume extractor use the same vacuum port. While it does include separate caps you still have to unscrew one to use the other. No big issue as it takes about a half turn to remove and fasten the unit. I should also be noted that the output for the fume extractor and desoldering gun is the heating gun. It is not heated but that's where the air is directed.

    Some odds and ends:
    The device does include a SMD suction tool which helps to place SMD chips. It has 3 different size suction cups. One thing with the device is it does feel a bit cheep and the button is a bit tough to press. It also has a alignment tool which looks like a football goal. It does seem that it allows SMD's to be moved delicately but it is very cheep (plastic handle and two wires shaped in a U).

    Over all I am happy with this. I would have liked to get more for the near $300 I paid for it but I am sure that that money was well spent and it will last for all the hobby work ahead.

    A brief overview:
    +Very sold design of the main unit and the three attachments
    +Good solder stand made from good materials and anti slip feet
    +Includes brass and sponge tip cleaner
    +Easy to use controls
    +Sleep and cool down functionally
    +Holsters for heat gun and desoldering are mounted on the main unit
    +Portable (to some extent)
    +Two extra carbon filters for air input (fume extractor and desoldering connect to it too)

    -One solder tip included. I really wanted to see more and the main reason I gave 4 stars vs 5
    -Have to switch air inputs for desoldering or fume extractor. I would have liked two ports and a manual switch but taking the connectors on and off is not hard so this is not a big negative
    -+Lots of spare parts. While this is good I don't know what to do with them. I currently have them in the box it arrived in. I would have liked to see some kind of tool box or bag to hold it all.
    -Solder spool is a bit cheep and has no way to lock it down
    -The manual found [...] shows the device to come with 6 carbon filters (vs 3) and 6 heat gun attachments (vs 3) Im unsure if this is an older manual or what but more parts is always better
    -A slight design change I would make is the analog flow sensor has a metal ball inside it. When the air shuts off it falls down to the bottom making a good thud sound. I would have liked there to be a cushion at the bottom so each time you disengage the desoldering gun you don't get the thud sound. (just being picky)

    While I do have a handful of negative aspects most are just personal opinion. I am very pleased with this and it is exactly what I wanted. From my use so far I can say it does a professional job with all your soldering needs. If you are thinking of buying something to last I would recommend this.

    Again if an Aoyue representative would like to comment on where to get replacement tips (or a variety pack if possible) in the US please comment. I am sure I will not need a replacement for a few years but it is always reassuring to have a place you know will have them.

    To end, great product. I would give it a 4.5 if I could but Ill leave it at 4 just because I expected additional tips that appear to be offered with some lower end Aoyue models and the fact the manual I found online shows more parts that what was received (even though I received everything that the manual with my unit said I should receive).

    Ill update after I get more use. I plan to order my own custom PCB within a few months with some through hole and surface mount components so Ill let you all know how it went.
    28 people found this helpful
    Report

Top reviews from other countries

  • Alan S.
    5.0 out of 5 stars It was easy to assemble
    Reviewed in Canada on January 12, 2015
    Station was packed well and arrived within a few days. It was easy to assemble. There were no missing parts.

    So far I've removed a few SMDs using the hot-air gun. Considering it's the first time I've done this, I'm surprised the results were so good. The soldering iron works as expected. The package includes a single soldering tip, so it would be nice if a set of popular tips were available. Considering cross-border shipping, buying tips in sets would probably be better than buying one at a time. I still have to try the desoldering gun.

    It's a pleasure dealing with a company that's figured out how to get product into Canada without the usual hassle.
  • Joel Righter
    4.0 out of 5 stars I love it, but it does have its few flaws.
    Reviewed in Canada on November 5, 2017
    I've had this soldering station since Jan 10 2016 and it has been great. Actually, the date was a little after that as the first unit was stolen in transit and luckily the UPS Access point refused to accept it as the listed weight was nowhere near the weight listed on the box.

    Once that was sorted I got a 2nd unit shipped and it has been flawless, just a few quirks. It is pretty loud (and yes I removed the screw) The smoke sucker pulls the fumes through tubing from the solder tip, all the way through the unit and then out the hot air gun. This doesn't seem like a very good way to ensure a long pump life or clean tubes. I wish they added a diverter or something to have the smoke go a 2nd route that you could put out the window or at least have some sort of better filter for all the flux fumes which can build up and solidify on the tubing, and so I assume the internal pump as well. Already had to clean the hoses out and was shocked just how much isn't making it the full way through the station and out the heat gun, almost want to look at the pump mechanism to see about cleaning it. At least the hot air gun you can burn off. That ignores the fact the solder sucker sucks through the same way, but will smaller diameter tubing. I just want it to last without having to replace parts due to something stupid like solder fumes.

    Real toss up between 3 and 4 stars due to the flux buildup issues.

    Still, it is a great buy, especially when it was over $100 less than now.
  • Cliftee
    5.0 out of 5 stars For average electronic enthousiast.
    Reviewed in Canada on August 25, 2020
    Weather soldering, removing components no matter what size, applying the proper heat being it to solder tips or your heat gun, remember this is a rework station, you control the heat with the Aoyue 2703A. This is very affordable. Once you discover its potential, you will appreciate your results.
  • T.K.
    5.0 out of 5 stars Best Bang for your Buck
    Reviewed in Canada on January 16, 2017
    Product itself is amazing. So may functions and for the price good quality. But I am not happy with amazon shipping box was damaged every time I ordered it.
    In the end I would say I am very happy with my purchase and I also thank amazon for offering this product on Amazon.ca
  • Josh Caume
    2.0 out of 5 stars Good bang for the buck, but is it enough
    Reviewed in Canada on March 7, 2018
    Great entry level equipment, but you will find your self doing maintenance on the desoldering gun more than you would like.

Product Summary: Aoyue 2703A+ SMD Professional Repair & Rework Station With Hot Air, Soldering Iron and a Desoldering Tool

From Aoyue

3.9 out of 5 stars, 52 ratings

Customer reviews

Price

No featured offers available

Other sellers

Other sellers

About this Item

  • HIGH PERFORMANCE - All in 1 Station that has a 70 watt High Powered Desoldering Station with a long life Ceramic heating element, 70 Soldering iron with Smoke Absorber to keep fumes away and a 500 Watt Hot Air system. Atmega6A Microprocessor from Microchip and a proprietary software proportional control of the temperature. Very easy intuitive user interface with large LED Display. Daul Port system can run 2 devices at the same time. 12 Volt high Flow Vacuum Pump that produces up to 15 L/min.
  • BUILT FOR SAFETY - The tools has zero crossing circuitry to prevent electrical surges. CE Certified and ESD Safe. Uses low voltage for the soldering and desoldering irons and vacuum pump. Smoke absorber filters harmful fumes when soldering.
  • INTELLIGENT FUNCTIONS - It has several advanced features such as digital calibration and configurable auto sleep function that is adjustable from 1-60 minutes. 5 Segment programmable auto reflow function.
  • VERSATILE SOLDERING IRON STAND - The configurable stand can be setup with the spool holder on either side of the station and there is an optional sponge holder. Includes a TY-98 Brass Coil Tip Cleaner, The stand will fit any of the available irons.
  • WHAT YOU GET - 1 x Aoyue 2703A+ Station with Hot Air ,Desoldering iron, Soldering iron with Smoke Absorber and tip, 3 x Hot Air Nozzles, 1 x IC Popper, 3 desoldering tips(1 installed in the iron), Cleaning Tools, 1 x Spare Spring, 6 x Spare Filters, 1 x tube of Grease, 1 x TY-98 Tip Cleaner, 1 x User Manual, 1 x Manual vacuum Suction Pen, 1 x Power Cord

Product Description

This an All in One repairing station the combines a Hot Air Rework Gun with a soldering iron and a desoldering Gun. This a very high quality unit from Aoyue who is a leading producer in Europe and Asia and is now introducting products to the US Market. Just screw a nozzle onto the hot air tool, place the nozzle over the QFP, SOP, PLCC or SOJ to be desoldered, apply hot air to melt the solder without ever touching the component or PC board, and gently lift the component from the board using the vacuum pickup. Soldering of the replacement SMD is just as easy. Maintains a constant set temperature when the set and the value is reached. All Digital display of temperature and pressure with touch control on the front panel. The de-soldering tool comes with zero crossing circuitry preventing electrical surges and is equipped with a strong suction vacuum pump. Built in Air Flow gauge The 24 volt soldering iron is Lead Free compatible with the compound tip design by connecting the ceramic heater, sensor control unit and tip as one. This style tip heats up extremely quickly Compatible with many nozzle types from all manufacturers. There is an Auto cool-off process that leaves the blower on until the nozzle is cool, this prolongs life of the heating element and to ensure safety. ESD safe design. Package content: Main station with hot air gun, Air nozzles (1130,1197, 1919),G001 IC popper, Z003 Hot air gun holder, Soldering Iron with Tip, Soldering Iron Holder with Solder Wire Stand, De-soldering Gun, Spare soldering iron element, manual vacuum suction pen, Power cord. SRA Soldering Products is the Exclusive Distributor and will handle warranty repairs after the first 30 days (for issues within 30 days contact Amazon directly). The warranty period is 1 year after shipment. Heating elements and soldering tips are not covered under warranty.

Important Information

Wattage

70 watts

Bulb Voltage

110 volts

Feedback

Did you find this product summary feature useful?

Thank you for your feedback
Thank you for your feedback. You selected "Yes, it is useful"
Thank you for your feedback. You selected "No, it is not useful"
Product summary presents key information. Close to see all product details.
