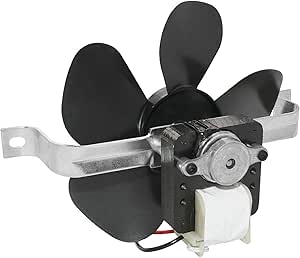

| Manufacturer | Appliancemate |
|---|---|
| Part Number | B-97012248 |
| Item Weight | 1.79 pounds |
| Package Dimensions | 8.98 x 6.65 x 5.24 inches |
| Material | Plastic &metal |
| Batteries Required? | No |
Alexa Bill Planner
Bill Planner is the easier way to check, compare, and pay your utility bills with Alexa. With intelligent notifications, Alexa helps you keep track by letting you know if you're about to miss a bill due date. Try asking, "Alexa, what's my bill?" to get started. Learn More
Customers also search
Customers who viewed this item also viewed
Page 1 of 1 Start overPage 1 of 1
Compare with similar items
|
Broan-NuTone 413001 Non-Ducted Ductless Range Hood with Lights Exhaust Fan for Under Cabinet, 30-Inch, White
|
Broan-NuTone BP17, Pack of 1
|
Broan S97012248 Motor Assembly for 40000 Series Range Hoods
|
Broan S99080666 Motor for NS6500 and WA6500 Range Hood Series
|
Broan-NuTone BP29 NY NV 403 Alum Grease Filter for Range Hood, 8-3/4 x 10-1/2-Inch, Aluminum
|
|
|---|---|---|---|---|---|---|
| Customer Rating | (217) | (11338) | (269) | (514) | (259) | (1336) |
| Price | $20.77 | $52.99 | $29.99 | $40.00 | $49.15 | $10.78 |
| Sold By | Appliancemate | Amazon.com | Amazon.com | Merchandise Mecca | Buy-it-now-store | Amazon.com |
Customer Questions & Answers
Customer reviews
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States on December 2, 2020
Verified Purchase
Reviewed in the United States on May 6, 2021
I bought this hoping it would be an easy replacement for my LL6300 NuTone Hood but with the expectation that I would need to do some modifications to get it working. There is a part sold by Broan-NuTone but I wasn't going to spend extra money on a part that might not work for my hood. I was more hopeful after receiving it and comparing it to the nasty original I pulled from the hood. It looked very much like the original but with a different connector. After installing I noticed how much was actually different and decided to try to get it working anyways. Here is a list of what I did to get it working on my LL6300 NuTone Hood. Remember that is worked specifically for me, I'm comfortable with electronics and was not intimidated by this project. Your results could vary and only take on projects within your comfort level and proper knowledge. Remember to turn off the power at the power panel to make sure you don't short something out or hurt yourself!
Step one: Compare parts, they look almost like a perfect match, bend bracket slightly to match mounting holes.
Step two: Compare connectors, obviously different, original is square, new has a V angle at the end.
Step three: Compare pins and wires, colors are different and the pins are bigger on the new unit, they will not squeeze into the mating connector of the old unit.
Step four: Cut connector off new unit, break connector off hood, cut old connector off, prepare wires, join wires together. Red to red wire, white to yellow wire, black to blue wire. I used wire nuts, I considered solder but I wanted this to be somewhat easily replaceable if this needs to be changed again in the future.
Step five: Turn it on and verify air is flowing out the vent. If this happens for you then congratulations! This was not the case for me, the fan was pulling air from the vent and blowing it to the range.
Step six: Remove fan blade, remove bracket, remove fan motor, flip motor and install everything on the opposite side from how it came.
Step eight: Test again, this time it worked, fan was blowing air out the vent and the trap door had enough pressure to open.
Again, these are the steps I took to get this working for me. I do not suggest you try this, but if you are set on modifying your LL6300 NuTone Hood then make sure you are very comfortable and know your way around electronics.
I tried just reversing the bracket but the fan wasn't building enough pressure from the lower position to open the trap door so I had to disassemble it and flip it to get the fan closer to the trap door.
In conclusion: If you are buying this for your LL6300 NuTone Hood then be aware that this is not a direct replacement and prepare to do modifications to get your hood retrofitted and working properly. 5 stars for giving my hood an extra chance at life.
At the end of the day I wonder if I was smart for getting this working on my LL6300 Nutone Hood or a fool for not buying a new hood free of many decades of someone else's grease and guaranteed to have a working fan.
Now to wait for the replacement grease filter and light cover and hope I don't need to modify those too!
Verified Purchase
Got it to work on my LL6300 Nutone Hood with many modifications.
By DJ on May 6, 2021
Let me just say that if you are reading this because you are looking for an exact replacement for your LL6300 Nutone Hood, good luck, you are going to need it. The part isn't manufactured by the company anymore, I can't speak on how this product works for it's intended purpose. I also want to mention that I did not let this hood get like this, this is what happens when you don't maintain your equipment. I moved into this home and the hood was caked in grease, had no grease filter or cover over the light, so this is who knows how many decades of abuse on this poor hood.By DJ on May 6, 2021
I bought this hoping it would be an easy replacement for my LL6300 NuTone Hood but with the expectation that I would need to do some modifications to get it working. There is a part sold by Broan-NuTone but I wasn't going to spend extra money on a part that might not work for my hood. I was more hopeful after receiving it and comparing it to the nasty original I pulled from the hood. It looked very much like the original but with a different connector. After installing I noticed how much was actually different and decided to try to get it working anyways. Here is a list of what I did to get it working on my LL6300 NuTone Hood. Remember that is worked specifically for me, I'm comfortable with electronics and was not intimidated by this project. Your results could vary and only take on projects within your comfort level and proper knowledge. Remember to turn off the power at the power panel to make sure you don't short something out or hurt yourself!
Step one: Compare parts, they look almost like a perfect match, bend bracket slightly to match mounting holes.
Step two: Compare connectors, obviously different, original is square, new has a V angle at the end.
Step three: Compare pins and wires, colors are different and the pins are bigger on the new unit, they will not squeeze into the mating connector of the old unit.
Step four: Cut connector off new unit, break connector off hood, cut old connector off, prepare wires, join wires together. Red to red wire, white to yellow wire, black to blue wire. I used wire nuts, I considered solder but I wanted this to be somewhat easily replaceable if this needs to be changed again in the future.
Step five: Turn it on and verify air is flowing out the vent. If this happens for you then congratulations! This was not the case for me, the fan was pulling air from the vent and blowing it to the range.
Step six: Remove fan blade, remove bracket, remove fan motor, flip motor and install everything on the opposite side from how it came.
Step eight: Test again, this time it worked, fan was blowing air out the vent and the trap door had enough pressure to open.
Again, these are the steps I took to get this working for me. I do not suggest you try this, but if you are set on modifying your LL6300 NuTone Hood then make sure you are very comfortable and know your way around electronics.
I tried just reversing the bracket but the fan wasn't building enough pressure from the lower position to open the trap door so I had to disassemble it and flip it to get the fan closer to the trap door.
In conclusion: If you are buying this for your LL6300 NuTone Hood then be aware that this is not a direct replacement and prepare to do modifications to get your hood retrofitted and working properly. 5 stars for giving my hood an extra chance at life.
At the end of the day I wonder if I was smart for getting this working on my LL6300 Nutone Hood or a fool for not buying a new hood free of many decades of someone else's grease and guaranteed to have a working fan.
Now to wait for the replacement grease filter and light cover and hope I don't need to modify those too!
Images in this review
Reviewed in the United States on May 3, 2021
Verified Purchase
Burned out in TEN MINUTES!!!
By Nate on May 3, 2021
I like that while it only lasted about TEN MINUTES before it overheated and nearly caught fire it was so hot, but it shut down by itself. I will say, in those minutes, I was impressed with how quiet it was. And moved so much more air than the unit it replaced
