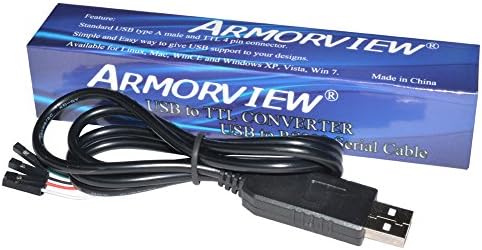

Armorview PL2303HX USB To TTL To UART COM Cable Module Converter
Fulfillment by Amazon (FBA) is a service we offer sellers that lets them store their products in Amazon's fulfillment centers, and we directly pack, ship, and provide customer service for these products. Something we hope you'll especially enjoy: FBA items qualify for FREE Shipping and Amazon Prime.
If you're a seller, Fulfillment by Amazon can help you increase your sales. We invite you to learn more about Fulfillment by Amazon .
- Cable length: 1 meter
- Line sequence defined:Red +5V, Black GND, Green TXD, White RXD,
- Pack of 1 USB To TTL Converter
- Works with Win10,need manual install driver
- You can contact our service email to get the driver
Frequently bought together
Customers who bought this item also bought
Compare to similar items
This item Armorview PL2303HX USB To TTL To UART COM Cable Module Converter
|Shipping||FREE Shipping||FREE Shipping||FREE Shipping||FREE Shipping|
|Sold By||Dualmax||NooElec||OneDealOutlet Online||A-Estar|
|Item Dimensions||—||—||6.31 x 9.25 x 2.25 in||0.01 x 7.87 x 0.01 in|
|Item Weight||1.6 ounces||—||5.6 ounces||—|
Red cable -------+5V
1 x USB To TTL Converter
Works with Win10,need manual install driver
Top customer reviews
Connect as follows:
Black (gnd) ---> Pin1 (gnd)
Green (tx) ---> Pin4 (rx)
White (rx) ---> Pin5 (tx)
Do not connect the red wire. Linux minicom 115200,8,N,1
Regardless, this cable works just fine with Windows 7, and I was able to implement a workaround on Windows 8 to get it to work. The workaround is to use the Prolific 1.5.0 drivers (no longer available on Prolific's website, and not supported on Windows 8). You also have to turn off the automatic update of windows drivers, which is not recommended. So, although this workaround works, it isn't optimal and is disappointing.
Giving 4 stars - product works fine and quality meets price. Wish I knew it wasn't compatible with Windows 8, but glad I have work around.
Since it doesn't have the DTR (only a transmit and receive -- Tx and Rx), it can't reset the Arduino circuit for you to put it in the bootloader. That's what the DTR signal is used for during FTDI programming of those devices. However, all you have to do is when you click 'upload' (if building from the Arduino IDE) or run the Makefile (if running from the command-line or other IDE as I do on Linux), is press the Reset button on your Arduino board manually when avrdude launches. Works like a charm.
Though you do have to get the baud rate correct -- I messed that up the first time when running manually from a makefile on Linux. The ProMini boards need 57600 whereas the Uno is 115200. That took me a bit to figure out. Though if you are running from the Arduino IDE, just select the correct board in the menu and you are set...
The other thing is to get the pinout correct. First time out, I got the Tx and Rx backwards too... Here's the pinout for connecting to the Arduino boards:
Red = +5V VCC (only needed if you aren't powering your board with its own supply)
Gnd = Gnd
White = Connect to the TXO pin of the Arduino (PD1)
Green = Connect to the RXI pin of the Arduino (PD0)
I've only tried this cable on Linux. There it just works with nothing special. Though it came up as device /dev/ttyUSB instead of /dev/ttyAMC0, so be sure you select the correct device on the menus or enter the correct one on the command-line. I think for Mac you need an FTDI driver installed -- as I know I had to do that on my MacMini once when talking to the USB port of an Uno board (the generic FTDI drivers should work for it), but I haven't specifically tested this cable there. And I haven't tried it at all on Windoze... Presumably it works there too.
Overall, I like this cable and am well pleased with it.
