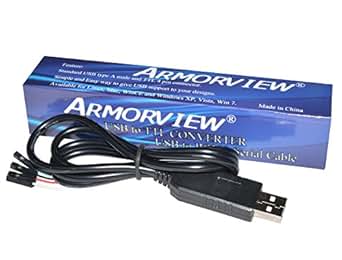

Armorview PL2303HX USB To TTL To UART RS232 COM Cable Module Converter

by Armorview

174 customer reviews

| 13 answered questions

Price:

$6.49 | Fast, FREE Shipping with Amazon Prime

In Stock.

Sold by Dualmax and Fulfilled by Amazon. Gift-wrap available.

Style: One Converter

Cable length: 1 meter
Line sequence defined:Red +5V, Black GND, Green TXD, White RXD,
Pack of 1 USB To TTL Converter
Works with Win10,need manual install driver
You can contact our service email to get the driver

› See more product details

2 new from $6.49 1 used from $6.25

Armorview PL2303HX USB To TTL To UART RS232 COM Cable Module Converter

$6.49 | Fast, FREE Shipping with Amazon Prime In Stock. Sold by Dualmax and Fulfilled by Amazon. Gift-wrap available.

Frequently Bought Together

Total price: $20.47

Buy the selected items together

This item:Armorview PL2303HX USB To TTL To UART RS232 COM Cable Module Converter $6.49
In Stock.
Sold by Dualmax and ships from Amazon Fulfillment.
FREE Shipping on orders over $49. Details
KEDSUM CP2102 Module STC Download Cable USB 2.0 to TTL 6PIN Serial Converter For STC $6.99
In Stock.
Sold by KEDSUM and ships from Amazon Fulfillment.
FREE Shipping on orders over $49. Details
JBtek® WINDOWS 8 Supported Debug Cable for Raspberry Pi USB Programming USB to TTL Serial Cable $6.99
In Stock.
Sold by JBtek and ships from Amazon Fulfillment.
FREE Shipping on orders over $49. Details

Customers Who Bought This Item Also Bought

Page 1 of 1 Start overPage 1 of 1

This shopping feature will continue to load items. In order to navigate out of this carousel please use your heading shortcut key to navigate to the next or previous heading.

137

$6.99
138

$6.99
28

$5.17
56

$7.99
53

$9.95
1,080

in Computer Motherboards
$39.44

Special Offers and Product Promotions

Style: One Converter

Technical Details

Style: One Converter

Brand Name: Armorview
Model Number: TTLX1P

Product Description

Style:One Converter

Feature:
Black cable-----GND
Green cable-----TXD
White cable-----RXD
Red cable -------+5V

Package:
1 x USB To TTL Converter

Works with Win10,need manual install driver
http://www.armorview.net/index.php?ac=article&at=list&tid=47

Product Information

Style:One Converter

Technical Details

Brand

Armorview

Part Number

TTLX1P

Item Weight

1.6 ounces

Product Dimensions

3.7 x 0.9 x 0.4 inches

Item model number

TTLX1P

Style

One Converter

Batteries Included?

Additional Information

ASIN

B008AGDTA4

Customer Reviews

174 customer reviews

3.9 out of 5 stars

Best Sellers Rank

#320 in Electronics > Accessories & Supplies > Audio & Video Accessories > Connectors & Adapters

Shipping Weight

1.6 ounces (View shipping rates and policies)

Date First Available

June 11, 2012

Feedback

If you are a seller for this product, would you like to suggest updates through seller support?

Would you like to tell us about a lower price?

Customer Questions & Answers

See questions and answers

Customer Reviews

174

3.9 out of 5 stars

5 star		52%
4 star		18%
3 star		13%
2 star		4%
1 star		13%

Write a customer review

See all verified purchase reviews

Top Customer Reviews

Works great under Linux Mint 15

ByJoseph M. Tysonon September 1, 2013

Style: One ConverterVerified Purchase

Used to connect and power my Raspberry Pi (RPi) under Linux Mint 15, not additional drivers required.

Below is the wiring diagram used to connect with the RPi:

Wire Description
==== ===========
Red 5VDC @ 500mA Power via USB [can power RPi ~ Pin 2]
Black GND [RPi ~ Pin 6]
White RxD (3.3V logic level) [RPi Pin 8 ~ TxD]
Green TxD (3.3V logic level) [RPi Pin 10 ~ RxD]

11 comment 55 people found this helpful. Was this review helpful to you?YesNo

It works great, when you've got the correct drivers for your OS

ByAmazon Customeron August 13, 2013

Style: One Converter

Make sure you track down drivers for your OS first before you purchase this one. The device itself worked flawlessly for low level firmware flashing. The latest driver for the PL2303HX can be found here [...]

The URL above also has support documentation as none is provided with the product. The PL2303HX USB to TTL converter connected fine at a full 115,200 kbps speed and got the job done. For the price and a little downloading, it can't be beat.

Supported OS and driver info is below:

(For PL2303 HXA, XA, HXD, EA, RA, SA, TA, TB versions)
Installer version & Build date: 1.8.0 (2013-2-26)
Windows XP (32 & 64-bit) WDM WHQL Driver: v2.1.44.226 (2/5/2013)
- Windows XP Certified WHQL Driver
- Compatible with Windows 2000SP4 & Server2003
Windows Vista/7/8 (32 & 64-bit) WDF WHQL Driver: v3.4.48.272 (2/5/2013)
– Windows Vista, 7, 8 Certified WHQL Driver
– Compatible with Windows Server2008/Server2008R2/Server2012
– Driver also available via Windows Update (Vista, 7, 8). Refer to User Manual.

33 comments 25 people found this helpful. Was this review helpful to you?YesNo

5V VCC, 3.3V Tx/R

ByL. Morettion March 13, 2013

Style: One ConverterVerified Purchase

Recognized by Linux with no issues.

The adapter outputs 5VCC but 3.3V TX/RX. I thought at first this was causing me issues, but it turns out that I forgot to cross the Tx/Rx on the cable with the Tx/Rx on my board (Tx from the adapter goes to Rx on the board, Rx on the adapter goes to Tx on the board). Once I fixed this, the adapter works perfectly to access the serial connection in my ZyXel NSA320 NAS box.

33 comments 17 people found this helpful. Was this review helpful to you?YesNo

Works on Beagle Bone Black Serial Debug Port

BySF IoT Geekon October 11, 2014

Style: One ConverterVerified Purchase

Works fine on Beagle Bone Black Serial Debug Port (RevC).
Connect as follows:

Cable BBB
---------- ------
Black (gnd) ---> Pin1 (gnd)
Green (tx) ---> Pin4 (rx)
White (rx) ---> Pin5 (tx)

Do not connect the red wire. Linux minicom 115200,8,N,1

0Comment 9 people found this helpful. Was this review helpful to you?YesNo

Windows Compatibility Fix (Counterfeit?)

Byh0tw1r3on October 1, 2014

Style: One ConverterVerified Purchase

WARNING: If you receive one of these and it does not work straight away in Windows (any version) then it is a counterfeit Chinese knockoffs according to Prolific (source: http://www.prolific.com.tw/US/ShowProduct.aspx?p_id=225&pcid=41%E2%80%8E).

I would suggest your return it immediately and report to Amazon, but if you're like me and you didn't test it on Windows right away, follow the instructions on left brain tinkering blog (source: http://leftbraintinkering.blogspot.com/2013/05/usb-to-serial-prolific-2303-device.html). It really works.

22 comments 7 people found this helpful. Was this review helpful to you?YesNo

This is a PL-2303 XA / HXA chip

ByA. Cartwrighton April 4, 2013

Style: One ConverterVerified Purchase

I ordered this cable to be used with a Raspberry Pi connected to a Windows 8 computer (Microsoft Surface Pro). The cable was detected just fine by Windows 8, but the device would not start. After some research, I discovered that the HXA chip model is not supported by Prolific for Windows 8, and that is what is in this cable. So warning: if you want to use Windows 8, then this is not the cable for you. Perhaps more research before I purchased this I could have figured that out, but it isn't made very clear.

Regardless, this cable works just fine with Windows 7, and I was able to implement a workaround on Windows 8 to get it to work. The workaround is to use the Prolific 1.5.0 drivers (no longer available on Prolific's website, and not supported on Windows 8). You also have to turn off the automatic update of windows drivers, which is not recommended. So, although this workaround works, it isn't optimal and is disappointing.

Giving 4 stars - product works fine and quality meets price. Wish I knew it wasn't compatible with Windows 8, but glad I have work around.

11 comment 7 people found this helpful. Was this review helpful to you?YesNo

Works great, a wiring diagram would have been nice :)

ByCatfishon March 1, 2013

Style: One ConverterVerified Purchase

This device installed automatically in Windows 7 Professional and came right up and worked. A wiring diagram would have been nice as I had to come back to Amazon to confirm what wires did what:

"four colored-wire : black?GND/ red?VCC /white?RXD /green?TXD"

Using it with a custom PIC18 board and it connected right up to the TTL header and starting dumping data to a Windows terminal program as designed.

Great tool for the money.

33 comments 13 people found this helpful. Was this review helpful to you?YesNo

Works great on Linux

ByBurns Fisheron July 28, 2013

Style: One ConverterVerified Purchase

I'm using this with an STM32L152 Discovery card with the USB plugged into a Linux system at 19.2Kbaud. It works great! Linux recognizes it as /dev/ttyUSB0 and I just plug the pins onto the right GPIOs of my Discovery card. I *can* use the +5 to power the Discovery card, but I've just been letting it dangle and powering the card from the programming cable.
