| Manufacturer | Uxcell (UXCE9) |
|---|---|
| Part Number | a13070600ux0181 |
| Item Weight | 3.52 ounces |
| Product Dimensions | 2.3 x 1.8 x 1.26 inches |
| Item model number | a13070600ux0181 |
| Is Discontinued By Manufacturer | No |
| Material | As shown the picture |
| Item Package Quantity | 1 |
| Measurement System | Metric |
| Included Components | 1 x Solid State Relay |
| Batteries Included? | No |
| Batteries Required? | No |
uxcell BEM-14840DA 3-32V DC to 24-480V AC 40A Output Single Phase SSR Solid State Relay
We don't know when or if this item will be back in stock.
| Current Rating | 40 Amps |
| Brand | uxcell |
| Contact Current Rating | 40 Amps |
| Maximum Switching Current | 40 Amps |
About this item
- Product Name: Solid State Relay; Model No. : BEM-14840DA
- Current & Frequency : 40A, 50/60Hz; Output Voltage : 24-480VAC
- Control Voltage : 3-32VDC; Mounting Hole Diameter : 4.5mm / 0.18"
- Total Size (Approx.) : 58 x 45 x 32mm / 2.3" x 1.8" x 1.26" (L*W*T)
- Net Weight : 116g; Package Content : 1 x Solid State Relay
Similar items that may deliver to you quickly
CG Solid State Relay SSR-40DA DC to AC Input 3-32VDC To Output 24-480VAC 40A Single Phase Plastic Cover…Amazon's Choicein Solid State Relays
Looking for specific info?
Product information
Technical Details
Additional Information
| ASIN | B00E1LC1VK |
|---|---|
| Customer Reviews |
4.5 out of 5 stars |
| Best Sellers Rank | #192,404 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #138 in Solid State Relays |
| Date First Available | July 19, 2013 |
Warranty & Support
Feedback
Product Description
Model No. : BEM-14840DA
Current : 40A
Frequency : 50/60Hz
Output Voltage : 24-480VAC
Input Control Voltage : 3-32V DC
Single Phase Solid State Relay with LED indicator.
It is a must component for temperature controller, heater, small oven and more.
Compare with similar items
This Item uxcell BEM-14840DA 3-32V DC to 24-480V AC 40A Output Single Phase SSR Solid State Relay | Recommendations | dummy | dummy | dummy | dummy | |
Try again! Added to Cart | Try again! Added to Cart | Try again! Added to Cart | Try again! Added to Cart | Try again! Added to Cart | ||
| Price | Currently unavailable. | $12.99$12.99 | $10.90$10.90 | $11.49$11.49 | $17.59$17.59 | $12.29$12.29 |
| Delivery | — | Get it as soon as Wednesday, May 15 | Get it as soon as Wednesday, May 15 | Get it as soon as Wednesday, May 15 | Get it as soon as Friday, May 17 | Get it as soon as Wednesday, May 15 |
| Customer Ratings | ||||||
| Sold By | — | uxcell | CGELE Official Store | uxcell | uxcell | LERWAY Tech. |
| contact type | — | Normally Open | Normally Open | Normally Open | Normally Open | — |
| max switch current | 40 amps | 40 amps | 40 amps | — | 25 amps | 40 amps |
| specification met | — | Ma | Electromagnetic Compatibility | Ma | — | — |
Customer reviews
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
Learn more how customers reviews work on AmazonCustomers say
Customers like the performance and value of the relay. For example, they mention it works well, is good value for money and that it works great to power a 3D printer's heated bed. Opinions are mixed on quality and temperature control.
AI-generated from the text of customer reviews
Customers like the performance of the relay. They say it works perfectly, it works great to power their 3D printer's heated bed, and has no problems thus far. Some say that it turns on fine and glows dimly instead of turning off completely.
"Works well with my custom FIBERGLASS URETHANE FOAM BED 600x600 800 Watt HEATED BED!..." Read more
"Glad we switched to these relays, never had issues with them. Handle load like champ...." Read more
"Completely Died in less than 2 months. And started intermittent operation after just a few weeks...." Read more
"...a heat sink with thermal grease and a fan, and these have had no issues staying on for 30 minutes at full power, then pulsing with a raspberry pi..." Read more
Customers like the value of the relay. They say it does what it's supposed to do at a good price.
"...Quite impressed, given the price...." Read more
"...Good price-quality value" Read more
"One of these is working ok... one is bad right out of the box... im 31 days so no refund for me :..." Read more
"...but as this unit is so inexpensive compared to the Auber, it is possible to get a much higher rated..." Read more
Customers find the installation of the relay to be easy and smooth.
"...It went smoothly...." Read more
"I like the product because it was easy to install and did perform as listed without issue." Read more
"...Driving it directly from a GPIO output pin with no problem. Very easy setup." Read more
Customers are mixed about the quality of the relay. Some mention it's decent, well made, and a great product, while others say that it'll not be reliable enough for high on/off usage, it doesn't last long, and failed instantly.
"Decent quality" Read more
"...Not reliable enough for high on/off usage." Read more
"Good quality" Read more
"Great customer service and product is great!Thank you" Read more
Customers are mixed about the temperature control of the relay. Some mention that it responds very quickly and never seems to get too hot, while others say that it requires a heat sink and that the pid temp sensor started freaking out.
"...This responds very quickly and never seems to get too hot...." Read more
"...One thing to note about these solid state relays, they get HOT. Be sure to use proper cooling...." Read more
"...NOW it gets nice and hot, while the SSR doesn't get hot at all..." Read more
"...Just be sure to install the correct sized heat sink, it will get very hot..." Read more
Reviews with images
-
Top reviews
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.

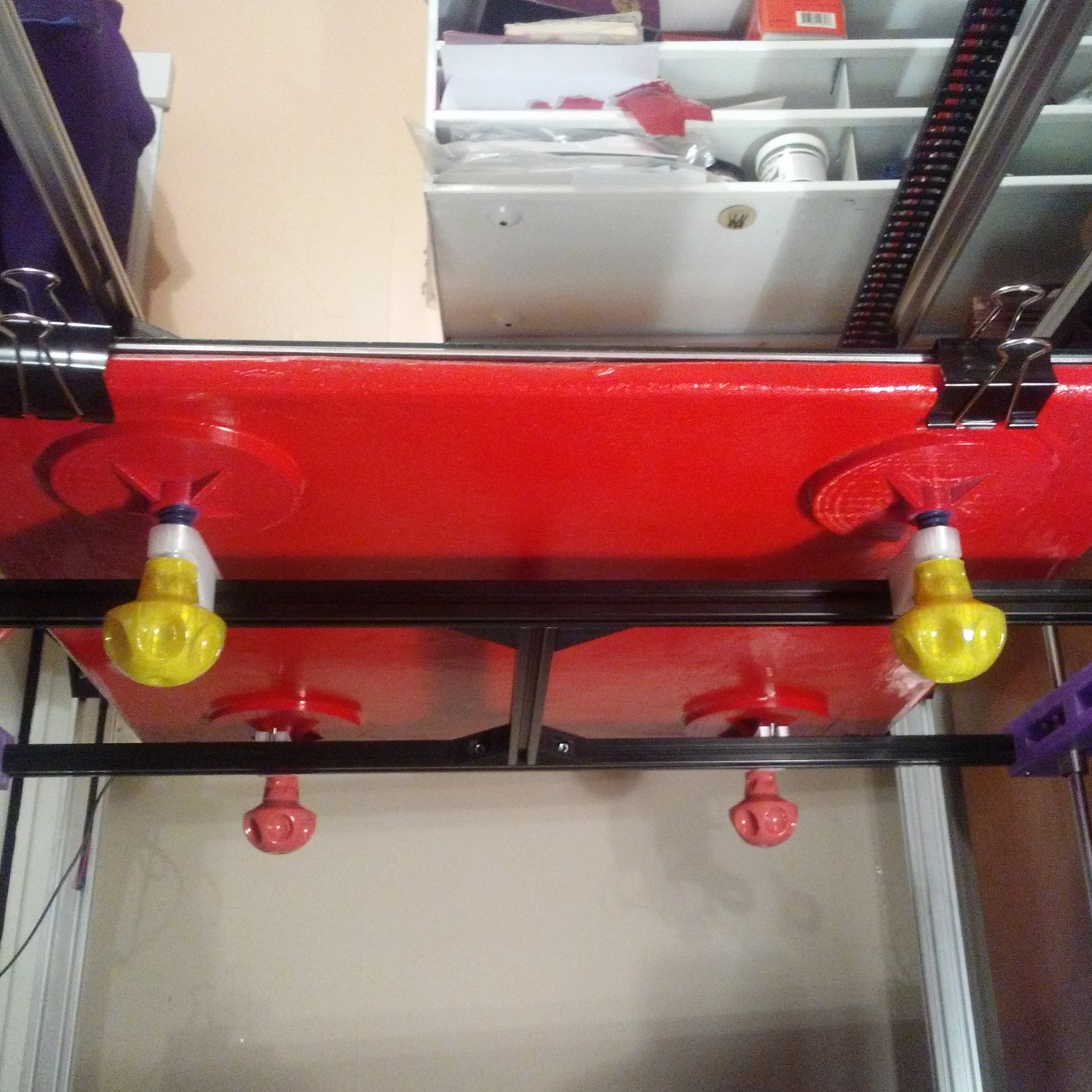

At first the FUSE was blowing every time I activated my HEATED BED. Thought it was SSR, but realized after reading about some one else having the same issue - they used an CAR FUSE and that resolved their issue.
I was using a 5x20 3Amp fuse in my PSU, this could not handle the load. So upon inquiring with an electrician about my 800 Watt load, replaced the fuse with 5x20 12Amp VIOLA!
NOW it gets nice and hot, while the SSR doesn't get hot at all (Installed a 40mm fan that isn't needed - hmm maybe it will warm up after a 3Day print job?).
I am posting a simple diagram, to help you - as I have installed and use my SSR+HEATED BED. (SWITCH -W- FUSE is used, not shown in diagram, connected to the same mains lines on PSU as BED & SSR).
LEGAL DISCLAIMER:
i take no responsibility or liability in your use and installation of your SSR. Merely posting diagram as I have installed.
YOU accept full responsibility and liability, with full knowledge 120Volts can cause serious injury and or death. USE CAUTION! Employ an electrician for installation if required.
At first the FUSE was blowing every time I activated my HEATED BED. Thought it was SSR, but realized after reading about some one else having the same issue - they used an CAR FUSE and that resolved their issue.
I was using a 5x20 3Amp fuse in my PSU, this could not handle the load. So upon inquiring with an electrician about my 800 Watt load, replaced the fuse with 5x20 12Amp VIOLA!
NOW it gets nice and hot, while the SSR doesn't get hot at all (Installed a 40mm fan that isn't needed - hmm maybe it will warm up after a 3Day print job?).
I am posting a simple diagram, to help you - as I have installed and use my SSR+HEATED BED. (SWITCH -W- FUSE is used, not shown in diagram, connected to the same mains lines on PSU as BED & SSR).
LEGAL DISCLAIMER:
i take no responsibility or liability in your use and installation of your SSR. Merely posting diagram as I have installed.
YOU accept full responsibility and liability, with full knowledge 120Volts can cause serious injury and or death. USE CAUTION! Employ an electrician for installation if required.
The breaker for the water heater I have is a dual pole rated at 30 amps and the element is rated at 3500 watts so probably runs around 15 amps load which is easily handled by this relay with the heatsink I have in place.
Although this item has the CE mark from the manufacturer, which means it should meet all EU safety requirements, I would prefer if it had also been tested by an independent lab such as UL, ETL, or TÜV.
Quite impressed, given the price. Was much cheaper than replacing the whole controller after the original electromechanical relay smoked itself.
One thing to note about these solid state relays, they get HOT. Be sure to use proper cooling.
Even sitting in a 40 F cooler the heatsink attached to it gets very warm.
It would probably be fine to forgo the heatsink with loads under a couple amps (depending on voltage, of course). Running a 60 watt light bulb through it produced no noticeable heat after an hour.
Took a peak inside when I got it. Big solder coated traces between the screw terminals and the TRIAC (a BTA41). Opto-isolator and anti tracking slots between the AC and DC sides. Insulative coating on the PCB is very thin though.
I'm not an electrical engineer, but it looks to be of OK construction.
Good as much higher priced units? Nah. Good enough for me? Sure.
And that might good enough for you, too.
I didn’t get in details, but I assume it has semistor that require minimum load on the high side to open properly, that’s why my low voltage motor didn’t work.
Good price-quality value
