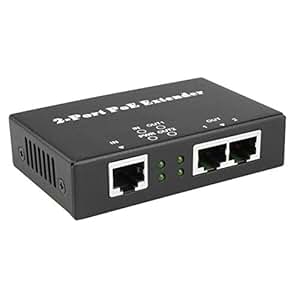

BV-TECH BV-RP102E 2-Port Network PoE Repeater - 100m (328ft) Range - 30W - 100Mbps - 802.3af

by BV-Tech
3.7 out of 5 stars 4 customer reviews
Currently unavailable.
We don't know when or if this item will be back in stock.
    This fits your .
  • Enter your model number to make sure this fits.
  • 2 PoE Ports at 100Mbps Data Transfer Rate
  • Extends PoE Signal up to 100m (328ft)
  • 30W Max Power for High Powered Devices
  • IEEE 802.3af Standard
  • Easy Installation with Plug-and-Play Technology
Currently unavailable. We don't know when or if this item will be back in stock.

Product Description

The BV-RP102E extends PoE data transmission for an additional 100m (328ft) using 2 ports at 30W max power.

Specifications

Standards: IEEE 802.3af
Data Rates: 10/100 Mbps
Pin Assignment Polarity: 4/5(+), 7/8(-)
Output Power Voltage: 45-55Vdc
Input Power Requirements: PoE, Mode A and B
Output Power Requirements: PoE, Mode B
DC Input PoE Voltage: 46-57Vdc
Max Input Current: 0.7A/1.4A
Dimensions: 3.6 in x 2.25 in x .9 in
Weight: .4 lbs
LED Indicators: Power/PoE Input / PoE Output 1&2
Connectors: Shielded RJ-45 Female socket
Operating Temperature: 32ºF - 122ºF (0ºC - 50ºC)

Product Information

Technical Details

Collapse all
Other Technical Details

Additional Information

Warranty & Support

Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is "dead on arrival," arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test "dead on arrival" returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor.
Product Warranty: For warranty information about this product, please click here

Feedback

If you are a seller for this product, would you like to suggest updates through seller support?
Would you like to tell us about a lower price?
Customer Questions & Answers
See questions and answers

Customer Reviews

Top Customer Reviews

5.0 out of 5 starsWorks Absolutely great 48v only input and output which can be converted ...
By Pole Pot on July 22, 2015
Verified Purchase
Works Absolutely great

48v only input and output which can be converted down with a 24v converter from ubiquiti
powers a ubiquiti cam and a ubiquiti access point without issue , i will find out if it can also power a mikrotik switch in the next couple days
2 Comments 4 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
1.0 out of 5 starsCan cause harmful equipment power cycling and doesn't support PoE mode A
By Chris Dragon on May 5, 2016
Verified Purchase
UPDATE: I've lowered my 4 star rating to 1 star after the BV-TECH repeater almost damaged one of my cameras. I had two cameras and an IR light connected to the switch, all of which drew a total of 18.88W of power from a PoE+ power source with a 30W limit. After a power cycle, I noticed one of the cameras and IR light (both connected to the same port of the repeater) didn't turn on. I re-plugged the ethernet cable to the repeater and all devices worked correctly. I started repeating the re-plugging test and on more than 1 out of 3 tries, one or both of the repeater ports didn't power its devices properly. At one point the repeater was powering both output ports on and off about once per second. This caused the IR light to flash on and off on one port, and on the other port the motorized lens on the camera lens kept running back and forth during its boot range test. It took me a few minutes to go outside and find out why the video wasn't coming on, during which time the almost continually running motor on the lens heated up till it was burning to the touch. If it had continued like that I'm sure the motor would have failed or melted the plastic it was attached to. I switched to using a CyberData repeater (mentioned later) and it got through 10 re-plugging tests with no device problems. In one of the tests, a camera didn't turn on for about 20 seconds but booted properly after the delay, which I think implies the CyberData repeater is handling any glitches or power surge problems far more gracefully. I would rather keep the BV-TECH switch because it's so much smaller (the CyberData barely fits in the enclosure and squishes cables to do so) but I can't risk my cameras so will be returning the BV-TECH. I also found that the BV-TECH gets very hot passing 18.Read more ›
7 Comments 2 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsperfect for extension
By ata ochil on August 23, 2016
Verified Purchase
product works, in tight fit areas, perfect for extension. where you don't have access to run more power cables.
Comment One person found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsWorks great! I installed it in vinyl soffit
By Ben on June 3, 2016
Verified Purchase
Works great! I installed it in vinyl soffit
Comment One person found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
