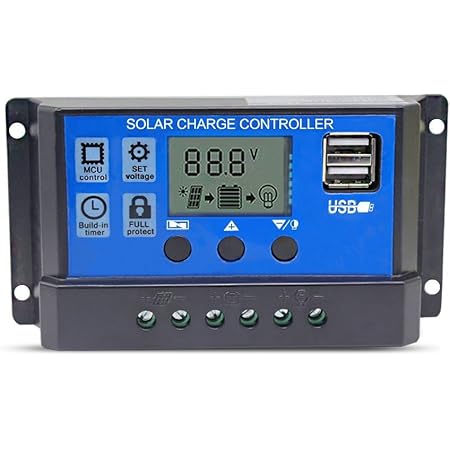

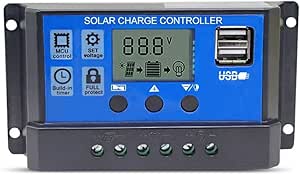

Solar Charge Controller 10A Solar Panel Battery Controller 12V/24V PWM Auto Paremeter Adjustable LCD Display Solar Panel Battery Regulator with Dual USB Load Timer Setting ON/Off Hours

Visit the Binen Store

95 ratings

Currently unavailable.

We don't know when or if this item will be back in stock.

This fits your .

Make sure this fits by entering your model number.

☀☀☀10A Solar Charge controller : Binen solar charger controller compatibility with 12V 24V system. Discharge Current: 10A,build-in industrial micro controller, automatically manage the working of solar panel and battery in solar system. Dual USB output 5V/2.5A (max), to support mobile phone chargeing.
☀☀☀Multiple Protection Functions: Binen solar controller has short-circuit protection, open-circuit protection,reverse protection, over-load protection. Fully 3-stage PWM charge management, improve system efficiency and prolong the life span of the battery. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically.
☀☀☀Battery Type: The charge regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL, it is not suited for nickel hydride, lithium, Liions, or other batteries.
☀☀☀LCD Display: Comes with a display that can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, suitable for home, industrial, commercial etc.
☀☀☀Easy to Install and Operate: The charge controller should connect the battery first, then the solar panel, and finally the load! The disassembly sequence is contrary to the wiring order.Dual mosfet Reverse current protection, low heat production. ( Note: The charge controller will heat up when it is running. Please be careful to install the charger controller on a flat, well-ventilated place)

Customers also viewed these products

Page 1 of 1 Start overPage 1 of 1

Customers who viewed this item also viewed

Page 1 of 1 Start overPage 1 of 1

More to consider from our brands

Page 1 of 1 Start overPage 1 of 1

311
$8.99
9
$39.99

Special offers and product promotions

Amazon Business : For business-only pricing, quantity discounts and FREE Shipping. Register a free business account

Have a question?

Find answers in product info, Q&As, reviews

There was a problem completing your request. Please try your search again later.

All Product Information Customer Q&A's Customer Reviews

Compare with similar items

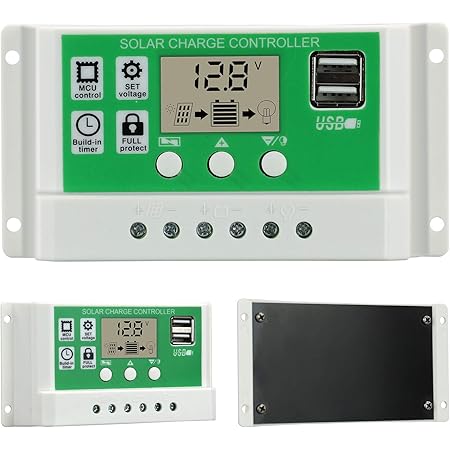

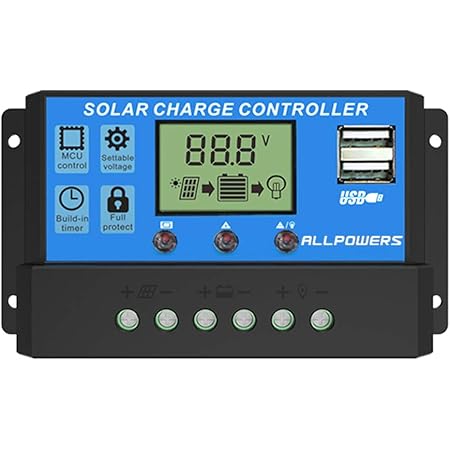

		20A Solar Charge Controller Solar Panel Battery Intelligent Regulator with Dual USB Port 12V/24V PWM Auto Paremeter Adjustable LCD Display	Renogy Wanderer 10 Amp 12V/24V PWM Negative Ground Solar Charge Controller Regulator Compatible with Bluetooth Module	ALLPOWERS 20A Solar Charger Controller Solar Panel Battery Intelligent Regulator with USB Port Display 12V/24V	Temank Solar Charge Controller 12V/24V Auto, 10A Solar Panel Battery Controller 10Amp PWM Solar Regulator with Dual USB LCD fit for Small Solar System	10A Solar Charge Controller 12V/24V Auto, Solar Panel Charge Controller 10Amp Solar Regulator Lithium Battery/Lead-Acid with Dual USB LCD, Adjustable Parameter Backlight LCD Display and Timer Setting

Customer Rating	(95)	(1240)	(1431)	(1399)	(230)	(249)
Price	Unavailable	$15.99	$19.99	$17.99	$10.99	$11.89
Shipping	—	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime
Sold By	—	Binen US	RenogySolarUS	ALLPOWERSDirect	Y-SOLAR	PowMr

Compare with similar items

Product description

☀️Suitable for farm solar power system, solar street light, solar patio light, solar billboards, outdoor camping solar system, ship solar system.
Specification:
*Batt voltage: DC 12V/24V Auto
*Charge /Discharge current: 10A
*Over discharge Protection: 10.7V/21.4V
*Charge recover voltage: 12.6V/25.2V
*Overcharge Floating charge: 13.7V/27.4V
*Over discharge Protection: 10.7V/21.4V
*Equalization: B01: sealed 14.4V / B02: Gel 14.2V / B03: flood 14.6V

Intelligent solar controller:
The product can automatically manage the working of solar panel and battery in solar system. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically (LCD will be unavailable at the same time).

Easy to operate and installation :
Wiring STEPS: Screw the adjustment screw counter-clockwise until the plates move down. Insert the wire into the new opening between the plate and the "top" of the Terminal hole, not under it. Screw the adjuster clockwise and the plate will move upwards thereby squishing the wire in the Terminal hole.

Note:
<1>Please keep it in cool and well ventilated place to maintain good heat dissipation.
<2>the regulator is only suitable for lead acid batteries:OPEN, AGM, GEL, not for nickel hydride, lithium, ions, or other batteries.
<3>Make sure your battery has enough voltage for the controller to recognize the battery before first installation.
<4>The working temperature of this controller is -35°C to 60°C, during hot sunny days, the temperature outside might go up to 60-75°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation.

Product information

Product Dimensions

3.94 x 1.97 x 1.97 inches

Item Weight

7.1 ounces

Manufacturer

Binen

ASIN

B073WQC558

Customer Reviews

95 ratings

4.0 out of 5 stars

Best Sellers Rank

#260,249 in Patio, Lawn & Garden (See Top 100 in Patio, Lawn & Garden)
#322 in Renewable Energy Controllers

Is Discontinued By Manufacturer

Feedback

Would you like to tell us about a lower price?

Customer Questions & Answers

See questions and answers

Customer reviews

5 star		57%
4 star		16%
3 star		8%
2 star		6%
1 star		13%

How are ratings calculated?

Top reviews from the United States

There was a problem filtering reviews right now. Please try again later.

hockey-dad

with 25 watt solar panel this is able to keep my pop-up camper battery topped up

Reviewed in the United States on September 9, 2018

Verified Purchase

installed this just above my pop-up camper's electric panel tied directly into the wire leading to the battery. When combined with https://www.amazon.com/gp/product/B01M9B6RQI/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1 solar panel that outputs 25 amps I am able to replenish my battery each day. My power usage is pretty light, LED camper lights, gas heater fan, 12 volt electric fans on hot nights. Displays are very good. Output from the USB outlets of this unit is very weak, will not fully charge my cell phone overnight, so I use a automotive phone charger plugged into a 12 volt outlet of my camper instead.

14 people found this helpful

Helpful

gacleader1

Seems to work. Poor directions, but helpful seller.

Reviewed in the United States on April 6, 2018

Verified Purchase

The controller seems to do exactly as it is supposed to after a few weeks of being hooked up. My only issue are the directions which are very poorly written. Offsetting this however is the fact the seller responded very quickly to resolve the questions.

4 people found this helpful

Helpful

Solomon Parker

Owned for several months, outdoor mobile installation, working nicely.

Reviewed in the United States on February 3, 2019

Verified Purchase

I installed this on my big gooseneck trailer with a 25 watt solar panel and 5 deep cycle batteries. This controller keeps my batteries full when I'm not using the trailer, otherwise the main charging source is a heavy duty connection to the truck batteries.

This is installed to the inside of the gooseneck I-beam, so only slightly protected, using gorilla tape.

It also offers me the added benefit of displaying the battery voltage right where I can see it, so I know how much power the hydraulics or winch are pulling.

I'm very happy with it so far.

10 people found this helpful

Helpful

G. Todd

Works

Reviewed in the United States on June 6, 2018

Verified Purchase

After several tries I tried this for the charging system on my boat. I'm using 2 ALEKO® 10 Watt Monocrystalline Solar Panels to charge 2 12 volt batteries and the setup works really well. I like that it displays active charging as well as battery charge. Haven't used the USB ports because I have it sealed in a plastic box.

12 people found this helpful

Helpful

Android Zulu

It works.

Reviewed in the United States on December 12, 2019

Verified Purchase

These charge controllers are great. The 2 usb ports are helpful for extra connections. The controller does have an auto shut off when the voltage dips which can be adjusted to a specific float voltage. The 12v out on the controller is ify on some devices. It works on lights but it can't seem to power a 12v stepper w/o frying them. I've had 3 short out the second I connected it, so i had to go direct to the battery instead.

9 people found this helpful

Helpful

DRPBL

Good cost effective solution

Reviewed in the United States on September 8, 2018

Verified Purchase

No problems at all with mine. Have it hooked up to a 25W panel and a small 7AH battery for lights in my shed. As the directions say pay attention to the order in which you have to hook up the panel, battery and load.
Cheap fix.

10 people found this helpful

Helpful

brandon

PERFECT for small solar panel applications

Reviewed in the United States on January 28, 2018

Verified Purchase

Cheapest charge controller I've found. Worked right out the box for my 15 watt solar panel and 12V, 7Amp/Hr. battery. Controls are completely intuitive. PERFECT for small solar panel applications.

11 people found this helpful

Helpful

Matthew J. Geiger

6 months in and working well

Reviewed in the United States on November 27, 2019

Verified Purchase

It works, but the build quality is suspect. I have another portable solar project I’m building, and am shopping for a more robust unit for charge control duties.

Helpful
