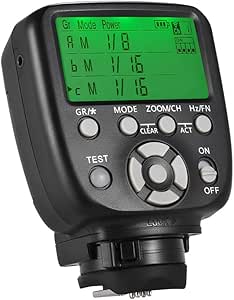

Yongnuo CA-63YN-560TXC YN560-TX Wireless Flash Controller and Commander for YN-560III YN-560TX YN560TX Speedlight for Canon DSLR Cameras
- Make sure this fits by entering your model number.
- Adjust flash function though the controller directly. Wireless triggering function.
- Set group, up to 6 groups. Set the flash output and flash mode. Modify multi flash frequency and count.
- Modify zoom for each group. Compatible with RF602 / RF603 / RF603 II. Transmission Range: 100 Meters.
- Support Wireless Shutter Receiver of RF603 / RF603 II. Large and clear screen, user friendly interface.
- Powered by two AA batteries. (not included) Suit for Canon DSLR camera.
Frequently bought together
More items to explore
Customers who bought this item also bought
Have a question?
Find answers in product info, Q&As, reviews
Your question may be answered by sellers, manufacturers, or customers who purchased this item, who are all part of the Amazon community.
Please make sure that you are posting in the form of a question.
Please enter a question.
Compare with similar items
YONGNUO YN560 IV Wireless Flash Speedlite Master + Slave Flash + Built-in Trigger System for Canon Nikon Pentax Olympus Fujifilm Panasonic Digital Cameras
Yongnuo YN560-III-USA Speedlite Flash with Integrated 2.4-GHz Receiver for Canon, Nikon, Pentax, Olympus, GN58, US Warranty (Black)
Yongnuo YN560 IV Speedlite Flash Supports Wireless Master Function
Yongnuo Updated YN600EX-RT II Flash Speedlite for Canon's 600EX-RT/ST-E3-RT Wireless Signal Camera, Master,USB Firmware Upgrade, 1/8000sec Sync Speed
YONGNUO YN660 Wireless Manual Flash Speedlite GN66 2.4G Wireless Radio Master+ Slave for Canon Nikon Pentax Olympus
|Sold By||Duoda Digital||YONGNUO||Ellisa-us||Sightffo||Airacle||Duoda Digital|
|Item Dimensions||4.69 x 3.66 x 2.64 inches||2.36 x 7.48 x 3.07 inches||3.25 x 3.75 x 8.25 inches||8.70 x 3.70 x 3.40 inches||8.10 x 3.10 x 2.40 inches||3.78 x 8.74 x 4.09 inches|
Yongnuo YN560-TX Wireless Flash Controller and Commander for YN-560III YN-560TX YN560TX Speedlite Canon DSLR Cameras Note : This controller only can directly use with YN-560III flash. Other Speedlite must work with RF602 or RF603 or RF603 II receiver. Specifications: Type: Wireless controller Distance: 100 m Channel: 16 Flash mode: M / Multi Group control: A / B / C / D / E / F Zoom range: 24-105 mm Shutter interface: 2.5 mm Battery: 2 * AA batteries (NOT included) Item size: Approx. 9.1 * 7 * 4.3cm / 3.6 * 2.8 * 1.7 in Item weight: 97 g / 3.42 oz. Package size: 10.8 * 8.5 * 6.1cm / 4.2 * 3.3 * 2.4 in Package weight: 140g / 4.92 oz. Package List: 1 * Yongnuo Wireless Controller 1 * User Manual (English & Chinese)
There was a problem filtering reviews right now. Please try again later.
Some shots have one flash behind me, one in a room to the left, to the right, up the stairs and in the far kitchen. Before, if any of the flashes were off, I'd have to walk to each one and change it by hand. Not anymore! I bought a second one of these as a backup just because of how incredibly functional it is. If you're having trouble pairing your YN560 IVs with the TX, I have a review/setup on Youtube you can find entitled, "Yongnuo YN560-TX Flash Remote Control Transmitter Setup Tutorial / Early Review ".
The photo included has two YN560-IVs and a YN560-TX. One flash behind me and one out the window to the right. Before the TX, I would have had to walk outside multiple times if the power was off.
One last thing as far as pairing this unit up with your flashes it can be a little confusing so I will break it down for you in a few easy steps. 1: Turn both the TX control unit and flash units on.
2: on the TX control unit hold down the zoom/ch and Hz/Fn at the same time. The screen will display A C T or something to that nature and the flash unit will have a blue light.
3: on the flash unit press the OK button located in between the up, down, left, right buttons making sure the light remains blue. Hold down the GRP and CH button at the same time( that's the 2nd and third button on top). Your group icon will start flashing on the LCD screen of the flash unit. Designate the desired group to that flash by pressing the up or down button on the flash and accept by pressing the OK button in the center of the up, down, left, right, buttons. (Step 3 deals only with the flash unit and not the TX control unit).
That's it. It should now be paired.
So far I haven't really done a through run of the thing but from my early setup and testing it works flawlessly. I saw some other folks post some videos of how to connect it to your flashes which made it easy as can be. Simple turn on the flashes and the YN560 TX, put them on the same channel, put the flashes on the "- -" setting, push the 2 buttons on the TX, press the "ok" button the flashes and your good to go. Obviously there’s a few more steps but it was pretty much that easy.
Now that I have the means to adjust my flash power and zoom without going back and forth between stand and camera, I can definitely start doing some more serious lighting with my 560 III. I plan on getting a couple more 560 III to go along with this thing so I can really use them on the go versus lugging those big old' strobes. Now if you do have some strobes/monolights, you can obviously only trigger them with this, so don't buy it expecting to control your lights power from this, but an actually commander. This only controls the power and zoom of the 560 III so far, maybe it will work with the new Yongnuo's equivalent to the Canon 600 down the line.
Overall, rock solid product that I highly recommend because of the cost, convenience and so far, the performance. I don't think you can get this anywhere else, where you can by a trigger plus a couple lights and only end up spending under 2 to 3 hundred bucks.
Great Job Yongnuo...keep the great affordable products coming!!!
I also have the Yongnuo YN560-TX which triggers the same strobes. Those do not allow you to make any adjustments to the strobes, but are considerably smaller. Since the Yongnuo YN560-TX flash commander can make all the flash adjustments even if it's not mounted on your camera, I find it useful to make the adjustments using the YN560-TX which I can keep in my pocket and put the RF-603 II on the camera to do the actual triggering when I want to keep the camera streamlined.
The Yongnuo YN560-TX uses two AA batteries. I'd give it five stars if it came with a padded protective case. It does not come with the shoe-mount stand that it's pictured on.
Top international reviews
Ich habe zwei Yongnuo YN560-III mit dem Yongnuo YN560-TX Wireless-Flash-Controller zusammen gekauft. Bisschen nachdenken, bisschen lesen und es funktioniert tadellos!
Auch die Tasche mit dem Standfuß ist einwandfrei.
Klar, es sind halt wirklich günstige Blitze, aber für das Geld nehr als ausreichend verarbeitet!
Werde auf jeden Fall noch weitere Blitze ordern - allerdings bei einem anderen Versender. Die "Firma" Sheratown (Shenzhenshi luomali keji youxiangongsi LtD.) ist hier nicht zu empfehlen - es sei denn, sie benötigen keine vernünftige Rechnung und keinerlei Support...
Rechtliche Schritte werden hier demnächst eingeleitet...
Dann aber bieten sich einem bisher ungeahnte Möglichkeiten und das zu einem Preis, bei dem man von Canon und Co. mal eben ein Blitzgerät erwerben kann. Ich für meinen Teil kann den YN-560-TX uneingeschränkt zum Kauf empfehlen, gerade "Einsteiger" werden begeistert sein. Ein Gerät welches einen lange begleiten und selbst im professionellen Bereich begeistern wird.
Funciona muy bien!
Lo probé con un flash de la misma marca en una cámara Nikon D5200, no me dió ningún problema y fue tan sencillo de usar como simplemente ponerlo en la cámara y poner el flash en el modo correcto y en menos de 5 min ya estaba sacando fotos.
Muy buena calidad y buena vida de baterías, no he tenido ningún contratiempo, y la pantalla iluminada es bastante útil, en mi opinión de las mejores opciones en equipo económico.
Fühlt sich sehr wertig an, Display ist schön hell und übersichtlich, funktioniert einwandfrei. Habe auf meiner Sony Alpha 6000 keine Probleme damit und bin sehr zufrieden.
Anmerkung: Kommt ohne Batterien, es sind AA Batterien nötig
Best part about buying this set up is that there are many online resources to help you. I'll admit that I didn't read the instructions that came with the unit and simply went online and watched user video reviews.
I also own a Paul C. Buff wireless setup, but it's far clunkier to use, having to hook wires up to your flash, and having to control the settings manually. I thought it was really cool a few years ago, but this is WAY better.
For now, I can say its a perfect match with new YN-4 for Nikon and may be difficult to used with previous flash version due to the channel manipulation on previous model
