Even though that Linksys has not tested this expander with their new WRT160N Wireless "G" and "N" router I found that is is possible to work to extend the signal 50 feet or more. Previously I was getting only one bar of signal at 45 feet but now I have 5 bars.
I gave the item 5 stars for Performance of the unit and 5 Stars for Amazon's customer service who replaced the first and according to Linksys Tech support, defective unit, and they shipped it 2nd day air. I give Linksys Tech support 4 stars for getting me up and running. I subtracted one star because the first tech did not recognize the first unit was defective as it has two blue lights (about which more below) but did not increase the signal level. I give the documentation and CD-ROM that came with the Linksys expander 0 (ZERO) stars as it is worthless. Even though I am an engineer and familiar with networking I had to call Tech Support to get running as the CD-ROM could not even find my router that I knew was working correctly as I had just received 29 emails by wireless.
My setup procedure was as follows:
To set this up with the WRT610N Cisco (Linksys) wireless router in Microsoft's Windows you'll need two Ethernet cords and the patience of Job.
On the wireless router plug one Ethernet cord into jack #2 which will go to your desktop or main computer (my base computer is a laptop set up like a desktop with external keyboard and mouse and additional hard drives for storage and backup) and the other Ethernet cord into any one of the other jacks which will go to the Extender. I recommend that you setup your distant computer (if this is a separate unit----my two are) and have it in contact with your router, albeit at one bar of signal. This latter point will allow you to tell if the extender is actually working. You can't assume that two blue lights are an indication the unit IS working---only an improvement of the signal level will do that.
First, setup the extender close by your router and main computer and plug it in to power (not yet into the router with the Ethernet cord). Plug the router from jack 2 into the main computer Ethernet jack. In your web browser (I use Firefox and since I have Windows I also have Internet Explorer----I used both in the setup but you can use the same one but I recommend two separate windows so you can see the settings of both the router and the extender at the same time) in the space for the address type 192.168.1.1 (the address of the router). A window will appear. You want to go to the Wireless tab and under that to the Wireless Security tab. From the drop down menu for security (it probably reads WEP when first reaching this window)select "Disable." Do this Also, on drop down menus for both frequencies. Select "G" Only (as far as I know this extender will not work on the higher "N" frequency). Click "Save Settings" at the bottom of the screen. A separate window with a confirmation appears----click "Continue."
Next, plug the extender into the router with the second Ethernet cord with the power on. At this point the one light on the extender will be blue and the other red. In a second browser window type in the address space 192.168.1.240 (the address of the extender). You'll get another window. The important part is that the SSID in both the router and extender have the same name---say, Home Wireless. Check to see that the security on the expander is disabled. Click "Save Settings" and a window will appear "Rebooting." Both lights on the extender should now go blue. If they do go to the next step.
Unplug and take the extender midway between the router and the remote computer and plug it into power. Hopefully, both lights come on blue. If they do check the remote computer to see if the signal has improved. If it has you're almost done.
Take the extender back to the main computer area and plug it in to the power and the Ethernet cord to the router. Go to the browser and access the extender again (192.168.1.240). On the screen for security WEP and 64 bit from the drop down menus. In Key 1 type in a 10 digit number you'll remember---your phone number is good (without the hyphens------1234567890). Save Settings. A window appears and says Rebooting and the lights turn to red and blue---you've lost the connection until you set the router to the same settings.
Go to the second Browser window and access the router (192.168.1.1) and set the security to WEP, 64 bit, key 1: 1234567890. Make sure that the TX key (1 is recommended to get the best range)is the same for both the router "Save Settings" at which point the extender 2 lights should both go blue. If they do move the extender to the position to extend your range and plug it in to power. At this point you can also unplug the router from the Ethernet port of the main computer. If both lights are blue on the extender in the desired location check to see you have improved signal on your remote computer. If you do you're done. If you don't, call Tech Support!
I downloaded and printed 36 pages of reviews from this website which were helpful but because the first unit was defective even with 2 blue lights and the 2nd CD-ROM could not find my router, I called Tech support. You'll need the model number and serial number of both the router and expander if you call. Allow about 1 hour for the call and be ready to get accustomed to an unfamiliar accent. I suggest a portable telephone so you can be in constant communication with Tech Support when moving the expander and checking the signal on your remote computer
Add to your order
-
Coverage for accidental damage including drops, spills, and broken parts, as well as breakdowns (plans vary) -
24/7 support when you need it. -
Quick, easy, and frustration-free claims.
Cover this product:
3-Year Protection Plan $5.99
4-Year Protection Plan $7.99
Cover all of your eligible devices:
Complete Protect: One plan covers all eligible past and future purchases (Renews Monthly Until Cancelled) $16.99/month
Select a plan
Add to your order
- Coverage for accidental damage including drops, spills, and broken parts, as well as breakdowns (plans vary)
- 24/7 support when you need it.
- Quick, easy, and frustration-free claims.
Cover this product:
Select a plan
Buy it with

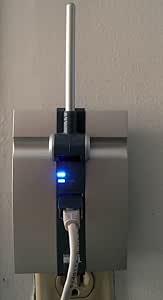

This item: Cisco-Linksys Wireless-G Range Expander WRE54G
