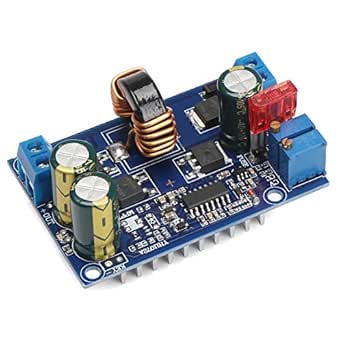

DROK DC/DC Automatic Boost Buck Converter Module 60W Constant Voltage/Current Car Voltage Regulator DC5-32V to 1.25-20V Adjustable Current Step Up&Step Down Voltage Converter for Battery Charging

18 ratings

| 7 answered questions

Currently unavailable.
We don't know when or if this item will be back in stock.

Brand	DROK
Item Dimensions LxWxH	2.4 x 1.6 x 1.2 inches
Output Voltage	12 Volts

About this item

This fits your .

Make sure this fits by entering your model number.

Non-isolated synchronous rectifier automatic boost buck module, input DC5-32V and output 1.25-20V.
Input Current 8A MAX peak 10A; quiescent current 4mA; output current 5A MAX, output constant current 0.2-5A adjustable.
High conversion efficiency up to 96% and 150KHz operating frequency, 10A fuse, double short circuit protection.
With overcurrent protection, overheat protection, output anti-irrigation protection.
Used for solar energy, car voltage regulator, battery charging, LED motivator and diy power supply.

Specifications for this item

Brand Name	DROK
Clothing Size	60W
Ean	0519397044080
Global Trade Identification Number	00519397044080
Included Components	no
Measurement Accuracy	inch
Measurement System	US
Model Number	090747
Number of Items	1
Output Voltage	12.0 volts
Part Number	090747
Size	60W Regulator
UNSPSC Code	26111500
UPC	519397044080

1,304
1 offer from $17.49
248
1 offer from $16.88
1,602
2 offers from $13.99
155
1 offer from $26.99
101
Amazon's Choice
in Power Converters
1 offer from $18.99
62
4 offers from $22.49

Product details

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 2.4 x 1.6 x 1.2 inches; 2.4 Ounces
Item model number ‏ : ‎ 090747
Date First Available ‏ : ‎ April 7, 2014
Manufacturer ‏ : ‎ DROK
ASIN ‏ : ‎ B00JKG57T4

Best Sellers Rank: #1,043,403 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement)
- #4,432 in Power Converters

Customer Reviews:
18 ratings

Product Description

Module Parameters: Module Name: 5A automatic step up/down constant voltage/current module Properties: non-isolated synchronous rectifier automatic boost buck module Input Voltage : 5-32V Input Current: 8A (MAX) peak 10A (6A long-term work) Quiescent Current: 4mA Output voltage : 1. 25-20V continuously adjustable, the default output is 12V Output Current: 5A (MAX) (3A long-term work) Output Constant Current: 0. 2-5A Working temperature: -40 to +85 degrees Operating Frequency: 150KHz Conversion efficiency: up to 96% Overcurrent protection: Yes Short-circuit protection: (enter 10A fuse) double circuit protection Over-temperature protection: Yes, automatic reduces the output voltage if over temperature Input Reverse Polarity Protection: No, (if necessary , please connect diode with input in series ) Wiring: free soldering wire terminal output Application: DIY a regulated power supply, provide a stable operating voltage, LED driver Package include: 1x Boost Buck Converter

What's in the box

Looking for specific info?

See questions and answers

Customer reviews

5 star		56%
4 star		20%
3 star		12%
2 star		11%
1 star 0% (0%)		0%

How customer reviews and ratings work

Reviews with images

See all customer images

Top reviews from the United States

There was a problem filtering reviews right now. Please try again later.

davidthings

Great Product. And outlining a nice solution if you have issues with startup current.

Reviewed in the United States 🇺🇸 on February 27, 2016

Verified Purchase

I've been testing this board (60W version) for a few weeks as a LiFePO4 battery charger. It is set to the final voltage of the battery (14.5V), then the current set to the max current I choose (2.5A). Charging works perfectly. The board behaves well and the hottest point on the board never gets too hot.

One area I did struggle with a bit was that it does seem to have a large in-rush current. I actually don't know if normal for the device category or whether there's something unusual about the board. On two different AC-DC converters I tried, large in-rush (both into the board itself, and the load) would cause the AC-DC converters to go into over-current protection, bouncing on and off unless I set the current to a very small value (<1A).

I predict that if you have a modest power supply (<5A, say) it might have the same issues.

I did find a nice solution, however. The board has terminals for a "Key" which is an enable/disable signal. I guess it's a large resistor (100K'ish) to the supply on one side and ground on the other. Short the terminals, and the high side is brought to ground and the unit is disabled. Accordingly, I put a small capacitor (1uF) between the terminals to hold the board off for a second or two on power up. This worked great, unless I disconnected and reconnected the board with a short time in between. In this case it was back to the bounce on bounce off behavior. I observed that the capacitor was holding its charge for a long time after power down, preventing the nice "off for a while on power-up" function. To fix this, I added a large resistor (1M Ohm) across the terminals and now it functions perfectly. I connect it and there is a small pause, then the supply ramps up to the correct value.

Of course you can still put a switch or push button across the terminals if you also need on-off control.

18 people found this helpful

Helpful

mdrn28

works ok for LiFePO4 battery charging

Reviewed in the United States 🇺🇸 on December 4, 2016

Verified Purchase

Like another reviewer, I'm using the 60W module to charge a LiFePO4 battery. At first, I had some trouble with the CC adjustment apparently not working. It would always run at the full 60W, or about 5A, regardless of how I adjusted the trim pot. I tried three of these modules before I realized that this behavior occurs only when I have the IN and OUT grounds in common, i.e. both attached to the same terminal strip. If I separate them so that there are completely separate grounds for the charging source (IN) and the battery (OUT), then the constant current adjustment works as expected. I'm not savvy enough to say why this happens, but just a heads-up for others who might try the same thing.

While my particular battery can accept a 5A charging current, when the module is running at its 60W upper limit the heatsink gets really hot. If limited to 2A (about 25W), the waste heat is significantly reduced, enough to be comfortable with keeping the module in an enclosed battery box.

I did also see the "bouncing" behavior mentioned by the other reviewer when using a smaller power source. The solution of a 1uF capacitor and 1M Ohm resistor soldered into the "KEY" contacts appears to solve this problem.

Deducting 1 star for the lack of any published data sheet or instructions, although some info is available via the Drok web site.

3 people found this helpful

Helpful

Tyler

A good constant-current buck/boost converter

Reviewed in the United States 🇺🇸 on September 25, 2017

Verified Purchase

This buck/boost converter works as advertised, keeping voltage and current within a reasonable tolerance of what your set them to.

Setting the voltage is easy: While powered, attach a multimeter to the output terminals and adjust the potentiometer marked "CV" until you get the voltage you desire. The indicator on the board will not light below about 2 volts.

Setting the current is trickier, and also where I had an issue with the unit. Initially, I had the unit set to 5 volts, then set my multimeter to 10A DC current mode (which basically connects the leads together with a very low resistance shunt). My meter displayed 2 amps. Adjusting the "CC" potentiometer did not change this reading, even turning the knob all the way down (to what I later determined to be about 230 milliamps) did not change the current. However, when I attached a 37 watt TEC (peltier element; low resistance) inline with my meter, it shows the correct current values.

Overall, this unit seems to function properly, dropping the voltage to keep current constant, and keeping the voltage stable when current draw is lower than the CC setting. The board I received is also very clean, with very little flux residue on it.

2 people found this helpful

Helpful

Patrick

Don't Look back! Worth the extra cost!

Reviewed in the United States 🇺🇸 on December 19, 2015

Verified Purchase

Amazing Setup!
Pros:
Synch Boost/Buck with a Great input range for Robotics and Low Voltage Power hungry and unpredictable input voltages. (Example Solar Panels and multiple Power Supplies of Different Voltages)
Greatly Designed Heatsink (Other than being on the bottom....)
Durability! This converter has great durability compared to it's rivals.
0/5 have failed with some questionable testing and accidents that have been done to them. All are in perfect order other than 1 pad being lifted from the + input terminal

Cons:
Output cannot exceed 20v (I needed 24 for one of my 100 projects of course)
Some undocumented items. (Example the "KEY" Slot. (Seems to be VIN -0.2 + and -, might be a disable jumper?)
Expense. Compared to other converters it is 24 dollars, and that is a bit high. (But no B.S. values or exaggerated values that can get you into trouble...)

Other: Bought 5 of them! They are worth 10 dollars on the competitors. *If you know what your doing you can adjust it and expand/change/hack it and make it work better for a prototype rather than the questionable quality of other circuits on Amazon. I would feel comfortable putting this in a prototype and running it continuously without burning structures down or bursting into flames.

3 people found this helpful

Helpful
