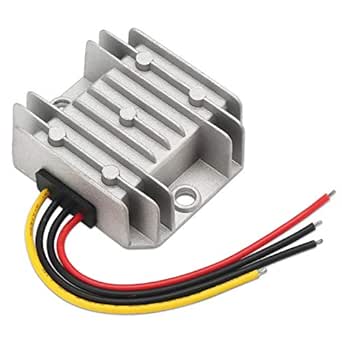

DROK DC DC Waterproof Golf Cart Voltage Reducer Converter 15-35V 24V to 12V Buck Converter Volatge Regulator Module 60W 5A Step-Down Voltage Transformer Board

3.6 3.6 out of 5 stars 104 ratings
Currently unavailable.
We don't know when or if this item will be back in stock.
Brand DROK
Item Weight 0.24 Pounds
Input Voltage 35 Volts
Output Voltage 12 Volts
Global Trade Identification Number 00619397029954

About this item

  • Voltage reducer 24V to 12V, 5A, input DC 15-35V, 60W, made of first class aluminum.
  • Compact and solid design, wiring diagram labeled on the back, easy to wire up, no humming or shutdown during using.
  • Synchronous rectification technology and no heat generated, good stability, durable, waterproof, can work in rain.
  • With protection of short circuit,over current and over heat, can recover automatically after getting rid of obstacles.
  • Commonly used for radio, speaker system, club car, electric bike, solar panel, led lights an so on.
› See more product details

Similar item to consider

4.6 out of 5 stars (2071)
$7.99

Product details

  • Is Discontinued By Manufacturer ‏ : ‎ No
  • Package Dimensions ‏ : ‎ 3.78 x 3.62 x 1.14 inches; 3.84 ounces
  • Item model number ‏ : ‎ 090607_JPN
  • Date First Available ‏ : ‎ April 22, 2013
  • Manufacturer ‏ : ‎ DROK
  • ASIN ‏ : ‎ B00CGSHR2S
  • Customer Reviews:
    3.6 3.6 out of 5 stars 104 ratings

Product Description

Parameters:
Input voltage: DC 15-35V
Power chip: LM2596
Output voltage: DC 12V
Output power: 60W
Maximum output current: 5A
Continuous output current: 3A
Transfer efficiency: 96% Max
Soft start time: about 500mS
Output ripple: 50mV(Max); 20M bandwidth
Working temperature: -40 to +85 Celsius degree(Please lower power or enhance heat radiating if surrounding temp exceeds 40 celsius degree)
Temp rise in full load: 50 Celsius degree
Load adjustment ratio: +/- 1%
Volt adjustment ratio: +/- 2%
Dynamic response speed: 5% 200uS
Input reversed connection protection: no(if you need, please connect diode in series to the input)

Application:
The converter applies to bus, CMB, large trucks, motor car, solar power generating, bus displaying screen, taxi advertising screen,
taxi radio without interference, car audio speaker, LCD TV, LED, intercom and monitor system, etc.

Notes:
1.Please add fuse in the input; negative and positive pole of voltage should not be connected reversedly, or the transformer will be burn out
and your electrical equipments might be damaged
2.Please ensure enough input voltage and power so that the module will output enough voltage and power
3.Please enhance heating radiation when in max output current of 5A; we suggest you to leave current margin for long-term usage

Package include:
1x DC Converter

From the manufacturer

Voltage reducer, Voltage converter,Volt meter, voltmeter, Voltage reducer converter, DC Step down
Voltage Reducer Converter,Voltage Reducer Converter, Voltage Reducer, Volt Reducer,Volt Converter
Voltage reducer, Voltage converter,Volt meter, voltmeter, Voltage reducer converter, DC Step down

Looking for specific info?

Customer reviews

3.6 out of 5 stars
104 global ratings

Customers say

Customers like the functionality, build quality, and ease of installation of the power converter. They mention it works well, is perfect for this application, and provides a steady output. Some appreciate the value for money, compactness, and app quality.

AI-generated from the text of customer reviews

Select to learn more
FunctionalityBuild qualityEase of installationValue for moneyCompactnessApp qualityPower level
28 customers mention "Functionality"28 positive0 negative

Customers are satisfied with the functionality of the power converter. They mention it works well, has no issues, and is perfect for this application. Customers also appreciate that it works across the full voltage range and provides a steady output.

"Perfect for this application, excellent construction and easy to use. This was to install LEDs light strip on a boat ramp (ya big fancy one)...." Read more

"...For the price it's pretty darn good, however, I would have liked the voltage to be up in the 12.9-13.8v range which is "industry standard" for..." Read more

"Works as advertised. It's being used to step down 24VDC solar panel output to 12VDC to keep a battery bank charged" Read more

"It works good" Read more

7 customers mention "Build quality"7 positive0 negative

Customers are satisfied with the build quality of the power converter. They mention it has solid construction, great reliability, and stability. Some say it takes ridiculously large forces of blows, hits, and slams like a champ and provides a steady output.

"Perfect for this application, excellent construction and easy to use. This was to install LEDs light strip on a boat ramp (ya big fancy one)...." Read more

"Very rugged converter. Only complaint is that the labels for input and output are on the back of the module...." Read more

"...Super simple to hook up, though, and seems to be a very durable build.c" Read more

"...It is properly potted and took the ridiculously large forces of blows, hits, and slams like a champ." Read more

6 customers mention "Ease of installation"6 positive0 negative

Customers find the power converter easy to install. They mention it's easy to use, has excellent construction, and the leads make the job easy.

"Perfect for this application, excellent construction and easy to use. This was to install LEDs light strip on a boat ramp (ya big fancy one)...." Read more

"...Did the job and the leads made the job easy." Read more

"...Super simple to hook up, though, and seems to be a very durable build.c" Read more

"The product did exactly as stated. It arrived quickly, was easy to install and when tested on my equipment it was exactly where it should have been..." Read more

6 customers mention "Value for money"6 positive0 negative

Customers appreciate the value for money of the power converter. They say it's worth the price and a cheap solution for stepping down the DC voltage.

"...That thing can't be better in this application. And it's a cheap solution for stepping down the DC voltage. Very good, highly recommanded" Read more

"This little converter works great and is cheap! It was far cheaper for me to buy this than design my own for a fixture." Read more

"Cost effective regulator to reduce 24v to 12v in battery powered systems. Rugged and compact." Read more

"Great price, super compact, works great!" Read more

4 customers mention "Compactness"4 positive0 negative

Customers appreciate the compactness of the power converter. They mention it's rugged and doesn't take up much space.

"...Works great, doesn't take up much space." Read more

"...Rugged and compact." Read more

"Very good product, good size, good performance. Excellent!!!" Read more

"Great price, super compact, works great!" Read more

3 customers mention "App quality"3 positive0 negative

Customers are satisfied with the quality of the app. They mention it's excellent and a good app.

"Excellent product. great for converting 24v to 12 volt for trailer wiring on military vehicles." Read more

"Very good product, good size, good performance. Excellent!!!" Read more

"Good app..." Read more

3 customers mention "Power level"3 positive0 negative

Customers are satisfied with the power level of the product. They mention it provides smooth, consistent power and barely gets warm. It works well and powers the fish finder for several hours on just one 3AH battery. Some say it works perfectly, running all day.

"...It works well, and powers the fish finder for several hours on just one 3AH battery...." Read more

"...This regulator provides smooth, consistent power and barely gets warm when delivering about 4 amps." Read more

"...Works perfectly, running all day (or whenever there is sun) for about a month now." Read more

labeled wrong
3 out of 5 stars
labeled wrong
notice the label say red black for input,black black for out but wire is yellow,don't trust it
Hide
Thank you for your feedback
Sorry, there was an error
Sorry we couldn't load the review

Top reviews from the United States

Lucky Luc
5.0 out of 5 stars Perfect for this application
Reviewed in the United States on January 16, 2017
Verified Purchase
Perfect for this application, excellent construction and easy to use. This was to install LEDs light strip on a boat ramp (ya big fancy one). The boat is wire 24VDC and the best LED for the application where 12VDC. We did need only 3 amps max but this unit being all set and seal that make the chose a no brainner. We wire it an second and is working nice and cool. That thing can't be better in this application. And it's a cheap solution for stepping down the DC voltage. Very good, highly recommanded
Helpful
 Report
Chance Fulton
3.0 out of 5 stars Works well, but regulates to 11.7 or 11.9v only
Reviewed in the United States on February 9, 2022
Verified Purchase
I use this device to power my fish finder using a Rigid 18V drill battery. It works well, and powers the fish finder for several hours on just one 3AH battery. For the price it's pretty darn good, however, I would have liked the voltage to be up in the 12.9-13.8v range which is "industry standard" for automotive voltages in the US. There is also a slight amount of interference that it puts off which causes the fish finder to go wacky once in a while. This is solved by moving the regulator so it's not close to the screen (It's in an ice fishing bag, so it's not that easy to do).
Helpful
 Report
LoneStar
1.0 out of 5 stars Caught fire within seconds
Reviewed in the United States on June 8, 2024
Verified Purchase
I hooked it up to my 20v DC power supply and hooked the output wires to a fused connection with a switch that was turned off, and some 12V LEDs on the switched connection. I walked across the garage to grab my voltage tester but turned around when I smelled smoke and saw the thing spewing puffs of smoke. By the time I made it back to the box to unhook the input, the heat sink had been pressed off the rubber insides and smoke was pouring out. I'm glad, I guess, that it failed immediately instead of setting fire to the power wheels while my grandkids were driving it! Cheap crap.
Customer image
LoneStar
1.0 out of 5 stars Caught fire within seconds
Reviewed in the United States on June 8, 2024
I hooked it up to my 20v DC power supply and hooked the output wires to a fused connection with a switch that was turned off, and some 12V LEDs on the switched connection. I walked across the garage to grab my voltage tester but turned around when I smelled smoke and saw the thing spewing puffs of smoke. By the time I made it back to the box to unhook the input, the heat sink had been pressed off the rubber insides and smoke was pouring out. I'm glad, I guess, that it failed immediately instead of setting fire to the power wheels while my grandkids were driving it! Cheap crap.
Images in this review
Customer image
Customer image
Helpful
 Report
Thomas Furlong
4.0 out of 5 stars Works as advertised.
Reviewed in the United States on July 17, 2017
Verified Purchase
Works as advertised. It's being used to step down 24VDC solar panel output to 12VDC to keep a battery bank charged
Helpful
 Report
6watt
5.0 out of 5 stars Works good
Reviewed in the United States on April 14, 2024
Verified Purchase
It works good
Helpful
 Report
engineer
5.0 out of 5 stars Great converter for the money
Reviewed in the United States on October 15, 2016
Verified Purchase
Very rugged converter. Only complaint is that the labels for input and output are on the back of the module. Once you mount it, you cannot see how to connect it. Works across the full voltage range and provides a steady output.
Helpful
 Report
mitchell
3.0 out of 5 stars labeled wrong
Reviewed in the United States on September 4, 2024
Verified Purchase

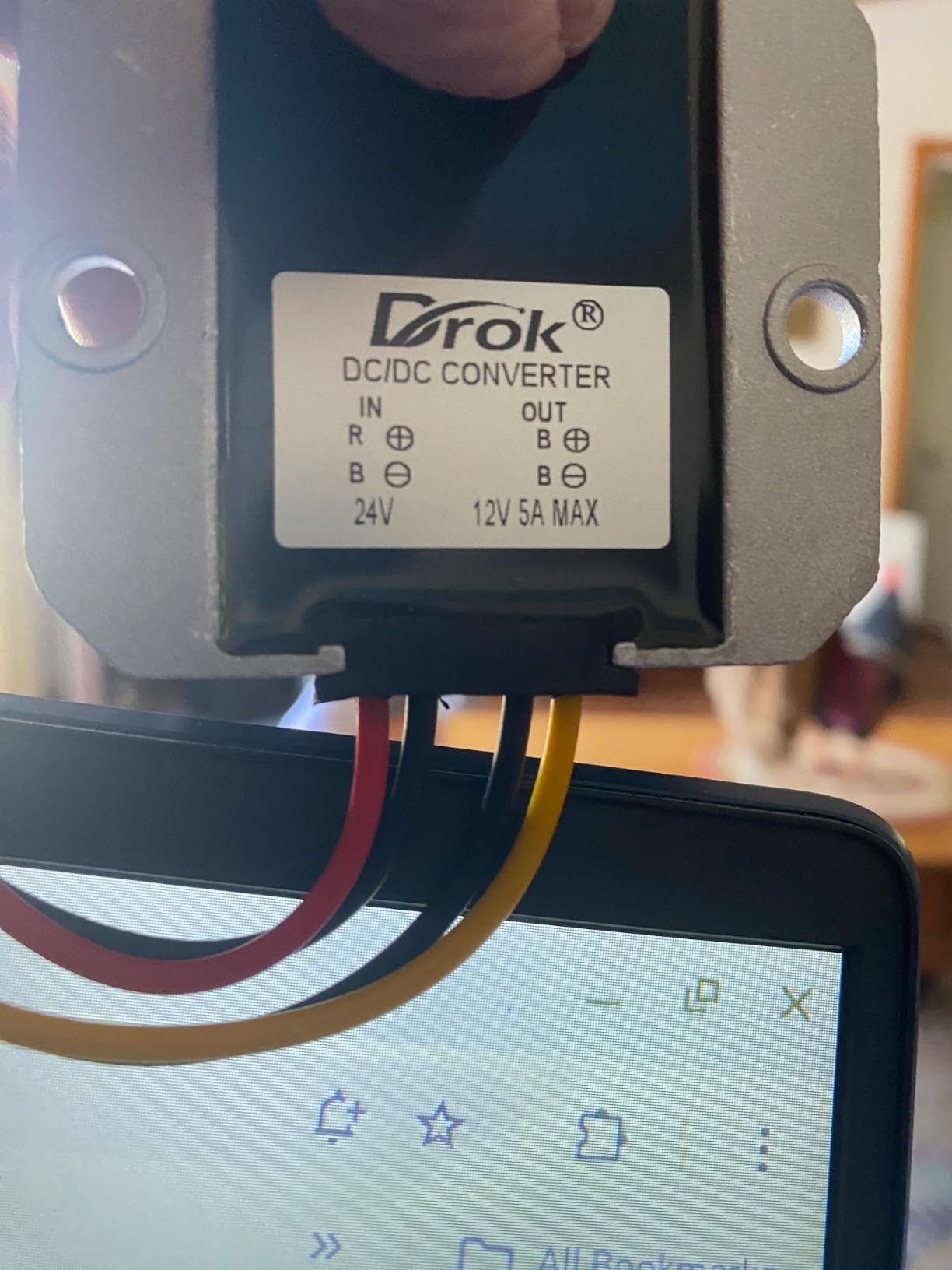

notice the label say red black for input,black black for out but wire is yellow,don't trust it
Customer image
mitchell
3.0 out of 5 stars labeled wrong
Reviewed in the United States on September 4, 2024
notice the label say red black for input,black black for out but wire is yellow,don't trust it
Images in this review
Customer image
Customer image
Helpful
 Report
pfhattkatt
5.0 out of 5 stars Worked for a CB on a 24VDC loader.
Reviewed in the United States on August 20, 2018
Verified Purchase
Did the job, had to drop 24VDC on a wheel loader to 12VDC for a CB. Did the job and the leads made the job easy.
Helpful
 Report

Top reviews from other countries

Translate all reviews to English
Benoit Bouchard
5.0 out of 5 stars Fonctionnel
Reviewed in Canada on September 8, 2023
Verified Purchase
Conforme a mes attentes
Report
Mark
4.0 out of 5 stars Four Stars
Reviewed in Canada on November 14, 2017
Verified Purchase
Unit works very well
Report
Mr Graham Holwill
1.0 out of 5 stars Not as described
Reviewed in Canada on October 26, 2019
Verified Purchase
I was expecting a converter unit that can convert from 36v down to 5v as per the description. However this unit outputs 12v and has max input voltage of 35v. Can't be bothered to return it and will have to use for a different project.
Report
Dorel Samoila
5.0 out of 5 stars Exactly as described
Reviewed in Canada on August 12, 2019
Verified Purchase
super durable product, I used it for the RV power outlet on my truck, 1950 dodge military truck that is set up for 24 V,
I will be ordering more of these
5 star product and 5 star seller
Report
Myles Barnes
4.0 out of 5 stars Four Stars
Reviewed in Canada on September 7, 2017
Verified Purchase
good
