Cooler Master Hyper 212 Evo CPU Cooler (RR-212E-20PK-R2), 120mm PWM Fan, Aluminum Fins, 4 Copper Direct Contact Heat Pipes for AMD Ryzen/Intel
| Product Dimensions | 6.26"L x 4.72"W x 3.15"H |
| Brand | Cooler Master |
| Power Connector Type | 4-Pin |
| Voltage | 12 Volts |
| Wattage | 2.64 watts |
| Cooling Method | Fan |
| Compatible Devices | Desktop |
| Noise Level | 36 dB |
| Material | Aluminum |
| Maximum Rotational Speed | 1600 RPM |
About this item
- Well-balanced cooling performance provides fin optimizations with perfect balance between high and low speed operations
- Wide-range PWM fan with unique wave-shaped blade design for excellent airflow
- CPU Socket: LGA2066, LGA2011-v3, LGA2011, LGA1366, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, AM4, AM3 plus, AM3, AM2 plus, AM2, FM2 plus, FM2, FM1
- Dimensions (L x W x H): 120 x 80 x 159 mm / 4.7 x 3.1 x 6.3 inch ; Heat Sink Dimensions (L x W x H): 116 x 51 x 159 mm / 4.6 x 2.0 x 6.3 inch; Fan Dimensions (L x W x H): 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
- Heat Sink Material: Aluminum Fins, 4 Direct Contact Heat Pipe ; Heat Sink Weight: 465g / 1.03lb: Heat Pipe Dimensions:6mm
- Fan Noise Level: 9 - 36 dBA; Fan Speed: 600-2000 RPM (PWM) plus /minus 10% ; Fan Airflow: 24.9 - 82.9 CFM plus/minus 10%
- Well-balanced cooling performance provides fin optimizations with perfect balance between high and low speed operations
- Wide-range PWM fan with unique wave-shaped blade design for excellent airflow
- CPU Socket: LGA2066, LGA2011-v3, LGA2011, LGA1366, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
- Dimensions (L x W x H): 120 x 80 x 159 mm / 4.7 x 3.1 x 6.3 inch ; Heat Sink Dimensions (L x W x H): 116 x 51 x 159 mm / 4.6 x 2.0 x 6.3 inch; Fan Dimensions (L x W x H): 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
- Heat Sink Material: Aluminum Fins, 4 Direct Contact Heat Pipe ; Heat Sink Weight: 465g / 1.03lb: Heat Pipe Dimensions: Ø6mm
- Fan Noise Level: 9 - 36 dBA; Fan Speed: 600-2000 RPM (PWM) ± 10% ; Fan Airflow: 24.9 - 82.9 CFM ± 10%
Similar item to consider
Similar items that may ship from close to you
Product details
- Is Discontinued By Manufacturer : No
- Product Dimensions : 3.1 x 6.3 x 4.7 inches; 1.28 Pounds
- Item model number : RR-212E-20PK-R2
- Date First Available : September 1, 2011
- Manufacturer : Cooler Master USA, Inc.
- ASIN : B005O65JXI
- Best Sellers Rank: #186 in Computer CPU Cooling Fans
- Customer Reviews:
Product Description
Cooler Master, an industry leading chassis, thermal solution, peripheral, and accessory manufacturer, signals the rebirth of a household name in computing, the Hyper 212 EVO CPU Cooler. It comes packed with an improved tower fin design, heat pipe layout, and upgraded fans and fan brackets that provide an even more extreme value for end users of all types. Dents are created when the heat pipes are sealed. The cut and seal is not a damage, after the heat pipe is full, machine will crimp it. Fan Speed: 600-2000 RPM (PWM) ± 10%, 600-1600 RPM (PWM) ± 10% (EU Version).
Important information
Legal Disclaimer
No returns. I have already explained that I attempted to fit it in my case, but I was short by .5". All parts included.
To report an issue with this product, click here.
From the manufacturer
Since our founding in 1992 as a thermal pioneer responsible for the first ever heatpipe heatsink, through our evolution into a manufacturer of cutting-edge cases and peripherals, to our recent groundbreaking switch to the modular format, Cooler Master has consistently rewarded its customers and fans with the utmost in innovation, choice, and control.
Hyper 212 EVO
Four Heatpipe Air Cooler
The Hyper 212 EVO cooling systems are designed and optimized to provide the best user experience and cooling potential for a new generation of processors. The Hyper 212 EVO now features four Cooler Master patented Continuous Direct Contact (CDC) heat pipes that are tightly packed into a flat array on the CPU Cooler base. This acts as a virtual vapor chamber that dissipates a large amount of heat. The aluminum fin structure has been optimized to provide the perfect performance balance.
- Well-balanced cooling performance provides fin optimizations with perfect balance between high and low speed operations
- 4 Direct Contact heat pipes with the patented CDC (Continuous Direct Contact) technology - creating a perfect, sleek surface for heat conduction
- Wide-range PWM fan with unique wave-shaped blade design for excellent airflow
- Now AM4 Compatible. Contact Cooler Master for new bracket
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Hyper T4 | GeminII M4 | Hyper 212 EVO | Hyper D92 | Vortex Plus | GeminII S524 Ver 2 | |
| CPU Socket | Intel: LGA 2011, 1366, 1151, 1150, 1155, 1156, 775 AMD: FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, AM1 | Intel Socket: LGA 1366, 1151, 1150, 1155, 1156, AMD Socket: FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, AM1 | Intel: LGA 2011, 1366, 1151, 1150, 1155, 1156, AMD: FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, AM1, AM4 (Contact Cooler Master for bracket) | Intel: LGA 2011-3, 2011, 1366, 1156, 1155, 1151, 1150, 775 AMD: FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, AM1 | Intel Socket: LGA 1366, 1151, 1150, 1155, 1156, 775 * AMD Socket: FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, AM1, 940, 939, 754 | Intel: LGA 2011-3, 2011, 1366, 1156, 1155, 1151, 1150, 775 AMD: FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, AM1 |
| Dimension | 131.6 x 72.5 x 152.3 mm | 137 x 122 x 59mm | 120 x 79.7 x 158.5 mm | 128.9 x 96.6 x 146.4 mm | 116 x 100 x 84 mm | 144 x 141 x 105 mm |
| Heat Sink Dimension | 128 x 44 x 152.3 mm | 120x 118 x 44 mm | 116 x 51 x 159 mm | 124.5 x 84 x 146.4 mm | 116 x 100 x 58.5 mm | 136 x 124 x 77 mm |
| Heat Sink Material | 4 Direct Contact Heatpipes / Aluminum Fins | 4 Direct Contact Heat Pipes / Aluminum Fins | 4 Direct Contact Heat Pipes / Aluminum Fins | Accelerated Cooling System - 4 Direct Contact Heatpipes - High Density Fins - 2 Offset 92mm Push-Pull Fans | Aluminum fins + 4 heatpipes | Accelerated Cooling System - 5 Direct Contact Heatpipes - X-Vents Air-Guide design - 1x 120mm Silencio FP Fans |
| Fan Dimension | 120 x 120 x 25 mm | 120 x 120 x 15 mm | 120 x 120 x 25 mm | 92 x 92 x 25 mm | 92 x 92 x 25 mm | 120 x 120 x 25 mm |
| Fan Speed | 600~1800 RPM (PWM) ± 10% | 500 - 1,600 RPM (PWM) ± 10% | 600 – 2,000 RPM (PWM) ± 10% | 800 - 2800 RPM +/- 10% | 800 - 2800 RPM (PWM) | 800 – 2,000 RPM (PWM) ± 10% |
| Fan Airflow | 24~70 CFM ± 10% | 17.4 - 58.4 CFM ± 10% | 24.9 – 82.9 CFM ± 10% | 15.7 - 54.8 CFM +/- 10% | 15.7 - 54.8 CFM | 16.5 – 65 CFM (28 – 110.5 m3/h) |
| Fan Life Expectancy | 40,000 hours | 40,000 hours | 40,000 hours | 40,000 hours | 40,000 hours | 160,000 hours |
| Fan Noise Level (dB-A) | 15.1~31.6 dBA | 8 - 30 dBA | 9 - 36 dBA | 18 - 33 dBA | 17 - 35 dBA | 6.5 – 22 dBA |
| Power Consumption | 2.64W | 2.4W | 2.64W | 2.88W (max) | 3.12W | 0.96 W |
Videos
Videos for related products

2:51
Click to play video

AX120R SE ARGB Air Cooler series installation video tutorial
Thermalright Direct 2
Videos for related products

13:17
Click to play video

The Best CPU Cooler - Tower vs Downdraft
Publisher Video
Videos for related products

5:42
Click to play video

Cooler Master Hyper 212 Halo White CPU Air Cooler Review
Digital David

Videos for related products

3:27
Click to play video

Cooler Master's Hyper 212 Halo Air Cooler Rapid Review
Digital David

Looking for specific info?
Customer reviews
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
Learn more how customers reviews work on AmazonReviews with images
Submit a report
- Harassment, profanity
- Spam, advertisement, promotions
- Given in exchange for cash, discounts
Sorry, there was an error
Please try again later.-
Top reviews
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
The instructions suck. They tell you to put thermal paste on your CPU before mounting the bracket that goes behind the motherboard. Due to the vague illustrations, I did not realize it needed a bracket behind the motherboard, when I was skimming the instructions. Simply put, I ended up having to put thermal paste on it twice because it's impossible to take a motherboard out of your case, attach the mounting bracket and put the motherboard back in place without contaminating the thermal paste. Even a single finger print or eye lash or piece of dust is enough to contaminate it and have an impact on the performance of your heat sink.
Another thing I didn't like was the tool used for tightening on the nuts for the bracket. I tried using it but ended up using a wrench instead.
Finally, I find the heat sink isn't exactly what I'd call secure. Even after tightening it down and making sure I had everything properly lined up, the whole thing will still twist a little bit. It's noticeable when you're trying to re-attach the fan.
I've seen other reviews saying they ended up with mounting parts that were defective. Fortunately, I did not have this problem.
What do I recommend buying before attempting this?
It comes with its own thermal paste but you could always buy better. I went with some Arctic Silver 5, like most people. You'll also want some lint free wipes (coffee filters work but I do not recommend them because they're a bit stiff and tend to cause scratches; I used PEC PAD wipes sold here on Amazon that I bought for cleaning photos and negatives) and either rubbing alcohol (at least 90% but 99% is preferred; can usually find at least 91% at Walmart and most stores) or one of those cleaner kits. Also, if you don't have a small wrench set, you might want to get one, unless you plan to rely on the tool included in the kit. You definitely need a screw driver but most people would know this already.

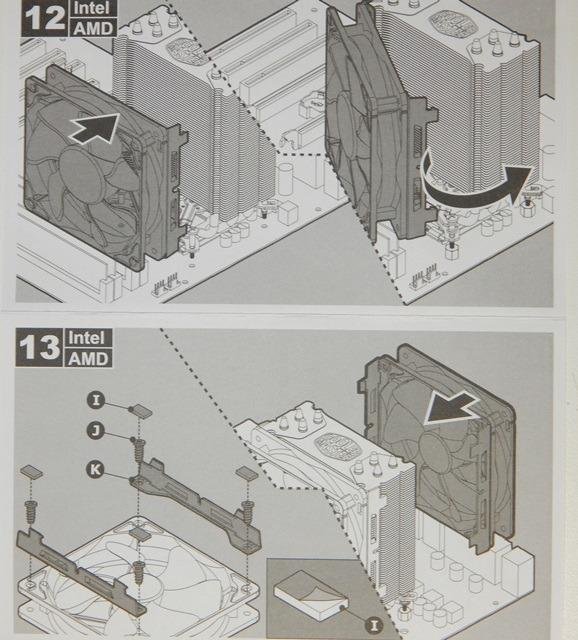

So, how do you put this thing on?
Be sure to consult the instructions for each step. Also, before you do anything, take the heat sink and fan and verify you have enough clearance for it on your motherboard and in your case. This heat sink is rather large. There is a risk of it crowding a RAM slot or being too tall to even fit in your case.
The first thing you should do is attach the bracket to your motherboard as per the instructions for your CPU. If you've already mounted your motherboard to your case, you will have to take it out. I used a wrench because I didn't have enough space to flip it completely on its back and use the included tool.
Detach the fan from the heat sink.
After you do that, put the X shaped bracket through the gap behind where the heat sink makes contact with the CPU. Keep the adhesive strip on for now. Test and make sure the X bracket matches up with the mount points you attached to your motherboard. Once you confirm you have it correctly adjusted, place your CPU in the socket (if you haven't already) and secure it.
Clean the CPU cap (the part where the heat sink will connect with the CPU; use a lint free wipe and the alcohol or cleaner solution) and place thermal paste in accordance with the instructions for your thermal paste. If your thermal paste lacks instructions, the idea is to have just enough paste covering the part of the cap directly above the core(s) for your CPU. If you can't find specific directions on google, you could try putting a small plus sign of paste in the middle. To get the appropriate amount of paste, you need only an amount equal to a single line covering about 50% of the length of the CPU cap. So, if you do a plus sign, it only needs to be about 25% of the length of the cap. If your CPU doesn't have a cap, just place a rice sized dot in the center of each core. Again, most CPUs have instructions for this online.
Once you've done that, take the adhesive strip off of the heat sink. I recommend cleaning the spot you took the adhesive off of (again, using a lint free wipe and cleaning solution) but it's not absolutely necessary. If you want to confirm whether you put enough or too much paste on, you can place the heat sink against the CPU, apply some pressure (just enough to get the paste to spread) and twist the heat sink a little each way. If you pull it up and the paste is going over the edge, you have too much and should use a lint free wipe to clean the excess along the edges. There should be at least enough to cover a circular area over all cores.
You should now carefully line up the brackets and orient your heat sink. Proceed with lightly screwing in each screw. Once you've got all 4 screws started, go around and tighten them all down.
Finally, reattach the fan, plug it in and you're done.
So, what did I like about this?
Once I finished putting it on, it lowered my idle temps quite a bit (down to about 27 C idle and about 48 C under load with the core temps topping out around 63 C under load) and it fixed the overheating problem I was having with my stock heat sink. Supposedly, over time the temps will get better as my thermal paste settles but I don't expect a huge difference. The fan hasn't noticeably raised the noise level in my PC, which is fairly quiet. I had a little trouble keeping the fan from touching the heat spreader on the closest RAM stick but I managed to wiggle in a tiny gap. The top of the heat sink comes really close to the other side of my case but there is a gap there. Overall, I'd say I'm satisfied.
When I first put my stock heat sink on, it did a fair job (but not great since even a small overclock caused it to overheat) at keeping the CPU cool. However, about 3.5 years later my idle temps had nearly doubled and games were starting to make it overheat. I had a choice to make. I could either clean off my stock heat sink and CPU and put on new thermal paste or I could buy a new heat sink. I decided that if I was going through that much trouble, I might as well invest in a good heat sink. This heat sink is compatible with a large range of CPUs. Furthermore, I don't plan to stop using my i5-3570K any time soon. So, even given the age of the CPU, I think I'll get my money back out of the heat sink. I'm wishing I hadn't been lazy and bought this heat sink back when I initially put this PC together.
For anyone curious, these are my motherboard and case.
ASUS P8Z77-V PRO LGA 1155 Intel Z77 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard
Thermaltake Armor Series VA8000BWS
I'm using this on an AM5 socket. Installation took less than 5 minutes and was as simple as you can get.
I'm using this on an AM5 socket. Installation took less than 5 minutes and was as simple as you can get.
I read a lot of the reviews on this. I had mixed feelings about it, but because the more expensive cooler I wanted was not available to ship until late April, I decided to go ahead and give it a shot.
I don't game on my PC, it's used for Roblox for the kids, and general web browsing, YouTube videos, spreadsheets, etc. So I don't need a liquid nitrogen super-cooler keeping my CPU at just above absolute zero.
I do have some background in DIY PC stuff, as I build and maintain both my PC and home server.
Over the last week, the PC was suffering from CPU throttling from high temps, and once it started shutting down, I figured it was time to act.
So I started researching this cooler. It's been out for years now, and had good reviews from tech sites, but plenty of bad ones from owners. But since I was on a timetable I figured I'd give this one a shot.
Package came on time, no damage. Contents were undamaged, nothing missing.
First impression: Holy crap this thing is HUGE! (that's what she said)
It's more like a CPU cooler skyscraper, lol. My biggest concern was if it would fit in my Roswell micro-ATX case but it looked like I would just be able to fit it in there.
So a lot of the negative reviews were about the PITA installation procedure. I can see why some people had a hard time. It took me about 2 hours total from start to finish, which is a bit long, IMO. My tower also has removable panels on both sides, so I didn't have to remove the motherboard, which was a good thing.
But I gotta say, I do appreciate the design. It's meant to accommodate a wide variety of chipsets and motherboards, so it's not going to be plug-n-play for most people, myself included.
Another complaint was the directions. Honestly, they could've been a little more detailed, but actually I didn't think they were all that bad. I recommend watching a YouTube video or two on your socket type before installation.
Installing the backplate was pretty straight forward. The directions tell you which mount holes to use for your socket. I removed the old Arctic cooler and cleaned up the old thermal paste off of the chip using isopropyl alcohol and a microfiber cloth. When I installed the Arctic 64, I realized that I put on too much paste, and it got everywhere, including on the socket, so I had to remove the chip and clean everything up.
Then I had to figure out the layout, since this one was considerably larger and the fan is side mounted, not top mounted like my previous cooler.
For my tower, I needed to reverse the airflow on my chassis fans, as originally I had the fan on the front panel as the intake, and the back as the exhaust. The Hyper 212 Evo was too large to have the fan facing the front, as it would impede the SATA cables coming from my hard drives, so I simply mounted it with the fan facing the back, and reversed the airflow on my chassis fans.
The hardest part was lining up the bracket on the inside, with the studs coming from the mounting plate on the back of the MB. Originally I had used the wrong holes on the backplate, which I didn't realize until trying to mount the studs on the inside. After some rearranging, everything fit.
I used the thermal paste included, despite having some Arctic Silver MX-5 laying around, as it had been sitting in a box in my closet for almost 4 years. I put a small dab in the center of my chip, about the size of a grain of rice.
The directions tell you which slots to put the spring loaded screws into that hold the cooler down and fasten into the bracket studs, so make sure you check that before attempting to mount. Once I had the paste on and the X-bracket oriented properly on the cooler, it was time to mount.
It took a bit of force to get the screws started in the studs, but it wasn't all that bad, as the bracket and springs allow for plenty of flexibility to bend and twist until you get them lined up correctly. Once started, it was easy, just make sure to follow the tightening pattern in the directions.
Not sure why some people broke their motherboards, tightening should be snug, not insane.
Once fastened securely it doesn't really move around, like some complained.
Only thing left was to snap the fan in place and crank her up.
She's definitely louder than the old one, and it's probably overkill since I'm not doing anything super-intensive, but this thing definitely looks cool, lol.
I ran Prime95 stress test for 6 hours and the Hyper had no problems keeping everything nice and cool. Temps rarely go above 40 C now during normal use. No throttling or shutdowns so far.
The fan does get louder than my old cooler when it cranks up to full RPMs, but it doesn't bother me at all.
All in all, I'm happy with it. Will update if anything changes.
Top reviews from other countries
Reviewed in Brazil on May 26, 2023
Reviewed in Mexico on September 5, 2023
Pros:
- Temps in games went from 70C to 53C
- Temps in idle went down about 10C
- The fan is very quiet, most of the time you won't even hear it (as opposed to the stock fan which was noisy at higher speeds)
- Great price. I got it "used" but looked brand new. Very happy to save a few bucks.
Cons:
- The only con is the install can be tricky. When attaching the plastic back-plate it is loose at first, until you screw on the cooler itself. That was a bit confusing, but a couple of vids confirmed that it was the correct way.
