| Part Number | DT BS100 |
|---|---|
| Item Weight | 41 pounds |
| Product Dimensions | 31 x 17 x 12.5 inches |
| California residents | Click here for Proposition 65 warning |
| Item model number | BS100 |
| Power Source | corded-electric |
| Included Components | bare-tool |
| Warranty Description | 2 Years |

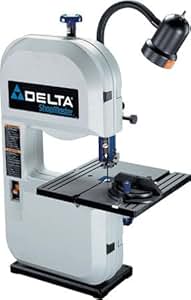

DELTA BS100 Shopmaster 9-Inch Bench Top Band Saw
We don't know when or if this item will be back in stock.
Customers Who Viewed This Item Also Viewed
Product Description
Amazon.com
There's not much a band saw can't do--if you have one already, we bet you love it. It's an amazingly versatile tool and, quite honestly, offers the most fun in a shop. This Shopmaster model is a great first band saw for the home shop because it's powerful, compact, and has features you get on the big boys. You've got 9 inches from frame to blade, and the ribbed aluminum table offers a miter gauge slot and a rack-and-pinion, table-tilt mechanism for precision adjustments from 3 degrees left to 45 degrees right. A 1-3/4-inch dust port will draw the chips and dust away from your sight line when connected to your shop vacuum or your dust collection system, and a flex-neck lamp that's right on the housing keeps everything in the light. We love this for its compact size--20 by 30 inches--and its light weight--just 33 pounds--so even the smallest shop owner can have fun cutting curves. --Kris Jensen-Van Heste
From the Manufacturer
See what you've been missing! The flexible lamp on this 9-inch band saw adjusts to illuminate the workpiece for optimum visibility. This two-wheel band saw has the capacity to cut thick material with 3-3/4 inches of clearance under the blade guide and wheel. The two-wheel design requires less workbench space and reduces blade breakage when compared to three-wheel designs. Powered by a 1/3-horsepower ball-bearing induction motor, the blade turns at 3,000 surface feet per minute. The wheels are balanced for smooth, vibration-free operation, and a built-in cleaning brush keeps the blade and tires free of chips. Independently adjustable blade guides and ball bearing blade supports maintain blade alignment. A rack and pinion system allows for safe and easy adjustment of the blade guard and upper guides. Blade changes are simple with the swing open door for easy access and a quick-release tension lever. The table tilts 45 degrees to the right and a miter gage is included for accurate angle cutting. Mounting this saw to a bench or stand is quick and easy with the pre-drilled base holes. A removable lockout key prevents unauthorized use.
WHAT'S IN THE BOX
Delta ShopMaster Model BS100 with a 1/3HP, 120V motor; rack and pinion upper blade guide and table tilt assemblies, flexible lamp, 59 1/2" blade and instruction manual.
DELTA DIFFERENCE
- Powerful, 1/3HP ball-bearing motor for smooth performance and longer life.
- Ribbed aluminum table with miter gage slot features a rack and pinion table tilt adjustment for precision tilt settings from 3° L to 45° R.
- Rack and pinion upper blade guide adjustment for precise height adjustments under the guide.
- Built-in dust chute for attaching to a dust collection system.
- Flexible lamp illuminates table and workpiece.
- Pre-drilled base holes simplify benchtop mounting.
- Miter gage for straight and angle cutting operations.
SPECIFICATIONS
MOTOR: 15 amp
CAPACITY (ht. under guide): 3 3/4"
MOTOR CONTROL: Toggle switch with removable lock-out key
TABLE:
Size: 11 3/8" X 11 3/8"(289 X 289 mm)
Miter gage slot: 1/4" X 5/8"
Tilt: 48° R; 3° L
CAPACITIES:
Frame to blade: 9"(229 mm)
Under guide & wheel: 3 3/4"(95 mm)
BLADE:
Width: 1/8"(3 mm) minimum; 3/8"(10 mm) maximum
Length: 59 1/2"(1511 mm)
Speed: 3000 SFPM (914 SMPM)
Dust port: 1 3/4" O.D.(44 mm)
OVERALL DIMENSIONS:
Length: 33"(838 mm)
Width: 20"(508 mm)
Height: 29"(737 mm)
WEIGHT: 33 lbs.(15 kg)
WARRANTY
Two-year limited warranty on machines, parts, and accessories.
