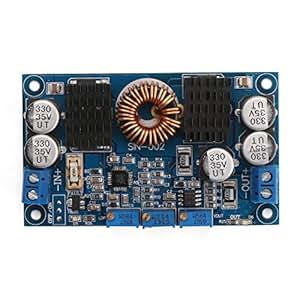

DROK DC/DC Automatic Boost Buck Converter Module 60W Constant Voltage/Current Car Voltage Regulator DC5-32V to 1.25-20V

4.1 out of 5 stars 12 customer reviews
| 5 answered questions
Price: $15.99 Free Shipping for Prime Members | Fast, FREE Shipping with Amazon Prime
In Stock.
Sold by DROK and Fulfilled by Amazon. Gift-wrap available.

Fulfillment by Amazon (FBA) is a service we offer sellers that lets them store their products in Amazon's fulfillment centers, and we directly pack, ship, and provide customer service for these products. Something we hope you'll especially enjoy: FBA items qualify for FREE Shipping and .

If you're a seller, Fulfillment by Amazon can help you increase your sales. We invite you to learn more about Fulfillment by Amazon .

60W Regulator
    This fits your .
  • Enter your model number to make sure this fits.
  • Non-Isolated synchronous rectifier automatic boost buck module, input dc5-32v and output 1 25-20v
  • Input current 8A max peak 10A; quiescent current 4mA; output current 5A max, output constant current 0 2-5a adjustable
  • High conversion efficiency up to 96 percent and 150Khz operating frequency, 10A fuse, double short circuit protection
  • With overcurrent protection, overheat protection, output anti-irrigation protection
  • Used for solar energy, car Voltage regulator, battery charging, LED motivator and day power supply
› See more product details
2 new from $15.99
$15.99 Free Shipping for Prime Members | Fast, FREE Shipping with Amazon Prime In Stock. Sold by DROK and Fulfilled by Amazon. Gift-wrap available.

Fulfillment by Amazon (FBA) is a service we offer sellers that lets them store their products in Amazon's fulfillment centers, and we directly pack, ship, and provide customer service for these products. Something we hope you'll especially enjoy: FBA items qualify for FREE Shipping and .

If you're a seller, Fulfillment by Amazon can help you increase your sales. We invite you to learn more about Fulfillment by Amazon .

Frequently Bought Together

  • DROK DC/DC Automatic Boost Buck Converter Module 60W Constant Voltage/Current Car Voltage Regulator DC5-32V to 1.25-20V
  • +
  • DROK Digital Current Tester Multimeter DC 100V Volt 2A Ampere Battery Monitor Gauge 2in1 Red/Blue 2-color LED Display Car Automotive 12V 24V Built-in Shunt
  • +
  • HIGHROCK 10pcs Terminal Binding Post Power Amplifier Dual 2-way Banana Plug Jack
Total price: $39.56
Some of these items ship sooner than the others. Show details
Buy the selected items together

Product Information

Size:60W Regulator

Technical Details

Additional Information

Warranty & Support

Warranty, Parts:Parts
Manufacturer’s warranty can be requested from customer service. Click here to make a request to customer service.

Feedback

If you are a seller for this product, would you like to suggest updates through seller support?
Would you like to tell us about a lower price?

Product Description

Size:60W Regulator

Module Parameters:
Module Name: 5A automatic step up/down constant voltage/current module
Module Properties: non-isolated synchronous rectifier automatic boost buck module
Input Voltage :5-32V
Input Current: 8A (MAX) peak 10A (6A long-term work)
Quiescent Current: 4mA
Output voltage :1.25-20V continuously adjustable, the default output is 12V
Output Current: 5A (MAX) (3A long-term work)
Output Constant Current: 0.2-5A
Working temperature: -40 to +85 degrees
Operating Frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: Yes
Short-circuit protection: (enter 10A fuse) double circuit protection
Over-temperature protection: Yes, automatic reduces the output voltage if over temperature
Input Reverse Polarity Protection: No, (if necessary , please connect diode with input in series )
Wiring: free soldering wire terminal output

Application:
DIY a regulated power supply, provide a stable operating voltage, LED driver

Package include:
1x Boost Buck Converter

Customer Questions & Answers
See questions and answers

Customer Reviews

Top Customer Reviews

5.0 out of 5 starsGreat Product. And outlining a nice solution if you have issues with startup current.
By davidthings on February 27, 2016
Size: 60W Regulator Verified Purchase
I've been testing this board (60W version) for a few weeks as a LiFePO4 battery charger. It is set to the final voltage of the battery (14.5V), then the current set to the max current I choose (2.5A). Charging works perfectly. The board behaves well and the hottest point on the board never gets too hot.

One area I did struggle with a bit was that it does seem to have a large in-rush current. I actually don't know if normal for the device category or whether there's something unusual about the board. On two different AC-DC converters I tried, large in-rush (both into the board itself, and the load) would cause the AC-DC converters to go into over-current protection, bouncing on and off unless I set the current to a very small value (<1A).

I predict that if you have a modest power supply (<5A, say) it might have the same issues.

I did find a nice solution, however. The board has terminals for a "Key" which is an enable/disable signal. I guess it's a large resistor (100K'ish) to the supply on one side and ground on the other. Short the terminals, and the high side is brought to ground and the unit is disabled. Accordingly, I put a small capacitor (1uF) between the terminals to hold the board off for a second or two on power up. This worked great, unless I disconnected and reconnected the board with a short time in between. In this case it was back to the bounce on bounce off behavior. I observed that the capacitor was holding its charge for a long time after power down, preventing the nice "off for a while on power-up" function. To fix this, I added a large resistor (1M Ohm) across the terminals and now it functions perfectly. I connect it and there is a small pause, then the supply ramps up to the correct value.

Of course you can still put a switch or push button across the terminals if you also need on-off control.
Comment 8 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsDon't Look back! Worth the extra cost!
By Patrick on December 18, 2015
Size: 60W Regulator Verified Purchase
Amazing Setup!
Pros:
Synch Boost/Buck with a Great input range for Robotics and Low Voltage Power hungry and unpredictable input voltages. (Example Solar Panels and multiple Power Supplies of Different Voltages)
Greatly Designed Heatsink (Other than being on the bottom....)
Durability! This converter has great durability compared to it's rivals.
0/5 have failed with some questionable testing and accidents that have been done to them. All are in perfect order other than 1 pad being lifted from the + input terminal

Cons:
Output cannot exceed 20v (I needed 24 for one of my 100 projects of course)
Some undocumented items. (Example the "KEY" Slot. (Seems to be VIN -0.2 + and -, might be a disable jumper?)
Expense. Compared to other converters it is 24 dollars, and that is a bit high. (But no B.S. values or exaggerated values that can get you into trouble...)

Other: Bought 5 of them! They are worth 10 dollars on the competitors. *If you know what your doing you can adjust it and expand/change/hack it and make it work better for a prototype rather than the questionable quality of other circuits on Amazon. I would feel comfortable putting this in a prototype and running it continuously without burning structures down or bursting into flames.
Comment 2 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
4.0 out of 5 starsworks ok for LiFePO4 battery charging
By mdrn28 on December 4, 2016
Size: 60W Regulator Verified Purchase
Like another reviewer, I'm using the 60W module to charge a LiFePO4 battery. At first, I had some trouble with the CC adjustment apparently not working. It would always run at the full 60W, or about 5A, regardless of how I adjusted the trim pot. I tried three of these modules before I realized that this behavior occurs only when I have the IN and OUT grounds in common, i.e. both attached to the same terminal strip. If I separate them so that there are completely separate grounds for the charging source (IN) and the battery (OUT), then the constant current adjustment works as expected. I'm not savvy enough to say why this happens, but just a heads-up for others who might try the same thing.

While my particular battery can accept a 5A charging current, when the module is running at its 60W upper limit the heatsink gets really hot. If limited to 2A (about 25W), the waste heat is significantly reduced, enough to be comfortable with keeping the module in an enclosed battery box.

I did also see the "bouncing" behavior mentioned by the other reviewer when using a smaller power source. The solution of a 1uF capacitor and 1M Ohm resistor soldered into the "KEY" contacts appears to solve this problem.

Deducting 1 star for the lack of any published data sheet or instructions, although some info is available via the Drok web site.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsA great DC/DC power converter.
By DFilbert on May 5, 2016
Size: 60W Regulator Verified Purchase
A great DC/DC power converter. I used it in a manner that it wasn't necessarily intended for - in a bench power supply that is voltage adjustable and current limited. Be advised - the current is only able to be limited down to about 100 ma (which is better than the stated spec at 200 ma) - which is very good for it's stated application - but not perfect for a current limited power supply !!! Also - if you remove the on-board voltage / current limit multi-turn pots - the de-soldering process can ruin the board traces - ruining the device for adaptation. I ended up getting another one - and carefully cutting and crushing the on-board pots - preserving the 3 original leads coming from the board. Then I wired external pot leads to the existing leads. Worked perfectly !!
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse

Most Recent Customer Reviews

5.0 out of 5 starsReally nice compact unit

Excellent DC/DC converter, clean output, does not overheat, and very compact. No RFI either as far as I can tell (using this next to radio equipment).

Published 28 days ago by Ed
2.0 out of 5 starsNice features but failed within a week.

Purchased 3 units for a work project and 2 failed within a week. Not sure why they failed but I need something more reliable. I like the voltage readout and easy to setup. Read more

Published 1 month ago by Amazon Customer
5.0 out of 5 starsgreat product

works flawlessly

Published 2 months ago by R.E.M.
5.0 out of 5 starsInput Voltage Works As Low As 3V

Product Works as advertised, Overload protection works as well. 3.7V Lithium batteries work as input voltage so device operates at lower input voltages than advertised! Read more

Published 5 months ago by Amazon Customer
4.0 out of 5 starsLove it, power Is clean

Love it, power Is clean. However, it does have a touch too much overhead so my lower-powered oscillations never got through the board to the load even though enough power was there... Read more

Published 8 months ago by lglb
4.0 out of 5 starsHave only tested 3 so far, but seem to ...

Have only tested 3 so far, but seem to work well. Don't warm up at all under a light load....

NOW..... the photo has changed. Read more

Published 10 months ago by Richard M.
2.0 out of 5 starsTwo Stars

One of the Dc/Dc converters was cracked but the crack was put into the package cracked.

Published 11 months ago by Dale
5.0 out of 5 starsFive Stars

work really well

Published 14 months ago by Amazon Customer
