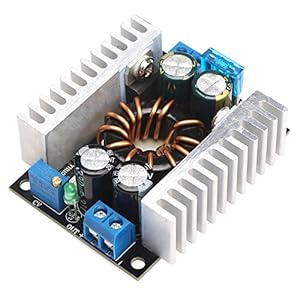

DROK 150W DC Boost Converter Power Module Voltage Regulator Board 10-32V/8-16V to 8-46V 12/24V Step-up Volt Inverter Controller Stabilizer for Car Automotive Vehicle Motor Generator

by DROK

133 customer reviews

| 98 answered questions

Price:

$12.94 & FREE Shipping on orders over $49. Details

Only 19 left in stock.

Sold by DROK and Fulfilled by Amazon. Gift-wrap available.

Size: 150W Regulator

Two input Voltage optional: DC 10-32v to 10-46v [wide input Voltage application ] or DC 8-16v to 8-46v [3 strings of Lithium battery and 12V battery application], select the input Voltage by adjusting the jumper on the back of the PCB
Ultra-dense reinforced aluminum radiator allows lower and more Stable working temperature, PCB hollow design will reduce possibility of unstable working caused by high temperature
Has high-frequency low-impedance capacitor of 2x 470uF/35v(input)and 2x 330uF/50v(output)
Has a Green LED indicator which will light when converter works; with 4 M3 screw holes, convenient to install
Simple wiring connection: v-in input, v-out output(terminals don't need solder)

DROK 150W DC Boost Converter Power Module Voltage Regulator Board 10-32V/8-16V to 8-46V 12/24V Step-up Volt Inverter Controller Stabilizer for Car Automotive Vehicle Motor Generator

$12.94 & FREE Shipping on orders over $49. Details Only 19 left in stock. Sold by DROK and Fulfilled by Amazon. Gift-wrap available.

Frequently Bought Together

Total price: $30.92

These items are shipped from and sold by different sellers. Show details

Buy the selected items together

This item:DROK 150W DC Boost Converter Power Module Voltage Regulator Board 10-32V/8-16V to 8-46V 12/24V Step… $12.94
Only 19 left in stock.
Sold by DROK and ships from Amazon Fulfillment.
FREE Shipping on orders over $49. Details
LOHAS 100W LED Chip Cool White Bulb High Power Energy Saving Lamp Chip $10.49
In Stock.
Ships from and sold by Amazon.com.
FREE Shipping on orders over $49. Details
44mm Lens + 50mm Reflector Collimator Base Housing + Fixed bracket for 10W-100W LED Light Lamp $7.49
In Stock.
Sold by Carol Zuo and ships from Amazon Fulfillment.
FREE Shipping on orders over $49. Details

Customers Who Bought This Item Also Bought

Page 1 of 1 Start overPage 1 of 1

This shopping feature will continue to load items. In order to navigate out of this carousel please use your heading shortcut key to navigate to the next or previous heading.

183

$10.49
8

$23.50
145

$10.99
73

$9.69
163
63

$7.49

Technical Details

Size: 150W Regulator

Brand Name: DROK
Part Number: 090438US
System of Measurement: US

Product Description

Size:150W Regulator

Parameters:
Module Name: 150W boost module
Module properties: non-isolated module
Minimum voltage difference: 0V
Two Input voltage optional: select the input voltage by adjusting the jumper on the back of the PCB
Input/output Voltage 1: When Input DC 10-32V £¨aimed at application to wide input voltage)
Input/output Voltage 2: When Input DC 8-16V (aimed at application to 3 strings of lithium battery and 12V accumulator)
Output Voltage 1 : When Input DC 10-32V,Output 10-46V((adjustable, default 19V)
Output Voltage 2 : When Input DC 8-16V,Output 8-46V(adjustable, default 19V)
Input Current: 16A Max. (exceed 8A please enhance heat dissipation)
Output current: 8A Max. (exceed 4A please enhance heat dissipation)
Quiescent operating current: 15mA (12V to 20V, higher output voltage will increase the quiescent current)
Output power: 90W(natural cooling), 150W(enhance heat dissipation)
Capacitances:2x 470uF/35V(input) ; 2x 330uF/50V(output)
Operating temperature: -40¡ãc to +85¡ãc
Working frequency: 380KHz
Conversion efficiency: up to 95%
Operating indicator: Yes
Short circuit protection: None
Input reverse polarity protection: None (If need please install diode at input port)
Installation: 4x 3mm screws
Wiring: Terminals, Needn't solder, V-IN input, V-OUT output
Module size: 60mm x 50mm x 20mm

Testing:
16V to 19V, output current 3A, efficiency 94%
12V to 20V, output current 5A, efficiency 89.5%
12V to 30V, output current 3A, efficiency 89.2%
24V to 42V, output current 3A, efficiency 95.2%

Some Applications:
DIY a voltage Regulator, adjustable.
The power supply for electronic equipment.
Used as a car power supply, Power supply for laptop,PDA, or other digital products
DIY a notebook mobile power

Package Include:
1x DC Boost Converter

Product Information

Size:150W Regulator

Product Dimensions

4.5 x 4 x 1.4 inches

Item Weight

7.2 ounces

Shipping Weight

7.2 ounces (View shipping rates and policies)

Manufacturer

DROK

ASIN

B01E283VYM

Domestic Shipping

Currently, item can be shipped only within the U.S. and to APO/FPO addresses. For APO/FPO shipments, please check with the manufacturer regarding warranty and support issues.

International Shipping

This item can be shipped to select countries outside of the U.S. Learn More

Item model number

090438US

Customer Reviews

133 customer reviews

4.1 out of 5 stars

Best Sellers Rank

#18,682 in Electronics (See Top 100 in Electronics)
#94 in Industrial & Scientific > Test, Measure & Inspect > Electrical Testing > Current Testers

Date first available at Amazon.com

April 10, 2016

Feedback

If you are a seller for this product, would you like to suggest updates through seller support?

Would you like to tell us about a lower price?

Customer Questions & Answers

See questions and answers

Customer Reviews

133

4.1 out of 5 stars

5 star		63%
4 star		17%
3 star		5%
2 star		3%
1 star		12%

Write a customer review

See all verified purchase reviews

Top Customer Reviews

Seems well made, and great bargain.

ByMikeon April 25, 2014

Size: 150W Regulator V2Verified Purchase

I decided to make a power supply for using my laptop in the car. I needed 20V DC at about 3 amps. This product fit my needs exactly. I put it in a small plastic enclosure, added a cigaret lighter cord on one end, and the laptop plug on the other. There is once adjustment to set the voltage output.

Results: I tested this on a benchtop power supply before actually using it in the car. When I set the power supply to provide an input of 12v, I then set the converter to output 20V. Then I decided to ramp up the input voltage to see what happened. Excellent results. I ran the input from 12V all the way up to 18V and the output didn't budge from 20V. As long as the input is 1V less than the output, you are good to go. I decided to calibrate it for 12.0V because a car battery with the engine not running will provide about 12.5 - 12.8V (depending on the car and condition of the battery)... and 12V also allows me to use it with a portable/small sealed battery as well, and the battery voltage will drop as it is used. 12.0V is about as low as I'd want to take the battery voltage before recharging it.

Regarding heat and current. It took 12V @ 4.7A (56W) to produce 20V @ 2.4A (48W). That works out to about 85% efficiency, which is pretty much in line with the specs. When I up the input to 14.2V (car running), the input current drops a little, and the efficiency goes up. The general rule is that the closer the input voltage is to the output voltage, the efficiency get significantly higher (as much as up to 92% in my tests).

In my situation, I did not need active cooling. However, I did place the converter in a box with a lot of air holes located below and above the heat sinks on both sides. I also made sure the air holes were not blocked and the box was not enclosed or covered with anything (good airflow). Even under these conditions, the box barely got warm.

22 comments 13 people found this helpful. Was this review helpful to you?YesNo

An amazing little device!

ByN. Ditteson January 11, 2014

Size: 600W CC CV RegulatorVerified Purchase

Really cool little converter here. I used this one to power two 100 watt LEDs. Keep in mind that if you are driving from 12 volts like I am, the maximum power you can get is about 192 watts. It says the maximum current is 16 amps on the input so 16*12=192 watts. Note that it will need some extra cooling, even if it is surprisingly efficient.

I haven't tested it for many hours, but it doesn't get as hot as I expected (even driving at the limit like I am). If you are using it like I am and your amp meter can't read above 10 amps, just read the output and add 15% (due to the efficiency losses) when you calculate wattage (since the output was ~33volts, the current was only about 5-6 amps). Then you can calculate the input power and thus input current.

44 comments 15 people found this helpful. Was this review helpful to you?YesNo

This will do the job! -- Wide Range of Voltage Conversion!!

ByFrank Hertelon May 21, 2014

Size: 150W Regulator V2Verified Purchase

I had a need to provide 24 VDC for a special battery charger. I had to do the charging from my vehicle's 12 Volt system.

This "Converter" does the job nicely.

I mounted the Converter in a die cast box and added a small cooling fan (just in case). I attached a Cigarette male connector to provide for the 12 volt "Input" connection. At the output side I attached the appropriate mating connector for feeding the 24 volts to my "special charger".

The input and output connections are via small screw terminal blocks which makes it easy to interface your wiring.

NOTE: There are solder terminals on the circuit board that are marked "FAN" (+ and -). I attached my fan wires to those solder points, but the fan didn't run---this may be because the "FAN" terminals are activated by some temperature controller??? I didn't want to take a chance; not knowing if the "FAN" terminals were temperature controlled or not, so I wired my "FAN" directly to the 12 volt screw block terminals, so that my "FAN" will run any time 12 volt power is applied.

This unit ships without any paperwork!

Be sure to print the "SPECS" page that is on-line with this product! It will give you the info you'll need for using this product, for converting an input voltage anywhere from 8 to 32Volts -- to an output voltage of anywhere from 9 to 46 Volts (and its associated Current Limits). Pay attention to these "LIMITS!!! Thsi is a good product!

33 comments 8 people found this helpful. Was this review helpful to you?YesNo

Outstanding value

ByJohn S.on January 29, 2014

Size: 150W Regulator V2Verified Purchase

I'm using this converter as 12V to 19V for running and charging my laptop when AC power is not available. It appear to be well built and it is simple connect and adjust output voltage. It work great to power my laptop with topo maps and GPS on back country ATV rides. Another great Chinese product..

0Comment 7 people found this helpful. Was this review helpful to you?YesNo

Works excellently

ByBruce Perenson November 7, 2013

Size: 150W Regulator V2Verified Purchase

I have a SteppIR antenna controller that wants 24 volts, and my entire ham station runs off of 12 volts so that it can survive a power outage. This device allowed me to easily and cheaply run the Steppir controller on 12 volts.

I had to put it in a box, and would have liked to have the option to purchase a pre-punched case for this card.

0Comment 10 people found this helpful. Was this review helpful to you?YesNo

great little power supply

ByElion July 12, 2014

Size: 150W Regulator V2Verified Purchase

Im using this in an ammo can boombox to power my 24 volt smsl sa50 amp. Taking 12 volts from a small sealed scooter battery and shooting 24 volt to a dc plug with a pigtail I got from radioshack to the power the amp. Gets warm at high volumes but does great. Voltage ripples from 24.5 to 24.6 on my multimeter (i set the voltage at 24.5 for my amp) at 26 volts when the supply is firsr powered on the voltage can spike to OVER 30 volts for a split second. Setting the voltage to 24 sees spikes of about 28-29 volts on power up. Hope this helps anyone. The supply also has reverse polarity input protection. I did this on accident and blew the 15 amp fuse.
