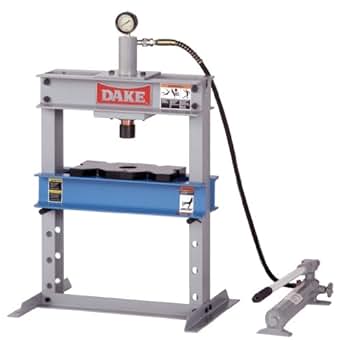

Dake B-10 Model Manual Utility Hydraulic Bench Press, 10 Ton Capacity, 23" Length x 18" Width x 36" Height

4.6 out of 5 stars 70 customer reviews
| 30 answered questions
Price: $312.50 & FREE Shipping. Details
Usually ships within 3 to 4 weeks.
Ships from and sold by Amazon.com.
7 new from $312.50
Specifications for this item
Brand Name Dake
Part Number 972200
Number of Items 1
Material Type Iron
Is Recalled? N
Load Capacity 20000  pounds
Overall Height 36  inches
Overall Length 23  inches
Overall Width 18  inches
UNSPSC Code 23241800
This item’s packaging will indicate what is inside and cannot be hidden.
Prime free two-day shipping
$312.50 & FREE Shipping. Details Usually ships within 3 to 4 weeks. Ships from and sold by Amazon.com.

Frequently Bought Together

  • Dake B-10 Model Manual Utility Hydraulic Bench Press, 10 Ton Capacity, 23" Length x 18" Width x 36" Height
  • +
  • OTC 4410 Metric and Standard Master Bushing Drive Set - 33 Piece
  • +
  • OTC 4507 Bearing Race and Seal Driver Set - 10 Piece
Total price: $426.33
One of these items ships sooner than the other. Show details
Buy the selected items together

Product Features

  • Single-speed hydraulic handpump lowers the ram of the bench-mount press with up to 10 tons of force
  • Adjustable-height table within the H-frame enables proper positioning of large and bulky items
  • Movable workhead facilitates off-center pressing
  • Release valve initiates and controls ram return after downstroke
  • Includes a flat ram nose, a reduced-step nose, and two table plates for precise pressing and support

Product Description

The Dake B-10 model manual utility hydraulic bench press uses a single-speed hydraulic handpump to lower the ram with up to 10 tons of force to facilitate pressing and forming. The channel iron H-frame accepts large and bulky items, and the hoist adjusts the table height for proper positioning. The workhead is movable to adjustment for off-center pressing. The hydraulic cylinder and pump handle can be positioned on either side of the press to maximize workspace and comfort. The release valve turns to release the hydraulic pressure, initiating ram return after downstroke. Closing the valve at any point during the ram return will halt the ram.

Two interchangeable ram noses are included: a flat nose piece for use in standard pressing operations and a step-reduced nose piece for supporting, positioning, or fitting into pieces when pressing. The two table plates provide support during pressing. The press has a gauge with a 2-1/2"-dia. display for pressure readings. The base has four 7/16"-dia. holes for bench mounting. Mounting hardware is not included. Hydraulic oil is not included. Press requires some assembly.

Specifications
Load capacity10 tons
Max. working height16 inches
Min. working height4 inches
Ram travel6 inches
Table dimensions16-3/4 x 3 inches (W x L)
Press overall dimensions36 x 23 x 18 inches (H x W x L)
Weight132 lb.

H is height, the vertical distance from the lowest to highest point of the press; W is width, the horizontal distance from left to right; L is length, the horizontal distance from front to back.

Hydraulic presses use fluid pressure to transmit a compressive force, which stays constant throughout the length of the ram's stroke. Metal forming is one common use of a hydraulic press.

Dake Machine Tools manufactures arbor presses, hydraulic presses, drill presses, power hammers, band and cold saws, belt grinders, tube benders, and auto feed systems. The company, founded in 1887, is headquartered in Grand Haven, MI.

What's in the Box?

  • Dake B-10 press
  • Flat ram nose
  • Step-reduced ram nose
  • (2) Table plates

Product Details

  • Shipping Weight: 133 pounds (View shipping rates and policies)
  • Domestic Shipping: Amazon only ships this item within the contiguous 48 United States. Other Sellers on Amazon may ship this item to Alaska, Hawaii and US Territories.
  • International Shipping: This item is not eligible for international shipping. Learn More
  • Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
  • ASIN: B00DWB1MTM
  • Item model number: 972200
  • Average Customer Review: 4.6 out of 5 stars  See all reviews (70 customer reviews)
  • Amazon Best Sellers Rank: #22,792 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
    • Manufacturer’s warranty can be requested from customer service. Click here to make a request to customer service.
Customer Questions & Answers
See questions and answers

Customer Reviews

Top Customer Reviews

5.0 out of 5 starshappy with it
By Jim on July 21, 2014
Verified Purchase
This is a nice little press. I have never owned one, so this was my first. I didn't want, and didn't have room for a floor mounted unit, so this bench top model fit the bill. I looked at a lot of the models here on Amazon and settled on this one based on reviews and the fact that Dake makes a lot of other larger presses. This one is made in China (What's new) but the quality seems very good. Shipping was 3rd party truck but notification was excellent. I had to be home when they came, I had a half hour window, which was fine. All the parts were there. I have used it now for pressing bearings out of drive pulleys, so nothing to stressing. I have no complaints with the usage. The table is easy to raise and lower and the plates seem good. I like that the ram is self retracting also. Would recommend.
Comment 25 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
4.0 out of 5 starsAlthough I could not find anything better for the price, it's not quite a 5-star product.
By Retired EE on February 19, 2015
Verified Purchase
I've owned this press for 5 months and have used it on several projects. Reading many 5-star reviews prior to buying set my expectations a bit too high. Although I could not find anything better for the price, it's not quite a 5-star product. I originally looked at a 20-ton unit from the Horrible company that imports Freight, but could not bring myself to buy it even at half the price of this Dake.

Firstly, a note about the dimensions which are listed as: 23" Length x 18" Width x 36" Height. Those dimensions are overall, which is good to know if you have space constraints. But they are also confusing and misleading. I think the length and width dimensions should be interchanged. Somewhere it should be prominently stated that it measures less than 17" between the upright rails.

A few observations about differences between the Amazon photo and the press I received: My pressure gauge seems to be a bit nicer than the one shown in the photo. It reads in tons (0 - 16) and kg/cm^2 (0 - 1000). The Dake nameplate, which appears to be aluminum in the photo is actually a cheap sticker. Bolts are plated (metric grade 8.8) instead of black. I added flat washers under all the bolt heads to keep them from gouging the powder-coat paint. The product description says hydraulic oil is not included, but my system came filled.

The instruction manual (which may be downloaded from the Dake website) is written clearly. After assembly, I tested the press at 1/3 capacity for several hours; then at 2/3 capacity; and finally at full capacity. No leaks! It does take quite a lot of force on the pump handle to get to the rated capacity (my back-of-the-envelope calculation says ~100 pounds, but it feels like much more than that).Read more ›
3 Comments 22 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
4.0 out of 5 starsI like it but.......
By Lynn Sims on August 10, 2015
Verified Purchase
The equipment is ok and that s why I gave it a 4 star rating. The instructions should start off with....Look at the picture and put it together based off of that. The instructions are horrible and the box had made in China printed all over it which explains why the instructions were no good. I would have hoped Dake being a reputable American company they would at least edit or proof read the literature going with the equipment that bears their name. Simple to put together but if not logical it could go together differently and make the press dangerous to us. Maybe Dake will read this and do something about it.
It was also delivered 2 days late and the packaging was shredded. Amazon might want to consider using someone other than Pilot to ship to my state.
Comment 8 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsWhen I saw this Dake press I immediately decided to purchase it because I was sure the build quality was going to be great. I wa
By Aleksandr on February 18, 2015
Verified Purchase
The company I work at has the same Dake press but bigger. When I saw this Dake press I immediately decided to purchase it because I was sure the build quality was going to be great. I was not disappointed. It was easy to assemble and use. I decided to use it on a wheel bearing that needed to be pressed out and a new one to be pressed in. It took 30 minutes to completely finish the task and it all went smoothly without any issues. Great product for good price. Definitely recommend.
Comment 8 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsTool is very very nice, everything is done nicely and fits
By William Lütken on February 19, 2016
Verified Purchase
Tool is very very nice, everything is done nicely and fits. The box was just broken small parts and bolts still inside the box, a small wooden frame inside the box might solve that problem. Instructions could have been useful , they are not, however if you buy and plan to use this tool you probably can figure out how to assemble the parts.
You will probably need different sizes of bearing tools , this is good KT Pro Tools 9BA11 10-Piece Bearing Race,I bought them from Amazon too.

Details from front bearing and hub installation on an Alfa Romeo 164 S its a front wheel drive car.
Comment 2 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
4.0 out of 5 starsAwesome Quality for the Price Point
By Vincent Ziolkowski on July 8, 2015
Verified Purchase
I feel the overall quality of the unit is very high for the price point. Is it the best press out there?...No...but unless you plan on spending serious money for something that you won't use this is a quality press. Shipping was very quick. Honestly I have used a $150 Harbor Freight Press and spend the extra money on this one it is much more sturdy and overall feels better and heavier. The biggest complaint I have is that the gauge on mine does not line up perfectly as it should, hence the 4 star as opposed to 5, but really I am being picky and if you are doing automotive things like wheel bearings or homeowner stuff this will be more press than you need. I have done wheel bearings on 3 vehicles and a couple of spindle decks and a hydraulic pump bearing so its still relatively new but it feels like it is going to hold up for a very long time.
Comment 4 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse

Most Recent Customer Reviews

5.0 out of 5 starsFive Stars

very good quality had

Published 6 days ago by charles pitts
5.0 out of 5 starsFive Stars

Everything was accurate and excellent product. No complaints

Published 17 days ago by Oscar Hernandez
5.0 out of 5 starsFive Stars

Another great Dake product. Works great, even for those really odd kind of jobs. Recommend.

Published 1 month ago by CSP
5.0 out of 5 starsFive Stars

excellent quality tool, exceeded expectations.

Published 2 months ago by glass n3rd
5.0 out of 5 starsNIce little press, poor manual.

Nice little press. My only issue is that the manual (and assembly instructions) appear to be written by the Chinese who made it. Read more

Published 3 months ago by Benjamin Turner
5.0 out of 5 starsFive Stars

Thank you! Very fast!

Published 3 months ago by Amazon Customer
5.0 out of 5 starsAwesome unit. Mine was missing the gauge but I ...

Awesome unit. Mine was missing the gauge but I just called dake and they sent me one right out.

Published 3 months ago by Michelle Kemp
5.0 out of 5 starsSerious Press for Serious Work

This press is awesome. Yes, Dake is now manufacturing this in China, BUT..... It is still made of the same materials, same tight specs, and same quality as before. Read more

Published 4 months ago by Amazon Customer
5.0 out of 5 starsThumbs up! Awesome price for an aswesome product!

Well packaged & shipped. Maybe the instructions unclear on the step covering screwing the hydraulic press (slave) cylinder into the mounting brackets which screw onto the... Read more

Published 5 months ago by C. Parker
4.0 out of 5 starsFour Stars

I would have given 5 starts, but, it is NOT made in U.S.A. as stated on site.

Published 5 months ago by Rick
