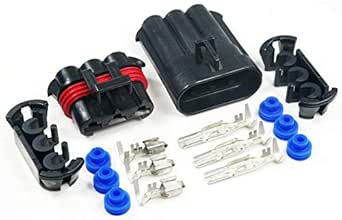

Delphi 3-PIN Metri-Pack Waterproof Connector 10-20 AWG Terminals Seals up to 46Amp (10-12 AWG)
| Price: | $14.99 |
Enhance your purchase
- Make sure this fits by entering your model number.
- Metri-Pack 630 Series Sealed System - 3 Pin ( up to 46 Amps )
- 1 Match Set Gauge
- 3 Way In-line connector are ideally suited for space-limited application
- Nylon and sealed against moisture, dust and dirt
- The temperature range from -40°C to 125°C,
This fits your .
Product Specifications
| Size | 10-12 AWG |
|---|---|
| Special Features | Gauge Wire: 10 12 AWG |
| UNSPSC Code | 25170000 |
Specification for this product family
| Brand Name | Aptiv (formerly Delphi) |
|---|---|
| Number of Items | 1 |
| Part Number | 3-Conductor (630 Sealed) |
| UNSPSC Code | 40000000 |
Frequently bought together
Products related to this item
Page 1 of 1Start overPage 1 of 1
Customers who viewed this item also viewed
Page 1 of 1 Start overPage 1 of 1
2 Pin Delphi Metri-Pack Waterproof Connector 10-12awg Terminals and Seals 46Amp (10-12 GA (1set))
MUYI 10 Kit 3 Pin Way Waterproof Electrical Connector 2.5mm Series Terminals Weatherpack Connectors
Delphi Metri-Pack 280 Series 2-Way Connector w/10-12 AWG Sealed Waterproof (3 Set)
CESFONJER 15 Kit Car Wire Connector, Waterproof Electrical Terminal, Plug for Auto Motorcycle Scooter Truck Marine Plug Socket Kit, 2 Pin × 5 Kit, 3 Pin × 5 Kit, 4 Pin × 5 Kit.
Delphi Metri-Pack Connector Kit MP-150-771: Sealed Automotive Electrical Connectors 24-18 Gauge 771 Piece Kit
Delphi Metri-Pack 150 Series 3-Way Connector w/16-18 AWG Sealed Waterproof Set
Product description
Size:10-12 AWG
Metri-Pack 280 Series Highlight:
46 Amps continuous maximum current rating
Low energy, low voltage capability
Excellent resistance to temperature, chemicals and abrasion
Standard ISO 2.8mm configuration
-40ºC to 125ºC temperature range
Features & Benefits
Metri-Pack 280 Series Sealed System
Rated for up to 16V and 46 amps
In-line connector are ideally suited for space-limited application
Secondary lock and TPA capabilities for improved and more robust system design.
Seal retention and protection features help prevent loss or damage to the connector seal.
Low engage force improves reliability and ergonomics.
Pass SAE J2030* Heavy-Duty Electrical Connector Standard (with silver interface platings)
. Mates to ISO, SAE blades for compatibility with existing systems and increased efficiency
Min. Cable Diameter 0.137 inch - 3.49mm
Max. Cable Diameter 0.20 inch - 5.25mm
Product details
Size:10-12 AWG- Is Discontinued By Manufacturer : No
- Package Dimensions : 7.17 x 5.94 x 1.42 inches; 1.76 Ounces
- Date First Available : April 13, 2018
- Manufacturer : Aptiv (formerly Delphi)
- ASIN : B07PJ7Y1ZK
-
