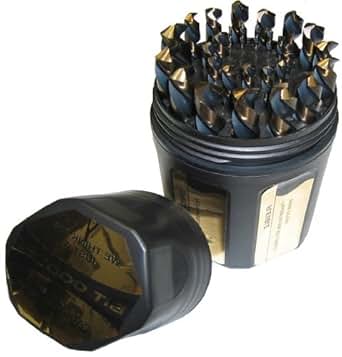

Drill America DWD29J-CO-PC Qualtech 29 Piece Cobalt Steel Jobber Length Drill Bit Set in Plastic Case, Gold Oxide Finish, Round Shank, Spiral Flute, 135 Degrees Split Point, 1/16" to 1/2" Size
| Price: | $78.67 | Fast, FREE Shipping with Amazon Prime |
In Stock.
Ships from and sold by Amazon.com.
2 new from $78.67
Need expert advice? Ask the manufacturer directly. Learn More
EmailSpecifications for this item
| Brand Name | Drill America |
|---|---|
| Part Number | DWD29J-CO-PC |
| Material Type | Cobalt Steel |
| Finish Types | Gold Oxide |
| Number of Items | 1 |
| UPC | 887861039055 |
| Additional Features | Single End |
| Cutting Angle | 135 Degrees |
| Cutting Direction | Right-Hand |
| Drill Point | 135 degrees |
|---|---|
| EAN | 0887861039055 |
| Flute Type | Spiral |
| Item Weight | 2.2 pounds |
| Overall Length | 29 inches |
| Shank Type | Round |
| Style Name | Jobbers' |
| System of Measurement | Inch |
| UNSPSC Code | 20121600 |
Frequently Bought Together
Customers Who Bought This Item Also Bought
Page 1 of 1 Start overPage 1 of 1
Product Features
|
Product Description
The Drill America DWD29J-CO-PC Qualtech jobber length drill bit set contains 29 cobalt steel drill bits with gold oxide finish in inch sizes 1/16" to 1/2" (1/64" increments). A self-centering 135-degree split point penetrates hard material without a pilot hole and produces smaller chips that reduce clogging compared to a 118-degree point. Cobalt steel provides extended tool life compared to high-speed steel drill bits, and maintains the tool's toughness and hardness in high drilling temperatures. A gold oxide finish acts as a lubricant and provides wear resistance, and the round shank accommodates most drill chucks. The set comes in a plastic index case with labeled compartments for identification and organization. Drill bits conform to American National Standards Institute (ANSI) standards.
Drill bits are cutting tools used to make holes in a range of materials using machines such as handheld portable drills, machining centers, and lathes. Drill bits come in a variety of lengths and types, the most common of which is the twist drill bit. The round, twisted shaft of the twist drill bit typically has two cutting edges and flutes. The helical twist of the flutes brings chips up and away from the cutting edges and allows for coolant to reach the cutting edges. Jobber length twist drill bits, the most common length of twist drill bit, offer a good compromise of length and reach to work with the widest range of materials and applications. Mechanic's length twist drill bits (also called maintenance length) are a little shorter than jobber length and less prone to deflection when drilling. Short length twist drill bits (also called stub or screw-machine length) are the shortest and stiffest twist drill bits, helping to reduce the chance of deflection or breakage when drilling. Reduced shank drill bits (also called Silver and Deming drill bits) have a shank that is smaller in diameter than its shaft, permitting drilling machines with either a 1/2" or 3/4" drill chuck to create large holes. Long length twist drill bits (also called taper length) are a little longer than jobber length, allowing for deeper holes and longer reach. Extra long twist drill bits (also called extension) are longer than long length twist drill bits for greater reach or for drilling deeper holes.
Drill America manufactures cutting tools such as drill bits, taps, dies, counterbores, countersinks, end mills, and reamers. The company, founded in 1927, is headquartered in Miami, FL.
What's in the Box?
- (29) drill bits, sizes 1/16" to 1/2" in 1/64" increments
- (1) plastic case
