Product description

Specifications Base Clock: 625 MHZ Memory Clock: 3402 MHz Effective CUDA Cores: 448 Bus Type: PCIe 2.0 Memory Detail: 1280MB Memory Bit Width: 320 Bit Memory Speed: 2.5ns Memory Bandwidth: 136 GB/s UPC: 843368007782 Dimensions Height: 4.376in - 111.15mm Length: 9.5in - 241.3mm Key Features Microsoft DirectX 11 support NVIDIA CUDA technology with OpenCL support NVIDIA PhysX technology NVIDIA SLI Ready NVIDIA 3D Vision Surround Ready NVIDIA PureVideo HD technology PCI Express 2.0 support Two dual-link DVI-I connectors Dual-link HDCP-Capable Microsoft Windows 7 Support OpenGL 4.0 Support HDMI 1.4a connector Resolution & Refresh Max Analog: 2048x1536 Max Digital: 2560x1600 (Dual Link DVI Only) Requirements 550 Watt or greater power supply with a minimum of 38 Amp on the +12 volt rail. PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot. Two available 6-pin PCIe power dongles Windows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit, Windows Vista 32/64bit, Windows XP 32/64bit

Amazon.com

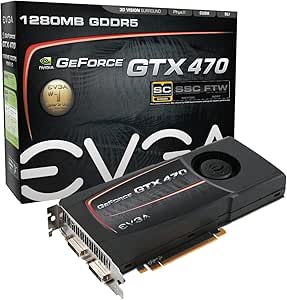

The EVGA GTX 470 Superclocked takes the next generation NVIDIA GeForce GPU, and cranks it up another notch by offering even higher performance! Experience heart-pounding cinematic visuals with the EVGA GTX 470 thanks to the combined power of DirectX 11, NVIDIA PhysX, and NVIDIA 3D Vision Surround technologies.

The EVGA GTX 470 Superclocked contains double the CUDA cores of previous generation GPUs, a high speed GDDR5 memory interface with 1280 MB onboard and full DirectX 11 support providing for unrivalled performance and breathtaking image quality. Compatible in 2-way and 3-way SLI configurations, the EVGA GTX 470 Superclocked provides brilliant and immersive experiences in games and unsurpassed computational power.

With EVGA Precision, monitor and control fan speeds, core clocks, temperatures, frame rates, take screenshots and more. EVGA OC Scanner combined with Precision make the perfect combo with built-in artifact scanning, benchmarking, and more. Features include a built-in stress tester, benchmarking to quickly test your performance, and a GPU protection feature that automatically shuts off at a set temperature. EVGA's Step Up program protects your investment with an exclusive upgrade option within 90 days of purchase (not all customers will be eligible for this program). EVGA is available for you day or night to help answer any questions with its 24/7 technical support. Follow EVGA on your favorite social networking sites like Facebook, Twitter, Steam, and the EVGA Gaming Community. Join in at www.evga.com/sonet/.

NVIDIA Technologies

Key Specifications

• Core Clock: 625 MHz
• Memory Clock: 3402 MHz Effective
• Shader Clock: 1250 MHz
• CUDA Cores: 448
• Bus Type: PCI-E 2.0
• Memory Detail: 1280 MB GDDR5
• Memory Bit Width: 320 Bit
• Memory Speed: 2.5 ns
• Memory Bandwidth: 136 GB/sec

  Software Compatibility

  • NVIDIA ForceWare Drivers
  • Microsoft DirectX 11
  • OpenGL 3.2
  • Microsoft Windows XP/Vista/7

  Connectors

  • Two dual-link DVI (up to 2560 x 1600)
  • Mini-HDMI 1.3a w/audio (8-channel LPCM)
  • HDCP ready

  Key Features

  • Microsoft DirectX 11 Support: DirectX 11 GPU with Shader Model 5.0 support designed for ultra high performance in the new API's key graphics feature, GPU-accelerated tessellation.
  • NVIDIA 3D Vision Surround Ready*: Expand your games across three displays in full stereoscopic 3D for the ultimate "inside the game" experience with the power of NVIDIA 3D Vision and SLI technologies. NVIDIA Surround also supports triple screen gaming with non-stereo displays.
  • Interactive Ray Tracing: By tracing the path of light through a 3D scene, ray tracing uses the power of the GPU to create spectacular, photo-realistic visuals. Get a glimpse into the future of gaming with ray tracing.
  • 3-way NVIDIA SLI Technology**: Industry leading 3-way NVIDIA SLI technology offers amazing performance scaling by implementing 3-way AFR (Alternate Frame Rendering) for the world's premier gaming solution under Windows 7 with solid, state-of-the-art drivers.
  • NVIDIA PhysX Technology: Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.
  • NVIDIA CUDA Technology: CUDA technology unlocks the power of the GPU's processor cores to accelerate the most demanding tasks such as video transcoding, physics simulation, ray tracing, and more, delivering incredible performance improvements over traditional CPUs.
  • 32x Anti-aliasing Technology: Lightning fast, high-quality anti-aliasing at up to 32x sample rates obliterates jagged edges.
  • NVIDIA PureVideo HD Technology***: The combination of high-definition video decode acceleration and post-processing that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for movies and video.
  • PCI Express 2.0 Support: Designed for the new PCI Express 2.0 bus architecture offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications, while maintaining backwards compatibility with existing PCI Express motherboards for the broadest support.
  • Dual-link DVI Support: Able to drive industry's largest and highest resolution flat-panel displays up to 2560x1600 and with support for High-bandwidth Digital Content Protection (HDCP).
  • HDMI 1.3a Support: Fully integrated support for HDMI 1.3a including xvYCC, Deep color and 7.1 digital surround sound.

    * NVIDIA 3D Vision Surround requires NVIDIA release 256 driver, two or more graphics cards in NVIDIA SLI configuration, 3D Vision glasses and three matching 3D Vision-Ready displays. See www.nvidia.com/surround for more information.
    ** A GeForce GTX 470 GPU must be paired with another GeForce GTX 470 GPU (graphics card manufacturer can be different). SLI requires sufficient system cooling and a compatible power supply. Visit www.slizone.com for more information and a listing of SLI-Certified components.
    *** Supported video software is required to experience certain features. Visit www.nvidia.com for more details.

    What's in the Box
    EVGA Driver/Software Disc with EVGA Precision Tuning Utility; Mini-HDMI to HDMI Cable; DVI to VGA Adapter; two 6-pin PCI-E power cables; User Guide

    Warranty
    All EVGA products come automatically with a one year, parts and labor, limited warranty. Upon registration within 30 days of your original purchase, this card is entitled to be upgraded to a limited lifetime warranty.
