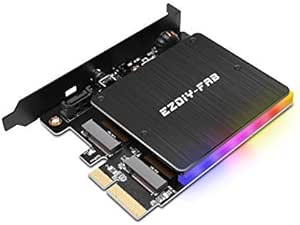

EZDIY-FAB Dual M.2 Adapter for SATA and PCIE NVMe SSD with 5V ARGB Heatsink,Support NGFF PCIe SSD (M Key),M2 SATA SSD (B&M Key) 2280 2260 2242 2230

Visit the EZDIY-FAB Store

67 ratings

| 14 answered questions

Currently unavailable.

We don't know when or if this item will be back in stock.

This fits your .

Make sure this fits by entering your model number.

Supports one M.2 PCIe (NVMe or AHCI) SSD and one M.2 SATA 6Gbps SSD simultaneously. Supports M.2 size form factors 2230, 2242, 2260,2280. SATA M.2 Slot can't Read NVME M.2 SSD
Supports any OS like Windows, Mac and Linux. Booting possible from M.2 NVMe SSD with compatible motherboards with supported BIOS (Support booting from PCIe). Intel 9 series and above chipset motherboards support booting from PCIe. This adapter card is a passive device so OS and System compatibility solely depends on SSD model used.
Converts one M.2 (M Key) interface to PCIe 3.0 x4 interface (PCIe 2.0 Compatible). Converts one M.2 (B Key or B+M Key) interface to SATA 6Gbps interface (SATA connection required). No drivers required.
Large size passive cooler for the top of the SSD, it prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Equipped with 5V Addressable RGB LED lights, you can control and change the colors by connecting to motherboard or by built-in Color mode. High density LED. Easy cable routing.

Customers who viewed this item also viewed

Page 1 of 1 Start overPage 1 of 1

2,830
5 offers from $14.99
934
1 offer from $17.99
1,698
2 offers from $6.99
90
in Serial Adapters
3 offers from $29.99
963
in Computer Memory Card Adapters
1 offer from $14.95
618
18 offers from $54.99

Product Description

EZDIY-FAB Dual M.2 Adapter, Support M.2 NVME SSD (M Key) And M.2 SATA SSD (B Key)-The only M.2 SSD adapter with RGB effects in Market

This is a beautiful LED cooling system with various RGB color effect:

3 Pin 5V ARGB header, you could change color by using built-in mode or Sync with Motherboard.
Compatible with ASUS Aura Sync, MSI Mystic Light Sync, ASROCK AURA RGB, Gigabyte fusion.
By using switch to Motherboard mode or Manual mode. Long press for 3 secs to Sync with motherboard.(Sync motherboard cable needs to be connected)
LED Color effects with built-in 50 color modes.

M/B Compatibility

Compatible with standard RGB 3 pin (5V, Di, G).
Voltage: 5V
Connector: 3Pin
Support ASUS AURA RGB or MSI Mystic Light or GIGABYTE RGB FUSION

Please make sure your motherboard with 5V ARGB header

Features:

Supports two M.2 SSD simultaneously (One SATA interface and one PCIE x4 interface)

Supports two M.2 SSD simultaneously (One SATA interface and one PCIE x4 interface)
Supports PCIe x 4 / x8 / x16 slot
Only with full-profile slot brackets
Compatible with any OS including Windows, WinCE, Mac, Linux
Compliant with PCI Express M.2 specification 1.0
Compliant with SATA 3.0 specification for B/ B+M key
Compliant with PCI-E 4X 3.0 specification for M key

Please note:

For B key SSD the SATA 7 pin connector must be connected to motherboard.
For M key SSD there must be a 2.0 or higher PCI-E 4X socket.

If there is a exclamation mark after install the adapter, please ask for SSD supplier to install the NVME driver for SSD


Support Length: Supports M.2 SSD Sizes including: 22 x 30mm, 22 x 42mm, 22 x 60mm and 22 x 80mm Supports M-KEY for insert into M.2 NVME PCIe solid state drive, PCIe channel data transmission without the need for external SATA line Supports B-KEY for insert into M.2 NGFF SATA solid state drive hard disk, and then plugg into the SATA line to connect motherboard with PCIe power supply (no external power supply)	Please note: Note1: NVMe native driver for Windows 7 and Windows Server 2008 R2 is available from Microsoft Knowledge Base, KB2990941 Note2: Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only.Make sure insert or remove SSD when power is off. Note 3: Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI	Package include: 1 x Dual M.2 Adapter with large passive heatsink 2 x Silica gel pad 1 x SATA Cable 4 x Mounting Screw 1 x Screwdriver 1 x Screw for PCIE bracket 1 x Motherboard Sync cable 1 x Gigabyte fusion adapter

Customer Questions & Answers

See questions and answers

Product information

Package Dimensions

6.6 x 5.1 x 1.1 inches

Item Weight

7.2 ounces

ASIN

B07JGRJS5X

Customer Reviews

67 ratings

4.3 out of 5 stars

Best Sellers Rank

#163 in RAID Controllers

Is Discontinued By Manufacturer

Date First Available

June 11, 2019

Manufacturer

EZDIY-FAB

Feedback

Would you like to tell us about a lower price?

Have a question?

Find answers in product info, Q&As, reviews

There was a problem completing your request. Please try your search again later.

All Product Information Customer Q&A's Customer Reviews

Customer reviews

5 star		66%
4 star		13%
3 star		12%
2 star		5%
1 star		5%

How are ratings calculated?

Top reviews from the United States

There was a problem filtering reviews right now. Please try again later.

Andrew Maner

Incredibly easy to install, and works perfectly

Reviewed in the United States on February 4, 2019

Verified Purchase

Very easy to install, and works like a charm. Steps to install:
* Unscrew the black plate
* Choose the appropriate side for your ssd (indicated in instructions - one side for pcie, other for sata)
* Move the post to suit your particular ssd's form factor (2280 is the longest this will hold)
* Insert your ssd
* Secure it with a tiny screw
* Attach a thermal pad to the plate, on the appropriate side
* Remove plastic from pad
* Reattach plate
* Insert the card into your chosen pcie slot (choose the fastest available)
* Screw in the set screw (provided)
* Boot!
... the next bit assumes your new drive is empty ...
* Once you're in Windows (assuming Win10), open Disk Manager
* It will ask you to initialize the disk. Choose MBR if you're going to clone the drive (to boot from it), or GPT if you're going to use it as a storage drive
* If you chose GPT before, right-click on the "unallocated" bit, and choose "simple volume" and "next." Set the size (default is maximum), and choose "next." You can choose a drive letter, then click "next." Make sure "ntfs" is chosen next, click "next," and then "finish." You now have a new storage drive.
* If you chose MBR before, download Macrium Reflect Free, and just watch this awesome video: https://www.youtube.com/watch?v=U0PyZIqecII

Pros:
As I stated above, the install and setup are incredibly easy. The card is very small, so it doesn't take up much space in your case. Finally, the LEDs on the card are quite cool, and you can cycle between several different color settings by simply clicking the button on the external part of the card. If you have a suitable motherboard, you can connect your card to an RGB header and control the light show with your choice of software (like ASUS Aura). The card just popped into place, with no difficulties whatsoever.

Cons:
The included cable for connecting to the motherboard's RGB header is too short for most mobo's. You'll likely need some sort of extension.

All in all, excellent product.

6 people found this helpful

Helpful

jackal28

Same Speed as Other Adapters

Reviewed in the United States on April 30, 2019

Verified Purchase

Just an FYI. Most NVME/PCIE adapters run at the same speed so your best bet is to go with the one that cools the best, is within your budget, or looks the best.

As for this adapter, I was actually impressed with the added weight to the heat-sink. As for the thermal pad, it seems to be made of the same awful material that every other adapter comes with. I always use a different thermal pad then what comes with, no matter the heatsink.
The addressable leds work great. You can either choose your own style or go with whatever controller you are already using. It also has a fairly bright blue led for hard drive access notification.
All in all, I was presently surprised by the quality of the heatsink and leds and as for the adapter itself, it works fine.

I cant say for sure regarding the sata connection, but I also don't understand why someone would get an adapter for a slower connection. I guess to each their own. I would recommend this product if youre looking for some decent cooling and addressable lighting w/ a capable NVMe / PCIe adapter.

2 people found this helpful

Helpful

KC S.

Works, but not with heatsink

Reviewed in the United States on January 6, 2019

Verified Purchase

Update: For some reason, the SATA drive does not work with the heatsink on. I've tried loosening the screws, tightening them, readjusting the thermal pad, everything I could think of. It works fine without the heatsink attached, but even swapping the drive out for another it will not work. My computer goes into a boot loop whenever the SATA drive is connected and the heatsink is on. Still functions fine without it, though.

Changing the color settings with the button was a little confusing, but I figured it out easily enough and it looks great. Both drives showed up and are plenty fast. Stay cool, too

3 people found this helpful

Helpful

IA_Hawk

Can't get the RGB to sync with motherboard

Reviewed in the United States on November 16, 2020

Verified Purchase

Everything is working well except the ARGB. When pushing the button, it cycles through the different modes as expected. When holding in the button for three seconds to switch to ARGB mode as indicated by the instructions, it just shuts off. The adapter is hooked up to a 3 pin 5v ARGB header that I have confirmed works with other ARGB components.

Would be an easy 5 star but no ARGB is a deal breaker for me.

Helpful

yang li

Good quality and works well

Reviewed in the United States on November 3, 2020

Verified Purchase

I bought several M.2 adapter on amazon but all of those have different issues. This one costs few more bucks but works very well, easy to install. One thing I think it can improve is to change the position of the ssd indication light. It's currently on the bottom and basically not able to see it. overall it is a fancy and well made adapter, would recommend.

Helpful

Bill Byers

Great product

Reviewed in the United States on February 13, 2021

Verified Purchase

I added this to a Gigabyte GA-990FX Motherboard for the AMD FX9590. i added a Samsung NVMe 1tb SSD and wow there was i huge difference in performance. this looks really cool also with the select-able colors.

Helpful

Roget

Boot Cheat Code Needed

Reviewed in the United States on August 22, 2020

Verified Purchase

Amazed by all of the preloaded light profiles that come native to the adaptor. Couldn’t get it to boot from the NvME using this PCI-e card though.

Helpful
