EleDuino

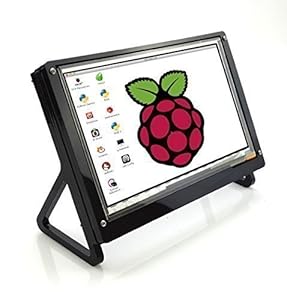

Eleduino Raspberry Pi 7 Inch 1024x600 Pixel IPS Hdmi Input Capacitive TouchScreen Display (with brown holders)

40 customer reviews

| 6 answered questions

Currently unavailable.
We don't know when or if this item will be back in stock.

This fits your .

Enter your model number to make sure this fits.

●1024X600 high resolution IPS full review touchscreen，better touch response, larger viewing angle, faster response time
●Support Raspberry pi Raspbian、 Ubuntu、win10 Iot, Driver Free,only replace the config with we provide，we provide several Linux Distributions that are pre-configured
●It can work as a computer monitor just like any other general HDMI screen ，Supprot win 7、win 8、Win 10，driver free
●With a Customized shell make your pi to be a really Integrated Computer
User guide and pre-configured img URL :http://www.eleduino.com/7-0-Inch-1024x600-Pixel-IPS-Hdmi-Input-Capacitive-Touch-Screen-Support-Raspberry-pi-Banana-Pi-Pro-Be-p10533.htm

Eleduino Raspberry Pi 7 Inch 1024x600 Pixel IPS Hdmi Input Capacitive TouchScreen Display (with brown holders)

Currently unavailable. We don't know when or if this item will be back in stock.

Customers who bought this item also bought

Page 1 of 1 Start overPage 1 of 1

This shopping feature will continue to load items. In order to navigate out of this carousel please use your heading shortcut key to navigate to the next or previous heading.

74

$6.99
100

$8.39
324

$44.99
134

$6.99
1,041

$9.99
350

$89.99

Have a question?

Find answers in product info, Q&As, reviews

Please make sure that you are posting in the form of a question.

Don't see what you're looking for?

There was a problem completing your request. Please try your search again later.

All Product Information Customer Q&A's Customer Reviews

Product description

The touchscreen can support Pi 3 Now ！only just edit config.txt for setting resolution or use we provide config as below URL,make sure the the power supply is 5V 2.5A for Pi or extal power for touchscreen. This is the update version 7inch Capacitive touchscreen from Eleduino.It has some new features：
At hardware ：It use the full review IPS lcd module, Better experience
At software：1、the touchscreen can support Win 10 Iot for Pi
2、It can work as a computer monitor just like any other general HDMI screen (win7、win8、win 10 touch funcation is available) 3、Easier to use： the driver is free for pi，you only need replace the config txt with we provide and we provide the pre-configured raspbian and Ubuntu image too. The image and user guide can download at our website.
Features：
●7.0-inch TFT capacitance touch screen display, 1024x600 Resolution
●HDMI input
●Touch and Powered by USB，5V@1A
●SPI connector speed :16Mhz

●Refresh rate：60HZ Note :Pls make sure the cable connect is correct ,or the touch function is invalid.
Package Content：
1 x 7 inchTouch Screen LCD Display
1 x mirco USB for screen touch &power cable
1x bracket for screen

Note:
If you choose to use a distribution(Raspbian/Ubuntu/win10 Iot) from the Raspberry Pi Website in place of our pre- compiled distributions, you only should locate the “config.txt” file we provided, then replace the original “conf ig.txt” file and save. It can work properly.
The best simple way is add the follow line to the end of the config.txt：
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 1024 600 60 6 0 0 0
max_usb_current=1
saved and reboot.

Product information

Product Dimensions

7.1 x 3.9 x 2.4 inches

Item Weight

8 ounces

Shipping Weight

8 ounces

Manufacturer

Eleduino

ASIN

B019K6CRVY

Customer Reviews

40 customer reviews

3.2 out of 5 stars

Best Sellers Rank

#121,757 in Electronics (See Top 100 in Electronics)
#1,767 in Electronics > Computers & Accessories > Monitors

Date first available at Amazon.com

December 19, 2015

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Feedback

If you are a seller for this product, would you like to suggest updates through seller support?

Would you like to tell us about a lower price?

Customer Questions & Answers

See questions and answers

Customer reviews

Write a customer review

See all 40 customer reviews

Read reviews that mention

Top customer reviews

There was a problem filtering reviews right now. Please try again later.

CMMH

the sharpness of the image display is excellent. Note that connections to display are made on ...

January 26, 2016

Verified Purchase

I wasn't sure what to expect with this display. I was pleasantly surprised with what I received. Given the high-resolution and relatively small display, the sharpness of the image display is excellent. Note that connections to display are made on the right edge of the display unit. Depending on your mounting needs, the side needed for both HDMI and micro-USB connectors might be a factor. The unit does come with (probably) acrylic laser-cut pieces that serve as spacers for boards on the back of the unit and the associated hardware to go with that. Note, there isn't really a proper "bezel" ... the front most pieces doesn't cover where the touchscreen circuitry resides. You'd need another bezel to cover that and expose the active part of the display.

Note that this display's controller isn't auto-scaling. This means you cannot input 1920x1080, for example, and expect it to display properly. On a raspberry pi, adding to your config.txt:

hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 1024 600 60 6 0 0 0

The display is IPS, so it has excellent operation over a wide angle, both in horizontal and vertical dimensions.
The unit is powered via a microusb connection on the right side of the display board. That same jack can be used for the touchscreen.
Which comes to the next part of the review.

The touchscreen doesn't seem to be very well supported. Reading numerous forums suggests that this display emulates another type of touchscreen. Eleduino provides a binary blob that only works with certain kernels. Fortunately, other people have built drivers for this touchscreen that work well.
The driver that is user space and I was able to get working well for raspian is here:
[...]; however that driver has limited functionality. Whether it is good enough for your applications you'll have to look into.

Bottom line: Display is beautiful. Touchscreen is relatively easily made functional, but not full featured without locking yourself into a specific kernel and the maintenance issues that may come with that.

0Comment 22 people found this helpful. Was this review helpful to you?

Yes

Phillip Stone

A very nice "maker" style screen for computers like Raspberry Pi.

April 9, 2016

Verified Purchase

Just finished hooking this up to a Raspberry pi 3 running Ubuntu Mate 16.04 beta. It uses the same kernel as other raspberry pi OSs, so the comments here will work on other systems too...

As another reviewer points out, this displays does not report screen resolution back, so you gotta set it yourself in software on the computer.

/boot/config.txt

needs 4 lines...

hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 1024 600 60 6 0 0 0

Without these the monitor looks dead-on-arrival.

To get those values into that file, you'll need to attach your pi to some other display in order to edit the file, then reattach it to this display after a reboot.

This is a touch screen and touch worked out-of-the-box, I did not need to do anything to get touch working. Ubuntu Mate desktop is fine detailed enough that I need to use a rubber tipped stylus in order to accurately select items from the menus.

Touch signals go back over a usb cable, which also supplies power to the screen, very clever. The cable supplied with the screen is quite long and I may trade it for a short cable eventually since the computer is mounted on the back. Some wire ties cleaned up that cable.

The case for the screen is laser cut plastic, very nice and shiny. There are 3 different sizes of mounting holes on the back which will take various cases for pi. Worked fine for me to mount a pi case on the back of this display.

If you do that, be careful to put some electrical tape over any screw heads that might be going into this case in order to not short something out.

Overall, I'm very happy with this little screen.

0Comment 5 people found this helpful. Was this review helpful to you?

Yes

Mrs. D.

Everything works!! Display and Touch

February 18, 2016

Verified Purchase

It worked very well with the config.txt provided by one of the reviewers above. I haven't tried the touch screen yet, but the quality of the image, crispiness, viewing angle, and any other aspect of the monitor itself is excellent. The only thing missing is a HDMI cable.
I'll try the touch and come back for more comments.

I've just installed the touchscreen... I "wasted" some time trying to mount the images provided (i.e. images of SD cards with the linux kernel and drivers for the touch screen), when I decided to connect the USB to the monitor and see what happened. Guess what? It worked!! That is, you don't need any pre-compiled kernel, drivers, nothing... Just make sure you have the latest Rasbpian, plug it in, and that's it!! I will work just fine with modules: hid_multitouch.

0Comment One person found this helpful. Was this review helpful to you?

Yes

Jim Lynch

I do not recommend this product for any purpose

May 26, 2017

Verified Purchase

Touch screen it isn't. The touch feature does not work at all. Yes I have the USB cable connected to the proper connector on the display. The display is extremely jittery. Once the display is static, it looks OK but as soon as it starts to paint, all sorts of random bits are displayed. It'll never display a video. It's also extremely slow. As I drag the mouse across it, it takes some measurable time for the cursor to start responding and when I stop moving the mouse, the cursor continues to move. I do not recommend this product for any purpose.

0CommentWas this review helpful to you?

Yes

Paul L. Arnold

Screen works well... could look better with some trim.

July 17, 2016

Verified Purchase

Works well after changing the 'boot configuration' file to the correct resolution of the display. Works good with a RASPBERRY PI 3. Would have like a a smoother bezel around the screen. The price and the product are well matched.

In order to change the 'boot configuration' file, I just used my WIN 10 PC to read and edit file from the micro SD, mounted in a full size adapter. Wordpad seemed to do a good job for editing it.
