This kit is a very good tool for learning a bit about electronic circuits and construction. The projects are simple enough and most of them will hold the interest of a pre-teen or young teenager. The kids can start out with something as simple as a car siren and electronic organ or continuity tester and as they develop more skill they can go into something more advanced like the AM radio or logic circuits.
The construction of the kit is a little cheesy with a not-too-sturdy cardboard chassis, but it's adequate enough since the projects are not meant to be permanent. Component connections are made by slipping wires and leads into spring connectors and this works just fine.
The instruction book leaves a little to be desired. It would be nice if they had more explanation and simple theory but as a "starter" to provoke a child's interest in electronics and electricity this is a very good deal.
Also, do not think this is for boys only. Young girls will enjoy getting involved with this. Just ask some of them in my family!
Because the description doesn't list the projects in this kit, here they are in no particular order:
Electronic Woodpecker, Transistor-Transistor Logic Buffer Gate, Electronic Organ, Study Timer, The Chirping Bird, TTL Inverter Gate, Daylight Early Bird, Kitchen Timer, Electronic Cat, TTL AND Gate, Intermittent Alarm Generator, Three-Input AND Gate Using Operational Amplifier, Sonic Fish caller, TTL OR Gate, Comparator, Voice Level Meter, Machine Gun Pulse Oscillator, TTL Exclusive OR Gate, Basic Increase in DC Voltage, Power-On Reset Circuit, Electronic Motorcycle, TTL NOR Gate, Constant -Current Source, Delayed Timer, Two-Tone Patrol Car Siren, TTL Three-Input AND Gate, Integrating Circuit, Pulse Frequency Doubler, Electronic Siren, TTL AND Enable Circuit, Schmitt Trigger Circuit, White Noise Generator, Electronic Metronome, TTL OR Enable Circuit, Noninverting Two-Power Supply Amplifier, DC-DC Converter with Op- Amp, Electronic Grandfather Clock, TTL NAND Enable Circuit, Inverting Two-Power Supply Amplifier, Code Practice Oscillator with ToneControl, Light-Controlled Electronic Harp, TTL R-S Flip-Flop, No inverting Single-Power Supply Amplifier, Crystal Set Radio (Simple-Diode Radio), Horror Movie Sound Effects, NAND Gate Toggle Flip-Flop Circuit, Two-Power Supply Differential Amplifier, Two-Transistor Radio, Strobe Light, TTL Line Selector, Tone Mixing Amplifier , Wireless Code Transmitter, Rapid LED Display Switching, TTL Data Selector, Power Amplifier Using Operational Amplifier, Am Radio Station, Capacitor Discharge/High Voltage Generator, TTL Astable Multivibrator, Voltage Controlled Oscillator Circuit, Operational Amplifier Radio, Capacitors in Series and Parallel, TTL Tone Generator, Operational Amplifier Buzzer, Aural Continuity Tester, Resistors in Series and Parallel, Winking LEDs, Burglar Alarm, Conductivity Tester, Light Dimmer, A One-Shot TTL, Hand-Operated Sweep Oscillator, Transistor Checker, Transistor Switcher, Transistor Timer with TTL, Falling Bomb Sound, Sine wave Audio Oscillator, Transistor Circuit Action, Buzzin' LED, Emergency Siren, Low Distortion Sinewave Oscillator, Sound Amplifier, Son of Buzzin' LED, First Aid Siren, Twin-T Audio Oscillator, Flip-Flop Multivibrator with LED Display, Set/Reset Buzzer, Musical Tempo Generator , Pulse Oscillator Tone Generator, Seven-Segment LED, Digital Circuit, Set/Reset Buzzer, Operational Amplifier Winking LED , Audio Signal Tracer, Basic LED Display, Sound Machine, LED Flashing Light, Radio Frequency Signal Tracer, Transistor Control Switching of LED Display, Big Mouth, Two-LED Winker, Square Wave Audio Oscillator, Transistor, CDS Cell and LED Display Circuit, Shot in the Dark, One Shot Light, Sawtooth Wave Oscillator, Diode-Transistor Logic AND with LED Display, Variable R-C Oscillator, LED Initials, Rain Detector, DTL OR Circuit with LED Display, Oscillator with Turn-Off Delay, Wake Up Siren, Water Level Buzzer with Op-Amp, DTL NAND Circuit with LED Display, Temperature-Sensitive Audio Oscillator, Voice-Activated LED, Metal Detector, DTL Exclusive OR Circuit, Two-Transistor, Directly Connected Oscillator, Logic Tester, Water Level Alarm, Transistor NOR Circuit with LED Display, Push/Pull Square Wave Oscillator, Alternating Current Sound, Three-Step Water Level Indicator, Transistor Flip-Flop Circuit, Pencil Lead Organ, Light Control Sound Circuit, Transistor Toggle Flip-Flop, LED Strobe Light, Sound Alarm Circuit.
Phew!
Consider a similar item
Frequently bought together
$74.95
Get it Jul 20 - 21
In Stock.
Total price:
To see our price, add these items to your cart.
Choose items to buy together.
Customers also search
Page 1 of 1Page 1 of 1
From the brand
-
We offer a variety of fun and educational STEM kits that explore circuitry, robotics, engineering, and alternative energy.
Our mission is to provide quality, innovative toys and educational products that are fun, affordable, engaging, and designed to instill a passion for learning and creating.
We're committed to inspiring imagination, invention, and exploration.
We believe the best way to learn is by doing.
-
-
-
-
-
-
-
From the manufacturer
|
|
|
|
|
|
|---|---|---|---|---|---|
| Elenco FM Radio Kit | Elenco Practical Soldering Kit | Snap Circuits SC-100 | Smartivity Music Machine | Teach Tech Zivko Robot | |
| STEM Education | ✓ | ✓ | ✓ | ✓ | ✓ |
| Minimum Age | 13+ | 12+ | 8+ | 8+ | 10+ |
| Practical Skills | ✓ | ✓ | ✓ | ✓ | ✓ |
| Batteries Required | None | None | None | ✓ | ✓ |
Videos
Page 1 of 1Start OverPage 1 of 1
Videos for related products
0:34
Click to play video
After 3 years use of the Snap Circuits Beginner Kit (review)
David
Videos for related products
5:48
Click to play video
One of the best STEM teaching tools on Earth.
Fresh and Felicia
Videos for related products
0:46
Click to play video
Snap Circuits All Products
Elenco
Videos for related products
0:32
Click to play video
Snap Circuits - Discover Coding
Elenco
Videos for related products
2:11
Click to play video
Snap Circuits Motion Product Video
Merchant Video
Videos for related products
1:28
Click to play video
D518 Circuit Science 100 Plus
THiN AiR Brands LLC
Videos for related products
0:08
Click to play video
Snap Circuits Junior STEM TOY Learning in a Snap!
Tiffany +Play, Live, Repeat+
Videos for related products
2:09
Click to play video
Snap Circuits Light Product Video
Merchant Video
Videos for related products
0:59
Click to play video
Elenco Electronics - Our History
Elenco
Some kind of test override title
Some kind of test override Some kind of test override link text
Check the positive battery holder terminals
Reviewed in the United States on May 5, 2019

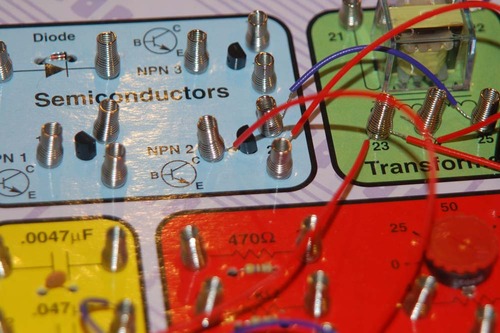

Like many others I owned the original Radio Shack version of this 130-in-1 electronics kit decades ago. True, this Elenco version isn't very sturdy. It's light and flimsy. But the overall layout, components, and experiments you can wire together are about the same. The 159-page real paper manual that comes with it is a plus (the PDF is also available for download from Elenco's web site). Each experiment has an overview, a schematic, and wiring connection-by-numbers instructions. Many useful and educational analog circuit designs are included (plus one digital gate logic IC). No microprocessor, computer, smart phone, or software updates required. Yea!!!OK, now the quality issues. The first experiments I correctly wired together didn't work at all. I installed two different sets of 6AA batteries (Amazon Rechargeable then Duracell Alkaline). Still nothing. I returned the first one back to Amazon, got a replacement the next day. Both had the same problem. Both had a sticker with Date Code 0119. Hmmmm, manufactured the same day, same problem. I did some basic troubleshooting to try to figure out the problem.It turns out the design or manufacture of the battery holder is defective. There is a gap of about 1mm between the + side of each battery and terminals in the holder. Two small plastic tabs at that location prevented the battery connection from being made. My "fix" was to jam a wadded up piece of copper tape to fill the gap at each of the 6 positive battery terminals to complete the battery circuit (aluminum foil would work fine too). Hopefully Elenco will crack the whip at the Chinese factory to fix this, or they'll see a lot of returns for this very simple and silly defect. Check recent reviews to see if the problem has been fixed in newer batches from the factory.If you don't have a voltmeter, you can construct a simple circuit to see if power from the batteries is making it to the front panel. Install the batteries and try lighting up the decimal point of the digital display by connecting: 25-121,24-119 or 25-124,24-122Most of the experiments I've tried so far worked. But the AM radio receiver circuits are iffy. The only one I could make work was #113: Two-Transistor Radio. I used the supplied long green wire raised up high as the antenna. The signal levels seem too low to work for #112: Crystal Set Radio and #109: Operational Amplifier AM Radio.Quality issues aside, I'm keeping it. I'm having too much fun with it. And I have great respect for the designers who created the original analog circuits that can be recreated using this kit.
Reviewed in the United States on May 5, 2019
Images in this review
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States 🇺🇸 on October 29, 2013
Reviewed in the United States 🇺🇸 on May 5, 2019
Like many others I owned the original Radio Shack version of this 130-in-1 electronics kit decades ago. True, this Elenco version isn't very sturdy. It's light and flimsy. But the overall layout, components, and experiments you can wire together are about the same. The 159-page real paper manual that comes with it is a plus (the PDF is also available for download from Elenco's web site). Each experiment has an overview, a schematic, and wiring connection-by-numbers instructions. Many useful and educational analog circuit designs are included (plus one digital gate logic IC). No microprocessor, computer, smart phone, or software updates required. Yea!!!
OK, now the quality issues. The first experiments I correctly wired together didn't work at all. I installed two different sets of 6AA batteries (Amazon Rechargeable then Duracell Alkaline). Still nothing. I returned the first one back to Amazon, got a replacement the next day. Both had the same problem. Both had a sticker with Date Code 0119. Hmmmm, manufactured the same day, same problem. I did some basic troubleshooting to try to figure out the problem.
It turns out the design or manufacture of the battery holder is defective. There is a gap of about 1mm between the + side of each battery and terminals in the holder. Two small plastic tabs at that location prevented the battery connection from being made. My "fix" was to jam a wadded up piece of copper tape to fill the gap at each of the 6 positive battery terminals to complete the battery circuit (aluminum foil would work fine too). Hopefully Elenco will crack the whip at the Chinese factory to fix this, or they'll see a lot of returns for this very simple and silly defect. Check recent reviews to see if the problem has been fixed in newer batches from the factory.
If you don't have a voltmeter, you can construct a simple circuit to see if power from the batteries is making it to the front panel. Install the batteries and try lighting up the decimal point of the digital display by connecting: 25-121,24-119 or 25-124,24-122
Most of the experiments I've tried so far worked. But the AM radio receiver circuits are iffy. The only one I could make work was #113: Two-Transistor Radio. I used the supplied long green wire raised up high as the antenna. The signal levels seem too low to work for #112: Crystal Set Radio and #109: Operational Amplifier AM Radio.
Quality issues aside, I'm keeping it. I'm having too much fun with it. And I have great respect for the designers who created the original analog circuits that can be recreated using this kit.
OK, now the quality issues. The first experiments I correctly wired together didn't work at all. I installed two different sets of 6AA batteries (Amazon Rechargeable then Duracell Alkaline). Still nothing. I returned the first one back to Amazon, got a replacement the next day. Both had the same problem. Both had a sticker with Date Code 0119. Hmmmm, manufactured the same day, same problem. I did some basic troubleshooting to try to figure out the problem.
It turns out the design or manufacture of the battery holder is defective. There is a gap of about 1mm between the + side of each battery and terminals in the holder. Two small plastic tabs at that location prevented the battery connection from being made. My "fix" was to jam a wadded up piece of copper tape to fill the gap at each of the 6 positive battery terminals to complete the battery circuit (aluminum foil would work fine too). Hopefully Elenco will crack the whip at the Chinese factory to fix this, or they'll see a lot of returns for this very simple and silly defect. Check recent reviews to see if the problem has been fixed in newer batches from the factory.
If you don't have a voltmeter, you can construct a simple circuit to see if power from the batteries is making it to the front panel. Install the batteries and try lighting up the decimal point of the digital display by connecting: 25-121,24-119 or 25-124,24-122
Most of the experiments I've tried so far worked. But the AM radio receiver circuits are iffy. The only one I could make work was #113: Two-Transistor Radio. I used the supplied long green wire raised up high as the antenna. The signal levels seem too low to work for #112: Crystal Set Radio and #109: Operational Amplifier AM Radio.
Quality issues aside, I'm keeping it. I'm having too much fun with it. And I have great respect for the designers who created the original analog circuits that can be recreated using this kit.
Images in this review
Reviewed in the United States 🇺🇸 on April 8, 2023
Reviewed in the United States 🇺🇸 on March 1, 2023
Top reviews from other countries
cc
Es de cartón pegado con cinta adhesiva.
Reviewed in Mexico 🇲🇽 on January 10, 2019
Amazon Customer
A good Hobby kit for children
Reviewed in India 🇮🇳 on July 14, 2016Brian G
Reminiscent of the old Radio Shack kits, critically let down by build quality
Reviewed in the United Kingdom 🇬🇧 on July 22, 2019
