Etekcity Digital Multimeter Battery Tester with hFE

4.0 out of 5 stars 841 customer reviews
| 57 answered questions
Available from these sellers.
Used (2) from $14.99 & FREE shipping.
Specifications for this item
Brand Name Etekcity
Display LCD
EAN 0025706340021
Import Designation Made in USA or Imported
Item Weight 0 hundredths_pounds
Mounting Type Hands free
Part Number 025706340021
Size 1Pack
UNSPSC Code 41113600
UPC 025706340021
Voltage 500.00  Volts

Fluke Networks

Fluke Networks
Visit the Fluke Networks store and shop for cable testers, network testers, telephone test sets, and more. Shop now.

Customers Viewing This Page May Be Interested In These Sponsored Links

  (What's this?)

From the Manufacturer

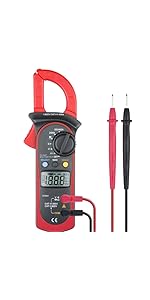

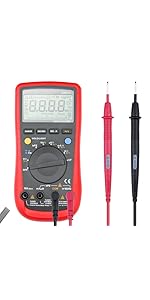

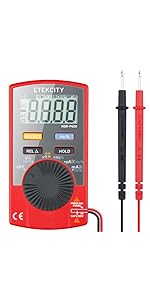

multimeter, voltmeter, ohmmeter, ammeter, digital multimeter multimeter, voltmeter, ohmmeter, ammeter, digital multimeter multimeter, voltmeter, ohmmeter, ammeter, digital multimeter multimeter, voltmeter, ohmmeter, ammeter, digital multimeter multimeter,digital multimeter,multi tester
MSR-R500 MSR-P600 MSR-C600 MSR-U1000 MU600
Maximum display 1999 3999 1999 3999 1999
DC voltage 200mV/2000mV/20V/200V/500V 400mV/4V/40V/400V/600V 200mV/2V/20V/200V/600V 40mV/400mV/4v/40v/400V/1,000V 200mV/2000mV/20/200/500V
AC voltage 200V/500V 4V/40V/400V/600V 2V/20V/200V/600V 40mV/400mV/4V/40V/400V/750V 200V/500V
DC current 2000μA/20mA/200mA/10A 400μA/4000μA/40mA/400mA / 400μA/4000μA/40mA/400mA/4A/10A 200μA/2mA/20mA/200mA/10A
AC current / 400μA/4000μA/40/400mA 2A/20A/200A/400A 400μA/4000μA/40mA/400mA /4A/10A /
Resistance 200Ω/2000Ω/20KΩ/200KΩ/20MΩ/200MΩ 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
Capacitance / 4nF/40nF/400nF/4µF/40µF/100µF / 40nF/400n/4µF/40µF/400µ/4000µF /
Frequency Hz / 99.9Hz/0.999kHz/9.99kHz/99.9kHz / 0-10MHz ±(0.1%+4) /
hFE / / / ✓ ✓
Tested max. current conductor size N/A N/A 26mm diameter N/A N/A

Product Features

  • Designed to safely and accurately troubleshoot a variety of automotive and household electrical problems
  • Accurately measures current, voltage, resistance, and more
  • Diode assembly test / Transistor P-N junction test/Transistor hFE test
  • Overload protection on all ranges. Sampling 2/3 times readings per second
  • Features Data Hold and an easy-to-read large Backlit LCD display ; 3-Month Warranty

Product Description

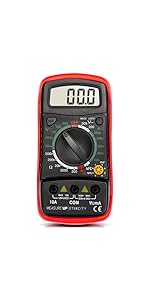

This Etekcity portable Digital Multimeter is a practical tool for electricians, hobbyists, and general household use. It is easy to operate and features many different functions for measuring AC & DC voltage, DC current, and resistance, as well as continuity, transistor, and diode testing. It can be used to diagnose, assemble, and repair circuitry and wiring. Other features include a low battery indicator, easy-to-read backlit LCD, data hold, and overload protection.

Specifications
Max.display: 1999, 3 1/2 digits
Range selection: Manual ranging
Polarity: Auto polarization
Overload display: Only figure "1" on the display
DC voltage: 200mV ±(0.8%+15), 2000mV ±(0.5%+15), 20/200/500V ±(0.8%+15)
AC voltage: 200V ±(2.0%+10), 500V ±(2.0%+15)
DC current: 200μA/2000μA/20mA ±(1.8%+10), 200mA ±(2%+10), 10A ±(5%+10)
Resistance: 200Ω ±(2.0%+10), 2/20/200kΩ ±(1.5%+10), 2000k ±(2%+10)
hFE: Yes
Diode test: Yes
Continuity test: Yes
Dimensions: 5.31 x 2.76 x 1.38 inches
Weight: 5.64oz(test leads & batteries included)
Power: 1 x 9V 6F22

Package Includes
1 x Etekcity MU600 Digital Multimeter
1 x Instruction Manual(English)
1 x Set of test leads
1 x 9V 6F22 Battery

Product Details

  • Product Dimensions: 5.8 x 3.9 x 2.1 inches
  • Shipping Weight: 6.4 ounces
  • Domestic Shipping: Item can be shipped within U.S.
  • International Shipping: This item is not eligible for international shipping. Learn More
  • ASIN: B00B7CS3UY
  • Item model number: 025706340021
  • Average Customer Review: 4.0 out of 5 stars  See all reviews (841 customer reviews)
  • Amazon Best Sellers Rank: #10,250 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
    • Product Warranty: For warranty information about this product, please click here

     Would you like to give feedback on images?

Customers Viewing This Page May Be Interested In These Sponsored Links

  (What's this?)
Customer Questions & Answers
See questions and answers

Customer Reviews

Top Customer Reviews

5.0 out of 5 starsNot just for checking voltages
By Al McKenzie on December 23, 2014
Format: Tools & Hardware
I’ve had many Multimeter and this one is now my favorite. I must have 5 of these things. My first Multimeter was a super old pocket meter from Radio Shack. This is the first ever Multimeter that is backlit. This so far is my favorite feature. The backlit feature is a Push on push off switch, so it stays on or stays off. The next best feature is the kick stand. It also came with a battery installed. I was very pleased about that.

This is a good Multimeter for checking voltages under 500 volts. I love using mine mostly while working on my truck or my computer. I also use it to check voltage coming out of 110 voltage regulars (aka like phone chargers, etc). This also works good when you need to check grounding on your vehicle. This is spastically useful when checking grounds a voltages on utility trailers.

Watch some youtube videos if you don’t know much about Multimeters. These things are powerful tools and can help you solve many problems safely.
Comment 24 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsGreat Hobby Multimeter
By Jawlessmacdady on August 23, 2015
Format: Tools & Hardware Verified Purchase
I bought this because in my spare time I like to take apart broken electronics and try to see if I can understand how they work and how to fix them. Most of the time I end up breaking the electronics even more. This Multimeter does just what I need, check the voltages around little circuit boards and helps me find what resistors or capacitors have blown. I wouldn't use this if it was a life or death scenario, but it works well with little electronics like the circuit boards of TV's.

I would recommend this to anyone who finds themselves dumpster diving for broken gadgets and trying to spend as little money.
Comment 17 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsRather surprised how good this multimeter actually is!
By Tony W. on May 20, 2015
Format: Tools & Hardware Verified Purchase
You know, for the price, I wasn't expecting much out of this device, but I was surprised as to how accurate the readings I was getting from it ended up being. I compared it to one of those $200 multimeters, and it was spot on perfect compared to the higher priced one. The hold feature is definitely appreciated, as is the light up display. The leads for this are of good quality. They should hold up for many years.
Comment 14 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsWorks just fine.
By Martt Harding on May 29, 2015
Format: Tools & Hardware Verified Purchase
Works just fine, as expected. Remarkable value for the price. I checked it against another comparable meter and the results tracked very closely (of course they may use the same chipset!). My only complaint is that the backlight does not automatically turn off after a few seconds, as on my other meter (Velleman brand) that seems essentially identical to this one by Etekcity. I'd like an automatic shut-off, but that is not an available feature. Some people said that the continuity buzzer does not work, but mine does. My meter had the internal clunking that some purchasers have reported. In my case it was caused by loose fit of the 9V battery in the battery compartment. I had some self-stick felt and used that to tighten up the fit: no more clunking. Some folded-up paper would also have done the trick.
Comment 14 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsWorks great for what i use it for!
By Chris on June 29, 2015
Format: Tools & Hardware Verified Purchase
Still works! Use this to measure battery voltage only. Works great, wish I could say more about it but I purchased this because I was tired of going through the cheap battery meters for my solar system in the garage. Really has helped me fine tune the solar system. Have a 36 volt solar system and with this unit I have also down graded the voltage. 24v for 120 volt converter and 12v for running and charging the camping gear and other accessories that I can use for an extended time during power outage for my system. A $500 solar system can now sustain us in a power outage - fridge and min lights. Working on a way to charge the 36 volt battery bank besides the solar panels, wish me luck!
Comment 15 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsA must-have for every household!
By Amazonian on January 22, 2015
Format: Tools & Hardware Verified Purchase
This instrument was used for measuring electrical output in a science fair project. It was very easy to use, giving us amps and volts for calculating watts. It is unlikely that this instrument will collect dust as we have already found uses around the house such as testing batteries, troubleshooting automotive electrical issues, and continuing to learn about electricity. *Consider safety first when doing ANYTHING with electricity.*
Comment 14 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsGreat product. Great price
By J B on September 25, 2015
Format: Tools & Hardware Verified Purchase
Has been put to use since I received it. works great. If you want to have the small alligator clips it is best to purchase when you get the multimeter. I couldn't find anyone locally that had compatible clips. The clips were a much need item for me but works great without them.
Comment 9 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsOutstanding for the price, but if you need percision look elsewhere.
By W. Helgeson on September 3, 2015
Format: Tools & Hardware Verified Purchase
For $9 this meter does nearly everything the average person would expect out of it. So far it has been giving me a clear, consistent reading of battery voltages, line voltages and continuity. While this won't be my go-to meter for any IC work, it will work well enough for things around the house.
Comment 11 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse

Most Recent Customer Reviews

5.0 out of 5 starsThis is Great, but hurry it's been "updated" (new one not so great)

This was a surprise. I sent my Beckman for repair and I needed a tester in the mean time. I don't care for the "updated" version where the cables are "reattached" I... Read more

Published 1 day ago by ManoaHI
1.0 out of 5 starsJUNK

Crapped out 6 months later

Published 11 days ago by KK ok 53
5.0 out of 5 starsFive Stars

good meter

Published 17 days ago by Amazon Customer
5.0 out of 5 starsto repair broken audio and power cables and stuff like that. i got...

i use this mainly for conductivity test. to repair broken audio and power cables and stuff like that. i got tired of using the little bulb with a AA battery testing my cables. Read more

Published 1 month ago by Honest Reviews
4.0 out of 5 stars4 out of 5 Ain't Bad ...

A nice little meter for the price. A couple of handy features include a well-designed backlight that can be switched on or off to help save the battery, and a fold-out rear stand... Read more

Published 1 month ago by Ken Anderson
3.0 out of 5 starslight and easy to carry around

Simple, light and easy to carry around. But when testing for shortage, it seems didn't to be sensitive.

Published 1 month ago by Amazon Customer
1.0 out of 5 starsbeen better of with a HF cheapie

it worked for a while then only work's on ohms scale. been better of with a HF cheapie.

Published 1 month ago by Captain Midnight
5.0 out of 5 starsGreat price, great product.

Works perfect! Highly recommend!

Published 2 months ago by JIM McCORD
1.0 out of 5 starsNo amount of changing the settings/batteries/pressing buttons would...

Defective on arrival. No amount of changing the settings/batteries/pressing buttons would give me anything useful. Read more

Published 2 months ago by Daniel Torres, Jr.
5.0 out of 5 starsGlad I bought it

Great meter for the price

Published 2 months ago by Andrew Maylish
