| Brand | Eyourlife |
|---|---|
| Item Weight | 0.8 ounces |
| Product Dimensions | 5 x 4 x 0.5 inches |
| Item model number | LX_QMCQCJPSS200805 |
| Manufacturer Part Number | LX_QMCQCJPSS200805 |
| Folding | No |

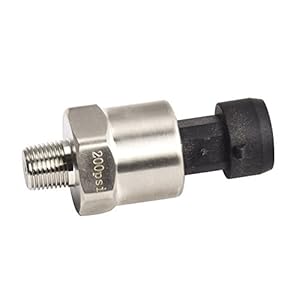

Eyourlife Universal 200PSI Pressure Transducer Sender Solenoid for Oil Fuel Gas Air Water #C3
by
Eyourlife
| Price: | $59.99 |
| Sale: | $17.99 | Fast, FREE Shipping with Amazon Prime |
| You Save: | $42.00 (70%) |
Only 20 left in stock.
Fulfillment by Amazon (FBA) is a service we offer sellers that lets them store their products in Amazon's fulfillment centers, and we directly pack, ship, and provide customer service for these products. Something we hope you'll especially enjoy: FBA items qualify for FREE Shipping and .
If you're a seller, Fulfillment by Amazon can help you increase your sales. We invite you to learn more about Fulfillment by Amazon .
- Enter your model number to make sure this fits.
- Performance Guarantee pressure range: 3 MPA
- Works for oil,fuel,diesel,gas,water,air pressure
- Package Include: 1 X Pressure Transducer
- Output: 0.5V – 4.5V linear voltage output
This fits your .
$17.99
|
Fast, FREE Shipping with Amazon Prime
Only 20 left in stock.
Sold by eyourgifts and Fulfilled by Amazon.
Gift-wrap available.
Fulfillment by Amazon (FBA) is a service we offer sellers that lets them store their products in Amazon's fulfillment centers, and we directly pack, ship, and provide customer service for these products. Something we hope you'll especially enjoy: FBA items qualify for FREE Shipping and .
If you're a seller, Fulfillment by Amazon can help you increase your sales. We invite you to learn more about Fulfillment by Amazon .
Customers Who Bought This Item Also Bought
Page 1 of 1 Start overPage 1 of 1
Product Description
Size:200
Specifications:
Supply voltage:5 VDC
Output voltage :0.5 ~ 4.5 V
Working pressure :0 ~ 1.38 MPA
Performance Guarantee pressure range:3 MPA
Burst Pressure : 5 MPA
Overall accuracy :1% FS
Long-term stability : 0.2% FS / year
Works for oil,fuel,diesel,gas,water,air pressure
Operating temperature: -40 ~ 125 degree Centigrade
Storage temperature : -40 ~ 130 degree Centigrade
Package Include: 1 X Pressure Transducer
Customers Who Viewed This Item Also Viewed
Page 1 of 1 Start overPage 1 of 1
Customer Reviews
Top Customer Reviews
By
T
on July 23, 2015
Size: 30
Verified Purchase
Updated a few days after usage began:
Sensor failed, and now reports erroneous readings, generally notably negative pressure in open air. Sensor was connected to tap water at about 10PSI.
Junk. Do not buy.
------------
Performs exactly as expected.
When powered at 5.00V (red), output (yel) was 0.513V at ambient pressure of 29.85inHg. Output is ratiometric with supply voltage. Current consumption was 2.07mA. Note that this sensor responds to absolute, not relative pressure, so barometric pressure changes will affect it when in open air.
If you're an Arduino user, you'll get excellent results powering this from AREF yielding a resolution of 30 PSI / (0.8 x 1024) --> 0.037PSI.
Supplied cable comes with short lengths of wire -- my photos show extensions added for Arduino usage. Note the shrink-wrap also over the outside jacket as that cable has an exposed shield layer.
Included image shows extra fittings added for connection to 1/8" irrigation tubing. Sensor has 1/8" male NPT fitting.
Aurduino code follows:
/*--------------------------------------------------------------*/
/* Water pressure sensor. Ranges 0.5-4.5V for 0-30PSI. */
/*--------------------------------------------------------------*/
int water_pressure_ticks;
int water_pressure_10mPSI; // pressure in 0.01 PSI units
#define PSI_0_MV 500 // millivolts at 0.0 PSI
#define PSI_30_MV 4500 // millivolts at 30.Read more ›
Sensor failed, and now reports erroneous readings, generally notably negative pressure in open air. Sensor was connected to tap water at about 10PSI.
Junk. Do not buy.
------------
Performs exactly as expected.
When powered at 5.00V (red), output (yel) was 0.513V at ambient pressure of 29.85inHg. Output is ratiometric with supply voltage. Current consumption was 2.07mA. Note that this sensor responds to absolute, not relative pressure, so barometric pressure changes will affect it when in open air.
If you're an Arduino user, you'll get excellent results powering this from AREF yielding a resolution of 30 PSI / (0.8 x 1024) --> 0.037PSI.
Supplied cable comes with short lengths of wire -- my photos show extensions added for Arduino usage. Note the shrink-wrap also over the outside jacket as that cable has an exposed shield layer.
Included image shows extra fittings added for connection to 1/8" irrigation tubing. Sensor has 1/8" male NPT fitting.
Aurduino code follows:
/*--------------------------------------------------------------*/
/* Water pressure sensor. Ranges 0.5-4.5V for 0-30PSI. */
/*--------------------------------------------------------------*/
int water_pressure_ticks;
int water_pressure_10mPSI; // pressure in 0.01 PSI units
#define PSI_0_MV 500 // millivolts at 0.0 PSI
#define PSI_30_MV 4500 // millivolts at 30.Read more ›
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
By
Eric Varsanyi
on November 14, 2015
Size: 30
Verified Purchase
Out of the package with exactly 5V applied to red/black yellow is at .405V completely unloaded.
If this was sensing absolute pressure as another reviewer suggested I'd expect a reading somewhere near my absolute pressure today (29.95 inHg altimeter setting @ 980' -> 28.9 inHg absolute) of about 14 PSI. On a 30PSI scale with an output range from .5V (0PSI) to 4.5V (30PSI) this should come in somewhere around 2.5V. If this were the case its reading slightly negative absolute pressure (not a likely condition) right out of the package.
I'm guessing from this reading this is gauge pressure (the measurement cell is open to the atmosphere). I attached it to a couple of mechanical air pressure meters I have and a bicycle pump on a manifold -- when the meters show around 30psi I get an output voltage of 4.64V. This does seem to approximate the 30PSI stamped on range, 0PSI (gauge) == .39V and 30PSI == ~4.64V.
I'm going to try to use this to measure pressure on a swimming pool filter system so absolute accuracy isn't all that important, just repeatability. If it survives a test on street water pressure for couple of weeks I'll buy a few more (and some spares) to complete the project.
The schematic in this listing appears unrelated to this device (I *wish* it had a digital output).
--------------
Update after a few weeks deployed:
The 30PSI senders *all* failed (either to ground or +V) after about 2 weeks under pressure. The pressure is about half the rated pressure, maybe there's a startup transient when the pumps start (this is in a pool filter system) that burst them but on a mechanical guage I don't see any pulse. I'm trying an 80PSI now but at this point I'd say the 30 PSI units are either defective or not designed to run in water at 18PSI continuously.
Attached a picture of one of the failed sensors as installed (a failed one).
If this was sensing absolute pressure as another reviewer suggested I'd expect a reading somewhere near my absolute pressure today (29.95 inHg altimeter setting @ 980' -> 28.9 inHg absolute) of about 14 PSI. On a 30PSI scale with an output range from .5V (0PSI) to 4.5V (30PSI) this should come in somewhere around 2.5V. If this were the case its reading slightly negative absolute pressure (not a likely condition) right out of the package.
I'm guessing from this reading this is gauge pressure (the measurement cell is open to the atmosphere). I attached it to a couple of mechanical air pressure meters I have and a bicycle pump on a manifold -- when the meters show around 30psi I get an output voltage of 4.64V. This does seem to approximate the 30PSI stamped on range, 0PSI (gauge) == .39V and 30PSI == ~4.64V.
I'm going to try to use this to measure pressure on a swimming pool filter system so absolute accuracy isn't all that important, just repeatability. If it survives a test on street water pressure for couple of weeks I'll buy a few more (and some spares) to complete the project.
The schematic in this listing appears unrelated to this device (I *wish* it had a digital output).
--------------
Update after a few weeks deployed:
The 30PSI senders *all* failed (either to ground or +V) after about 2 weeks under pressure. The pressure is about half the rated pressure, maybe there's a startup transient when the pumps start (this is in a pool filter system) that burst them but on a mechanical guage I don't see any pulse. I'm trying an 80PSI now but at this point I'd say the 30 PSI units are either defective or not designed to run in water at 18PSI continuously.
Attached a picture of one of the failed sensors as installed (a failed one).
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
