![Lowpricenice Weatherproof 125KHz Wiegand 26 26bit Access Control Keypad RFID Reader Color Black]({"https://images-na.ssl-images-amazon.com/images/I/81DDn1zDVVL._AC_SY450_.jpg":[450,450],"https://images-na.ssl-images-amazon.com/images/I/81DDn1zDVVL._AC_SX466_.jpg":[466,466],"https://images-na.ssl-images-amazon.com/images/I/81DDn1zDVVL._AC_SX569_.jpg":[569,569],"https://images-na.ssl-images-amazon.com/images/I/81DDn1zDVVL._AC_SY355_.jpg":[355,355],"https://images-na.ssl-images-amazon.com/images/I/81DDn1zDVVL._AC_SX425_.jpg":[425,425],"https://images-na.ssl-images-amazon.com/images/I/81DDn1zDVVL._AC_SX522_.jpg":[522,522],"https://images-na.ssl-images-amazon.com/images/I/81DDn1zDVVL._AC_SX679_.jpg":[679,679]})
I was able to decipher how this keyboard works using a Arduino Nano board. So the LED wire when grounded changes color of the LED from blue to green. The BEEP wire when grounded makes rather obnoxius sound. The keyboard reads cards as expected and depending on state of 26/34 wire (grounded or not) sends them as Wiegand 26 or 34 bit. But the keys are sent using a very non-standard 4 bit Wiegand code - 0-9 send as expected value 0-9, ESC sends 10 and ENT sends 11. Most of the Wiegand controllers expect 8 bit keyboard protocol, so this keyboard won't work with them. The Arduino Wiegand library also cannot recognize 4 bit keyboard code, I had to tweak it to make it work. But overall this is ONE AMAZING keyboard. Well made, waterproof, it is a steal at this price.
Edit, after a couple of hours of coding, I wrote some cool utility that uses Andruino Nano and this keyboard. It can don the following:
/*
* This solution has 10 slots for codes (0-9) and 10 slots for cards (0-9).
* Slot 9 is special - in addition to opening door, it is also used
* as a programming code/card.
*
* Commands:
* L - change code length (resets all codes) - example L5
* D - delete code - example D1
* S - set code - example D1202030
* G - get code - example G1
* C - get card - example C1
* A - add card - example A1544370
* B - delete card - example B1
* P - ping - example P
* E - write cards and codes to EEPROM - example E
* R - read cards and codes from EEPROM - example R
*
* Commands respond with OK: [command][some extra data if required] or ERROR: [comand][some extra data] if there was an error:
* L[length] responds with OK: L[length]
* D[slot] responds with OK: D[slot]
* S[slot][code] responds with OK: S[slot][code] or ERROR: S[slot][code] if code length is <> preset length
* G[slot] responds with OK: G[slot][code at this slot - may be empty]
* C[slot] responds with OK: C[slot][card # or 0 if no card]
* A[slot][card #] responds with OK: A[slot][card #] if card # was parsed to long or ERROR: A[slot][card #] if card # was not parsable
* B[slot] responds with OK: B[slot]
* P responds with OK: PONG
* E responds with OK: E: BYTES :[number of bytes written]
* R responds with OK: R: BYTES :[number of bytes read]
*
* Programming via keyboard/card:
* - press ENT
* - enter code (slot 9) or scan card (slot 9)
* - press ENT
* - enter slot (0-9)
* - press ENT
* - enter code or scan card to remember
* - press ENT
* Delete code/card via keyboard/card:
* - press ENT
* - enter code (slot 9) or scan card (slot 9)
* - press ENT
* - enter slot (0-9)
* - press ENT
* - press ESC
*/
Other Sellers on Amazon
$14.99
+ Free Shipping
+ Free Shipping
Sold by:
Guangzhou Lanbosen Electronic Technology Co., Ltd.
Have one to sell?
Sorry, we're having trouble showing recommendations right now. Please try again later.
Continue shopping

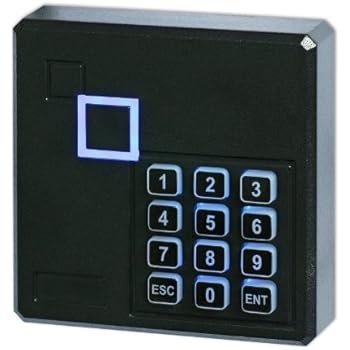

Lowpricenice Weatherproof 125KHz Wiegand 26 26bit Access Control Keypad RFID Reader Color Black
by
Lowpricenice
|
| Price: |
FREE Shipping
Get free shipping
Free 5-8 business-day shipping
within the U.S. when you order $25.00
of eligible items sold or fulfilled by Amazon.
Or get 4-5 business-day shipping on this item for $5.99
. (Prices may vary for AK and HI.)
Learn more about free shipping
Return this item for free
|
Note: Available at a lower price from other sellers that may not offer free Prime shipping.
- Make sure this fits by entering your model number.
- RFID 125KHz proximity cards compatible (EM4100)
- Standard Wiegand 26 bit reader
- Weatherproof
- Durable keytop with blue backlight
- 5cm read range
This fits your .
Customers who viewed this item also viewed
Page 1 of 1 Start overPage 1 of 1
Compare with similar items
Product description
This Wiegand 26-bit RFID card reader is durable keytop with blue backlight.
It is weatherproof, which enables indoor and outdoor operation.
Technical Information:
Output Mode : Standard wiegand 26 bit format
Frequency : 125 KHz
RFID Cards supported : EM4100 standard ID cards (ID only, but NOT IC not Mifare)
Read Range : 5cm
Input Voltage : DC 12V
Color : Black
Dimensions : - Approx. 3-3/8" (W) x 3-3/8"(H) x 3/4" (D) inch
Package includes:
1 x Weatherproof Wiegand 26 bit with RFID reader (Black)
