|Number of USB 2.0 Ports||2|

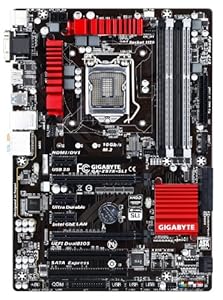

Gigabyte GA-Z97X-SLI LGA 1150 Z97 2-Way SLI UEFI DualBIOS ATX Motherboard
We don't know when or if this item will be back in stock.
|CPU Socket||LGA 1150|
|RAM Memory Technology||DDR3|
|Compatible Processors||Intel Celeron, Intel Pentium|
|Chipset Type||Intel Z97|
|Memory Storage Capacity||1000 MB|
|RAM Memory Maximum Size||32 GB|
|Graphics Card Interface||PCI, PCI-E|
|Memory Slots Available||4|
|System Bus Standard Supported||SATA 3|
About this item
- Make sure this fits by entering your model number.
- Chipset: Intel Z97 Express
- Memory: 4x DDR3-3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2500(OC)/ 2400(OC)/ 2200(OC)/ 2133(OC)/ 2000(OC)/ 1866(OC)/ 1800(OC)/ 1600/ 1333 DIMM Slots, Dual Channel, Non-ECC, Max Capacity of 32GB
- Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8), 3x PCI-Express 2.0 x1 Slots, 2x PCI Slots
- LAN: Intel Gigabit Ethernet Controller
- CPU Support: Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
- Memory: 4 x DDR3 DIMM sockets supporting up to 32 GB; DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
- GIGABYTE UEFI DualBIOS.
Have a question?
Find answers in product info, Q&As, reviews
Your question might be answered by sellers, manufacturers, or customers who bought this product.
Please make sure that you are posting in the form of a question.
Please enter a question.
Compare with similar items
GIGABYTE Z390 UD, Intel LGA1151/Z390/ATX/M.2/Realtek ALC887/Realtek 8118 Gaming LAN/HDMI/Gaming Motherboard
Gigabyte AM3+ AMD DDR3 1333 760G HDMI USB 3.0 Micro ATX Motherboard GA-78LMT-USB3
ASUS Micro ATX DDR3 1600 LGA 1150 Motherboard B85M-G
Asus Sabertooth Z87 LGA 1150 Motherboard
GIGABYTE Z390 AORUS PRO Wi-Fi (Intel LGA1151/Z390/ATX/2xM.2 Thermal Guard/Onboard AC Wi-Fi/RGB Fusion/Gaming Motherboard)
|Sold By||—||Nspire Store||iT Hardware||GJG audio USA||uniHorn||Amazon.com|
|Chipset Type||Intel Z97||—||AMD 760G||—||Intel Z87||—|
|CPU Socket||LGA 1150||LGA 1151||Socket AM3||LGA 1150||LGA 1150||LGA 1151|
|Item Dimensions||13 x 11 x 3 inches||12.79 x 10.23 x 2.75 inches||11 x 11 x 3 inches||9.2 x 7.6 x 2.05 inches||2.99 x 10.47 x 13.03 inches||13.18 x 10.62 x 3.14 inches|
|Item Weight||3.80 lbs||1.00 lbs||1.54 lbs||1.82 lbs||4.40 lbs||3.09 lbs|
|Memory Slots Available||4||4.0||4||4||4||4.0|
|RAM Memory Maximum Size||32 GB||—||32 GB||—||—||—|
|RAM Memory Technology||DDR3||DDR4||DDR3||DDR3||DDR3||DDR4|
|Supported Motherboard||ATX||ATX||Micro ATX||Micro ATX||ATX||ATX|
|Total Pci Slots Free||6||—||3||0||0||—|
|Total SATA Ports||6||—||6||4||8||—|
Supports 4th and 5th Generation Intel Core processors. Extreme multi graphics support. SATA Express support for 10 Gb/s data transfer. M.2 for SSDs drives with up to 10 Gb/s data transfer. Intel GbE LAN with CFOS internet accelerator software. Realtek ALC1150 115dB SNR HD Audio with built-in rear audio amplifier. Long lifespan Durable Solid caps. APP Center including EasyTune and Cloud Station utilities. GIGABYTE UEFI DualBIOS.
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Only complaint I have is the onboard sound card picks up interference if my computer is gaming or doing something else to use massive amounts of power. Dunno if it's the fault of the sound card or something else in my computer. I am happy with this motherboard, it's cheap and it works wonderfully!
SATA Ports are in a bad spot if you have a large video card in the top slot closest to the CPU.
CPU power adapter is very difficult to get plugged in with a large heat sync installed. If you use a modular PSU, plug the board side into the port before installing the board into the motherboard.
Comes with a fair amount of USB ports (4 USB 3.0 2 USB 2.0) so I was able to plug my whole arsenal in without even counting the front usb panel from my case (My arsenal being mouse, keyboard, wireless adapter, headset, nostromo, and even a controller)
The RAM slots are easily color coded so though it's recommended to consult the manual its not necessary.
In addition to everything else I have to add that I really enjoy the aesthetics of this board, very cool looking!
Top reviews from other countries
All RAM channels function.
All SATA ports function.
All PCI + PCIe ports function.
All USB ports function. (Slight give in 2 of the 3.0 ports, requiring the inserted cables to be bent just a touch to the side to make full connection, nothing so harsh that it would damage anything however)
Headers for USB ports, case panel buttons, fans and other accessories are clearly labeled.
Runs as hot as it looks with sexy red LED outline around a lot of the I/O and caps near the rear of the motherboard.
(Did not test SLI functionality or Crossfire,presumed to be functioning)
(Did not test M.2. slot, presumed to be functioning)
(Did not test on-board audio or video, presumed to be functioning)
Had a lot of fun rebuilding my PC onto this board.
Would reccomend to anyone who's looking to expand their 1150 socket build to be capable of SLI.
