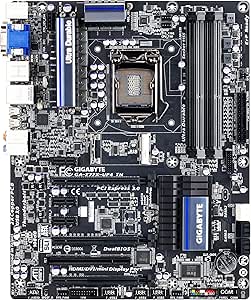

Gigabyte Intel Z77 Dual Thunderbolt ATX Motherboard (GA-Z77X-UP4-TH)

4.3 out of 5 stars 27 customer reviews
| 6 answered questions

Available from these sellers.
    This fits your .
  • Enter your model number to make sure this fits.
  • CPU: Intel LGA 1155 Core i7/i5/i3, Pentium and Celeron processor
  • Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory, Support for DDR3 1600/1333/1066
  • LAN:1 x Realtek GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots: 1 x PCI Express x16 slot running at x16, 1 x PCI Express x16 slot running at x8, 1 x PCI Express x16 slot running at x4, 3 x PCI Express x1 slots, 1 x PCI slot
  • Support for AMD CrossFireX/ NVIDIA SLI technology
  • Storage: 2 x SATA 6Gb/s, 4 x SATA 3Gb/s, 1x mSATA, RAID 0, RAID 1, RAID 5, and RAID 10
  • Internal I/O: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 4 x SATA 3Gb/s connectors 1 x mSATA connector 1 x CPU fan header 4 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF In header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header
  • Back Panel: 1 x PS/2 keyboard/mouse port1 x D-Sub port1 x DVI-D port1 x HDMI port6 x USB 3.0/2.0 ports2 x Thunderbolt ports1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
1 used from $1,653.17

Upgrade Your Gadgets.
Shop the must-have new computer products. Learn more

Product Description

Product Description

Supports 3rd Gen. Intel 22nm CPUs and 2nd Gen. Intel Core CPUs (LGA1155 socket) Dual Thunderbolt technology support GIGABYTE Ultra Durable 5 technology GIGABYTE 3-way Digital Power Engine with GIGABYTE 3D Power GIGABYTE 3D BIOS (Dual UEFI) Onboard mSATA slot for mSATA SSDs PCI Express Gen 3.0 support SLI and CrossFireX multi-GPU support Lucid Virtue Universal MVP GPU virtualization support

From the Manufacturer

GIGABYTE 7 series motherboards combine a host of new and exciting technologies with the latest Intel Z77 Express Chipset, creating a unique range of motherboard designs that harness the outstanding performance of the new 3rd generation Intel Core processors. With an exclusive 'All Digital' VRM design, GIGABYTE 3D Power and GIGABYTE 3D BIOS (Dual UEFI), GIGABYTE 7 series motherboards ensure exceptional power delivery and absolute control, with additional features that ensure an unrivalled experience on your next PC build.

Key Feature

  • Supports 3rd Gen. Intel 22nm CPUs and 2nd Gen. Intel Core CPUs (LGA1155 socket)
  • Dual Thunderbolttechnology support
  • GIGABYTE Ultra Durable 5 Technology
  • GIGABYTE 3-Way Digital Power with GIGABYTE 3D Power
  • Onboard mSATA slot for mSATA SSDs
  • PCI Express Gen 3.0 support
  • SLI and CrossFireX multi-GPU support
  • Lucid Virtu Universal& MVP GPU virtualization support
  • Realtek ALC898 with High Quality 110dB SNR HD audio
  • GIGABYTE On/Off Charge with 3X USB Power


GIGABYTE Motherboards Now Windows 8 Ready

Includes All Current Models

GIGABYTE Ultra Durable 5 -- The Industry's Highest Quality CPU Power Design

IR3550 PowIRstage

Highest rated and most awarded Power Stage in the industry.

  • Providing power delivery rated up to 60A, while maintaining cool operating temperatures.
  • Providing Perfect Match: GIGABYTE Ultra Durabl 5 motherboards use both IR digital PWM controllers and IR PowIRstage ICs, for a uniquely seamless power delivery system.
  • Industry Leading Peak Efficiency up to 95%.

2X Copper PCB

Providing sufficient power trace paths between components to handle exceptional power loads associated with overclocking and to remove heat from the critical CPU power delivery area.

High Capacity Ferrite Core Chokes

Rated up to 60A to provide the most stable power delivery.

GIGABYTE 3D BIOS(patent pending)

UEFI DualBIOS Technology

At the heart of this exciting 3D BIOS technology is a pair of 8MB physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS> makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

Dual Port Thunderbolt Motherboards

GIGABYTE motherboards, the very first to offer fully certified dual onboard Thunderbolt ports. Capable of connecting up to 12 devices plus 3 digital displays simultaneously, with breathtaking data transfer speeds that can transfer 1TB of data in only five minutes, GIGABYTE Thunderbolt motherboards offer the fastest connection interface ever on the desktop PC.

Daisy Chain Technology - Up to 12 devices + 2 Display monitors

GIGABYTE Thunderbolt motherboards allow users to daisy chain up to 12 devices simultaneously via an incredible bi-directional 10Gbps data pipeline that includes both PCIe and DisplayPort traffic. GIGABYTE Thunderbolt motherboards redefine desktop PC connectivity to make it far easier to connect multiple high speed storage devices and HD displays to your PC than ever before.

Dual Thunderbolt - Fast, Flexible and Simple Connectivity for your Motherboard

GIGABYTE Thunderbolt motherboards are the first to be certified by Intel featuring dual Thunderbolt ports directly on the motherboard back panel I/O, with each Thunderbolt port supporting a maximum data transfer speeds with simultaneous bi-directional data transfer at speeds of up to 10Gbps - this means you can transfer a full HD 1080p movie in under 30 seconds.

GIGABYTE's dual port Thunderbolt implementation ensures the absolute maximum potential connectivity, with support to connect up to 12 individual devices simultaneously, with each port offering full 10Gbps bandwidth.

Product Information

Technical Details

Collapse all
Summary : Screen Size, Screen Resolution, Graphics Coprocessor, Graphics Card RAM
RAM DDR3 1066;DDR3 1333;DDR3 1600
Number of USB 2.0 Ports 3
Brand Name Gigabyte
Series GA-Z77X-UP4-TH
Item model number GA-Z77X-UP4-TH
Hardware Platform PC
Item Weight 2.2 pounds
Product Dimensions 14 x 12 x 4 inches
Item Dimensions L x W x H 14 x 12 x 4 inches
Computer Memory Type DDR3 SDRAM

Additional Information

Customer Reviews
4.3 out of 5 stars 27 customer reviews

4.3 out of 5 stars
Best Sellers Rank #1,784 in Computers & Accessories > Computer Components > Motherboards
Shipping Weight 3.5 pounds
Date First Available July 31, 2012

Warranty & Support

Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is "dead on arrival," arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test "dead on arrival" returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor.
Product Warranty: For warranty information about this product, please click here


Would you like to tell us about a lower price?

Customer Questions & Answers

Customer Reviews

Top Customer Reviews

Verified Purchase
I bought this motherboard only because it was one of the few who had Thunderbolt support and I needed to use my 27'' Apple Thunderbolt Display; it works perfectly well, but if you happen to install a discrete video card it will default output video to that one until you install the Intel HD graphics drivers; also you will have to install the VirtuMVP suite (which this motherboard supports natively) to take advantage of external GPU power through thunderbolt.

I'm very pleased with it so far, I only wished it came with built-in Wi-Fi, feels like such a basic feature should be standard with everything these days.
1 Comment 4 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
I have only owned this for a week. Windows 7 Professional does not support much of the chipset on a fresh install, so you will need to use the provided disc. I am probably one of the first to purchase this motherboard, but it came with the 2nd revision of the UEFI (the new type of BIOS), and the third revision is available for update at the time of this post (rev. F3). Although I am planning to overclock the Intel Ivy Bridge Core i5 3570k, I have not gotten around to it yet. It does support higher clocked memory right out of the gate, so my purchase of the G.Skill 1866Mhz RAM was auto-enabled through the BIOS XMP profile, and confirmed through CPU-Z in Windows. I was surprised at the software bundles: You can turn on/tweak overclocking from inside your Windows 7 OS instead of backing out to your UEFI, 3TB hard drives are supported after running an update, you can software switch between integrated or discrete cards, control your mobo settings & OS through your iPhone, etc.

One major issue in Windows: two out of the six USB ports are controlled by the Intel chipset and are marked as "Keyboard/Mouse" inputs (the two USB ports directly under the Ethernet port). Although these two ports detect USB hubs and USB drives, they will not detect certain external hard drives or the iPhone. They are designed to be underpowered ports. Also, the other 4 USB ports are run by a VIA controller, which is unsupported by Apple OS X Mountain Lion. Another issue in Windows: upon first install, the audio from the Intel HD Audio would stutter every few seconds. The issue seemed to have resolved itself when I also noticed that the Realtek audio was set to 96000Hz instead of the standard CD-quality audio of 41000Hz; so fixing this setting might have helped.
Read more ›
2 Comments 9 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
This motherboard is fantastic. I bought it to upgrade an Asus that I had. My system is:
Intel Core i5 2500k
12gb Corsair Vengeance 1600Mhz ram
32gb mSATA SSD (boot drive)
1TB Western Digital Data drive
Nvidia gtx 570

This motherboard is awesome. it is the first one I have owned that has a built in mSATA slot. I bought a small SSD and am using it as the boot drive, and it is awesome. The motherboard had no problem recognizing it on the first boot and it run perfectly every time.
There are plenty of SATA ports. It is worht noting that if you are using the mSATA port, the motherboard disables the sixth SATA port. So altogether, you can have 6 SATA devices/drives, not 7.
The BIOS is very user friendly. Nice and detailed and with a great GUI. Very easy to use.
The main feature of this motherboard is the 2 thunderbolt ports. I used the Seagate GoFlex Thunderbolt Adapter (STAE121) on one of my SSD drives. It was not as fast as I wanted, but that is because it is not a true thunderbolt connection. The speed was bottlenecked by the SATA interface of the hard drive. However, even with that, I was consistently getting ~200 MB/s write and ~240 MB/s read (that's megabyte, not megabit). That is not as fast as a real thudnerbolt hard drive or SSD would perform, but it is still way faster than USB 3.0 and eSATA. The thunderbolt ports are fantastic.

Everything else about the motherboard is as you'd expect. It's a good consumer board with lots of ports and connections. And 2 thunderbolt ports. For a very reasonable price.
Comment One person found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
It was time to build myself a new computer. I knew I wanted a MB that would be compatible with Ivy bridge processor, be USB3.0, Sata6GB/s and easy for overclocking.
I had a very good prior experience with Gigabyte. I was previously using a E-58 Extreme. So I went with the GA-Z77X-UP4-TH.
I had no idea what a thunderbolt port is for but I was pleased with all the USB ports on the board, the HDMI integrated video card.
Anwyay... Here is what I like:
- Plenty of USB2 and USB3 ports.
- Solid board
- Video card integrated
- BIOS very easy to setup and dual boot for security.
- BIOS updates can be done from Windows.

What I do not like:
- USB3 ports not always backward compatible.
- Suddenly my Logitech G11 keyboard lose its functions while in use and I have to unplug and replug the Keyboard to remedy the issue.
- No COAX plug for audio output
- Only 6 Sata ports (4xSata2 + 2xSata3). Since I had more drives, I had to buy a PCI Sata card which does not always get recognized when booting cold.

Now all these glitches do not please me, by far... Yet the board still works and I can run my games at max resolution, overclock my 3770x Processor to 4.5GHz with cores running around 30c idle.

So I am definitely not going to undo everything and have to reinstall windows again to try another board.

In conclusion: If you plan on using thunderbolt, do not use more than 5 HD + 1DVD and do not use too many USB appliances, this board should be fine for you!
