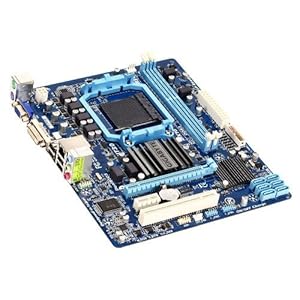

Gigabyte AMD 760G + SB710 Chipset DDR3 1333 AM3+ Micro ATX Motherboard (GA-78LMT-S2P)

4.3 out of 5 stars 74 customer reviews
| 30 answered questions

Available from these sellers.
    This fits your .
  • Enter your model number to make sure this fits.
  • CPU: AM3+/AM3 Phenom II processor / AMD Athlon II processor: AMD 760G / AMD SB710Hyper Transport Bus: 5200 MT/s
  • Memory:2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
  • Audio: Realtek ALC889 codec ;High Definition Audio; 7.1-channelLAN: 1 x Realtek 8111E chip (10/100/1000 Mbit)
  • Expansion slots: 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot1 x PCI slot
  • Storage Interface:6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices Support for SATA RAID 0, RAID 1, RAID 10, and JBODUSB:
  • Audio: Realtek ALC889 codec ;High Definition Audio; 7.1-channelLAN: 1 x Realtek 8111E chip (10/100/1000 Mbit)
  • Back Panel Connectors:1 x PS/2 keyboard port1 x PS/2 mouse port1 x D-Sub port1 x DVI-D port4 x USB 2.0/1.1
Show more
1 used from $50.00

Upgrade Your Gadgets.
Shop the must-have new computer products. Learn more

Technical Details

  • Processor Socket: Socket AM3+
  • Form Factor: Micro ATX
  • Chipset Type: AMD 760G
  • RAM Memory Technology: DDR3 1066;DDR3 1333
  • Width: 10.00 inches
See more technical details

Product Description

3X USB power delivery for greater compatibility and extra power for USB devices. Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch Next Generation. Ultra Durable 2 Classic and 4+1 Phase CPU Power design Supports AMD AM3+ & AM3 PhenomII/ AthlonII processors. Integrated ATI Radeon HD 3000 graphics (DirectX10). Innovative Turbo 3D technology to unleash extra levels of 2D/3D graphics performance. PCI-E 2.0 x16 interface for ultimate graphics performance. Hi-def 108dB Signal-to-noise ratio. Blu-ray DVD audio playback. Hybrid EFI technology with DualBIOS for 3TB HDD support. Integrated DVI interface with HDCP support

Product Information

Product Dimensions 11 x 11 x 3 inches
Item Weight 2.3 pounds
Shipping Weight 1.8 pounds
ASIN B0054OWT0G
Item model number GA-78LMT-S2P
Customer Reviews
4.3 out of 5 stars 74 customer reviews

4.3 out of 5 stars
Best Sellers Rank #1,180 in Electronics > Computers & Accessories > Computer Components > Motherboards
Date first available at Amazon.com May 1, 2011

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Feedback

Would you like to tell us about a lower price?

Customer Questions & Answers

Customer Reviews

Top Customer Reviews

Verified Purchase
The product name for this board says AM3 but this board is actually supposed to work with the future AM3+ cpu's as well. The black socket is proof of that, AM3 boards have white sockets, I was a little disappointed I couldn't find an AM3+ board in this price range with SATA 6 GB/s ports or USB 3.0 but I don't think I'm going to be buying an SSD anytime soon making the SATA 6 GB/s next to worthless for me and few electronic devices out there make use of USB 3.0. The heatsink on the north bridge seemed a little loose but that isn't really a concern. I bought this board to upgrade from a foxconn with the same chipset because it was still using DDR2 ram and I got a hold of some DDR3 ram I wanted to use, I was only looking to spend in this price range for a new board and it was a bonus it'll support the bulldozer cpu's.

Apparently the new AM3+ cpu's will be supported by some of the current AM3 boards with a bios update but the AM3+ motherboards are supposed to have bigger pin holes to support higher power current. The only real differences between the 700 series motherboards and 800 series motherboards are that the integrated graphics are better on the 800 series and they have a SATA III controller and possibly USB 3.0 ports. Unless you're using a SATA III SSD it doesn't offer any benefit over SATA II because HDD's don't even fully saturate the SATA II connections and HDD's made for SATA III are backwards compatible. Furthermore, the only differences between the 800 series motherboards and the 900 series motherboards are the 900 series offer SLI support, AMD states they only give official support for 900 series motherboards to be used with AM3+ CPU's but they also say the previous generation chipsets should work with them as well.
Read more ›
5 Comments 21 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
I benchmarked this motherboard with the Phoronix test suite.
It compared very well with Intel systems. Great mATX board. No problems.
Flawless performance.
Using Ubuntu Linux 11.10. AMD 1055T X6
Comment 9 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
It's okay I guess.... but with so many revisions running around you never know which one you are going to get. Some don't support 125w cpus Plug & Play and some Rev's just dont support anything higher than 95w.

It's really poor advertising on their part because what they say on the manufacturers page might not be relevant to what you got in the box.

It also does not overclock memory well at ALL, I got 2x Kingston Hyperblu X @ 1333 8gb dual channel and it DOWNCLOCKED at post.

Had to go in to the BIOS to change and BAM BSOD? WTF!? So overvolting to the memory by about .5v and now it runs at stock speeds.

Its not the memory because I bought an ASUS M5A78L Micro Board with the same specs just 125w support and everything worked right out of the box.

Caveat Emptor.
Comment 3 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
The best feature of this AM3 motherboard, by far, is the 6 SATA connectors. It's hard to find reasonably priced motherboards in Micro ATX form factor that have more than 4 of them. It also includes onboard video, making it a great choice for media servers, file servers, and budget builds.

I used this motherboard as part of a low cost media server for my parents, capable of streaming or transcoding 1080p video via PS3 Media Server over a wired connection.

Paired with a triple core AMD Rana 445, a cheap stick of 4GB DDR3 RAM, and a bunch of 2TB WD Green drives, it is working beautifully, on the cheap. The onboard video is a bit weak, but if you are using a front end like a PS3 or other PS3 Media Server compatible DLNA device (including Xbox360), there is absolutely no need for video or audio processing in a media server of this type. Media servers that serve directly from PC -> TV have higher performance requirements, but if serving from PC -> DLNA device -> TV, you can cut audio & video cards out.

Gigabyte has always been a reliable motherboard manufacturer for me, and I have had great luck with their motherboards for both Intel and AMD sockets. Always lots of BIOS features.
Comment 6 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
This motherboard is in the computer I'm currently using. I bought it over a year ago and I have no complaints. Never had a problem, and my computer runs at a speed that I'm happy with. If you're planning on buying this and don't have a AMD processor, I'd suggest the AMD FX 4100 4-Core Processor, 3.6 4 Socket AM3+ ... That's what I got and it's worked wonderfully.
Comment 3 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
It was my fault for not checking but this mobo wouldn't handle the newest AMD cpus. It does actually run them but at a reduced clock rate. Overall, its an older model on discount for a reason. But if you have an older CPU model you won't have any issues.
Comment 2 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
This motherboard does everything I expected it to do. To be honest when I first bought this I had buyers remorse because I continuously found bad reviews on forums right after purchasing. Well, just to let everyone know I use this motherboard in my current gaming pc without a problem. I have an AMD FX 6300 Overclocked to over 3.8 Ghz and a GTX 650 Ti boost. I play games like Crysis 3 and Assassin's Creed IV: Black Flag without a hitch. With that being said (THIS IS A 95 WATT SOCKET BOARD). Do not buy a FX9590 and expect it to work ok. For more info go to Gigabyte's web page and view there CPU support list. This is Rev. 5.x on there page.
