| Part Number | G8688 |
|---|---|
| Item Weight | 89.2 pounds |
| Product Dimensions | 13 x 30.2 x 13 inches |
| Item model number | G8688 |
| Size | Not applicable |
| Color | Not applicable |
| Style | Grizzly |
| Material | steel |
| Voltage | 110 volts |
| Horsepower | 1 |
| Item Package Quantity | 1 |
| Measurement System | both |
| Special Features | Swing over bed: 7" Distance between centers: 12" Bore Size of Included Chuck: 16mm Spindle bore: 20mm Spindle nose taper: MT #3 Tailstock taper: MT #2 Tailstock travel: 2-1/2" Cross-slide travel: 2-3/4" Maximum tool bit size: 5/16" Speed range: Low Range: 0-1100 RPM, High Range: 0-2500 RPM Range of threads: 12-52 TPI Motor: 3/4 HP, 110V, single-phase Number of thread pitches: 18 inch & 10 metric Net weight: 74 lbs. Shipping weight approximate: 90 lbs. |
| Batteries Included? | No |
| Batteries Required? | No |

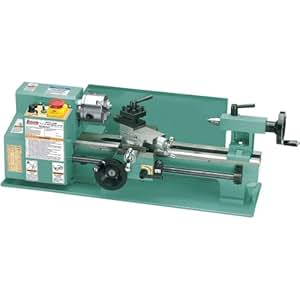

Grizzly G8688 Mini Metal Lathe, 7 x 12-Inch
by
Grizzly
Available from these sellers.
- Enter your model number to make sure this fits.
- Variable Speed
- 16 TPI Reversible Lead screw
- Forward and reverse in all speeds
- Chip Tray and Backsplash Guard
- Threading Dial Indicator
This fits your .
3 new from $1,149.95
This item’s packaging will indicate what is inside and cannot be hidden.
Customers Who Bought This Item Also Bought
Page 1 of 1 Start overPage 1 of 1
From the Manufacturer
Front View
Turret Tool Post
G8688 7 x 12 inch Mini Metal Lathe
This Mini Metal Lathe may look small but you'll be amazed at what you can do with this little guy. Powered by a 3/4 HP motor, this lathe also features: variable speeds (0-2500 RPM), inch and metric reading dials, turret tool post, chip tray and splash guard. Perfect machine for hobby and small jobs.
Capacity
It features a 7 inch swing over bed, 12 inch distance between centers, 2-1/2 inch tailstock travel, 2-3/4 inch cross slide travel, and 20mm spindle bore. Threading capabilities include a thread range of 12-52 TPI and 18 standard and 10 metric thread pitches. Includes threading dial indicator and standard and metric handwheel graduations.
Speeds
Variable speed from 0-1100 RPM for low range and 0-2500 RPM for high range. Forward and reverse in all speeds. 16-TPI reversible leadscrew.
Standard Equipment
Standard Equipment
Includes chip pan; backsplash guard; 3 inch, 3-jaw chuck with external jaws; 6-1/4 inch face plate; steady rest; 4-way turret post; MT#2 dead center; and service tools.
Features and Specifications
- Variable Speed
- 16 TPI reversible leadscrew
- Forward and reverse in all speeds
- Chip tray and backsplash guard
- Threading dial indicator
- Standard and metric graduation
- Made in an ISO 9001 factory
- Swing over bed: 7 inches
- Distance between centers: 12 inches
- Bore Size of Included Chuck: 16mm
- Spindle bore: 20mm
- Spindle nose taper: MT #3
- Tailstock taper: MT #2
- Tailstock travel: 2-1/2 inches
- Cross-slide travel: 2-3/4 inches
- Maximum tool bit size: 5/16 inch
- Speed range: Low Range: 0-1100 RPM, High Range: 0-2500 RPM
- Range of threads: 12 to 52 TPI
- Motor: 3/4 HP, 110-volt, single-phase
- Number of thread pitches: 18 inch & 10 metric
- Net weight: 74 pounds
- Shipping weight approximate: 90 pounds
Technical Details
- Swing over bed: 7" Distance between centers: 12" Bore Size of Included Chuck: 16mm Spindle bore: 20mm Spindle nose taper: MT #3 Tailstock taper: MT #2 Tailstock travel: 2-1/2" Cross-slide travel: 2-3/4" Maximum tool bit size: 5/16" Speed range: Low Range: 0-1100 RPM, High Range: 0-2500 RPM Range of threads: 12-52 TPI Motor: 3/4 HP, 110V, single-phase Number of thread pitches: 18 inch & 10 metric Net weight: 74 lbs. Shipping weight approximate: 90 lbs.
Product Description
Variable speed, Brushless motor, Safety switch, Four position turret post, complete set of changing gear, easy operate.
Customer Reviews
Top Customer Reviews
By
Robotster
on September 19, 2005
I have been interested in buying a lathe for hobby work and have done research and talked to people about their experiences. I was convinced that the Grizzly was the best choice for a few reasons. Basically, the level of quality in all of the lathes in this category is about the same since they are all manufactured in China by just a couple of manufacturers, so this was a wash in terms of which brand to choose. It came down to features, included accessories and convenience. The desirable features on this unit were the wider bed for work on longer pieces and the variable speed motor control. Being new to a tool like this, the fact that different materials require different cutting speeds would require gear changes on lathes without the speed adjustment. The ability to slowly bring a piece of work up to the proper speed is also important to a novice (like me) to determine if the work is mounted and centered properly on the chuck. The Grizzly box arrived in pristine condition, but that did not indicate a damage free shipment as the drip tray was bent in shipment. One call to the customer service group at Grizzly solved this by way of a new tray sent to arrive in just a couple of days. Nice, helpful people at Grizzly - this will be a strong point the next time I shop for a tool. I have turned a few items on the lathe already, and all seems fine. The slides have very little play and the chuck centers properly with almost no run-out. If you are new to this hobby, you will find the web site very helpful. They have an abundance of great info for the beginner and intermediate machinist. The fact that they had an in depth review and adjustment and set up pointers specifically for this lathe really made my selection a lot easier. Be ready to buy additional accessories to get up and running. A live center and a steady rest were included, but cutting tools and a Jacobs chuck are required items not included in the box.
