Real kapton tape is very expensive stuff. It's used on space-craft and in avionics and because of that the original manufacturer can charge very hefty prices (high double digits) per roll. I suppose if I were using it for something that human life or millions of dollars depended on I'd opt for the name brand.
That said this worked just fine for my purpose at a fraction of the cost. I used it to insulate the pin 3 connector on an enterprise SATA hard drive from power. The reason for this being I bought some cheap used enterprise hard drives that have a feature (power disable) that when power is supplied on a certain pin tells the drive to disable itself. Useful in certain datacenter environments but with consumer PC power supplies those pins still supply legacy 3v power which unfortunately makes the drive unusable. I could snip the power wire or break off the pins but instead I covered the first 3 pins (none are needed in modern drives though only pin 3 is the problem) with this electrically insulating tape and the drives now spin up and I'm fairly confident I don't have to worry about shorts, fires, or anything of the sort because of the properties of this type of material.
Can't speak to high heat resistance or other uses and I've only had it in service for about 5 months. I'll probably replace the tape if I ever have to remove the power connector as Kapton is not guaranteed against mechanical wear and it's not sticky enough I trust it to stay in place after the connector is removed. Then again the lack of stickiness is a good thing because it means no residue.
Just editing this to say I have since used this while soldering and I can confirm it protects components from a brief clumsy touch of the iron and its high heat, even at temperatures of 600 degrees F on my Hakko.
Add Prime
to get Fast, Free delivery
$4.99 with 29 percent savings $0.05 per Foot
List Price: $6.99
The List Price is the suggested retail price of a new product as provided by a manufacturer, supplier, or seller. Except for books, Amazon will display a List Price if the product was purchased by customers on Amazon or offered by other retailers at or above the List Price in at least the past 90 days. List prices may not necessarily reflect the product's prevailing market price.
Learn more
Learn more
Frequently bought together
This item: MS WGO 12mm X 33m 108ft Heat Tape Heat Resistant Tape Heat Transfer Tape Thermal Tape High Temp Tape High Temperature Tape Heat Tape for Sublimation for Heat Press No Residue 1Roll
$4.99 ($0.05/Foot)
Get it as soon as Monday, Jan 27
In Stock
+
$7.99
Get it as soon as Monday, Jan 27
In Stock
+
$6.35 ($7.94/Ounce)
Get it as soon as Monday, Jan 27
In Stock
Total price: $00
To see our price, add these items to your cart.
Choose items to buy together.
Related Climate Pledge Friendly items
Page 1 of 1 Start overPage 1 of 1
Sustainability features
This product has sustainability features recognized by trusted certifications.Carbon emissions from the lifecycle of this product were measured, reduced and offset.As certified by
Carbonfree Certified
Each Carbonfree Certified product goes through a cradle-to-grave assessment to determine the product’s carbon footprint. The carbon emissions associated with the product are reduced where possible, and remaining carbon emissions are offset with third-party verified carbon reduction projects in renewable energy, energy efficiency and forestry.Sustainability features
This product has sustainability features recognized by trusted certifications.Carbon emissions from the lifecycle of this product were measured, reduced and offset.As certified byCarbonfree Certified
Each Carbonfree Certified product goes through a cradle-to-grave assessment to determine the product’s carbon footprint. The carbon emissions associated with the product are reduced where possible, and remaining carbon emissions are offset with third-party verified carbon reduction projects in renewable energy, energy efficiency and forestry.Sustainability features
This product has sustainability features recognized by trusted certifications.Carbon emissions from the lifecycle of this product were measured, reduced and offset.As certified by
ClimatePartner certified
The Climate neutral label by ClimatePartner certifies that the carbon footprint of a product was calculated and all associated emissions were offset. Additionally, ClimatePartner encourages companies to set ambitious reduction targets and reduce their products' carbon footprints. The certificate number can be entered on ClimatePartner’s website for additional information such as the supported carbon offset project(s). ClimatePartner is improving lives by helping companies tackle climate change with practical solutions.Certification NumberYKXCITSustainability features
This product has sustainability features recognized by trusted certifications.Carbon emissions from the lifecycle of this product were measured, reduced and offset.As certified byCarbonfree Certified
Each Carbonfree Certified product goes through a cradle-to-grave assessment to determine the product’s carbon footprint. The carbon emissions associated with the product are reduced where possible, and remaining carbon emissions are offset with third-party verified carbon reduction projects in renewable energy, energy efficiency and forestry.Sustainability features
This product has sustainability features recognized by trusted certifications.Carbon emissions from the lifecycle of this product were measured, reduced and offset.As certified byCarbonfree Certified
Each Carbonfree Certified product goes through a cradle-to-grave assessment to determine the product’s carbon footprint. The carbon emissions associated with the product are reduced where possible, and remaining carbon emissions are offset with third-party verified carbon reduction projects in renewable energy, energy efficiency and forestry.Sustainability features
This product has sustainability features recognized by trusted certifications.Carbon emissions from the lifecycle of this product were measured, reduced and offset.As certified byCarbonfree Certified
Each Carbonfree Certified product goes through a cradle-to-grave assessment to determine the product’s carbon footprint. The carbon emissions associated with the product are reduced where possible, and remaining carbon emissions are offset with third-party verified carbon reduction projects in renewable energy, energy efficiency and forestry.
Product Description
Applications:
- Automotive sensor and manifolds
- Microelectronics
- Insulating circuit boards
- Etching
- Liquid crystal
- High temperature powder coating
- Electrical circuit
- Space flight
- Laser
- Aviation

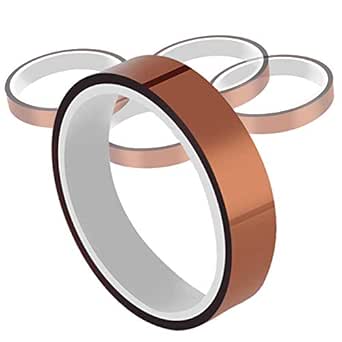

MS WGO High Temperature Heat Resistant Tape
Specification:
- Substrate material: Polyimide polymers film
- Glue Type: Silicone
- Substrate material thickness: 0.025mm
- Thickness with adhesive: 0.05mm
- Adhesive strength: 4.5N/25MM
- Tensile Strength: 115N/25mm
- Elongation: 50 %
- Temperature Range:-73°C – 260°C (-99°F - 500°F)
- Breakdown voltage:Min 4KV
High Temperature Heat Resistant Tape
- Leaves no residues after you peel them off
- High temperature application (over 450 F)
- They always holds tight throughout the tape’s rated temperature range
Leaves no residues
- No brittle after heating
- Heat resistant tape is a polyester film tape with a high temperature resistant adhesive.
- Used in various electrical/electronic product manufacturing processes due to its' excellent heat resistance and electrical insulation.
- Short period Heat Resistance:260℃
- Long period Heat Resistance:220℃
Suitable for a variety of scenarios：
liquid crystal
Microelectronics
Space flight
Electrical equipment
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
|
|
|
|
||||
| Customer Reviews |
1,521
|
1,873
|
— |
1,521
|
189
|
2,828
|
| Price | — | $4.99 | — | $6.99 | — | $8.99 |
| Tape width | 7mm | 12mm | 13mm | 13mm | 20mm | 10mm |
| Leaves no residues | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Temperature Range:-73°C – 260°C (-99°F - 500°F) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Easy to operate | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Helped out tons! Perfect for internal applications.
Non conductive so I can use anywhere! Love that! Decently sticky!Has a funny smell!Perfect to use as a solder mask if in a pinch!
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
- Reviewed in the United States on July 16, 2023
- Reviewed in the United States on September 24, 2024
Helped out tons! Perfect for internal applications.Non conductive so I can use anywhere! Love that! Decently sticky!
Reviewed in the United States on September 24, 2024
Has a funny smell!
Perfect to use as a solder mask if in a pinch!
