| Manufacturer | HiLetgo |
|---|---|
| Part Number | 3-01-0205 |
| Item Weight | 0.81 ounces |
| Package Dimensions | 2 x 1 x 0.1 inches |
| Item model number | 3-01-0205 |
| Is Discontinued By Manufacturer | No |
| Material | Plastic |
| Voltage | 2.5 Volts |
| Item Package Quantity | 1 |
| Measurement System | Metric |
| Certification | Ma |
| Batteries Included? | No |
| Batteries Required? | No |
| Battery Cell Type | Lithium |

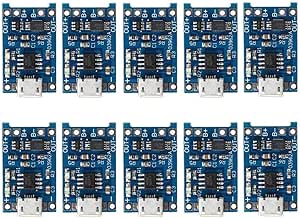

HiLetgo 10pcs 5V 1A 18650 Lithium Battery Charging Board TP4056 Lithium Battery Charging Board Micro USB Charge Module With Protect
- Free returns are available for the shipping address you chose. You can return the item for any reason in new and unused condition: no shipping charges
- Learn more about free returns.
- Go to your orders and start the return
- Select the return method
- Ship it!
- Free returns are available for the shipping address you chose. You can return the item for any reason in new and unused condition: no shipping charges
- Learn more about free returns.
- Go to your orders and start the return
- Select the return method
- Ship it!
Enhance your purchase
| Brand | HiLetgo |
| Certification | Ma |
| Input Voltage | 5 Volts |
About this item
- Make sure this fits by entering your model number.
- HiLetgo 10pcs 5V 1A 18650 Lithium Battery Charging Board
- Input Voltage: 5V
- Charging cut-off voltage: 4.2V ± 1%
- Maximum charge current: 1000mA
Frequently bought together

- +
- +
Product Description
5V 1A 18650 Lithium Battery Charging Board Micro USB Charge Module With Protect
1A Rechargeable Lithium Battery Charging Module and Protection Module Two in One
1A Rechargeable Lithium Battery Charging Module and Protection Module Two in One
Features and Parameters:
MICRO USB inputs with female, can be directly input to do with cell phone charger rechargeable lithium battery.
And still retain the input voltage wiring joints, can be very handy DIY
Input Voltage: 5V
Charging cut-off voltage: 4.2V ± 1%
Maximum charge current: 1000mA
Battery over-discharge protection voltage: 2.5V
Battery overcurrent protection current: 3A
Board size: 2.6 * 1.7CM
Note:
1. When the first time you access the battery, there may be no voltage output between OUT- and OUT +, at this time, get access to the 5V voltage, it will be activated.
2. When the battery was get out from B + and B- , it still need to be charged then can be activated .
3. If you want to use Phone charger to charge, the current input should be up to 1A and more, otherwise it can not be in normal charged.
Connect the battery to the B + and B-, insert the phone charger into the USB female, red light means being charged, the green light means full charged.
Product information
Technical Details
Additional Information
| ASIN | B00LTQU2RK |
|---|---|
| Customer Reviews |
4.5 out of 5 stars |
| Best Sellers Rank | #6,998 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #1 in Power Entry Modules |
| Date First Available | July 15, 2014 |
Warranty & Support
Feedback
Important information
2 volts
Explore more from HiLetgo
Customer reviews
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
Learn more how customers reviews work on AmazonReviewed in the United States on October 29, 2021
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
I will note that the micro-USB connections on the board are reasonable, and have through-holes, but it's still quite possible to accidentally rip them off if you're not careful. I would advise using hot glue, or some similar non-conductive adhesive to help better hold it in place if you plan on using them for regular charging. This is common to many such surface mounted ports, but important to recognize.
Happily this also exposes the raw terminals as solder-able mount points, so losing the port doesn't mean it's impossible to use if it does come off.
Finished my test of this product using a 5v 1.2A cellphone charger and found it charged my 18650 battery from 3.4v to cut-off at 4.1v just as advertised within the spec notes. It took approximately 3hrs to reach its cut-off. The fully charged indicator is blue and not green but who really cares, it works.
I would buy from this seller again.
A good solid product.
Reviewed in the United States on March 12, 2019
A good solid product.
