|Item Weight||4 ounces|
|Product Dimensions||1.5 x 1.8 x 8.7 inches|
|Item model number||RPLS740B1008/U|
|Item Package Quantity||1|
|Battery Cell Type||NiMh|
|Warranty Description||Comes with Manufacturer Warranty.|
Honeywell Econoswitch RPLS740B 7-Day Solar Time Table Programmable Switch for Lights and Motors
- Enter your model number to make sure this fits.
- Two operating modes: Manual - Conventional on/off switch and Automatic
- Programming: Up to 7 programs - 7 on/off times per week. A program can apply to a single day or repeat every day
- Connection: 3 wire - line, load, neutral, 1800 W max
- Compatible with CF Bulbs
- Sleek design mounts flush with standard decorative wallplate (Sold separately)
- Requires natural wiring for correct install. Refer to the user manual for Trouble Shooting Steps.
Frequently bought together
Customers who bought this item also bought
Have a question?
Find answers in product info, Q&As, reviews
Please make sure that you are posting in the form of a question.
From the manufacturer
Honeywell RPLS740B1008/U ECONOSwitch 7-Day Solar Programmable Light Switch Timer (White)
- Sleek design mounts flush with standard decorative wallplate (not included).
- Two operating modes: Manual (conventional on/off switch) and Automatic.
- Programming: Up to 7 programs (7 on/off times) per week. A program can apply to a single day or repeat every day (a program that repeats every day is still considered one program).
- Connection: 3 wire (line, load, neutral) (1800 W max).
- Compatible with CF Bulbs
- Includes LED Compatibility
Works with motors and all types of lighting
The Honeywell RPLS740B1008/U 7-Day Solar Time Table Programmable Switch for Lights and Motors helps you save money by ensuring that your lights come on only when you need them. Compatible with CF Bulbs, this works with incandescent, halogen and fluorescent lighting, making it ideal for indoor or outdoor operation. It also works with ceiling fans, bathroom fans, pond pumps and pool pumps. Featuring three operating modes and seven programs, the 7-Day Solar Time Table Programmable Switch for Lights and Motors allows you to create programs that best suit your individual needs. Its sleek design fits flush with standard wallplates, while the large screen and backlight provide clear viewing, even at night. Easy to install and equipped with an automatic daylight saving update, this switch works to keep energy costs down even when you're not around.
LED compatibility requires neutral wire for operation. To be precise, this light switch timer functions on a 120 Volt line wire, load wire, one neutral from line side and one from the load side joined together with a wire nut. Once these components are connected with the timer, the Honeywell RPLS740B1008/U will have LED compatibility. It's also important to note that the wattage of the LED bulb should not exceed 1800 Watts.
The Honeywell RPLS740B 7-Day Solar Time Table Programmable Switch for Lights and Motors helps you save money by ensuring that your lights come on only when you need them. This unit works with incandescent, halogen, and fluorescent lighting, making it ideal for indoor or outdoor use. It also works with ceiling fans, bathroom fans, pond pumps, and pool pumps. Featuring three operating modes and seven programs, the 7-Day Solar Time Table Programmable Switch for Lights and Motors allows you to create programs that best suit your lifestyle. Its sleek design fits flush with standard wallplates, while the large screen and backlight provide clear viewing, even at night. Easy to install and equipped with an automatic daylight saving update, this switch works to keep energy costs down even when you're not around.
The 7-Day Solar Time Table flexible programming allows you to create up to seven programs per week.

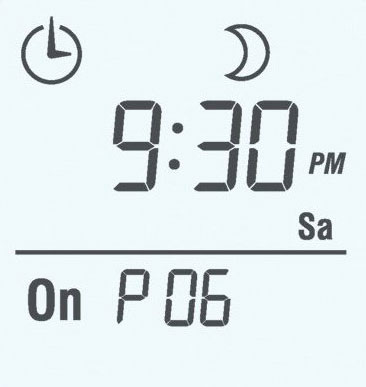

The display features simple and easy to read information at a glance. View larger.
Save money on your energy bills with the Honeywell 7-Day Solar Time Table Programmable Switch for Lights and Motors. With its three different operating modes, you can customize your system to best suit your lighting needs. The automatic mode turns lights on at sunset and off at sunrise using the solar timetable or you can choose fixed hours to avoid having the lights on all night, while the manual setting lets you use it as a conventional switch. For extra security, the random mode works by turning lights on and off inside the house while you're on vacation. This simulates an active household, discouraging potential break-ins and giving you peace of mind while you're away.
Includes Seven Customizable Programs
The 7-Day Solar Time Table flexible programming allows you to create up to seven programs per week. A single program can apply to one day or the entire week. Whether you want living room lights off during the day, or patio lights on after sunset, Honeywell provides you with numerous customizable options for incandescent, halogen, and fluorescent lighting systems.
A handy manual override allows you to turn the light on or off without affecting the current program. For added convenience, this switch also automatically adjusts for daylight saving time so you don't have to worry about reprogramming.
Activate Lights with Solar Timetable Function
When you enter your home's latitude and longitude, the Solar Time Table switch calculates the sunrise and sunset times for each day of the year. The program automatically turns your lights on and off with the daylight, so you always have light when it's most useful. The switch also gives you the option of adjusting lights up to an hour before actual sunrise or sunset, ideal for places where trees block the majority of natural light.
Slim Design and Simple Installation
Thanks to its compact design, the Solar Time Table Programmable Switch adds a sleek and subtle touch to your room. It measures a slim 2-7/10 by 1-7/10 by 1-7/10 inches (H x W x D) for a flush fit in any standard decorative wallplate. The intuitive three-button interface makes it simple to create your programming schedule, providing a wide screen and backlight for easy viewing day or night. An LED offers you quick confirmation of its on/off status. Its large backlit screen comes with the option to stay lit up on low intensity as a nightlight and turns on its high intensity when you press either of the buttons. It installs easily with its line, neutral and load wire connection.
An Way to Save Money
Because the Solar Time Table works automatically, you can save money on your energy bills with the push of a button. The programming limits unnecessary use of lights, giving you more control over how much electricity you consume. Your household becomes more , and you get longer-lasting lights.
The Honeywell 7-Day Solar Time Table Programmable Switch for Lights and Motors is supported by a one year limited warranty.
What's in the Box
Switch, wire connectors and instructions.
The compact design of the Solar Time Table Programmable Switch
adds a sleek and subtle touch to your room.
From the Manufacturer
The Honeywell Econoswitch 7-day solar programmable wall switch can help save money by ensuring that your lights come on only when you need them. The sleek design mounts flush with standard decorative wall plate (not included). There are three operating modes: manual (conventional on and off switch), automatic, and random. There are up to 7 programs (7 on and off) per week. A program can apply to a single day or repeat every day. The connection is a single pole 3-wire (line, load, neutral 1800-watt maximum, 3/4-horsepower at 120-volt). For each day of the week, one is able to choose sunset and sunrise programming. It is simple to use - easy 3-button interface for easy operation and programming. There is a manual override, which enables load to be turned on/off without effecting programming. The programming is protected during power outages. This switch can also be used like a conventional on/off switch, is CFL and LED compatible, and no minimum wattage required. There is a random mode which turns lights on/off at random for added security when away from home. The large screen with with back-lit display is easy-to-read.
Top customer reviews
There was a problem filtering reviews right now. Please try again later.
Hopefully this will save you some time.
This switch requires three wires. The "Line" or Hot wire (usually black), the "Load" usually blue/red and Neutral (usually white). My old switch that controls porch light only had two wires installed, Line (Black) and Load (Red), but I found the Neutral (White) wire tucked behind. After connecting the Line and Load wires, the switch did not power on. So I reversed the Line and Load wires and it works.
Programming is straight forward. I like the fact that I can have my porch light turn on at sunset and off at sunrise based on actual time of sunset which you enter latitude/longitude of your location. Basically set it and forget ti.
Uploaded photo of old switch and new switch.
Loving the look and the fact I don't have to remember to turn on/off my exterior lights. Loving how the lights will be on when/if I come home late at night.
1. Compatible with compact fluorescent bulbs (this timer even works with electric motors).
2. Has the option of turning on or off at either a certain time or at dawn or dusk. It keeps track of the time of year so that it knows when dawn and dusk are.
3. Adjusts for daylight saving time automatically (although it may eventually be a few days off if they change the dates for daylight saving time again).
4. Keeps its programming and the correct time and date during power outages.
5. Has no batteries to wear out (more about this below).
These features let me set it up once and then leave it alone. Of course, it's easy to override it if needed. Just press the main button to turn the lights on or off. The timer will stay programmed and resume automatic operation when it is time to turn on or off automatically again.
Some of the literature on this product says that it has a backup battery to keep the programming set up and the clock running during power outages. At first, I was concerned that the timer might need to be replaced when the backup battery wears out. Even a rechargeable battery only lasts so long. I carefully opened the unit to see if the battery is user-replaceable. I was pleasantly surprised to see that instead of a battery, it has a 0.22-Farad super-capacitor. A super-capacitor substitutes for a battery, but for all practical purposes, doesn't wear out. I wish more electronic devices would use these.
As with any product that has a mountain of features, it takes a little time to read the instructions and set up the timer. However, the menu system is pretty logical, and was easy to catch onto once I had programmed a few settings. I don't even need the instructions now.
Since the timer has been installed for only a week, I can't really be sure about reliability yet. It appears to be well built, inside and out. So far, it works flawlessly and the time is staying accurate.
It is a little expensive, but it's the lowest-priced timer I could find that has the features I want and has good reviews about working reliably. Also, with the super-capacitor instead of a battery, there's no need to worry about battery replacement.
The timer came via Amazon Super-saver Shipping, and arrived ahead of schedule in just a few days.
Get a multimeter and check the voltage. Turn off the power from the circuit breaker. You need to identify the proper neutral in the box. Should be 3 or more white wires twisted together with a wire nut. Load goes to conductor labeled 120v on 0v off. The other two wires are a power in and out. Remove them from the switch, restrip them, and twist them together with a pair of lineman pliers. The line wire goes that. There should be a wire or screw for the ground. Please make sure all connections are mechanically sound and proper wirenuts are used.
The timer is also going to be bigger than the switch so you have to make sure and fold your wires in neat.
PS. this should be a minimum service charge type of thing if you call an electrician.
