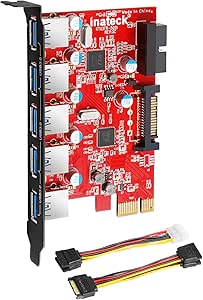

Inateck PCI-E to USB 3.0 (5 Ports) PCI Express Card and 15-Pin Power Connector, Red (KT5001)

Visit the Inateck Store

2,817 ratings

| 163 answered questions

-23% $19.99

Was: $25.99

Get Fast, Free Shipping with Amazon Prime

& FREE Returns

Enhance your purchase

Brand	Inateck
Hardware Interface	PCI Express x4
Item Dimensions LxWxH	4.72 x 2.56 x 0.71 inches
Style	5 USB 3.0 Ports
Item Weight	0.13 Pounds

About this item

This fits your .

Make sure this fits by entering your model number.

PCIe USB 3.0 Card: SuperSpeed USB 3. 0 supports transfer rates of up to 5Gbps - The actual transmission speed is limited by the setting of the device connected
One Step Update your Computer to 5 ports USB3. 0 Easily with PCI Express to USB3. 0 Controller Adapter Card; 1 USB 3. 0 20-pin Connector ( expand another two USB 3. 0 ports )
Backwards compatible with USB 2. 0 and 1. 1 devices; Operating System Compatibility: Windows XP/Vista/7/8/10,Mac OS 10. 8 or above.
With easy installation, this USB 3. 0 PCI express I/O Card offers a simple solution for your standard desktop PC
Windows XP and Vista Users Please Note: Due to OS limitations, the real transfer speed after installation of the respective drivers will be located between the level of USB 2. 0 and 3. 0

There is a newer model of this item:

Inateck PCIe to USB 3.2 Gen 2 Card, Total Transfer Rate 20 Gbps, with 4 USB Type-A Ports and 1 USB Type-C Port, RedComets U23
$31.99
(39)
Only 8 left in stock - order soon.

Buy it with

Total price:

To see our price, add these items to your cart.

These items are shipped from and sold by different sellers.

Show details Hide details

Choose items to buy together.

$19.99
In Stock.
Sold by TNTonline and ships from Amazon Fulfillment.
Get it as soon as Wednesday, Aug 31
$7.95
In Stock.
Ships from and sold by Amazon.com.
Get it as soon as Wednesday, Aug 31
$6.99
In Stock.
Sold by BenfeiDirect and ships from Amazon Fulfillment.
Get it as soon as Wednesday, Aug 31

Compare with similar items

		Tiergrade Superspeed 7 Ports PCI-E to USB 3.0 Expansion Card with 15-Pin SATA Power Connector - PCI Express(PCIe) Expansion Card USB Card for Desktop PC Support Windows 10/8.1/8/7/XP	Inateck PCI-e to USB 3.0 (4 Ports) PCI Express Card and 15-Pin Power Connector, Red (KT4001)	Inateck Superspeed 7 Ports PCI-E to USB 3.0 Expansion Card - 5 USB 3.0 Ports and 2 Rear USB 3.0 Ports Express Card Desktop with 15 Pin SATA Power Connector, Including Two Power Cables (KT5002)

Customer Rating	(2817)	(584)	(4203)	(2201)
Price	$19.99	$21.99	$17.99	$23.99
Sold By	TNTonline	Tiergrade	TEAM ONE	TNTonline
Item Dimensions	4.72 x 2.56 x 0.71 inches	4.8 x 2.8 x 0.7 inches	4.72 x 3.15 x 0.71 inches	4.72 x 3.15 x 0.71 inches

Compare with similar items

What's in the box

1x USB3.0 PCI-E expansion card 1x SATA to 4 Pin Molex Power Converter 1x 15pin to 2x 15pin SATA Y-cable 1x CD Driver 1x Mounting Screw 1x User's Manual

Customer questions & answers

See questions and answers

Product information

Technical Details

Collapse all

Summary

Graphics Coprocessor

‎No Graphics

Wireless Type

‎2.4 GHz Radio Frequency

Other Technical Details

Brand

‎Inateck

Item model number

‎KT5001

Operating System

‎Windows

Item Weight

‎2.08 ounces

Product Dimensions

‎4.72 x 2.56 x 0.71 inches

Item Dimensions LxWxH

‎4.72 x 2.56 x 0.71 inches

Color

‎Red

Manufacturer

‎Inateck

ASIN

‎B00FPIMJEW

Is Discontinued By Manufacturer

‎No

Date First Available

‎October 18, 2013

Additional Information

Customer Reviews

2,817 ratings

4.3 out of 5 stars

Best Sellers Rank

#25 in Internal USB Port Cards

Warranty & Support

Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is "dead on arrival," arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test "dead on arrival" returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor.

Product Warranty: For warranty information about this product, please click here

Feedback

Would you like to tell us about a lower price?

Product Description


Operating System Compatibility: Compatible with Windows XP/ Vista/ 7/ 8/ 10. Windows 10 and Mac 10.8.2 and more latest systems are built with a driver inherently. Windows systems earlier than Windows 10 and Mac OS earlier than Mac 10.8.2 require installing a driver in CD	Cable Connected Attention: Please make sure the power cable strand colours match each other when connecting to the power augmentation, as to avoid faulty currents.	Package List: 1x USB3.0 PCI-E expansion card, 1x CD Driver, 1x mounting screw, 1x User Manual, 1x 4pin to 2x15pin cable (If no 15pin SATA power connector in your PC, please use the 4pin Molex to SATA converter）, 1x 15pin to 2x 15pin SATA Y-cable


Step 1: Shut down the PC and unplug the power supply. Then open the PC case to find the corresponding PCI-E interface on the motherboard.	Step 2: Plug in the expansion card and tighten the screws.	Step 3: Connect the power supply cable in the correct direction.


Step 4: Close the PC case cover.	Step 5: If the computer does not pop up the driver automatically, please install the driver from the CD included in the package.	Friendly Service : We provide friendly after service.

Due to frequently updated drivers, please download the latest version on our official website to enhance your using experience.

Features

-Extend with 5 USB 3.0 downstream ports and 1 USB3.0 20-pin Connector (can expand another two USB 3.0 ports) for standard desktop PC -Support UASP:70% Faster than traditional USB 3.0 with UASP. The UASP Transfer Protocol only can accelerate read and write speed of SSD hard disk

Operating Systems

Windows XP, Vista and Windows 7(with included drivers) Windows 8/10-No additional drivers are needed for Win8/10, it has built-in support for the FL1100 chipset

Notice

- If your PC's power supply unit only has free 4pin Molex plugs left, please use the enclosed 4pin Molex to SATA converter to power the card.Please make sure the power cable strand colours match each other when connecting to the power augmentation, as to avoid faulty currents. - If there is no free 15pin SATA plug available in your PC, please use the enclosed 15pin to 2x 15pin SATA Y-cable. - Internal USB3.0 20PIN Connector need work with USB3.0 20PIN Adapter to Achieve 2x USB3.0 Hosts - USB3.0 20PIN Adapter is not included in Package - To ensure the PCI Express Card works properly, please first connect the PCI Express Card to your PC's power supply. - Aggregate transfer speed up to 500 MB/s (500 MB/s in total for the whole). For Oculus Rift users, it is recommended to purchase two PCI-E cards for multiple sensors. - This PCI-E card is not recommended to Kinect 2 users.

Package

1x USB3.0 PCI-E expansion card 1x SATA to 4 Pin Molex Power Converter (the cable in older computers without 15pin SATA power connector is used to 4pin convert Molex to SATA ports) 1x 15pin to 2x 15pin SATA Y-cable 1x CD Driver 1x Mounting Screw 1x User's Manual


	Inateck PCIe USB3.0 Card KT5001	Inateck PCIe USB 3.2 Card U25	Inateck PCIe USB 3.2 Card U22 Inateck PCIe USB 3.2 Card U22
USB Protocol	USB 3.0	USB 3.2 Gen 2	USB 3.2 Gen 2
Bandwidth	5Gbps	8Gbps	20Gbps
USB A Port	5A	3A	6A
Type C Port	x	2C	2C
PCIe Interface	X4 and above	X1 and above	X4 and above

Have a question?

Find answers in product info, Q&As, reviews

There was a problem completing your request. Please try your search again later.

All Product Information Customer Q&A's Customer Reviews

Customer reviews

5 star		71%
4 star		12%
3 star		7%
2 star		3%
1 star		7%

How customer reviews and ratings work

Reviews with images

See all customer images

Top reviews from the United States

There was a problem filtering reviews right now. Please try again later.

Raal

Works for Logitech x56 HOTAS ghosting issues

Reviewed in the United States on June 14, 2022

Verified Purchase

Used this as a workaround for my Logitech x56 throttle ghosting issues as my mobo was having issues providing the power needed to operate the unit properly via usv 3 ports. Worked loke a charm.

Install card, power up the pc, let windows install drivers, reboot, and then it was good to go

Helpful

FixItDude

Made a mistake

Reviewed in the United States on August 8, 2022

Verified Purchase

This item is most likely fine, but I goofed and ordered it for a SFF PC, instead of a regular tower. My mistake.

Helpful

Cubicle Warrior

Works well, some issues with device driver installation/recognition

Reviewed in the United States on January 15, 2017

Verified Purchase

The Inateck card installed and works fine (I had some driver issues

I bought this PCI-E card to add USB 3.0 ports to my aging Dell 620U desktop PC,
which only had USB 2.0 ports. My main goal was not just to be able to use USB 3.0 external drives,
but also to add a USB 3.0 network adapter.

The Dell 620 had an old 802.11b/g/n wifi card, and didn't support 802.11ac.

So the goal here was to install the Inateck card, get USB 3.0 ports, and then use the USB 3.0 port to add a 802.11 ac network adapter
- I bought a TP-Link Archer T4UH High Gain Wireless Dual Band USB Adapter (AC1200) for that purpose.

The Inateck card installed and works fine (I had some driver issues, but long story short, Windows 10 works with the Microsoft driver;
you don't need - and shouldn't use - the driver supplied with this card.

With the Inateck card and TP Link Archer wifi adapter, I'm getting ~84Mbps download/upload speeds with my Fios service,
which is nominally 75/75 Mbps, so the two upgrades to my old PC seem worth it :-)

Some notes on the power supply to the card for anyone who might need this info:
------------------------------------------------------------------------------------------------------------
Since this card needs more power than is available via the motherboard PCI-E connector
(in order to be able to charge devices connected to the USB ports),
it needs an additional power connection from the PC power supply.

The card itself has a SATA power connector, so if your PC power supply has an available unused SATA power output
that is long enough to reach the card in its PCI-E slot,
you're all set (this is the flat black power connector used for SATA disk drives/etc).

Otherwise, if your PC power supply has a free Molex power output (this is the old 4-pin white plastic connector with red/yellow/black/etc wires)
the card comes with an adapter cable that allows you to use that (PC power supply Molex out to SATA power in on the card).

The card also comes with a SATA power Y-cable adapter, that takes one SATA power-out from the power supply
and feeds it to two SATA power connectors - you could use this if all the SATA power connectors from your power supply
are already being used, or just as an extender to get some more length if the existing cables don't reach the PCI-E slot for your card -
which was the case for my PC. So that adapter cable came in handy in my case.

Drivers:
----------
My PC has Windows 10 installed.
This card uses a Fresco Logic USB 3.0 chip, and there's a CD supplied with a driver.
Long story short - Microsoft provides a Windows 10 compatible driver that supports this chip, and you don't need the old Fresco Logic driver that is supplied here.

After installing the card, with the SATA power connection, and booting up, the card was recognized and showed up in Device Manager,
but the USB ports were not functional. I installed the driver from the supplied CD (Fresco Logic USB 3 driver, 3.5.106.0, dated 1/9/2014),
and tried to restart the PC - but Windows didn't power down all the way, it remained stuck showing a message saying: "Getting Windows Ready".
Eventually, I powered it down, but the same prompt appeared after restarting it. Tried multiple times, no luck.
I finally took the card out and powered the PC back up - no problems now.
I tried updating the driver using Windows Device Manager Update driver - which claimed the driver was up to date.
I went to the Fresco Logic site and found an updated driver version for the FL1009
but it wouldn't install fully without the card being present in the PC (and I'd take the card out so I could boot ...)

Eventually, I put the card back in, and powered up, and this time, Windows detected the card, and installed its own driver
(it's called "Fresco Logic USB 3.0 eXtensible Host Controller - 1.0 (Microsoft)" version 10.0.14393.0, dated 7/15/2016),

Now the card is working, and the USB 3.0 ports are fine.
For good measure, I deleted the other driver (use Device Manager, view hidden devices).

Helpful

Scott

Great Upgrade for USB transfer

Reviewed in the United States on October 28, 2020

Verified Purchase

This card outperforms the transfer rate of a USB 2.0 port. I've used it with Windows and some Linux operating systems. If you have an old tower computer that has no USB 3.0 ports and periodically backup several gigabytes, this card is a great upgrade. I've successfully backed up roughly 230GB in about 45 minutes to an external USB 3.0 1TB Seagate FreeAgent GoFlex drive that i picked up years ago and still suits me well. I like the option of the 5 ports (Inatech has a 2-port card, some with external power some that don't require it) in case I end up connecting several USB devices to it in the future like a 2-bay RAID storage box. I also like the 19-pin connector that allowed me to add an additional card reader / USB 3.0 port to an un used floppy disk bay very much. I have digital cameras and cell phones that still use microSD cards and SDcards. I believe the transfer rate of some of the newer microSD and SD cards may be quicker using the 19-pin connected front bay that connects to this USB 3.0 card. I'm happy also with the illumination light on the front. It's illuminated green and is always on regardless if a device is connected to it. I'd have liked it if the light would only be on only when a device was connected though. However because of the powered USB card, this front port may be able to work with some devices others can't and may be able to charge a USB 3.0 compliant cell phone and send / receive data at the same time which is nice. I don't have a phone that is USB 3.x compliant, but If i ever find one i like, i'll be very happy i have a faster way of transferring files from a cell phone to a desktop for sure. Memories spent with good friends and fun moments are worth backing up. I've lost quite a bit of data in my past and I'm happy I now have a way of transferring data quicker. But being quick isn't always the best way to go. A slower more reliable connection is better. I will try to update this review if and when i ever get a cell phone where i'm able to charge and transfer data using this products 19-pin connector. Thank you for reading my review. It matters that my voice is being heard and hopefully listened to by people whom wish to buy good products. The illumination and indicator lights on some products has been an annoyance to me during night time or dark lit areas. Please keep that in consideration when you purchase products in general that have illumination lights on them.

Helpful

Top reviews from other countries

Translate all reviews to English

Michelle

USB 3.0 Erweiterung für den PC

Reviewed in Germany on May 25, 2018

Verified Purchase

==| Lieferumfang |==
Enthalten ist die PCI Karte selbst, ein SATA power <-> SATA und 4-Pin <-> Sata-Power, Eine Anleitung sowie eine Treiber CD.

==| Verarbeitung |==
Auf den ersten Blick lassen sich keine Mangel bei der Verarbeitung erkennen. Einzig die Kabel könnten eventuell ein wenig länger sein.

==| Verwendung |==
Die Verwendung als PCI-Karte ist eigentlich denkbar einfach. Nach dem Herunterfahren des Computers wird die Karte in einen freien PCI Slot montiert. Danach mit den entsprechenden Stromkabeln versehen und der Computer wieder hochgefahren. In meinem Fall musste keine Treiberinstallation erfolgen.

==| Pro - Contra |==
Bislang ist mir an der Karte nichts negatives aufgefallen. Alle 5 USB 3.0 Anschlüsse funktionieren einwandfrei. Selbst der Anschluss von zwei Webcams die gleichzeitig angesteuert werden ( was der eigentliche Grund für den Kauf war) ist ohne Probleme möglich.

==| Fazit |==
Die den aktuell günstigen Preis (Stand 25.5.18 - 25,99) nur zu empfehlen. Wer mehr USB Anschlüsse an seinem Computer haben möchte, hat mit dieser Karte die Möglichkeit seine Anschlüsse um 5 USB 3.0 Anschlüsse zu erweitern.

** Wenn dir die Bewertung geholfen hat, würde ich mich über ein "Ja" unter der Bewertung beim Punkt »War diese Rezension für Sie hilfreich?» sehr freuen **

73 people found this helpful

Translate review to English

P. Douglas

Works with Oculus Rift

Reviewed in the United Kingdom on June 3, 2017

Verified Purchase

One of the few USB 3.0 cards that work with the Oculus Rift.

It runs mine perfectly, when even the built-in (Asus) motherboard USB 3.0 was incompatible with the Oculus.

Why they made the Oculus so damned picky defeats me, but at least this card solves the problem. It even has a standard USB 3.0 internal front header socket, so if your case is so equipped, you can plug the front USB 3.0 ports into this, instead of the motherboard socket, giving you 7 ports in all, 5 at the back and two at the front.

20 people found this helpful

Bob & Maggie

It worked in the end but what a pain. Shame it's a great Product!

Reviewed in the United Kingdom on February 26, 2018

Verified Purchase

Great price fast service but had to return first one as a bit had broken off and was in the bag! Second one arrived fine, is in and working very well.
But Windows 10 Pro 64 bit customers take note Amazon sell it as compatible win everything up to and including Windows 10!
What they don't tell you is that the drivers on the disk are not, and Amazon will only offer you a replacement or refund!!
Contacted Inateck as their Web site like their Disk does not have a working Driver; and three days later I had an email from them with a link to download the correct drivers:)
Why don't they include this as a small note with the product and also why does Amazon not have this link on there sales web advert and give their Customers support and cut down on returns??

9 people found this helpful

Morse

Perfect for my Oculus Rift, thanks Inateck

Reviewed in the United Kingdom on January 8, 2019

Verified Purchase

I'm very happy with this pcie card for plugging my Rift and sensors into. So happy that I even bought a second one.

I've already got numerous usb devices plugged in to my pc on a more or less permanent basis: steering wheel, button box, joystick, gamepad, keyboard, mouse, & sometimes an external drive, so I wanted to be sure I had USB ports available that could cope with the Rift's devices.

So I bought the first of these cards a while back specially for the day I would eventually get vr, and I am not disappointed. The Rift and its two sensors worked perfectly when plugged into the first of these cards.

But my room space is long and narrow, so in order to use both the sitting area in front of my pc (for racing/flight sims) as well as the space next to it (for standing/360 experiences), I bought a third sensor.

Although the Inateck has 5 slots, it was asking a bit much to expect the headset and all sensors to work in the same card (actually it did work, but I got occasional amber warnings, so it wasn't 100% consistent), so I bought a second identical card, as recommended by Inateck.

Today I fitted the second card, switched the pc on, and as soon as I plugged the third sensor into it & ran the Oculus setup, it registered all devices without any trouble. (I might even try a 4th sensor in the second card at some point in the future).

There are cheaper cards out there, but I've bought cheap ones before that have failed to do the job & wasted my money. This card is good quality and good value. Comes with necessary cables, use whichever is needed to plug it into your psu in order to get full power to the card. Driver disk included, but was not needed for Win 10.

(Windows 10 64bit, Asus Z80K motherboard, i7 4770K, R9 Nano, 24GB Ram).

3 people found this helpful

Simon R

Great Card, works for Oculus Rift

Reviewed in the United Kingdom on June 14, 2021

Verified Purchase

I bought this card because it was recommended for using with my Oculus Rift.
I've tried using USB 3 hubs but they simply can't handle the bandwidth of 3 cameras plus the headset.

There were no instructions to speak of, and you have to screw the mounting plate to the card. I got the wrong screws for this the first time, but it was OK in the end.

It plugged straight into a spare PCie socket with no problem.
You need to know that you MUST plug in the SATA power supply to it as well.
Unfortunately the SATA power lead that comes with it is very short and I had to buy an extension to get power to it.

When powered, it was automatically detected by Windows 10 and it works perfectly for my Rift setup, all ports running at USB 3.

I did not use the driver disk that came with it., I suspect the drivers are out of date and I definitely didn't need them, so don't use it :-)

Very pleased with it - but as I say, it definitely needs to be powered!

See all reviews

Inateck PCI-E to USB 3.0 (5 Ports) PCI Express Card and 15-Pin Power Connector, Red (KT5001)

Enhance your purchase

About this item

There is a newer model of this item:

Buy it with

Recommended from our brands

Compare with similar items

What's in the box

Customer questions & answers

Videos

Videos for this product

Customer Review: Review of Inateck USB 3.0 5-Port PCIe Card: Installation, Benchmarks/Performance & Manual - 5 Star

Videos for this product

Customer Review: Review and installation of the inateck USB 3.0 5 port PCI Express card with 19 pin front panel USB

Videos for this product

Customer Review: Known as the VR CARD! Perfect for Oculus Rift CV1 Owners!

Videos for this product

Customer Review: Good Performance, Easy Install

Videos for this product

Customer Review: Solidly built, easy to install and has true USB 3.0 speed transfer rates.

Videos for related products

Inateck PCIe Card with 20 Gbps Bandwidth U21

Videos for related products

20Gbps pcie to usb 3.2 card U22

Videos for related products

Tiergrade Superspeed 7 Ports PCI-E to USB 3.0 Expasion Card

Videos for related products

Inateck PCIe to USB 3.2 Gen 2 Card U23

Videos for related products

Inateck PCIe USB 3.2 Gen 2 Extension Card U25

Product information

Technical Details

Additional Information

Warranty & Support

Feedback

Product Description

Operating System Compatibility:

Cable Connected Attention:

Package List:

Installation Guide:

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Friendly Service :

Have a question?

Customer reviews

Reviews with images

Top reviews from the United States

There was a problem filtering reviews right now. Please try again later.

Top reviews from other countries
