|Item Weight||1 pounds|
|Product Dimensions||11.5 x 9 x 8 inches|
|Item model number||MV50|
|Discontinued by manufacturer||Yes|
|Manufacturer Part Number||MV50|

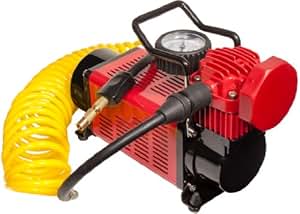

Q Industries MV50 SuperFlow High-Volume 12-Volt Air Compressor
Customers Who Bought This Item Also Bought
From the Manufacturer

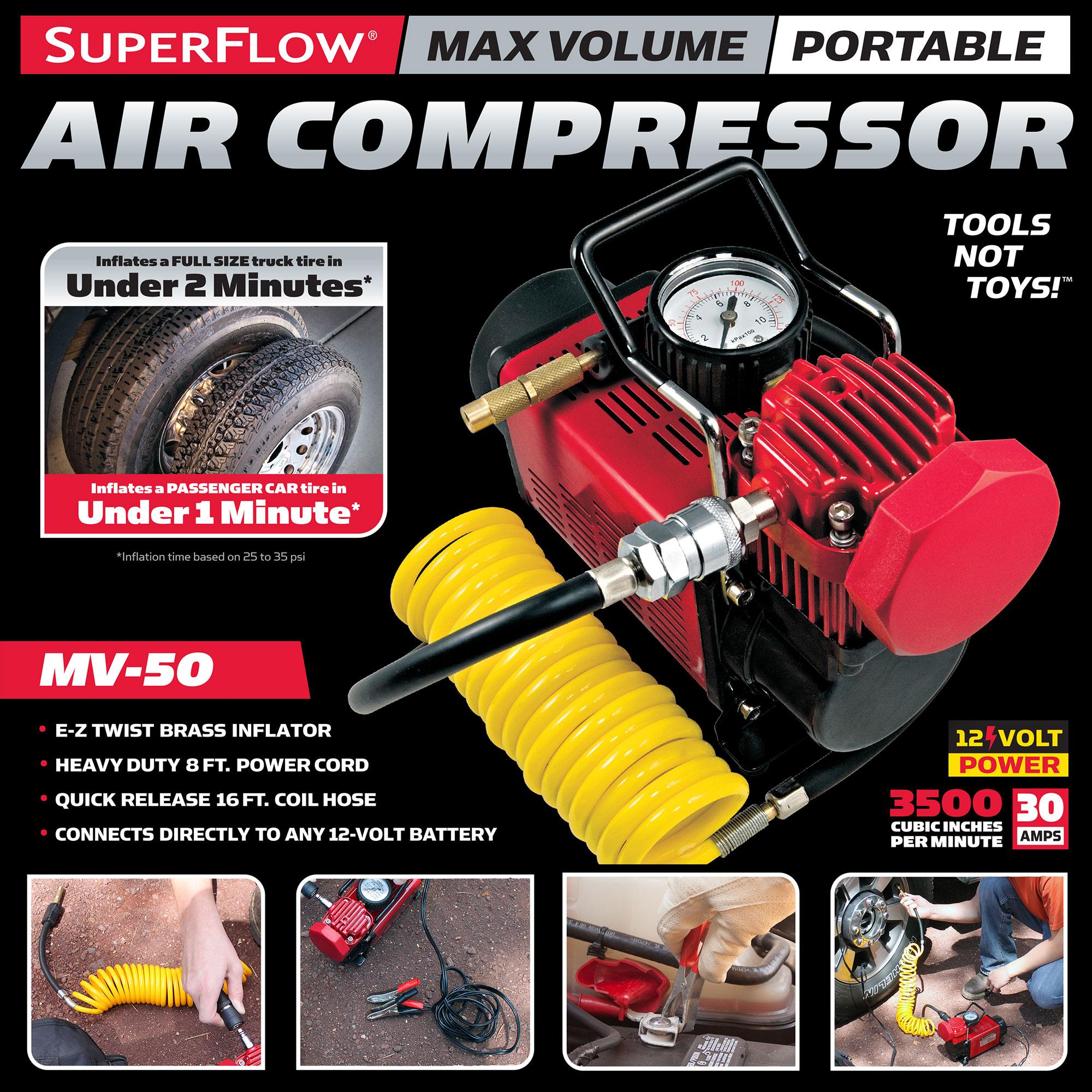

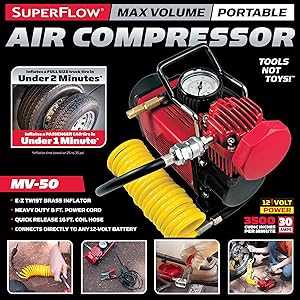

SuperFlow MV-50 12-Volt Air Tire Inflator / Air Compressor.
Portable & Convenient
The MV-50 is a rugged direct drive 12-Volt air compressor system. Power this direct drive single cylinder 1/3 horsepower oil-less direct unit directly from you battery. Includes 10 Feet heavy duty power cord with alligator clips. You will also find a 16 Feet easy coil air hose using type M air fittings. All accessories neatly packs in a durable nylon carry bag. The MV-50 was designed for use on trucks, SUVs, 4X4s, and RV tires. but also works well to inflate household items. Air-up in no time anywhere with the a drive motor and a 30 amp inline fuse.
Ready to lend a hand on the Farm and Ranch.
Ready to use after a fun day of Off-Roading
The Go-To Tire inflator Built for
- 4 x 4s
- Passenger Vehicles

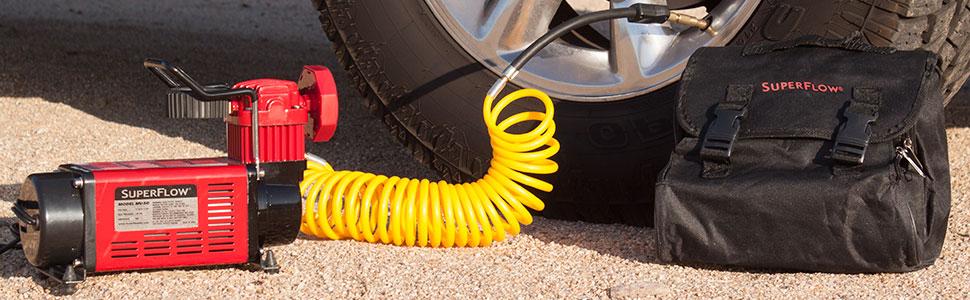

A Complete Tire Inflation System
Includes the compressor, hose, power cord, inflation accessories and nylon carry bag

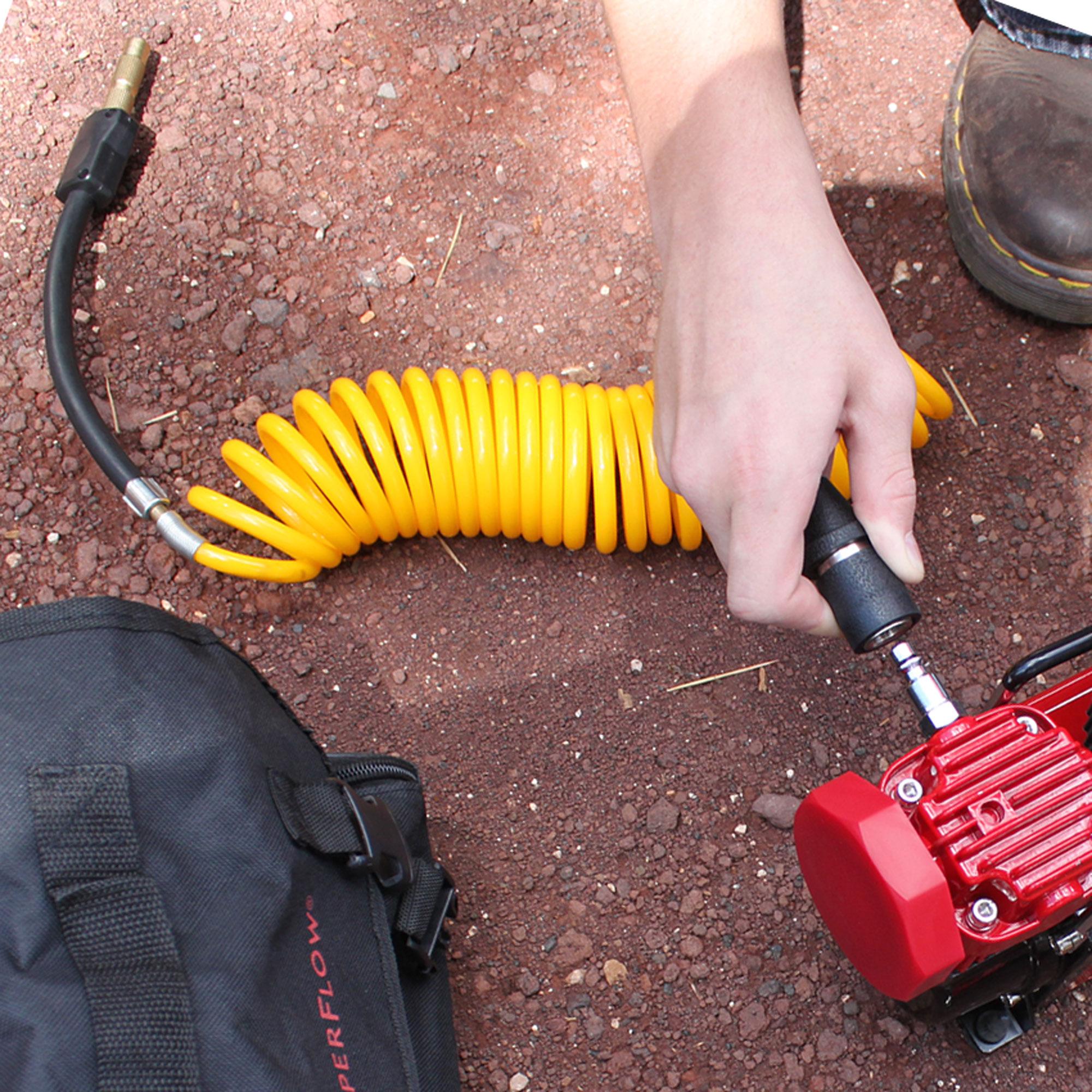

16 Foot Easy Coil Air Hose
Easily connects with Type M quick connect air coupling.

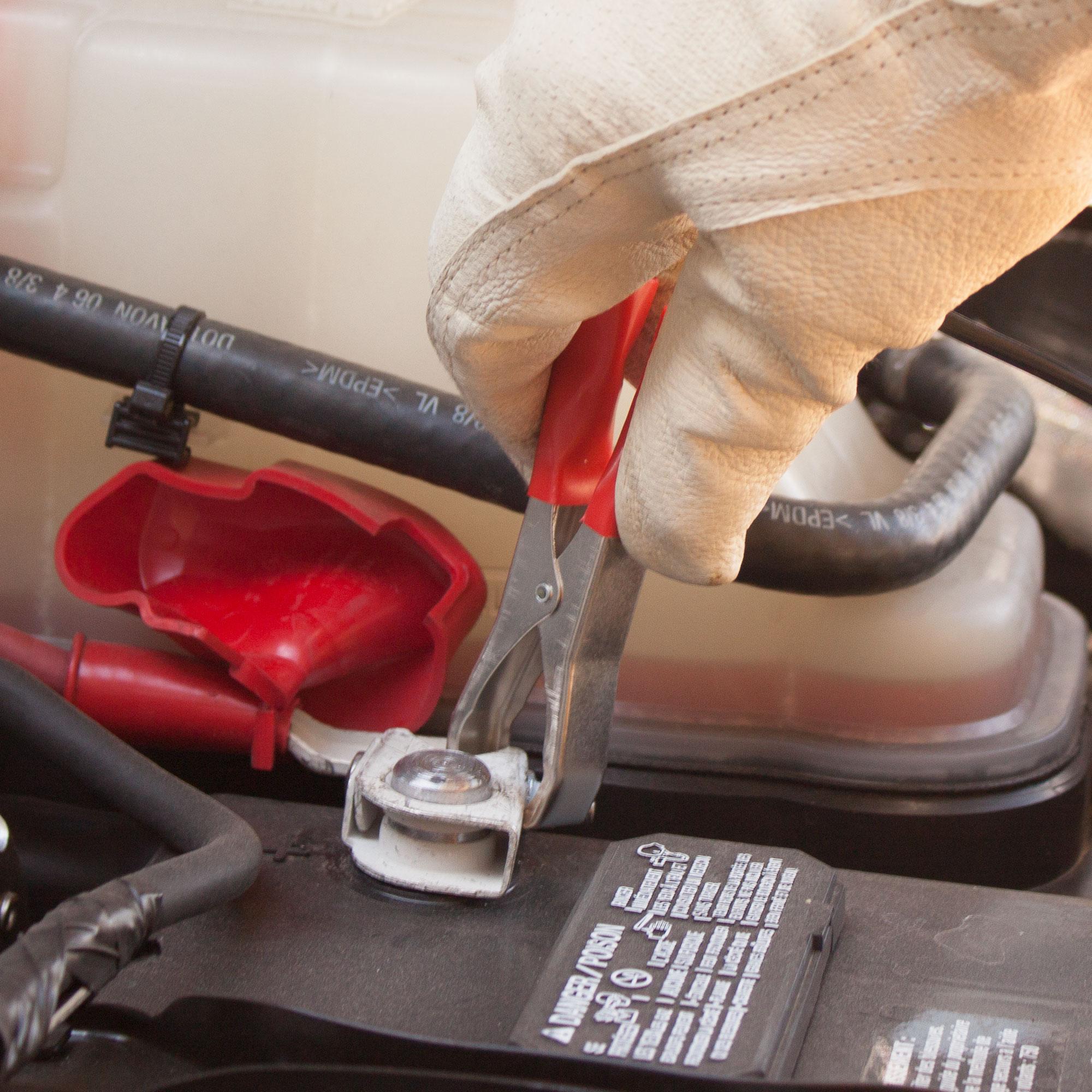

10 Foot Power Cord
Connects directly to your vehicle's 12-Volt battery.
Fast, Simple to Use & Easy to Store
Air when you need where you need it.
|Weight||4.23 lbs.||7 lbs.||10.25 lbs.||19 lbs.|
|Air Flow Cubic Inch||1300||2200||3500||6400|
|Hose Length||3 Ft.||16 Ft.||16 Ft.||24 Ft.|
|Inflation Time Full Size Tire (25-35 PSI)||< 6 Minutes||< 4 Minutes||< 2 Minutes||< 1 Minute|
|Inflation Time Passenger Tire (25-35 PSI)||< 2 Minutes||< 1 Minute||< 1 Minute||< 1 Minute|
|Powered By||Cigarette Lighter||Cigarette Lighter||Car Battery||Car Battery|
|Motor||Direct Drive||Direct Drive||Direct Drive||Direct Drive|
Customers Who Viewed This Item Also Viewed
Top Customer Reviews
The rated output is 72 litres per mimute, or about 2.5 cubit feet. The delivery pressure isn't stated for that volume. The maximum rated output pressure is 120 PSI. These are ratings on par with a light duty compressor operated from AC wall power. The owner's manual is a bit vague on duty cycle, staing that a cool-down is required after 30 minutes of operation. The MV-50 can inflate a flat car tire in about three to four minutes, so there should be no need to worry about duty cycle for most applications.
Several people remarked they wish the MV-50 came with a cigarette lighter attachment. The MV-50's motor draws up to 30 amps, which would melt the contacts or at least blow the fuse on most lighter sockets. For instance, the 12 volt socket on my Toyota truck is rated and fused for 15 amps.
The MV-50 comes with clips for attaching dierectly to the 12 volt battery to maximimize the current it can draw and to make sure it receives full battery voltage. As rated, the MV-50's motor should develop 3/4 horse power or more. This assures plenty of power for rapid inflation.
Another reviewer remarked about finding the MV-50 for only $25. That was apparently a short-lived sale at Pep Boys, where the wrong model was briefly discounted. I think they meant to discount the normally less expensive MV-30. Even at the typical $69-$70 price, the MV-50 is a good value.
Plusses: Modest cost. Included accessories and carry bag. 12 volt portabilty. Well manufactured. Long hose. Air chuck makes positive connection by screwing to tire's Schraeder valve.Read more ›
When running, the compressor is pretty quiet and doesn't vibrate and bounce around. The built-in gauge is quite accurate once the unit is turned off.
In short...buy this air compressor if you have ANY use for it at all. It will easily beat compressors which cost over 3 times what this unit does.
CONS: However, after two years of use, the O-ring inside the chuck on the air hose tore and so was rendered inoperable. I have had great difficulty trying to find a replacement o-ring or hose assembly. The nipple and chuck are of a type unlike any of the (several) standards in use here in the USA so you can't simply get a new hose (it won't fit). The nipple thread isn't even 1/4" diameter, so you can't simply replace the nipple to US standards. This means you can't find a replacement hose and the compressor cannot be connected to an air tank if you have one. The solution: drill out hole and use tap+die kit to rethread to 1/4" so I could replace the nipple to an American standard fitting and use a replacement chuck+air hose available anywhere.
BOTTOM LINE: Good compressor which hasn't failed me yet, but the nonstandard air fittings make repair/replacement a pain, one many people will not want to deal with (especially if you don't have a tap+die set already since they are not cheap). If you fit in that category, you'll have to throw away your compressor when your hose fails.
Most Recent Customer Reviews
Does everything it claims, fill's 4 wrangler tires in about 20 minutes or less . depending how low they where.Published 2 days ago by Darlene Barber
nice size,fits behind the back seat of the truck and gets the job done/Published 5 days ago by Amazon Customer
I have owned this product for 4 years, and you might look at that and think "wow, 4 years!" BUT, I have replaced everything on it enough times that I'm not sure there's an... Read morePublished 17 days ago by Rhian Campbell
Here is what you get in the box:
The compressor, a nylon carrying case, an owner’s manual, a thread on filter, two different inflate tips (air mattress type), an adapter to... Read more
This unit didn't work right out of the package. I had to go buy a relay from NAPA and solder in to get it to work. Read morePublished 18 days ago by dennis simmons
Take this thing offroading a lot. Does really well for price. Connection to hose gets really hot.Published 19 days ago by Thejames
