Inlet Module Plug Fuse Switch Male Power Socket 10A 250V 3 Pin IEC320 C14
We don't know when or if this item will be back in stock.
| Brand | TOOGOO |
| Voltage | 250 Volts |
| Input Current | 10 Amps |
| Plug Format | Type B |
| UL Listed | No |
About this item
- Product Name : Power Socket w Switch Fuse
- Material (External) : Plastic, Metal
- Color : Red, Silver Tone, Silver Tone
- Voltage & Current : 10A, 250V AC
- Plug Type : 3 Pin IEC320 C14
Similar item to consider
Customers also viewed these products
3Dman 15A 250V Rocker Switch On/Off Power Socket Inlet Module Plug 10A Fuse Switch with 18 AWG Wiring 3 Pin - 2pcsAmazon's Choicein Electrical Outlet Switches
Product information
| Package Dimensions | 3.15 x 2.95 x 1.26 inches |
|---|---|
| Item Weight | 0.704 ounces |
| Manufacturer | TOOGOO(R) |
| ASIN | B00F4MFMXE |
| Item model number | 006216 |
| Customer Reviews |
4.5 out of 5 stars |
| Is Discontinued By Manufacturer | No |
| Batteries required | No |
Feedback
Product Description
* 3 Pin IEC320 C14 Inlet Module Plug Fuse Switch Male Power Socket 10A 250V
* 3 pin IEC320 C14 plug, 7 terminals, is used widely in lab equipment, medical devices, fitness equipment, industrial automation equipment, etc.
* Use only with a 250V fuse.
* Hole in Top Face Diameter : 0.42cm / 0.16
* Hole Center Distance : 3.9cm / 1.5
* Bottom Size : 4.7 x 2.7cm / 1.9 x 1.1(L*W)
* Total Size : 5.8 x 4.8 x 3.4cm / 2.3 x 1.9 x 1.3(L*W*H)
* Weight : 24g
* Package Content : 1 x Power Socket
Looking for specific info?
Customer reviews
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
Learn more how customers reviews work on AmazonCustomers say
Customers like the ease of use, value, and performance of the computer component. They mention that it's easy to mount and wire since it'll all integrated in one. That said, some complain that it doesn't include the fuse or instructions for connections. Opinions are mixed on quality.
AI-generated from the text of customer reviews
Customers are satisfied with the performance of the power cord. For example, they mention it works well and is wonderful for their homemade amplifier project.
"...Otherwise, works just fine." Read more
"Unit works well and is a very easy to use all in one module. However the prongs on the back are not very suitable for soldering to...." Read more
"...Other than the advertising issue the item is very well made and performs as described." Read more
"Overall, this is a good module, and works as expected...." Read more
Customers appreciate the value of the power cord. They mention that it is well-made and has a good price.
"...was pleasantly surprised at the quality of these considering the low price point...." Read more
"...It seems to be working fine and the price was good. If it had a little sturdier plastic housing I would have given it a 5 star rating...." Read more
"Well made and good price" Read more
"Cheap price, good qualityno diagrams but easy to figure out" Read more
Customers find the power cord easy to use. They mention it's simple to mount and wire, and it'll simplify your project.
"Unit works well and is a very easy to use all in one module. However the prongs on the back are not very suitable for soldering to...." Read more
"...it, or if it came with schematics or directions, but it was easy enough to figure out...." Read more
"Great power receptacle for projects. Easy to mount. Be careful to use low heat when soldering connections in order to protect the plastic." Read more
"Cheap price, good qualityno diagrams but easy to figure out" Read more
Customers are mixed about the quality of the power cord. Some mention it's good quality, while others say it'll fail in a few months. The switch is unreliable and the prongs on the back are not suitable for soldering.
"...I was pleasantly surprised at the quality of these considering the low price point...." Read more
"...Other than the advertising issue the item is very well made and performs as described." Read more
"...However the prongs on the back are not very suitable for soldering to. You really should get medium side spade terminal lugs to wire to this module...." Read more
"Well made and good price" Read more
Customers have mixed opinions about the power inlet. Some mention it's a great power receptacle for projects, while others say that the switch failed.
"...my prints - suspected the power supply - but no, it was the switch that was failing. Replaced it with a more expensive Corcom switch from Digikey...." Read more
"Great power receptacle for projects. Easy to mount. Be careful to use low heat when soldering connections in order to protect the plastic." Read more
"...Update: Dec 1, 2015This power inlet module failed. The switch became flaky and unreliable...." Read more
"Switch blew up, throwing visible sparks out through the gap. NOT while being switched...." Read more
Customers are dissatisfied with the missing pieces in the power cord. They mention that it does not include the fuse or instructions for connections. Some say that the fuse required is not a common one and it does NOT come with one.
"...These inlets do not include a fuse, which is required to use the unit. The contacts are arranged so that the current must flow through the fuse...." Read more
"Nice package - as mentioned by other reviews this does not include the fuse, or instructions for connections...." Read more
"...Unfortunately the fuse it requires is NOT a common fuse and it DOES NOT come with one...." Read more
"...Fuses cannot be included with this device since the fuse needs to be sized to the application...." Read more
Reviews with images
-
Top reviews
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
These inlets do not include a fuse, which is required to use the unit. The contacts are arranged so that the current must flow through the fuse. But these fuses are easy to find, standard fuses. They're about $0.15 each from an electronics supplier. Some people don't realize that the reason a fuse isn't included is because of the wide range capacities. If you're buying this, then you probably have some knowledge of electronics and it's easier for you to determine the best option for your application.
The spade lugs in the back are not standard American width, they are about half width, so you must buy female lugs that match the smaller width to get a tight connection.
I would give this a five star rating if the plating was tin, not chrome style, or it came with standard lugs, or if it came with crimp on terminals that matched.
6 months later addition:
On re purchasing this unit my next batch soldered fine, so I am raising the star rating to 4.

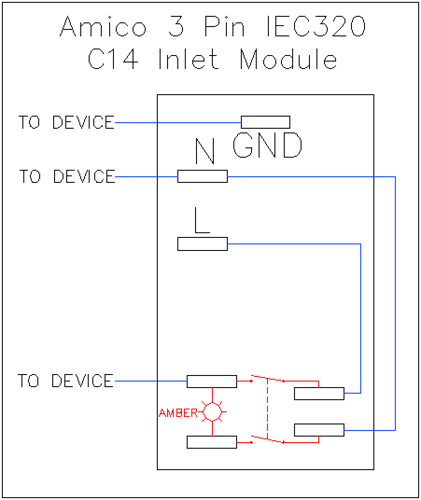

The switch is a two pole single throw switch. One pole is between terminals 1 and 1a, the other between terminals 2 and 2a.
There is a light powered from terminals 1 and 2.
To connect so as to have the light on constantly - so the light helps you locate the switch regardless if it is turned on or not, or indicates that there is power connected to the switch - connect the incoming power (L and N) to terminals 1 and 2. When the switch is turned on, it will output the incoming voltage to terminals 1a and 2a.
To connect so as to have the light come on only when the switch is turned on - so the light lets you know whether the switch is turned on or not - connect the incoming power (L and N) to terminals 1a and 2a. When the switch is turned on, it will output the incoming voltage to terminals 1 and 2.
Top reviews from other countries
Il prodotto arriva dal UK, tramite posta prioritaria, ricevuto in giorni 8 giorni, in una busta in pluriball.
QUAL’E’ IL CONTENUTO?:
Il sacchetto contiene esclusivamente la spina/interruttore non sono presenti fusibili o viti.
LA QUALITA’?
La spina ha le seguenti dimensioni di ingombro, 58,7x 48,76x 34,5 mm. I fori per le viti di fissaggio hanno distano tra di loro 39,5 mm, hanno un diametro di 3,5 mm con svasatura a 45° alta 1,3 mm. Le dimensioni del dello scasso/ foro per fissaggio sono di 47x27 mm, per una profondità di 18 mm esclusi i morsetti. Il materiale plastico sembra ABS. Purtroppo non ha marchiatura CE, per cui non è possibile conoscere il comportamento in caso di cortocircuito, sullo spegnimento delle fiamme. Gli unici certificati stampati, riguardanti la sicurezza del prodotto sono: il certificato cinese obbligatorio, comunemente noto come marchio CCC (acronimo dell'inglese China Compulsory Certificate) e il VDE, Verband Deutscher Elektrotechniker che è un'autorevole associazione tedesca che si occupa di normative riguardanti tecnologie elettriche, elettroniche ed informatiche . L’interruttore, di tipo bipolare, è luminoso di color rosso-arancio, il meccanismo sembra solido, non presenta giochi assiali, anzi a dir la verità è abbastanza duro. Questo sembra anche sostituibile in quanto, dalla parte dei collegamenti, ha delle linguette laterali che lo bloccano. Riguardo al portafusibile, questo è vuoto, dovrete provvedere voi stessi con fusibili di 5x 20 mm 250 Volt, max 10 A, corrente massima consigliata per il carico. Lo spinotto per alimentarlo è il classico dei PC. La spina è di facile montaggio in quanto sono stampati tutti i simboli per fare il collegamento, in allegato vi ho messo una immagine. Ovviamente il collegamento, può essere fatto in due modi, con lo spinotto che alimenta in entrata o in uscita; dipende dal vostro utilizzo. Nel mio caso, lo spinotto è l’entrata dell’AC, la fase passa dal fusibile e va nell’interruttore, il neutro va nell’altro piedino dell’interruttore. L’interruttore a bilanciere seziona sia fase che neutro, quando è su I, quindi acceso, si accende anche la lucina e di conseguenza alimenta il carico dall’uscita.
IN CONCLUSIONE?:
Il prodotto vale il prezzo che si paga, la costruzione sembra buona, i puntali sono ben distanziati. Per la durata al momento non mi posso esprimere. Il mio giudizio al momento è di 5 stelle.
Reviewed in Italy on March 18, 2017
Il prodotto arriva dal UK, tramite posta prioritaria, ricevuto in giorni 8 giorni, in una busta in pluriball.
QUAL’E’ IL CONTENUTO?:
Il sacchetto contiene esclusivamente la spina/interruttore non sono presenti fusibili o viti.
LA QUALITA’?
La spina ha le seguenti dimensioni di ingombro, 58,7x 48,76x 34,5 mm. I fori per le viti di fissaggio hanno distano tra di loro 39,5 mm, hanno un diametro di 3,5 mm con svasatura a 45° alta 1,3 mm. Le dimensioni del dello scasso/ foro per fissaggio sono di 47x27 mm, per una profondità di 18 mm esclusi i morsetti. Il materiale plastico sembra ABS. Purtroppo non ha marchiatura CE, per cui non è possibile conoscere il comportamento in caso di cortocircuito, sullo spegnimento delle fiamme. Gli unici certificati stampati, riguardanti la sicurezza del prodotto sono: il certificato cinese obbligatorio, comunemente noto come marchio CCC (acronimo dell'inglese China Compulsory Certificate) e il VDE, Verband Deutscher Elektrotechniker che è un'autorevole associazione tedesca che si occupa di normative riguardanti tecnologie elettriche, elettroniche ed informatiche . L’interruttore, di tipo bipolare, è luminoso di color rosso-arancio, il meccanismo sembra solido, non presenta giochi assiali, anzi a dir la verità è abbastanza duro. Questo sembra anche sostituibile in quanto, dalla parte dei collegamenti, ha delle linguette laterali che lo bloccano. Riguardo al portafusibile, questo è vuoto, dovrete provvedere voi stessi con fusibili di 5x 20 mm 250 Volt, max 10 A, corrente massima consigliata per il carico. Lo spinotto per alimentarlo è il classico dei PC. La spina è di facile montaggio in quanto sono stampati tutti i simboli per fare il collegamento, in allegato vi ho messo una immagine. Ovviamente il collegamento, può essere fatto in due modi, con lo spinotto che alimenta in entrata o in uscita; dipende dal vostro utilizzo. Nel mio caso, lo spinotto è l’entrata dell’AC, la fase passa dal fusibile e va nell’interruttore, il neutro va nell’altro piedino dell’interruttore. L’interruttore a bilanciere seziona sia fase che neutro, quando è su I, quindi acceso, si accende anche la lucina e di conseguenza alimenta il carico dall’uscita.
IN CONCLUSIONE?:
Il prodotto vale il prezzo che si paga, la costruzione sembra buona, i puntali sono ben distanziati. Per la durata al momento non mi posso esprimere. Il mio giudizio al momento è di 5 stelle.
Però.. non siamo tutti esperti , si potrebbe mettere dentro anche solo in descrizione l’immagine del collegamento . Grazie ad altri utenti che hanno messo le foto
