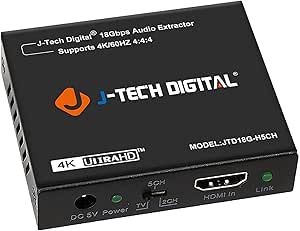

J-Tech Digital 4K 60HZ HDMI Audio Extractor Converter SPDIF + 3.5MM Output Supports HDMI 2.0, 18Gpbs Bandwidth, HDCP 2.2, Dolby Digital/DTS Passthrough CEC, HDR10 [JTD18G-H5CH]

Visit the J-Tech Digital Store

856 ratings

| 202 answered questions

Price:	$34.98 & FREE Returns Return this item for free Free returns are available for the shipping address you chose. You can return the item for any reason in new and unused condition: no shipping charges Learn more about free returns. How to return the item? Go to your orders and start the return Select the return method Ship it!
	Save an extra $3.00 when you apply this coupon. Details $3.00 extra savings coupon applied at checkout. Details Sorry. You are not eligible for this coupon.

Available at a lower price from other sellers that may not offer free Prime shipping.

Connector Type	HDMI, SPDIF, EDID
Brand	J-Tech Digital
Warranty Type	Limited

About this item

This fits your .

Make sure this fits by entering your model number.

𝐀𝐔𝐃𝐈𝐎 𝐄𝐗𝐓𝐑𝐀𝐂𝐓𝐈𝐎𝐍 - Extract the digital HDMI audio signal from the HDMI input and convert it to 2 channel analog stereo output or multi-channel Audio (SPDIF) output. **NOTE: This unit will only pass Dolby Digital/DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio.
𝟒𝐊 𝐔𝐥𝐭𝐫𝐚 𝐇𝐃 𝐰𝐢𝐭𝐡 𝐇𝐃𝐌𝐈 𝟐.𝟎 | 𝟏𝟎𝟖𝟎𝐏 𝟏𝟒𝟒𝐇𝐳 | 𝟏𝟎𝟖𝟎𝐏 𝟏𝟐𝟎𝐇𝐳 - Supports the highest video resolution to 1080P@144Hz, 1080P@120Hz, 4K 50/60HZ (YUV444). Supports HDMI 2.0b (18Gbps) HDCP 2.2 and DVI compliant; Supports HDR10(We suggest using HDMI 2.0 certified cable to get HDR10 compatibility)
𝐀𝐔𝐃𝐈𝐎 𝐄𝐃𝐈𝐃 𝐒𝐄𝐓𝐓𝐈𝐍𝐆𝐒 - 2CH for L/R or SPDIF stereo output; 5.1CH for SPDIF Output, Supports uncompressed audio such as LPCM. Supports DTS Digital / Dolby Digital pass through (Our device does not decode the digital audio, you will still need an end display that is compatible with those formats) ; DOES NOT SUPPORT ARC FUNCTION.
𝐀𝐃𝐕𝐀𝐍𝐂𝐄𝐃 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 - Supports HDMI HIGH Bit Rate(HBR) audio pass through; Audio sample rates up to 192kHZ;10 Bit HDR pass through.; Supports CEC bypass
𝐅𝐑𝐄𝐄 𝐋𝐈𝐅𝐄𝐓𝐈𝐌𝐄 𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐔𝐏𝐏𝐎𝐑𝐓 – All J-Tech Digital products include a One-Year Manufacturer Replacement Warranty and free lifetime technical support from our customer support team located in Sugar Land, TX. Support is available from 9AM – 6PM CST, Monday through Friday. Contact information available on our seller page.

New & Used (6) from $28.27 & FREE Shipping.

Similar item to consider

Amazon Basics 4K HDMI to HDMI and Audio (RCA Stereo or Spdif) Extractor Converter (Supports Apple TV, Fire TV and Blue-Ray Players)

$23.49

(2439)

Frequently bought together

Total price:

To see our price, add these items to your cart.

These items are shipped from and sold by different sellers.

Show details Hide details

Choose items to buy together.

$34.98
In Stock.
Sold by J-Tech Digital, Inc and ships from Amazon Fulfillment.
FREE Shipping
$19.99 ($3.08/Feet)
In Stock.
Sold by Zeskit and ships from Amazon Fulfillment.
FREE Shipping on orders over $25.00.
$12.99 ($6.50/100 cm)
In Stock.
Sold by PetwinUS and ships from Amazon Fulfillment.
FREE Shipping on orders over $25.00.

More items to explore

Page 1 of 1 Start overPage 1 of 1

ASTRO Gaming
1,100
No Operating System
2 offers from $39.99
4,483
7 offers from $22.15
516
5 offers from $85.00
5,916
4 offers from $8.77
2,439
8 offers from $17.68
246
1 offer from $37.99

Customers who viewed this item also viewed

Page 1 of 1 Start overPage 1 of 1

Special offers and product promotions

Style: Audio Extractor Converter

You have clipped this coupon.
Clip this coupon to save $3 on this product when you buy from J-Tech Digital, Inc. Here's how (restrictions apply)
Save 20% on 🔹J-Tech Digital SPDIF Optical Cable🔹 when you purchase 1 or more Qualifying items offered by J-Tech Digital, Inc. Here's how (restrictions apply)
Save 10% on J-Tech Digital HDMI 2.0 High Speed Cable when you purchase 1 or more Qualifying items offered by J-Tech Digital, Inc. Here's how (restrictions apply)
Save 3% on J-Tech Digital HDMI Extender when you purchase 1 or more Qualifying items offered by J-Tech Digital, Inc. Here's how (restrictions apply)
Save 3% on J-Tech Digital Vertical Mouse when you purchase 1 or more Qualifying items offered by J-Tech Digital, Inc. Here's how (restrictions apply)
Save 3% on J-Tech Digital Mini 1X3 Optical SPDIF Splitter when you purchase 1 or more Qualifying items offered by J-Tech Digital, Inc. Here's how (restrictions apply)
Save 3% on J-Tech Digital Mini 1X2 HDMI Splitter when you purchase 1 or more Qualifying items offered by J-Tech Digital, Inc. Here's how (restrictions apply)

Compare with similar items

		J-Tech Digital Premium Quality 1080P HDMI To HDMI + Audio (SPDIF + RCA Stereo) Audio Extractor Converter (JTDAT5CH)	Amazon Basics 4K HDMI to HDMI and Audio (RCA Stereo or Spdif) Extractor Converter (Supports Apple TV, Fire TV and Blue-Ray Players)	4K Audio Extractor HDMI by OREI, UltraHD 4K @ 60Hz 18G HDMI 2.0 Audio Converter SPDIF + 3.5mm Output HDCP 2.2 - Dolby Digital/DTS Passthrough CEC, HDR, Dolby Vision, HDR10 Support (HDA-912)	avedio links 4K@60Hz HDMI 2.0b Audio Extractor with 7.1CH Atoms, HDMI to HDMI + HDMI 7.1CH + Optical Toslink SPDIF + 3.5mm Audio, HDMI Audio Embedder Converter Adapter for PS5, Xbox, Fire Stick	J-Tech Digital 4K60Hz HDMI 2.0 Audio Extractor HDMI-ARC Converter SPDIF + 3.5MM Output 18Gbps, HDCP 2.2, 1080P@120Hz, 1080P@144Hz, Compatible with Dolby_Digital/DTS CEC HDR10 [JTD18G-H5CH2]

Customer Rating	(856)	(4483)	(2439)	(300)	(1932)	(7)
Price	$34.98	$25.99	$23.49	$34.99	$39.99	$36.95
Shipping	FREE Shipping. Details	FREE Shipping. Details	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping. Details	FREE Shipping. Details	FREE Shipping. Details
Sold By	J-Tech Digital, Inc	J-Tech Digital, Inc	Amazon.com	Bombay Electronics	Links3C Technologies	J-Tech Digital, Inc

Compare with similar items

Product Description

Enjoy your digital Audio & HDR Video:

· Extract the digital HDMI audio signal from the HDMI input and convert it to 2 channel analog stereo output or multi-channel Audio (SPDIF) output

· 4K Ultra HD with HDMI2.0 standard: Supports the highest video resolution to 4K@60Hz (YUV444)

Advanced Features:

· Supports 4K Ultra HD resolution under HDMI2.0 standard

· Supports HDR10

Advanced Features:

· Supports 4K Ultra HD resolution under HDMI2.0 standard

· Supports HDR10/Dolby Vision

J-Tech Digital is focused on providing high-quality products that integrate and distribute home entertainment for the residential and commercial markets. J-Tech Digital has played a major role in transforming whole-house audio, video and home theater.

Overview:

The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

Features

HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH• Supports HDMI High Bit Rate(HBR) audio pass through
Audio sample rates up to 192kHz
10bits HDR (High Dynamic Range) pass through
Supports CEC bypass

Package Includes:

1 x Audio Extractor
1 x Power adapters
1 x User Manual

Trouble Shooting： 1.Dolby/DTS Issue: check your display compatibility about those formats. Our device does not decode only pass it to your display. 2.HDR Issue: Your HDMI cable must meet HDMI 2.0 specifications. Replace cable if it not meet the standard

Customer Questions & Answers

See questions and answers

Have a question?

Find answers in product info, Q&As, reviews

There was a problem completing your request. Please try your search again later.

All Product Information Customer Q&A's Customer Reviews

Product description

Style:Audio Extractor Converter

J-Tech Digital ® is focused on providing high-quality products that integrate and distribute home entertainment for the residential and commercial markets. J-Tech Digital has played a major role in transforming whole-house audio, video and home theater.

Overview:

TheJTD18G-H5CH Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 1080p, 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 KHz. HDCP 2.2 and CEC bypass are supported. This unit has the capability to extract digital HDMI audio signals from an HDMI compliant source, such as the new console systems, Xbox Series X/S, and the Playstation 5.**Note** This unit will only pass Dolby Digital/DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio.

Features

HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 1080P 144Hz, 1080P 120Hz, 4K2K@50/60Hz (YUV444)
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH• Supports HDMI High Bit Rate(HBR) audio pass through
Audio sample rates up to 192kHz
10bits HDR (High Dynamic Range) pass through
Supports CEC bypass

Package Includes:

1 x Audio Extractor
1 x Power adapters
1 x User Manual

Trouble Shooting：
1.Dolby/DTS Issue: check your display compatibility about those formats. Our device does not decode on

Product information

Style:Audio Extractor Converter

Package Dimensions

4.6 x 3.8 x 2.8 inches

Item Weight

8.8 ounces

ASIN

B074HHSJVN

Item model number

JTD18G-H5CH

Customer Reviews

856 ratings

4.3 out of 5 stars

Best Sellers Rank

#20 in Video Converters

Is Discontinued By Manufacturer

Date First Available

August 2, 2017

Manufacturer

J-Tech Digital INC

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Feedback

Would you like to tell us about a lower price?

Product guides and documents

User Manual (PDF)

Customer reviews

5 star		70%
4 star		11%
3 star		6%
2 star		4%
1 star		9%

How are ratings calculated?

Top reviews from the United States

There was a problem filtering reviews right now. Please try again later.

Doesn't do what the average user needs it to.

Reviewed in the United States on December 28, 2018

Style: Audio Extractor ConverterVerified Purchase

Pros:
Works at 4K and 60hz
Optical and Audio Out both output at the same time.

Cons:
Surround Sound does not work on a LOT of devices.

I bought this to get sound off an HDMI cable. My setup doesn't work with an audio output from the TV which is why a box like this would exist. It is to get sound off the HDMI cable before it enters the TV. The only device that worked with surround sound off of the optical cable that I tested was a PS4. When you go into the audio settings on the PS4 you can change the sound type to Dolby Digital and the optical output on the converter will actually output surround sound. On every other device I tested it only outputted stereo so only my front speakers were working. I have tested this on:

1) A high-end gaming PC with a 1080 TI graphics card. The 1080 TI can output audio off of the HDMI output. However the problem is that since this converter is an HDMI pass-through the sound output the computer sees is just the TV. It doesn't see the J-Tech device as an output which is probably the issue that every other device I tested also experienced. My computer saw my HDMI output to my LG TV as an output. Since the computer only sees the LG TV it knows the TV only has stereo speakers and so it forces my computer to only output with a stereo signal, so my rear speakers don't work.

2) Playstation 4 - This is the only device that worked because the PS4 has an audio setting where you can force the output audio type to Dolby Digital and it allows the optical output from the converter to send a true 5.1 surround sound signal through the J-Tech device.

2) Nintendo Switch - The audio settings on the Nintendo Switch lets you select Stereo or Surround Sound, but not specifically Dolby Digital or other types. So I could only get a stereo signal off of the converter.

3) Xbox One - Same issue as PC and Nintendo Switch. Can't output a 5.1 signal because it only sees the TV as a stereo setup.

4) Sony BluRay Player - Only outputs stereo

Again the main problem is that most devices don't see the J-Tech box as an audio output. It passes the signal through to the TV so the TV is seen as only a stereo output. Even though I have a 5.1 Logitech Surround Sound system plugged into the optical output on the J-Tech converter most devices only see the TV as a stereo device so it only sends a stereo signal. I even switched the J-Tech device to the 5-Channel position and it still does the same thing. Unless you have a PS4 or only need a stereo sound signal this device will not work for you.

94 people found this helpful

Helpful

Eric

Astro A50 + Xbox Series X

Reviewed in the United States on February 19, 2021

Style: Audio Extractor ConverterVerified Purchase

I was upset when I realized that my new Xbox Series X did not have an optical port. This meant that I could no longer use my favorite headset, my Astro A50's. I spent a few hours digging around online and found out that people have had success using Audio Extractors as a workaround for the Xbox Series X.

This specific product was the most recommended since it supports 4k resolution and 60Hz frame rate. Just make sure you have at least 2 Ultra High Speed HDMI cables on hand.

1. One HDMI cable goes from your Xbox Series X and plugs into the Audio Extractor (HDMI IN).

2. The other HDMI cable goes from the Audio Extractor (HDMI OUT) into your TV/Monitor.

3. The Digital Optical Cable plugs into the Audio Extractor (OPTICAL OUT) and into your Astro MixAmp or charging station (OPTICAL IN).

4. Set the Audio Extractor to 5CH (your choices are TV, 2CH, and 5CH),

5. Go into "Xbox Volume and Audio Output" and select these settings:
Headset Format = STEREO UNCOMPRESSED
HDMI Audio = BITSTREAM OUT
Bitstream Format = DOLBY DIGITAL
Party Chat Output = HEADSET

And that's it! Now your Astro A40's or A50's will work exactly as they did with the older model Xbox. I hope this helps!

By the way, I am a pretty serious gamer and can promise you that this Audio Extractor has zero audio lag, sounds crystal clear, and keeps your video performance at 4k resolution with 60Hz frame rate.

Enjoy!

17 people found this helpful

Helpful

B. Lewis

Perfect for the Apple TV 4K 5th Gen!

Reviewed in the United States on October 15, 2017

Style: Audio Extractor ConverterVerified Purchase

My setup is to output HDMI to my TV and Toslink (optical audio) to my receiver. I was really disappointed when the 4th and 5th gen Apple TVs failed to include an optical audio out port. HDMI 2.2 is very particular around devices used as a splitter. I had to try several until I found this one. This one works perfectly! I get the DD 5.1 to the receiver and full 4K with HDR to the TV. It’s a very small, well made unit.

56 people found this helpful

Helpful

Dan K

Fixed my PS5 Audio Delay

Reviewed in the United States on November 30, 2020

Style: Audio Extractor ConverterVerified Purchase

I had an issue running my PS5 to my TV via HDMI, and then optical out from my TV to my receiver (my receiver doesn't support 4k/HDR). The audio was significantly delayed by half a second, easily. I wanted to see what my options were before spending $600 on a new receiver. I decided to try this extractor first since it specifically mentioned supporting HDR.

I hooked it all up, and voila, audio delay was GONE. However, I noticed my TV wasn't being recognized as HDR compatible. One step forward, one step back. Luckily they included a support card in the box, so I reached out to their support email. I received a reply within a hour on the day before Thanksgiving asking me to try the TV setting instead of 5.1 Soon as I did that, bam, HDR was up and running. Great response by their support team, and they helped save me a lot of money! Highly recommend this product for anyone in a similar situation.

18 people found this helpful

Helpful

W. Lin

NOTE: Does not work with production switchers

Reviewed in the United States on February 4, 2019

Style: Audio Extractor ConverterVerified Purchase

Wanted to write this review for the sake of all of those people out there working on productions.

I purchased this in order to extract the audio from an Apple TV that I was going to connect into the Blackmagic ATEM 1 Production Studio. Audio would then feed into sound mixer board. The system is configured for 1080p 59.94, and the the Apple TV is able to display the image just fine on the Blackmagic. When I introduce the JTech audio extractor in the HDMI path, things get really wonky. The display shows up but is flickering in and out constantly, so you can't get any solid connection. This happens for each audio option. Also tried plugging in a computer to the JTech and having that output and it is the same problem. I imagine this might work fine if connected to a TV, but it's not a solution for production environment. I'm not sure what the internals are doing such that it does not just pass through the HDMI signal, and so everything gets choppy once it hits the video switcher.

I've also tried the non-4K version of the JTech audio extractor and it is the same problem. Still on the search for an adapter that will do what I need to do and have a true pass-through so that the HDMI connection is not affected.

24 people found this helpful

Helpful

Top reviews from other countries

Amazon Customer

Great build quality

Reviewed in Canada on January 1, 2020

Style: Audio Extractor ConverterVerified Purchase

Perfect to maintain full Dolby vision and get sound with a avr that does not support full 4 k, be sure to get this one vs cheaper ones as they may not support full 4 k, of course if that is what you need.

One person found this helpful

good product

Reviewed in Canada on September 12, 2020

Style: Audio Extractor ConverterVerified Purchase

Good

Perfect for Xbox Series X with 5.1 speaker setup without an AVR

Reviewed in Singapore on December 10, 2020

Style: Audio Extractor ConverterVerified Purchase

Works great with my Xbox Series X playing games at 4K 60Hz HDR and 5.1 speaker setup

One person found this helpful

See all reviews
